Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
VE811
Category
Audio & Video Consoles/Extenders
Overview

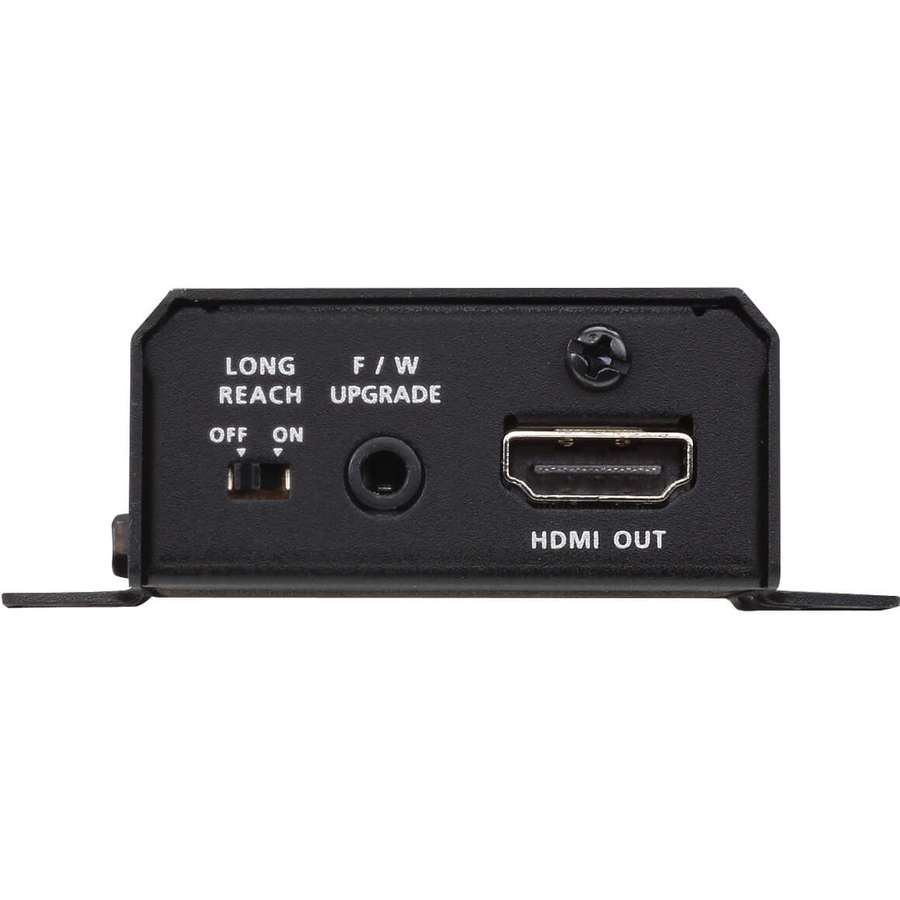

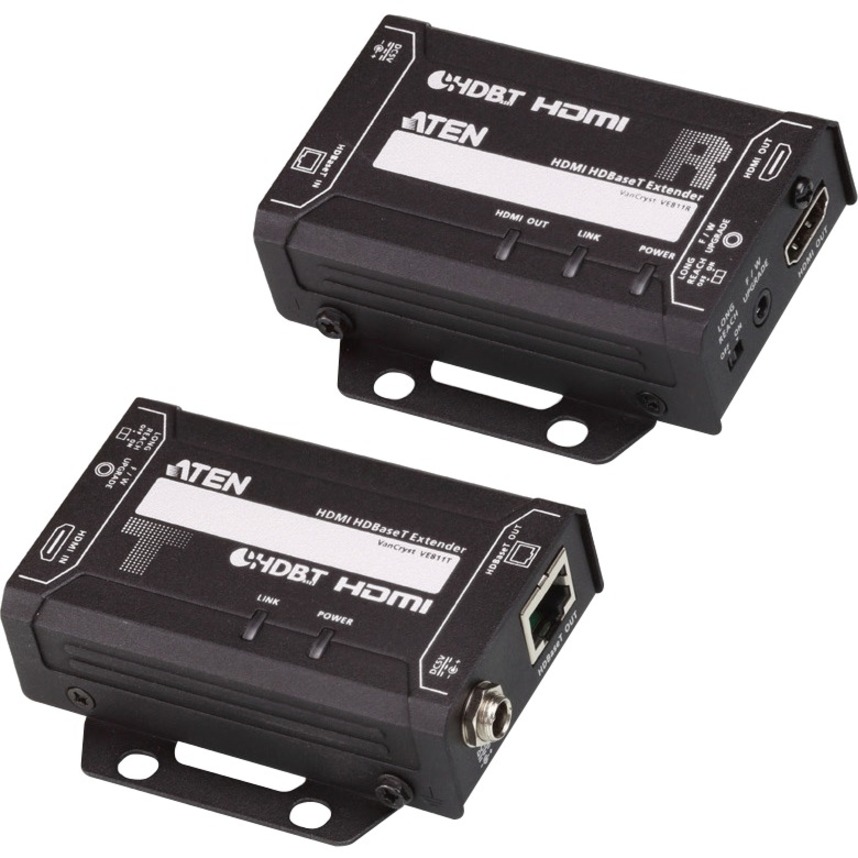

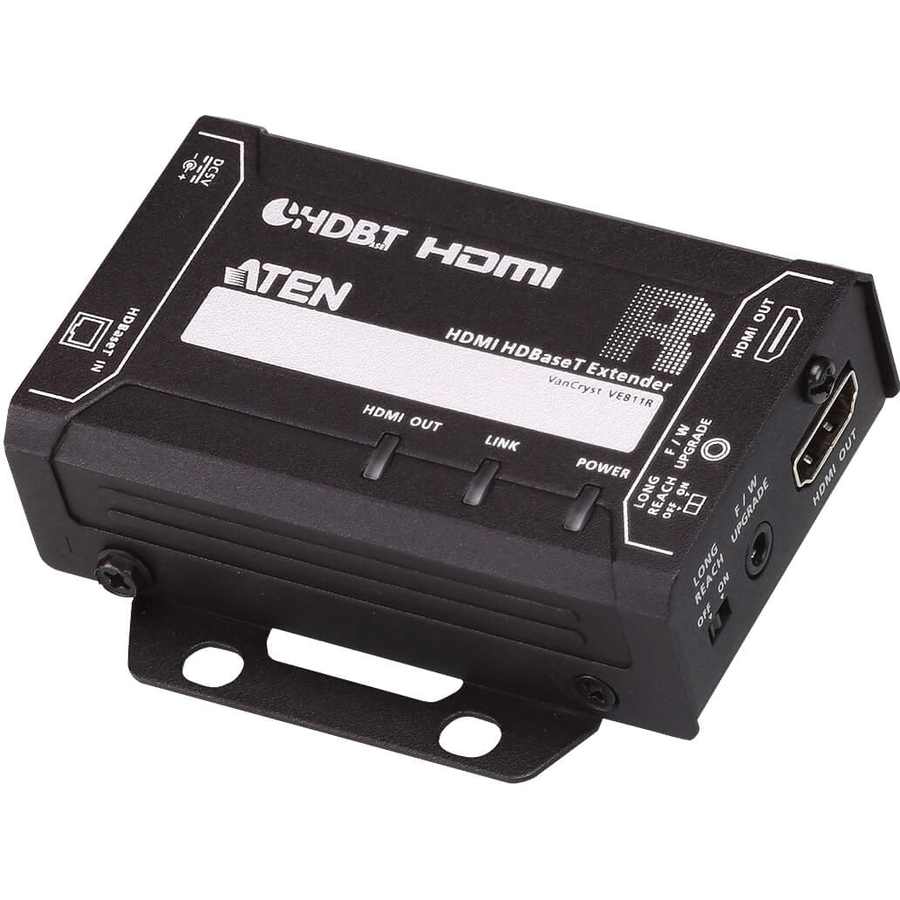

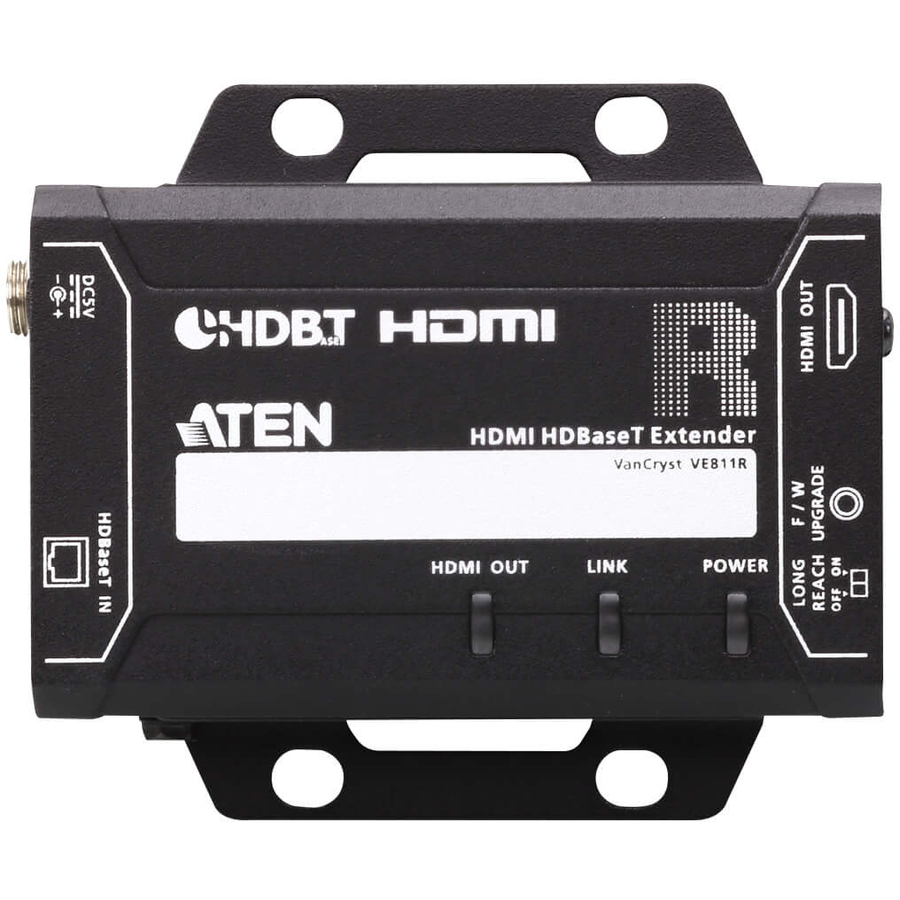

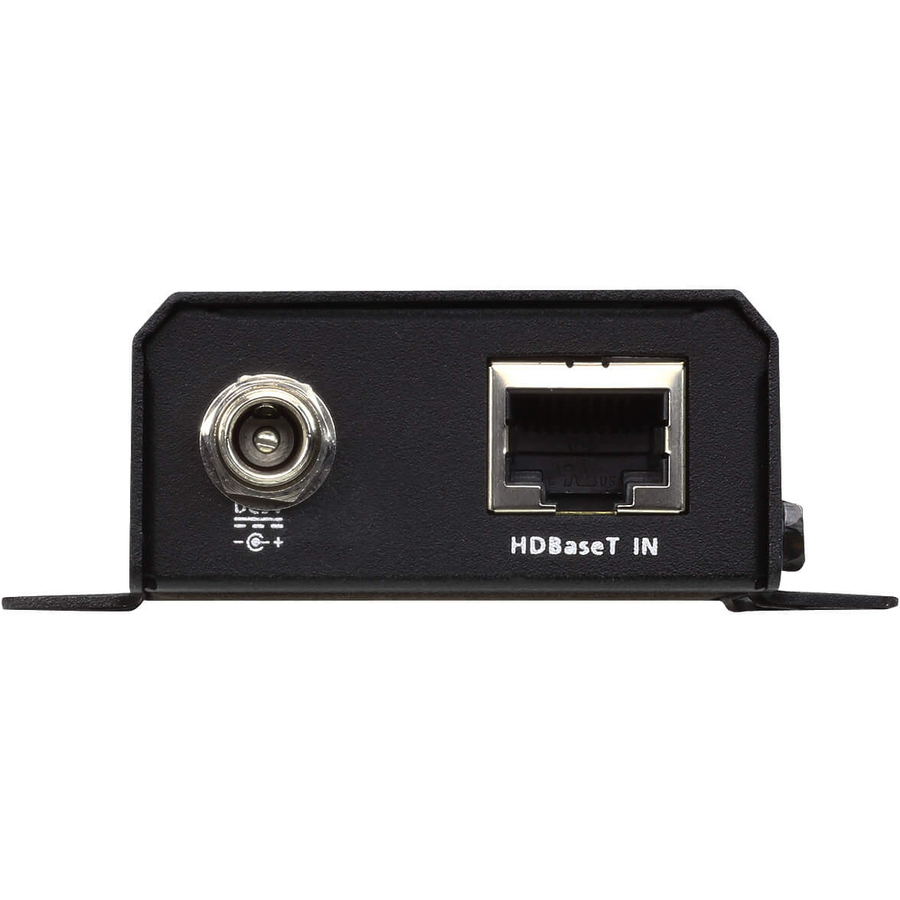

The ATEN VE811 HDMI HDBaseT Extender guarantees the optimum HDMI connection up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. The VE811 meets HDMI Specification features including 3D, Deep Color, HD lossless audio formats and CEC pass-through. It supports Dolby Digital 5.1, DTS HD audio and video signals at resolutions up to 4K. In addition, the VE811 supports long reach mode, providing an effective means for extending HDMI signals up to 150m over a single Cat 5e/6 cable.
Pushing the technology and design to the limit, the compact design makes the VE811 easy to mount in any location. Engineered for today's digital trends, the VE811 is ideal for meeting rooms, or any setting that requires high quality HDMI video to be extended for great distances.
More from the Manufacturer
Highlights
HDBaseT Connectivity - extends an HDMI connection up to 100m via a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
Supports HDBaseT Long Reach Mode - up to 150 m via a single Cat 5e/6 cable at resolutions up to 1080p
HDMI (3D, Deep Color, 4K)
HDCP 2.2 compatible
Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
Consumer Electronic Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
Supports wide screen format
Plug and play - no software required
Built- in 8KV/ 15 KV ESD protection
Rack Mountable
Specifications
Package Contents
1 x VE811T HDMI HDBaseT Transmitter
1 x VE811R HDMI HDBaseT Receiver
2 x Power Adapters
1 x User Instructions
Product Type
Video Extender Transmitter/Receiver
Manufacturer Part Number
VE811
Connectivity Technology
Wired
Form Factor
Surface-mountable, Rack-mountable
Manufacturer
ATEN Technology, Inc
Product Model
VE811
Product Name
HDMI HDBaseT Extender (4K@100m) (HDBaseT Class A)
Product Line
VanCryst
Brand Name
ATEN
Country of Origin
Taiwan
Graphics Modes
4K
Environmentally Friendly
Yes
Maximum Video Resolution
4096 x 2160
Twisted Pair Cable Standard
Category 6a
Maximum Operating Distance
492.13 ft
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Number of HDMI Inputs
1
Number of HDMI Outputs
1
HDMI In
Yes
HDMI Out
Yes
Media Type Supported
Twisted Pair
Number of Output Devices Supported
1
Number of Input Devices Supported
1
Transmitter Height
0.97"
Transmitter Width
2.87"
Transmitter Depth
3.40"
Transmitter Weight (Approximate)
11.64 oz
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
