Overview
Manage power in one place.
These hubs provide up to eight or sixteen power outputs in one place. The power distribution units feature a single power supply with an optional secondary, to deliver full power redundancy. The Central Power Hub (CPH) supports 5VDC or 12VDC devices in a 1U chassis for convenient rack mounting. It provides power to grow your installation on demand.
The power output ports are lockable, preventing accidental disconnects. Each output is limited to 20 Watts at 12V.
Hot swappable power modules.
The chassis can supply two 460W power modules slot into the back of the Power Hub chassis. Conversion from the mains AC supply to DC voltage occurs within these modules. In situations where redundancy is required, the Power Hub will equally balance a normal load between them. In the case of one module ceasing operation, the Hub automatically transfers the full load to the remaining module, which can easily handle the needs of up to 8 respectively 16 ports.
Protection.
Power integrity, safety, and management are at the heart of the Central Power Hub system. At start-up, the CPH automatically checks the validity of the power modules. It then enables each power output in sequence so they are do not overload the modules by starting simultaneously. As the system provides steady power to your installation, protections are in place to ensure against excess demand by anyone connected device.
Remote management.
The Central Power Hub can be controlled and monitored by a web interface. Temperature, fan speeds, and current measurements are viewable. Each output can be individually controlled.
• Support for dual power supplies for redundancy, unit comes with one power supply.
• Supports eight or sixteen 5VDC or 12VDC devices in a 1U chassis for convenient rack mounting.
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure. On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights
Power distribution unit (PDU) for use with Black Box high-performance KVM products.
Central power feed to 5V or 12V DC Black Box KVM switches and extenders with up to 20 watts per port.
A more efficient and reliable way to ensure uptime than having extra power adapters proliferate as your installation grows.
Secure WebUI for configuration and monitoring of system power status.
Highest resilience when equipped with second 600khrs power supply.

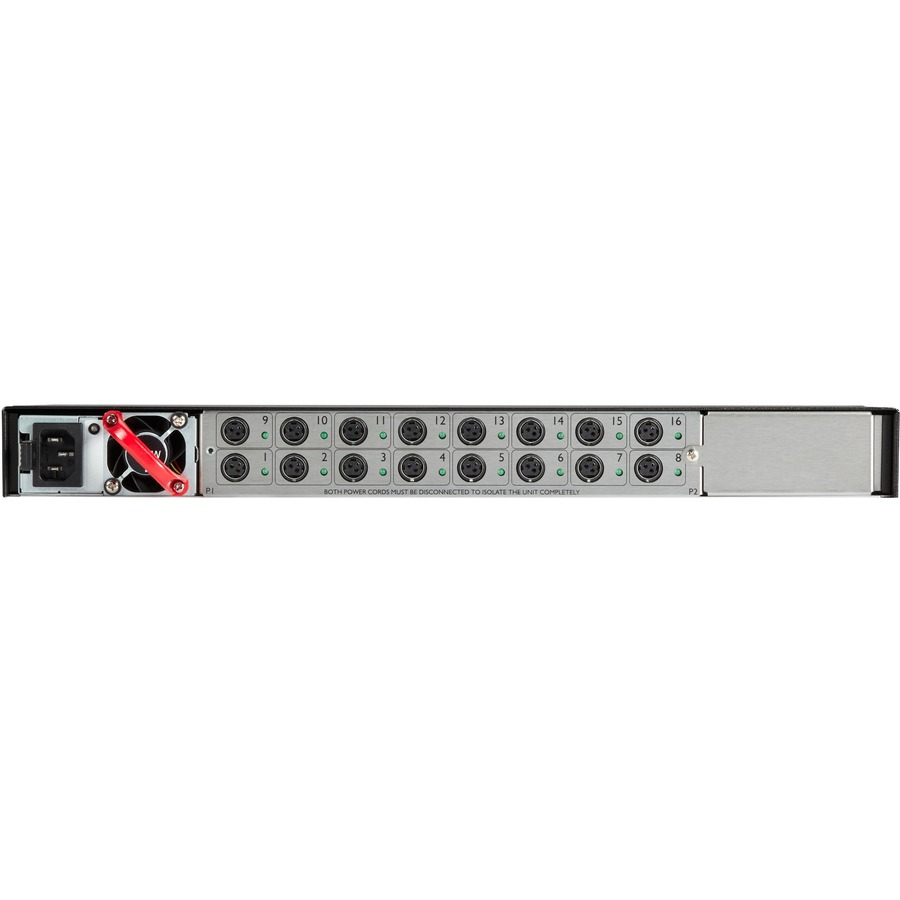

Clean professional installation with 8 or 16 lockable 3-pin DC connectors in only 1 RU.
Available with 8 or 16 independently controllable 12V outputs.
Use 12V to 5V converter cables to connect KVM units with 5VDC power feeds, or 3-pin lockable cables for KVM units with 12VDC power feeds.
3rd-party API control support.
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
ACR1000-CPH16R-R2
Brand Name
Black Box
Product Name
KVM Central Power Hub - 16-Port, 30W
Product Type
PDU
Interfaces/Ports
Network (RJ-45)
Yes
Physical Characteristics
Form Factor
Rack
Rack Height
1U
Height
1.7"
Width
17.1"
Depth
10.8"
Weight (Approximate)
9.92 lb
Power Description
Input Voltage
120 V AC, 230 V AC
Output Voltage
12 V DC
Power Rating (Watt)
30 W
Input Current
1.60 A
Technical Information
PDU Type
Hot-swappable
Plug/Connector Type
IEC 60320
Plug/Connector Detail
2 x IEC 60320
Receptacle Type
AC Power
Receptacle Detail
16 x AC Power
Miscellaneous
Package Contents
KVM Central Power Hub - 16-Port, 30W
1 x Power Supply
1 x Power Cord
1 x Safety Insert Envelope
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Waste Electrical and Electronic Equipment Directive (WEEE)
