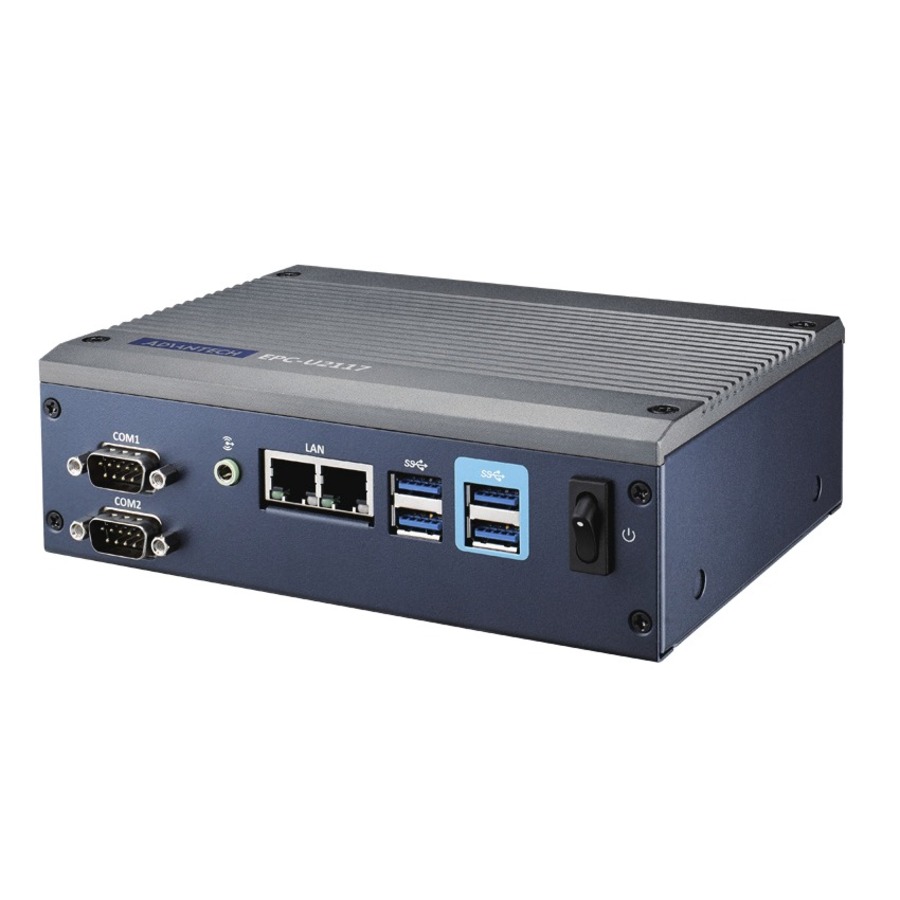

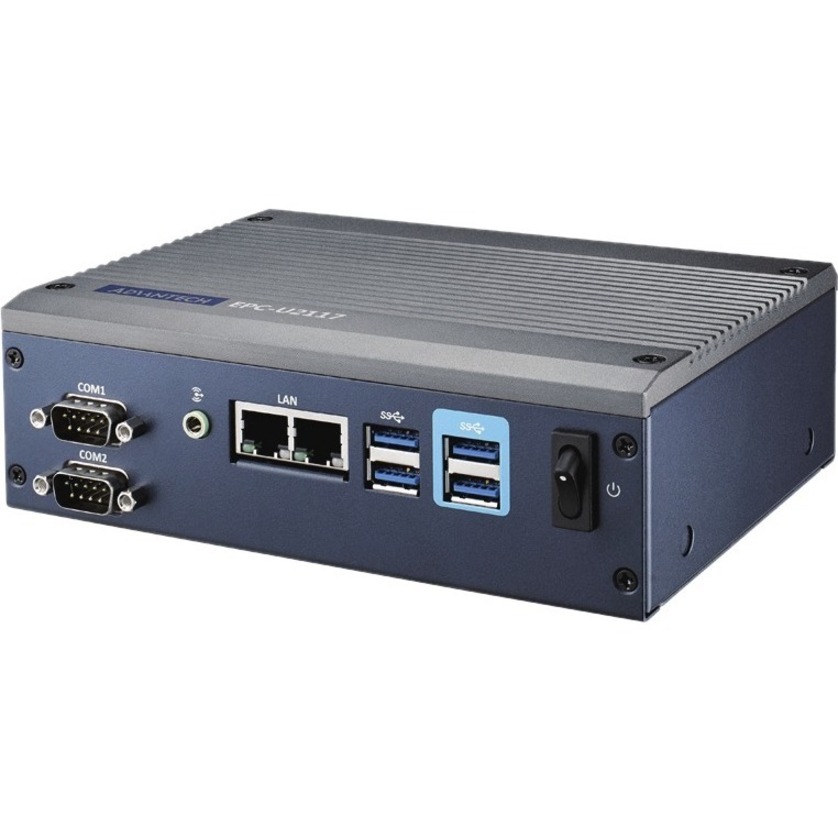

Advantech EPC-U EPC-U2117 Desktop Computer - Intel Atom x5-E3930 - 4 GB - 32 GB Flash Memory Capacity - Box PC
Advantech

Advantech EPC-U EPC-U2117 Desktop Computer - Intel Atom x5-E3930 - 4 GB - 32 GB Flash Memory Capacity - Box PC

Intel DDR3L SDRAM - 36 W

SKU
EPC-U2117E3W-03Y10
Category
Desktop Computers

$494.80

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EPC-U2117E3W-03Y10
Category
Desktop Computers

Highlights

  • Intel® Atom Quad Core/Dual Core Processor
  • Palm-size form factor: 170 (L) x 117 (W) x 52.6 mm (H)

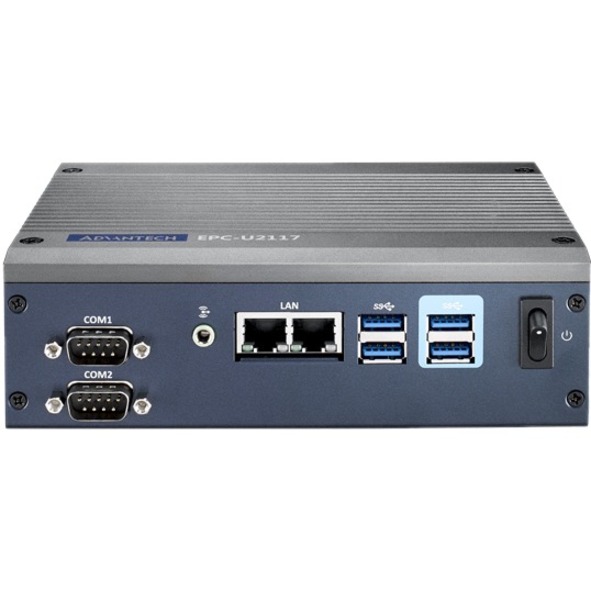

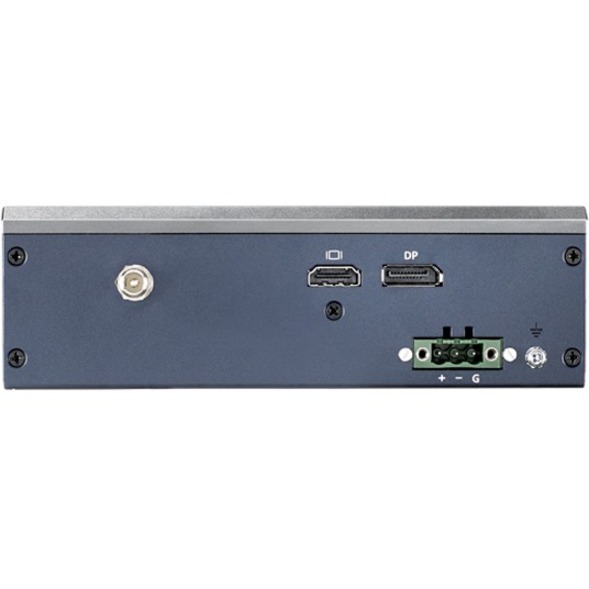

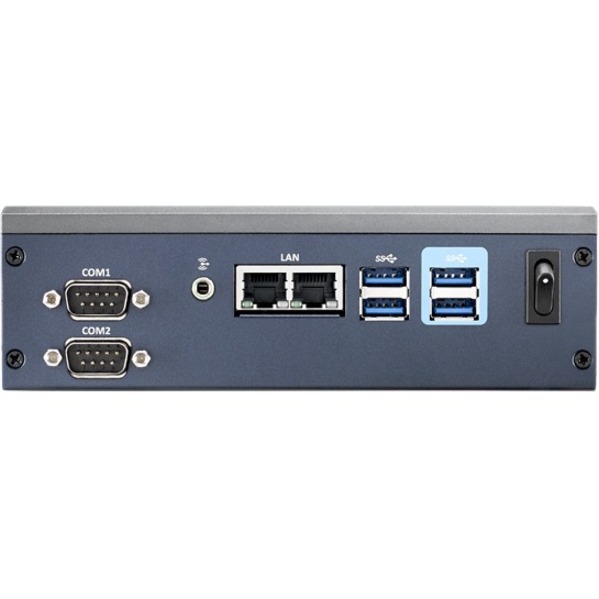

  • Supports 2 x LAN, 2 x COM port, 1 x HDMI, 1 x Display Port, 4 x USB3.0, CANBus, and DCIN 12~24V
  • Built-in 1 x M.2 expansion slot (i.e.: Wi-Fi module), 1 x Full size Mini PCIe expansion slot (i.e.: mSATA/ 3G/LTE module)
  • Support on-board eMMC and 1 x 2.5" HDD or SDD storage.
  • Wide operating temperature -20 ~ 60 °C support
  • Complete certification for EMC and Safety

Specifications

Package Contents
  • EPC-U2117 Desktop Computer
  • Power Adapter
Product TypeDesktop Computer
Input Voltage120 V AC, 230 V AC
Manufacturer Part NumberEPC-U2117E3W-03Y10
Standard Memory4 GB
Form FactorBox PC
ManufacturerAdvantech Co., Ltd
Product ModelEPC-U2117
Product NameEPC-U2117 Desktop Computer
Processor TypeAtom
Product SeriesEPC-U
Brand NameAdvantech
Memory TechnologyDDR3L SDRAM
Processor Modelx5-E3930
Country of OriginChina
Height2.1"
Width4.6"
Depth6.7"
Environmentally FriendlyYes
Flash Memory Capacity32 GB
Processor ManufacturerIntel
Graphics Controller ManufacturerIntel
Graphics Memory TechnologyDDR3L SDRAM
Graphics Memory AccessibilityShared
Ethernet TechnologyGigabit Ethernet
HDMIYes
Maximum Power Supply Wattage36 W
Total Number of USB Ports4
Number of USB 3.0 Ports4
LAN ModelRTL8111G
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
