Advantech EPC-R4760 Desktop Computer - ARM Cortex A53 - 1 GB - 8 GB Flash Memory Capacity - Box PC
Qualcomm APQ8016 Chip - IEEE 802.11b/g/n Wireless LAN
- SKU
- EPC-R4760CQ-QNA1E
- Category
- Desktop Computers
$429.11
Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EPC-R4760CQ-QNA1E
- Category
- Desktop Computers
Overview
Introduction

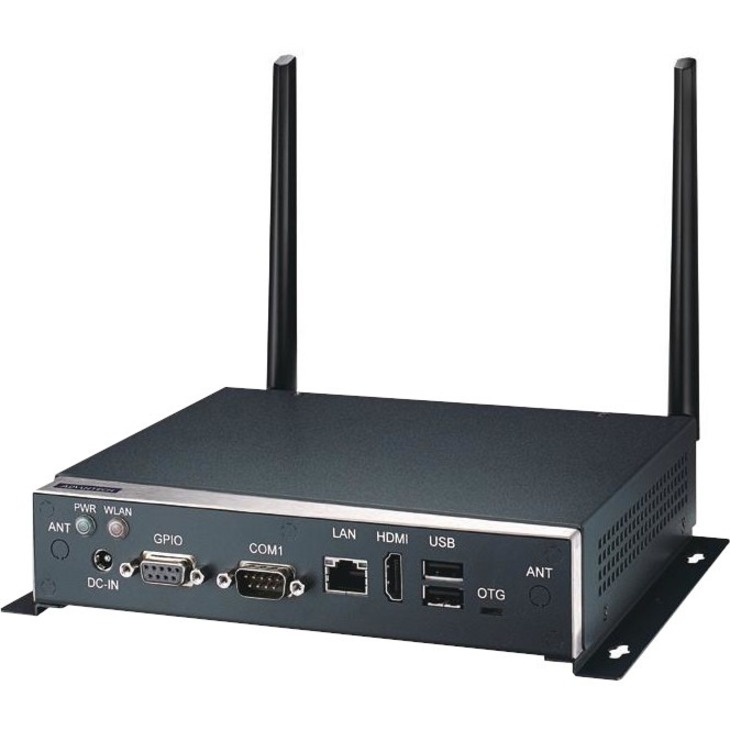

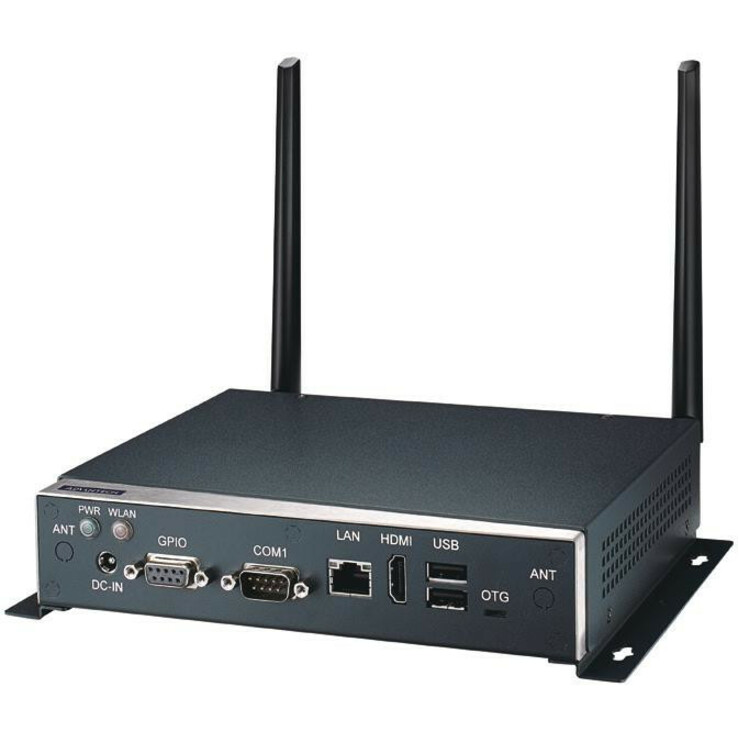

EPC-R4760 is an ARM based Box Computer powered by Qualcomm ARM® Cortex®-A53 APQ8016 processor that supports full HD display and intergrades on board wireless solution - Wi-Fi, BT and GPS. EPC-R4760 also features in mini PCIe, M.2, and SIM card slots for expanding connectivity capability, like 3G, 4G/LTE modules. Equipped with complete Android, Linux and Win10 IoT core BSPs, this box computer enables customers to easily develop unique application on specific OS.
Highlights
- Qualcomm ARM® Cortex®-A53 APQ8016 Quad core up to 1.2 GHz
- Onboard 1GB/2GB LPDDR3 memory and 8GB eMMC
- 1 HDMI, 1 RS-232/422/485, 1 GbE, 4 USB 2.0, 8 GPIO
- Highly intergrated on-board wireless connectivity - Wi-Fi, BT, and GNSS
- Connevtivity expansion capability - M.2, mini-PCIe
- Wide voltage range DC power input
- Support Android, Linux and Debian
Specifications
| Product Type | Desktop Computer |
|---|---|
| Manufacturer Part Number | EPC-R4760CQ-QNA1E |
| Limited Warranty | 2 Year |
| Standard Memory | 1 GB |
| Form Factor | Box PC |
| Manufacturer | Advantech Co., Ltd |
| Product Model | EPC-R4760 |
| Product Name | Qualcomm APQ-8016 Cortex-A53 ARM Based Box Computer |
| Processor Type | Cortex A53 |
| Brand Name | Advantech |
| Memory Technology | LPDDR3 |
| Processor Core | Quad-core (4 Core) |
| Environmentally Friendly | Yes |
| Flash Memory Capacity | 8 GB |
| Processor Manufacturer | ARM |
| Chipset Manufacturer | Qualcomm |
| Chipset Model | APQ8016 |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11b/g/n |
| Ethernet Technology | Gigabit Ethernet |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 4 |
| Maximum Turbo Speed | 1.20 GHz |
| LAN Model | LAN7500 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
