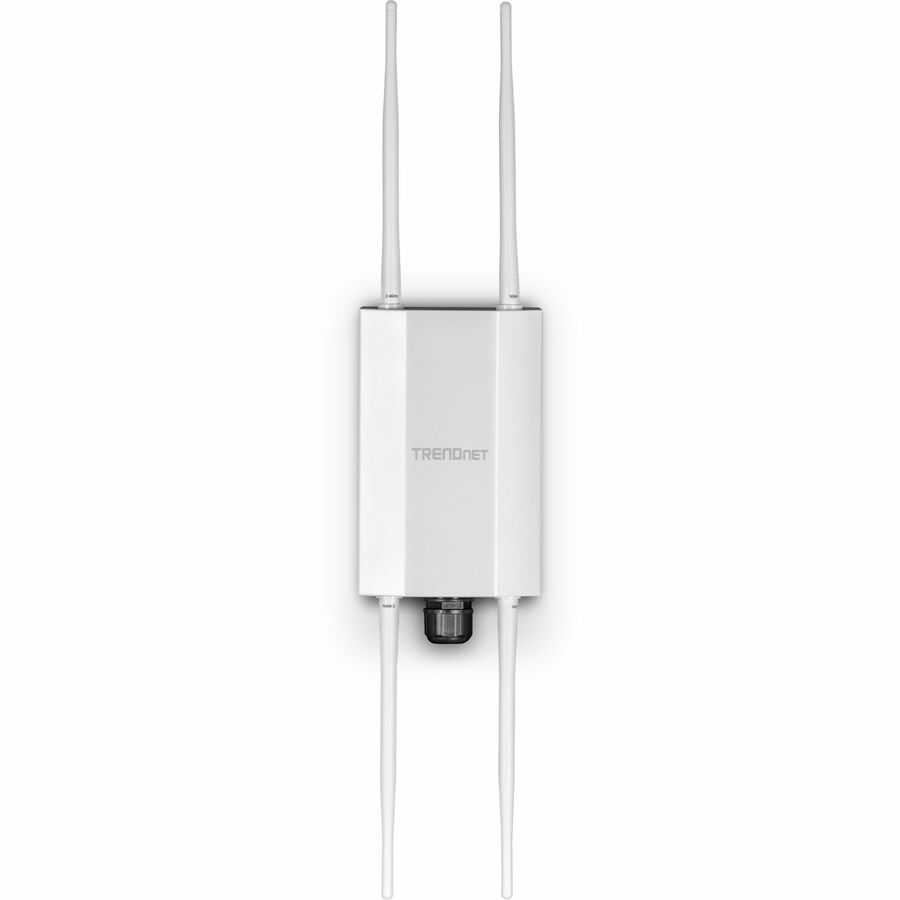

TRENDnet 5 dBi WiFi 6 AX1800 Outdoor PoE+ Omni Directional Access Point, TEW-941APBO, Point-to-Point and Point-to-Multi-Point Bridge, IP67 Weather Rated Housing, PoE+ Powered, White

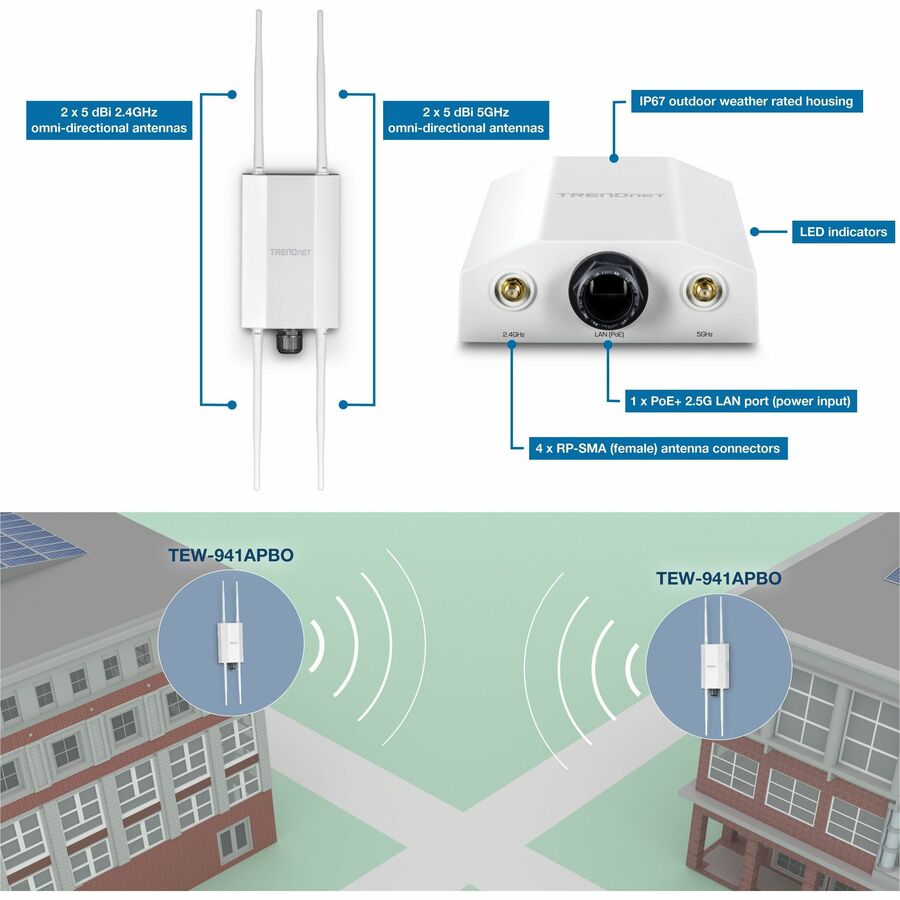

• DEVICE INTERFACE: 1 x PoE+ 2.5G LAN port (power input); 4 x RP-SMA (female) antenna connectors; LED indicators

• WIRELESS MULTI-POINT BRIDGE: Use this dual band wireless AX1800 point-to-multi-point bridge to conveniently link two or more locations together with WiFi 6 AX1800 speeds and performance.

• OMNI-DIRECTIONAL ANTENNAS: The Access point is equipped with 2 x 5 dBi 2.4GHz antennas, 2 x 5 dBi 5GHz antennas

• AX1800 WIFI 6: Supports dual band WiFi 6 AX1800 to maximize point-to-point networking speeds and WiFi client connectivity

• OUTDOOR READY: Built for outdoor environments with an IP67 weather rating, and an operating temperature range of -22° - 60° C (-7.6° - 140° F).

• POE+ POWERED: Supports 2.5G 802.3at PoE+ power input

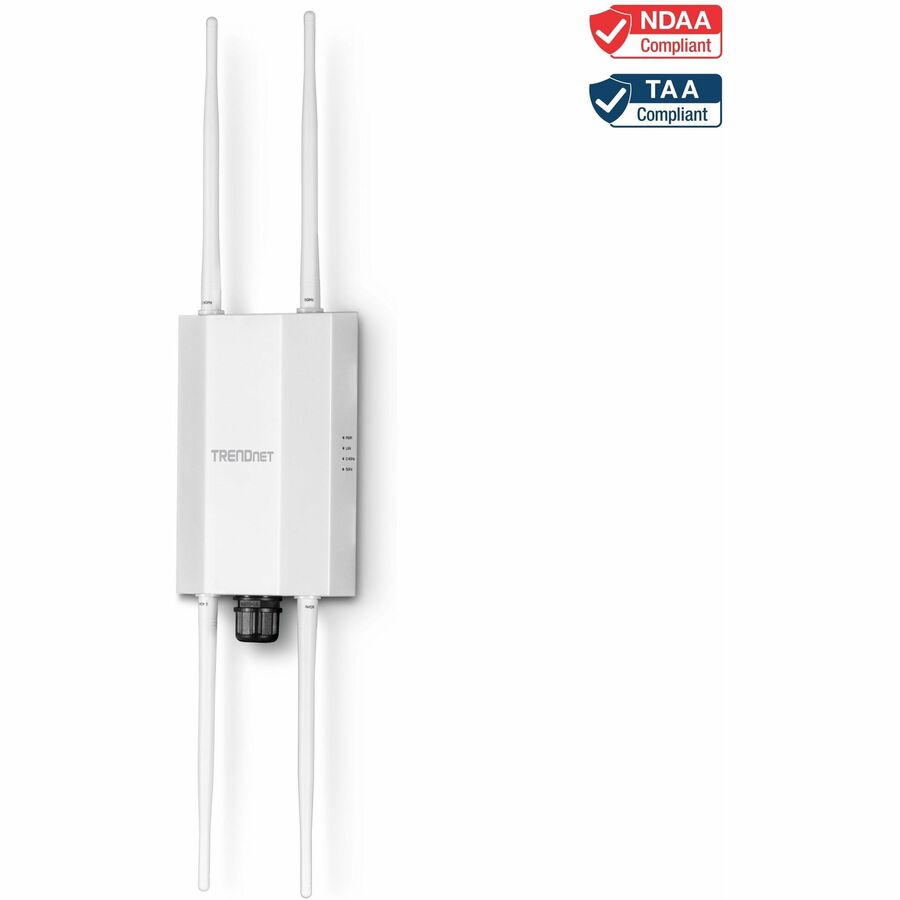

• NDAA / TAA compliant (U.S. and Canada only)

TRENDnet's 5 dBi WiFi 6 AX1800 Outdoor PoE+ Omni-Directional Access Point, model TEW-941APBO, is designed for point-topoint and point-to-multi-point WiFi bridging applications. This WiFi 6 outdoor access point can be powered with an IEEE 802.3at PoE+ switch or injector. The WiFi 6 outdoor omnidirectional AP supports point-to-point and point-to-multi-point scenarios with Access Point, Client Bridge, and Repeater modes. The IP67 rated housing on this WiFi 6 outdoor access point is designed for outdoor environments, and conveniently includes wall and pole mounting hardware.

Easily manage and configure TRENDnet's 5 dBi WiFi 6 AX1800 Outdoor PoE+ Omni-Directional Access Point remotely with TRENDnet Hive. TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with this WiFi 6 access point and TRENDnet's reliable cloud service.

Wireless Multi-Point Bridge

Use this dual band wireless AX1800 point-to-multi-point bridge to conveniently link two or more locations together with WiFi 6 AX1800 speeds and performance

AX1800 WiFi 6

This WiFi 6 outdoor access point supports dual band WiFi 6 AX1800 to maximize point-to-point networking speeds and wireless client connectivity.

Outdoor Ready

Built for outdoor installations with an IP67 outdoor protection rating and an operating temperature range of -22° - 60° C (-7.6° - 140° F).

More from the Manufacturer

TRENDnet’s 5 dBi WiFi 6 AX1800 Outdoor PoE+ Omni-Directional Access Point, model TEW-941APBO, is designed for point-to-point and point-to-multi-point WiFi bridging applications. This WiFi 6 outdoor access point can be powered with an IEEE 802.3at PoE+ switch or injector. The WiFi 6 outdoor omnidirectional AP supports point-to-point and point-to-multi-point scenarios with Access Point, Client Bridge, and Repeater modes. The IP67 rated housing on this WiFi 6 outdoor access point is designed for outdoor environments, and conveniently includes wall and pole mounting hardware.

Easily manage and configure TRENDnet’s 5 dBi WiFi 6 AX1800 Outdoor PoE+ Omni-Directional Access Point remotely with TRENDnet Hive. TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with this WiFi 6 access point and TRENDnet’s reliable cloud service.

Wireless Multi-Point Bridge

Use this dual band wireless AX1800 point-to-multi-point bridge to conveniently link two or more locations together with WiFi 6 AX1800 speeds and performance.

AX1800 WiFi 6

This WiFi 6 outdoor access point supports dual band WiFi 6 AX1800 to maximize point-to-point networking speeds and wireless client connectivity.

Outdoor Ready

Built for outdoor installations with an IP67 outdoor protection rating and an operating temperature range of -22° – 60° C (-7.6° – 140° F).

FEATURES

Concurrent Dual Band

AX1800: Concurrent 1201Mbps

(5GHz) + 573Mbps (2.4GHz) bands

Omni-Directional Antenna

2 x 5 dBi 2.4GHz antennas, 2 x 5

dBi 5GHz antennas

Multiple SSID

Create up to eight dual band SSIDs

with band steering capabilities

Wireless Modes

Supports Access Point, Client

Bridge, and Repeater modes

PoE+ Powered

Supports 2.5G 802.3at PoE+ power

input

Mounting Hardware

Pole and wall mount hardware are

conveniently included with this WiFi

6 outdoor access point

Outdoor Rated

The outdoor wireless 6 access point

features a durable enclosure with

an IP67 weather rating

Encrypted Wireless

Support for wireless encryption of

up to WPA3

Hive Enabled (Optional)

Remotely monitor, manage,

configure, and diagnose this WiFi 6

access point via TRENDnet’s

reliable cloud service (Additional

fee applies)

• Dual band WiFi 6 AX1800 point-to-point and point-to-multi-point bridge

• 2 x 5 dBi 2.4GHz omni-directional antennas

• 2 x 5 dBi 5GHz omni-directional antennas

• 1 x 2.5G PoE+ LAN port

• Supports Access Point, Client Bridge, and Repeater modes

• IP67 outdoor weather rated housing

• Supports IEEE 802.3at PoE+

• Remote cloud management available with TRENDnet Hive (Additional fee applies)

• NDAA / TAA compliant (U.S. and Canada only)

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3at

IEEE 802.3bz

IEEE 802.1Q

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n (5GHz: up to 300Mbps, 2.4GHz: up to 300Mbps)*

IEEE 802.11r*

IEEE 802.11v

IEEE 802.11ac (5GHz: up to 867Mbps)*

IEEE 802.11ax (5GHz: up to 1201Mbps, 2.4GHz: up to 573Mbps)*

Hardware Interface

1 x PoE+ 2.5G LAN port (power input)

4 x RP-SMA (female) antenna connectors

LED indicators

Features

802.11ax WiFi 6 support

IP67 rated housing

MU-MIMO

Airtime fairness

Band steering

802.1Q VLAN assignment per SSID

IPv6 support

LEDs on/off

802.11k intelligent radio resource management

RSSI Threshold (client signal strength and connectivity control)

LLDP

Bonjour/UPnP

Operation Modes

Access Point

Client Bridge

Repeater

Management/Monitoring

Web based management (HTTP/HTTPS)

Command Line Interface (SSH)

SNMP v2c/v3

Spanning Tree Protocol (STP)

Event logging

Ping test

Traceroute

Performance throughput test

Schedule WiFi radio enable/disable

Ping watchdog/gateway connection monitor

Reboot & scheduled automatic reboot

Channel utilization scan/AP detection

Hive Cloud Management

Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app

Multi-device management

Provisioning through scheduled batch firmware or configuration updates for multiple switches

Event/hardware network monitoring (CPU/memory utilization)

Configure features such as IP address settings, WiFi settings, operation modes, and LED control through cloud management

Access Control

Wireless encryption: OWE (Opportunistic Wireless Encryption), WPA/WPA2/WPA3-RADIUS (Enterprise), WPA-PSK/WPA2-PSK/WPA3-SAE (Personal)

MAC filter (max. entries: 32)

Maximum client limit

Client isolation/separate stations

QoS

WMM

Bandwidth control per SSID

SSID

Up to 8 SSIDs per wireless band (16 total)

Frequency

2.4GHz: 2.412 – 2.472GHz

5GHz: 5.180 – 5.825GHz

Wireless Channels

2.4GHz: 1–11

5GHz: 36, 40, 44, 48, 149, 153, 157, 161 and 165

Modulation

DBPSK/DQPSK/CCK for DSSS technique

BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA

Antenna Gain

2.4GHz: 2 x 5 dBi external

5GHz: 2 x 5 dBi external

Antenna Pattern

2.4GHz H-Plane

2.4GHz E-Plane

5GHz H-Plane

5GHz E-Plane

Wireless Output Power

802.11a: 21 dBm (max.)

802.11b: 19 dBm (max.)

802.11g: 19 dBm (max.)

802.11n (2.4GHz): 19 dBm (max.)

802.11n (5GHz): 21 dBm (max.)

802.11ac: 21 dBm (max.)

802.11ax (2.4GHz): 19 dBm (max.)

802.11ax (5GHz): 21 dBm (max.)

Receiving Sensitivity

802.11a: -73 dBm (typical) @ 54 Mbps

802.11b: -88 dBm (typical) @ 11 Mbps

802.11g: -74 dBm (typical) @ 54 Mbps

802.11n (2.4GHz): -74 dBm (typical) @ 300 Mbps

802.11n (5GHz): -72 dBm (typical) @ 300 Mbps

802.11ac: -58 dBm (typical) @ 867 Mbps

802.11ax (2.4GHz): -59 dBm (typical) @ 573 Mbps

802.11ax (5GHz): -53 dBm (typical) @ 1201 Mbps

Power

IEEE 802.3at Type 2 PoE+ PD Class 4

Max. consumption: 25W

Operating Temperature

-22° – 60° C (-7.6° – 140° F)

Operating Humidity

Max. 90% non-condensing

Certifications

FCC

Dimensions

122 x 205 x 45mm (4.8 x 8.07 x 1.77 in.)

Weight

706g (24.9 oz.)

Warranty:

3 year

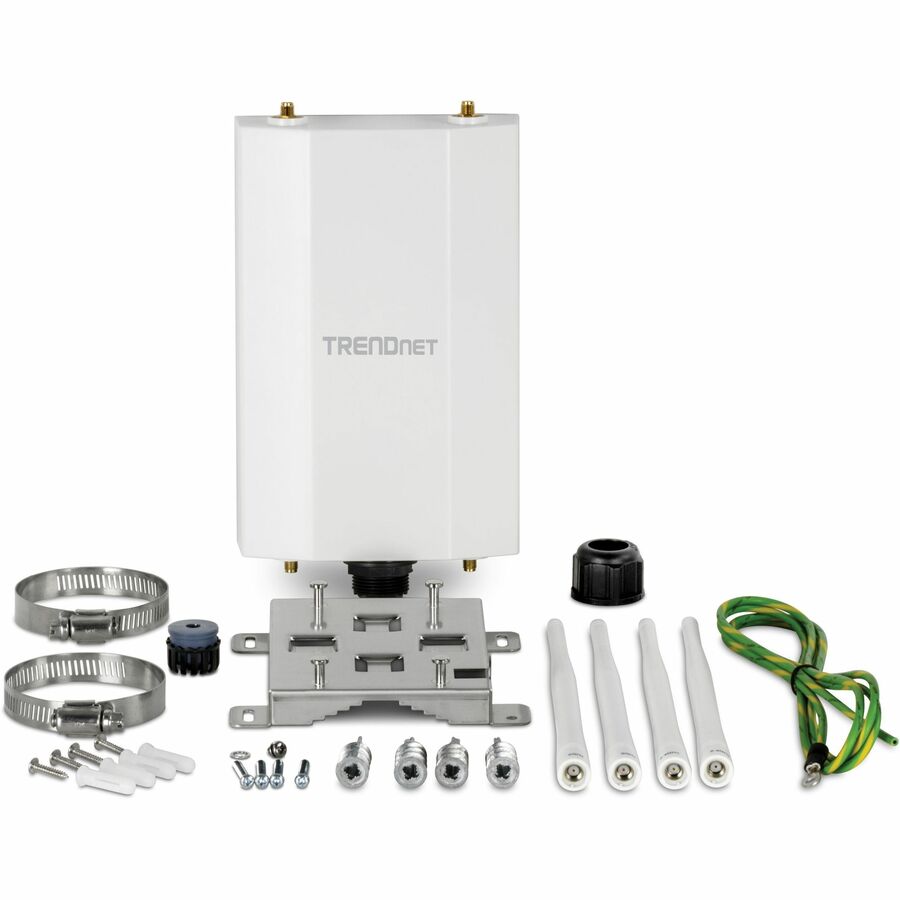

PACKAGE CONTENTS

TEW-941APBO

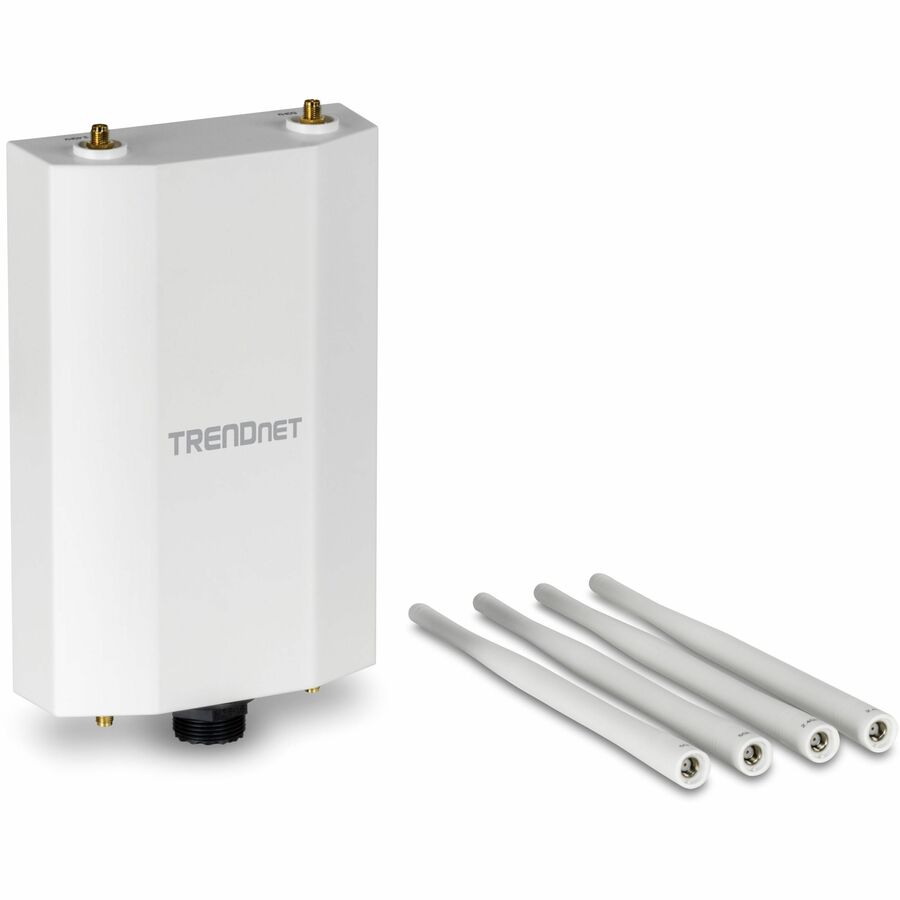

2 x Detachable 2.4GHz 5 dBi antennas

2 x Detachable 5GHz 5 dBi antennas

IP67 weather rated cable gland

Mounting hardware

Quick Installation Guide

Disclaimer

**Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 867Mbps use with an 867Mbps 802.11ac wireless adapter. For maximum performance of up to 300Mbps, use with a 300Mbps 802.11n wireless adapter. For maximum performance of up to 1201Mbps use with a 1201Mbps 802.11ax 5GHz wireless adapter. For maximum performance of up to 573Mbps use with a 573Mbps 802.11ax 2.4GHz wireless adapter. Multi-User MIMO (MU-MIMO) requires the use of multiple MU-MIMO enabled wireless adapters.

*Feature reserved for use when device is managed by TRENDnet Hive.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
