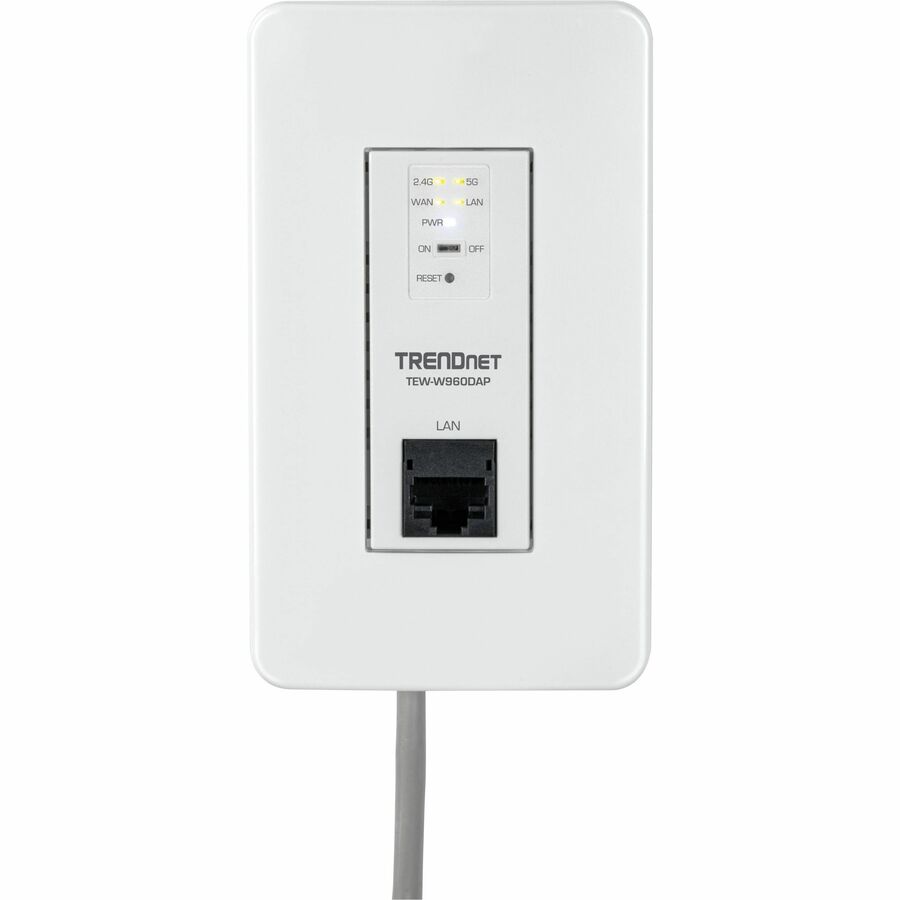

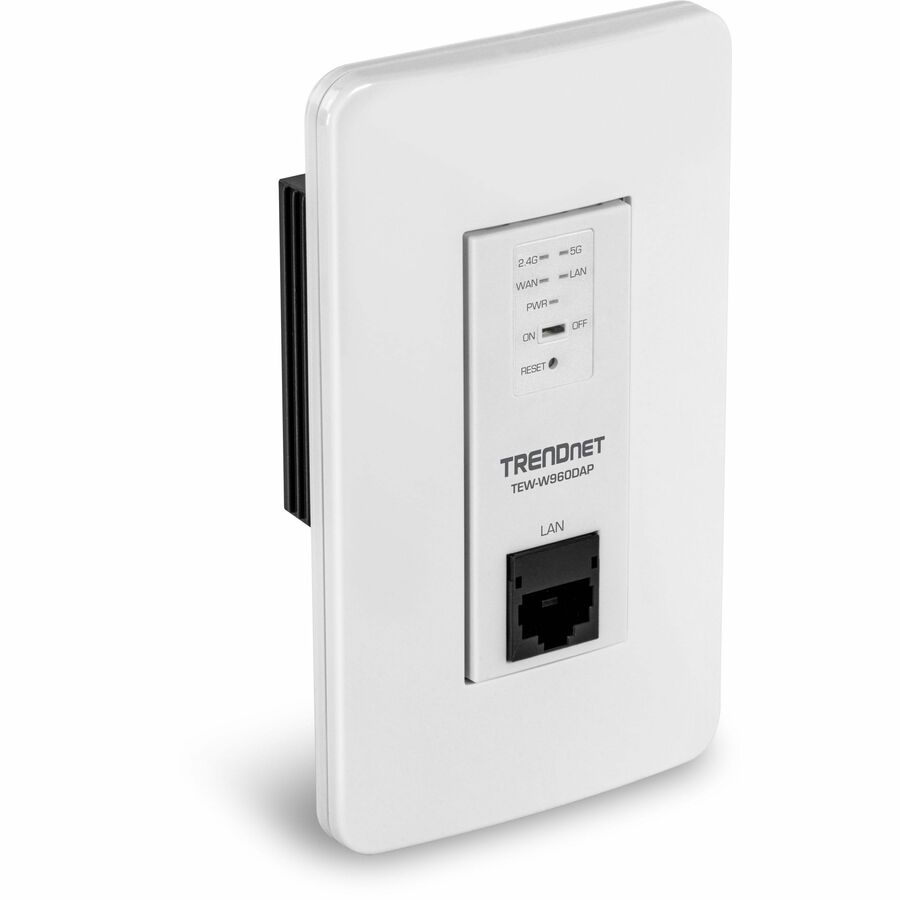

TRENDnet AX1800 Dual Band WiFi 6 PoE In-Wall Access Point, TEW-W960DAP, OFDMA & MU MIMO Technology, NDAA & TAA Compliant, Discreet Design, Remote Cloud Management Ready

TRENDnet's discreet AX1800 Dual Band WiFi 6 PoE In-Wall Access Point, model TEW-W960DAP, features two concurrent WiFi bands to maximize networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds up to 1201Mbps on the 5GHz band and 573Mbps on the 2.4GHz band. The in-wall access point includes a gigabit pass-through port.

Faster speeds are possible on this in-wall WiFi AP with 1024-QAM, OFDMA, and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network. The in-wall wireless access point features access control, bandwidth control, and band steering. The discreet housing design allows the device to be installed in a standard 1 gang box with included wall plates for easy installation.

Easily manage and configure TRENDnet's AX1800 Dual Band WiFi 6 PoE In-Wall Access Point remotely with TRENDnet Hive?. TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with this WiFi 6 access point and TRENDnet's reliable cloud service.

• DEVICE INTERFACE: 1 x 802.3af PoE Gigabit LAN port (power input); 1 x Gigabit LAN port (10/100/1000Mbps); LED Indicator: on/off Switch; Reset Button

• AX1800 WIFI 6: Two concurrent high-speed WiFi 6 bands to maximize device networking speeds: 1201Mbps on 5GHz and 573Mbps on 2.4GHz.

• BUILT FOR BUSY ENVIRONMENTS: MU-MIMO & OFDMA technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Industrial switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.

• IN-WALL INSTALLATION: Small discreet design allows for installation in a standard 1 gang box for a flush AP-in-wall installation.

• CONCURRENT DUAL BAND: AX1800: concurrent 1201Mbps on 5GHz band + 573Mbps on 2.4GHz band

• BAND STEERING: Band steering alleviates network congestion by automatically directing wireless devices from the 2.4GHz band to the 5GHz band

• WIFI TRAFFIC STEERING: Manage traffic allocation on the WiFi 6 in-wall access point per SSID for each band separately

• HIVE ENABLED (Optional): Remotely monitor, manage, configure, and diagnose this in-wall access point via TRENDnet's cloud service (Additional fee applies)

More from the Manufacturer

TRENDnet’s discreet AX1800 Dual Band WiFi 6 PoE In-Wall Access Point, model TEW-W960DAP, features two concurrent WiFi

bands to maximize networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds

up to 1201Mbps on the 5GHz band and 573Mbps on the 2.4GHz band. The in-wall access point includes a gigabit pass-through port.

Faster speeds are possible on this in-wall WiFi AP with 1024-QAM, OFDMA, and MU-MIMO technologies. MU-MIMO technology

processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.

The in-wall wireless access point features access control, bandwidth control, and band steering. The discreet housing design allows the

device to be installed in a standard 1 gang box with included wall plates for easy installation.

TEW-W960DAP

Easily manage and configure TRENDnet’s AX1800 Dual Band WiFi 6 PoE In-Wall Access Point remotely with TRENDnet Hive™.

TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or

personal cloud is required with this WiFi 6 access point and TRENDnet’s reliable cloud service.

FEATURES

AX1800 WiFi 6

Two concurrent high-speed WiFi 6 bands to

maximize device networking speeds:

1201Mbps on 5GHz and 573Mbps on 2.4GHz.

Built For Busy Environments

MU-MIMO technology processes multiple

data streams simultaneously, increasing

real-time WiFi performance when

multiple devices access the network.

In-Wall Installation

Small design allows for installation in

a standard 1 gang box for a flush APinwall installation.

Sed bibendum ullamcorper efficitur

Aenean mollis id sem quis porttitor. Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie velit, ut congue nulla dignissim quis. Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Suspendisse efficitur ante.

Concurrent Dual Band

AX1800: concurrent 1201Mbps on

5GHz band + 573Mbps on

2.4GHz band

Power over Ethernet (PoE)

Saves installation time and

setup costs with gigabit PoE

support

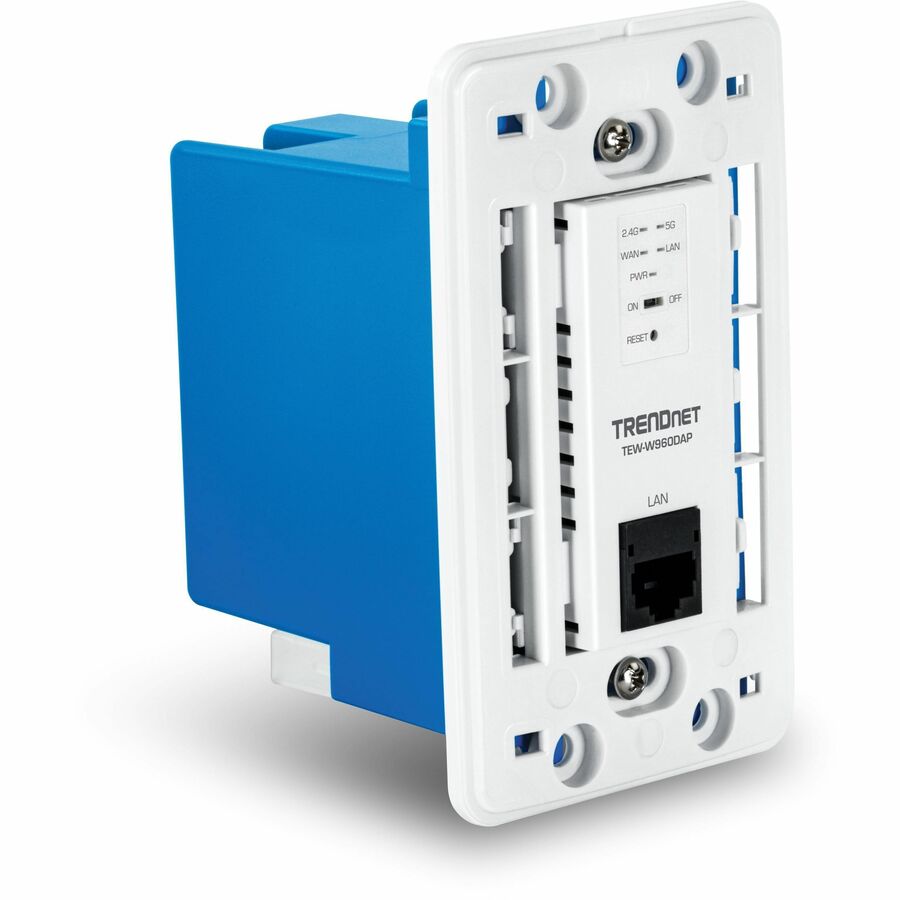

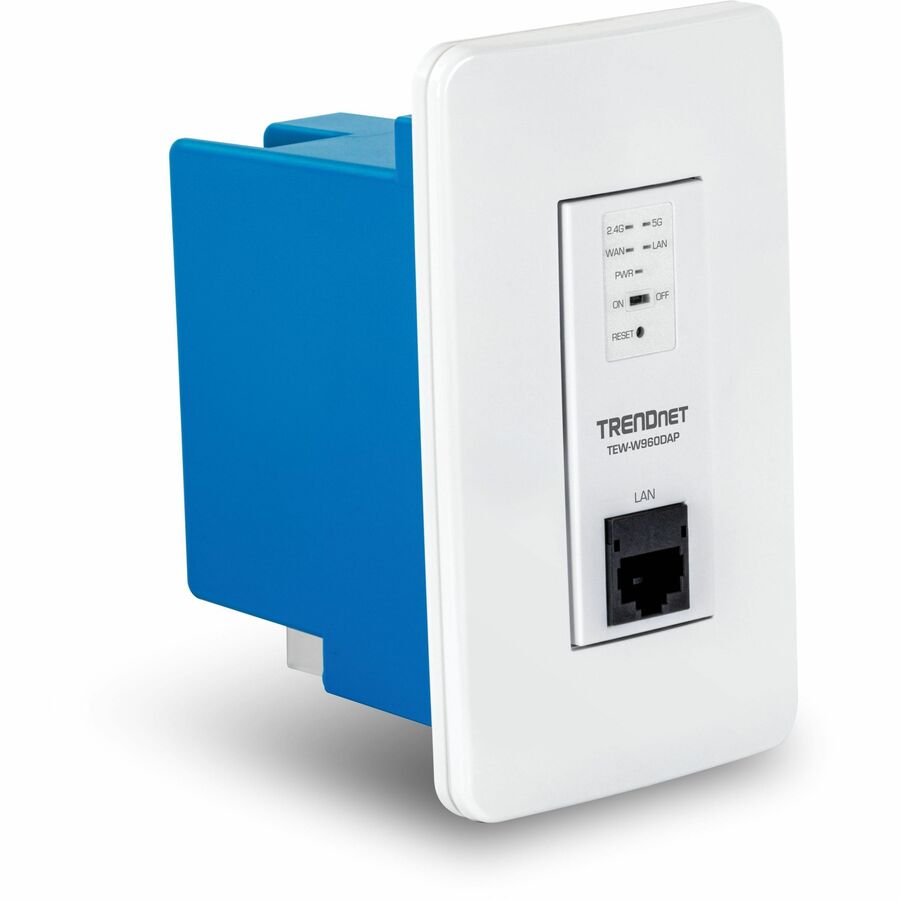

1 Gang Box

The in-wall access point is

designed to be installed in

a standard 1 gang box

MU-MIMO & OFDMAPerformance

MU-MIMO technology enables the

access point to process multiple

data streams simultaneously

along with WiFi 6 OFDMA

technology to increase real-time

WiFi performance

Band Steering

Band steering alleviates network

congestion by automatically

directing wireless devices from

the 2.4GHz band to the 5GHz

band

WiFi Traffic Shaping

Manage traffic allocation on

the WiFi 6 in-wall access point

per SSID for each band

separately

Encrypted Wireless

Support for wireless encryption

of up to WPA3

Multiple SSIDs

Create up to 8 SSIDs per band

(16 total)

Low Profile

Low-profile housing of the inwall access point design blends

into most environments

Wall Plates

Includes wall plates

LED Control

LED control reduces product

visibility by disabling the LED

indicator or turning off the LEDs

with the on/off switch

Hive Enabled (Optional)

Remotely monitor, manage,

configure, and diagnose this inwall access point via TRENDnet’s

cloud service (Additional fee

applies)

Specifications

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3af

IEEE 802.1Q

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11k**

IEEE 802.11n (up to 300Mbps)*

IEEE 802.11r**

IEEE 802.11v

IEEE 802.11ac (up to 867Mbps)*

IEEE 802.11ax (up to 1201Mbps on 5GHz, up to 573Mbps on 2.4GHz)*

Hardware Interface

1 x 802.3af PoE Gigabit LAN port (power input)

1 x Gigabit LAN port (10/100/1000Mbps)

LED indicator

LED on/off switch

Reset button

Features

MU-MIMO

Band steering

802.1Q VLAN assignment per SSID

IPv4 static/DHCP address assignment

UPnP/Bonjour

Operation Modes

Access Point

Management/Monitoring

Web based management (HTTP/HTTPS)

Command Line Interface (SSH)

SNMP v2c/v3

Spanning Tree Protocol (STP)

Event logging

Ping test

Traceroute

Schedule WiFi radio enable/disable

Ping watchdog/gateway connection monitor

Reboot & scheduled automatic reboot

Channel utilization scan

Hive Cloud Management***

Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app

Multi-device management

Provisioning through scheduled batch firmware or configuration updates for multiple switches

Event/hardware network monitoring (CPU/memory utilization)

Configure features such as IP address settings, WiFi settings, and LED control through cloud management

Access Control

Wireless encryption: WPA2/WPA3-RADIUS (Enterprise), WPA2/WPA3-SAE (Personal)

MAC filter with scheduling

Maximum client limit

Client isolation

QoS

Bandwidth control per SSID

SSID

Up to 8 SSIDs per wireless band (16 total)

Frequency

2.4GHz: 2.412 – 2.472GHz

5GHz: 5.180 – 5.825GHz

Wireless Channels

2.4GHz: FCC: 1–11

5GHz: FCC: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 149, 153, 157, 161, and 165,

Modulation

DBPSK/DQPSK/CCK for DSSS technique

BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA technique

Antenna Gain

2.4GHz: 2 x 2 dBi internal

5GHz: 2 x 4 dBi internal

Wireless Output Power

802.11b/g/n/ac/ax (2.4GHz): FCC: 13 dBm (max.)

802.11a/n/ac/ax (5GHz): FCC: 13 dBm (max.)

Receiving Sensitivity

802.11a: -93 dBm (typical) @ 54Mbps

802.11b: -98 dBm (typical) @ 11Mbps

802.11g: -94 dBm (typical) @ 54Mbps

802.11n (2.4 GHz): -94 dBm (typical) @ 300Mbps

802.11n (5 GHz): -92 dBm (typical) @ 300Mbps

802.11ac: -93 dBm (typical) @ 867Mbps

802.11ax (2.4GHz): -94 dBm (typical) @ 573Mbps

802.11ax (5GHz): -93 dBm (typical) @ 1201Mbps

Power

IEEE 802.3af Type 2 PoE PD Class 4

Max. consumption: 8.54W

Operating Temperature

0° – 40° C (32° – 104° F)

Operating Humidity

Max. 90% non-condensing

Certifications

FCC

Dimensions

68 x 40 x 42mm (2.68 x 1.57 x 1.65 in.) (Unit with plate)

Weight

118g (4.16 oz.) (Unit with plate)

Warranty:

3-year

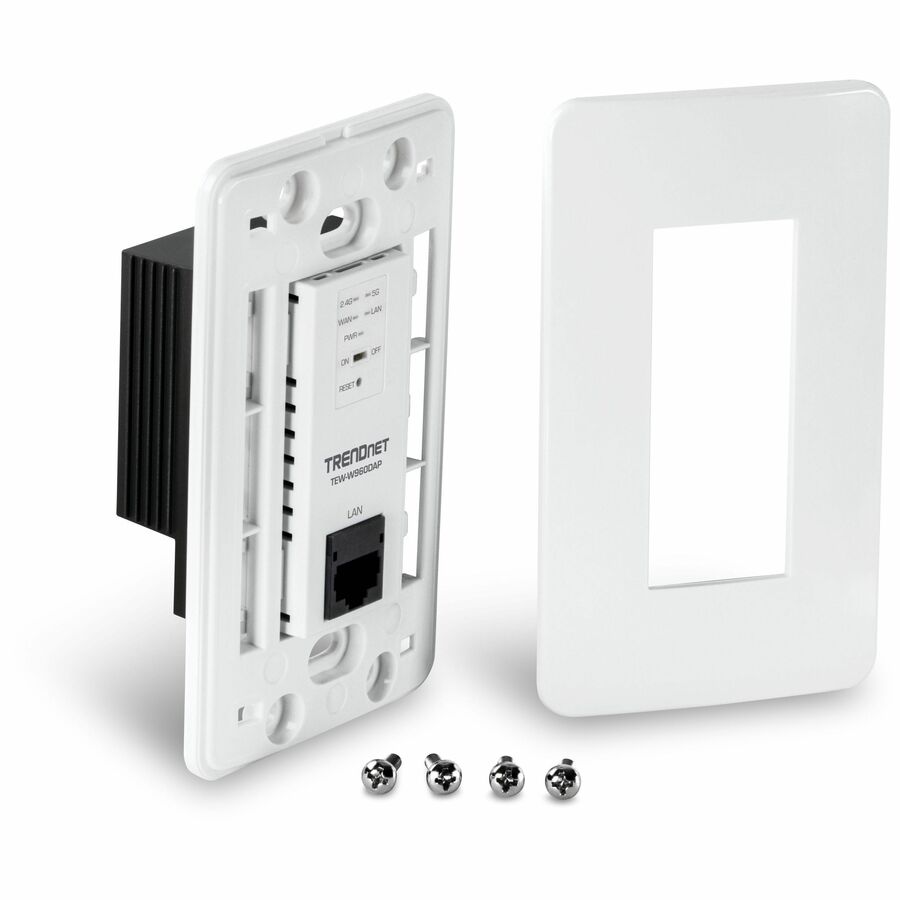

PACKAGE CONTENTS

TEW-W960DAP

Wall plates

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage will vary depending on interference, network traffic, building materials and other conditions. For maximum performance of up to 867Mbps use with an 867Mbps 802.11ac wireless adapter. For maximum performance of up to 300Mbps, use with a 300Mbps 802.11n wireless adapter. For maximum performance of up to 1201Mbps use with a 1201Mbps 802.11ax 5GHz wireless adapter. For maximum performance of up to 573Mbps use with a 573Mbps 802.11ax 2.4GHz wireless adapter. Multi-User MIMO (MU-MIMO) requires the use of multiple MU-MIMO enabled wireless adapters.

**Feature reserved for use when device is managed by TRENDnet Hive.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
