5 GHz - Internal - MIMO Technology - 2 x Network (RJ-45) - Gigabit Ethernet - 10.10 W - Pole-mountable, Wall Mountable - IP55
$218.74
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

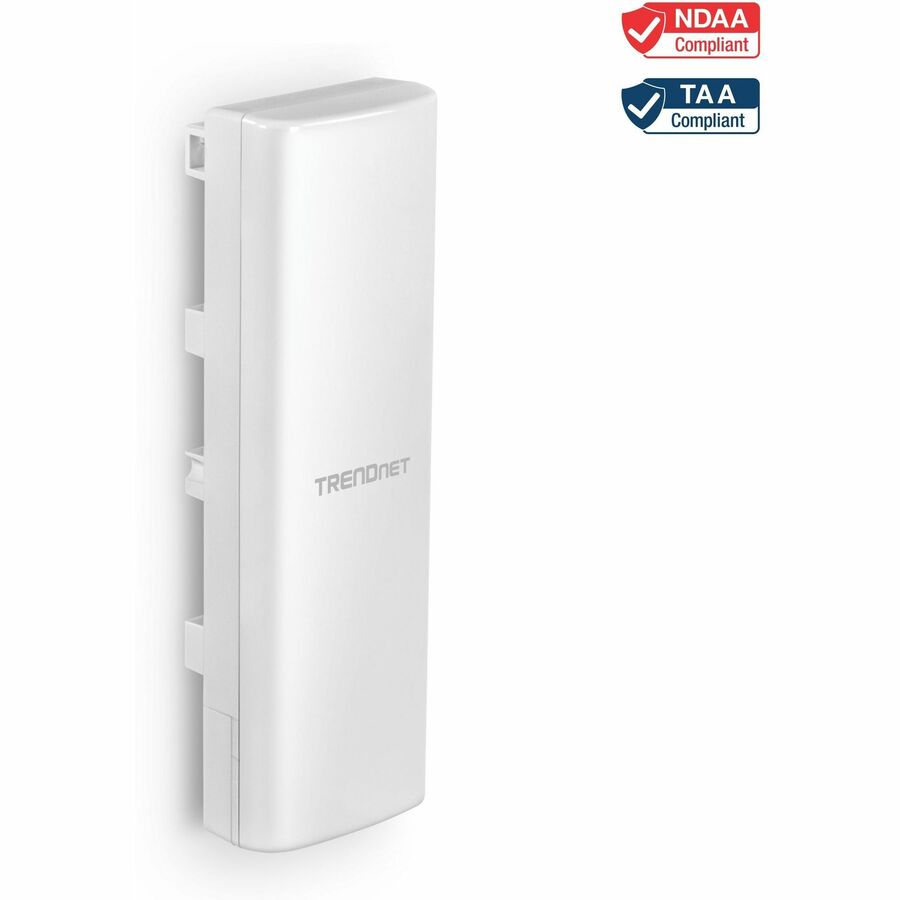

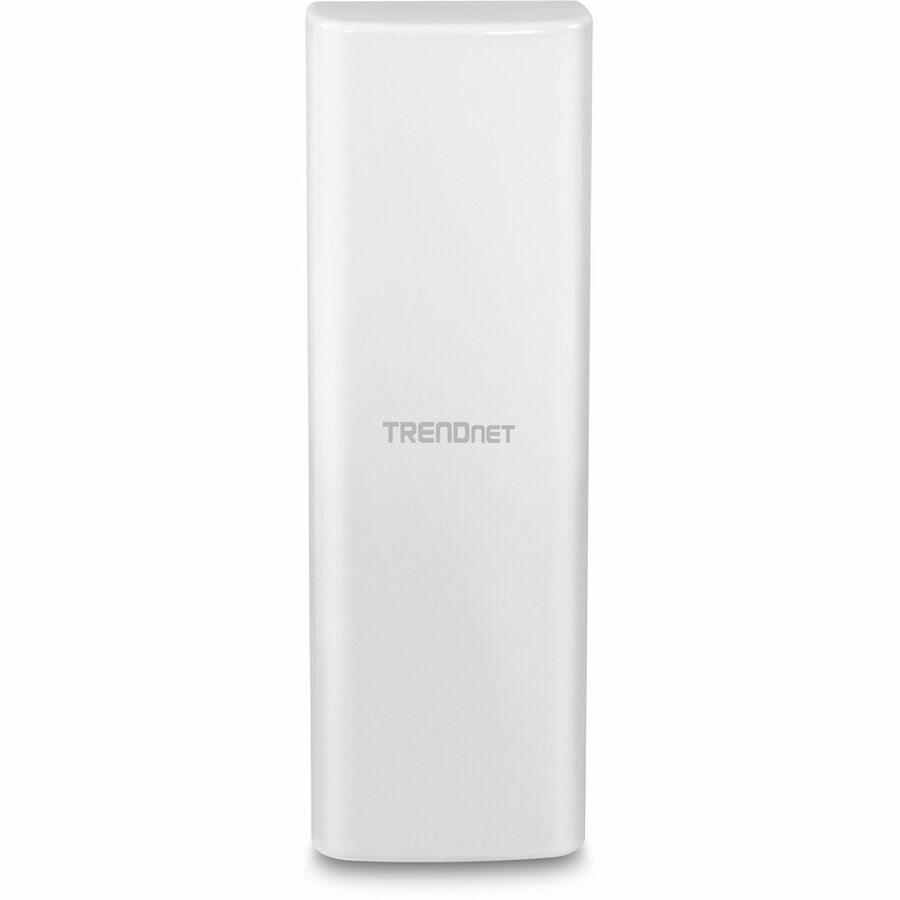

TRENDnet's 14 dBi WiFi 6 AX1200 Outdoor Directional PoE Access Point, model TEW-940APBO, is designed for point-to-point WiFi bridging applications. The 5GHz outdoor wireless access point supports wireless point-to-point installation scenarios with Access Point, Client Bridge, and Repeater modes. The IP55 rated housing is designed for outdoor environments, and includes wall and pole mounting hardware. Faster speeds are possible on this WiFi 6 access point with OFDMA and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the outdoor wireless access point when multiple devices access the network.

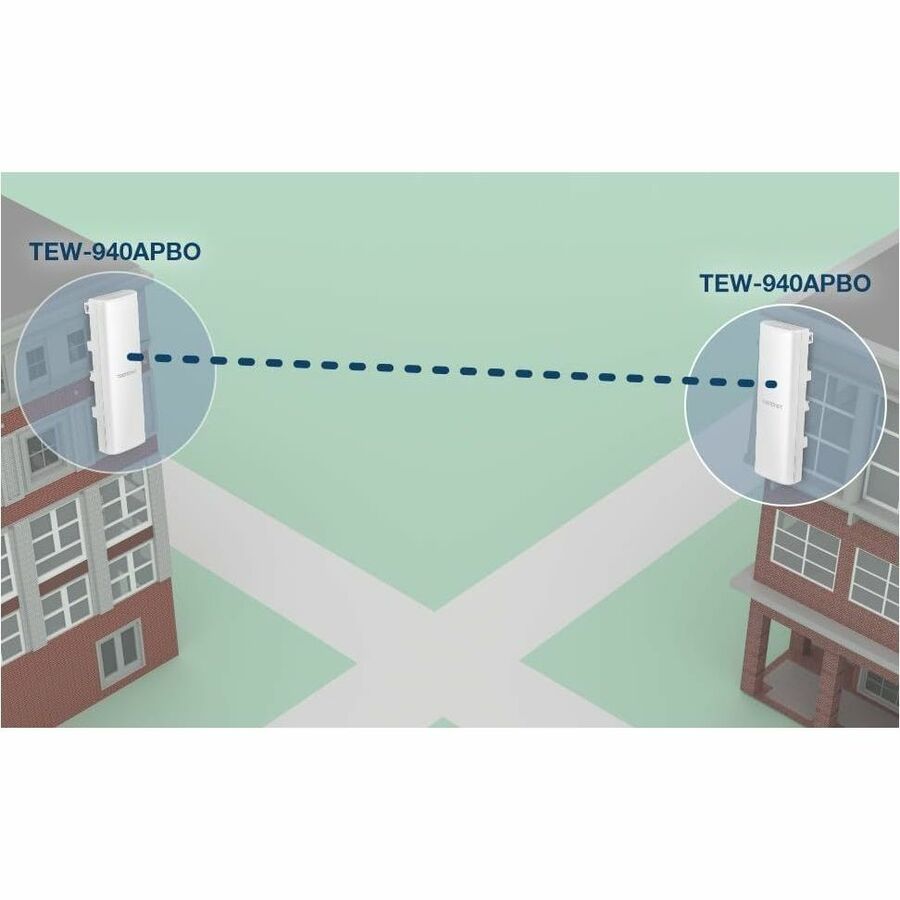

Point-to-Point Bridge
The outdoor wireless access point supports wireless AX1200 point-to-point networking (5GHz) with access point, client bridge, and repeater modes.
WiFi 6 AX1200
Supports WiFi 6 AX1200 (5GHz) to maximize point-to-point networking speeds and includes convenient wireless connection quality LEDs for ease of installation.
Outdoor Ready
Built for outdoor environments with an IP55 weather rating, and an operating temperature range of -20° - 60° C (-4° - 140° F).
FEATURES | Wireless Modes
Supports Access Point, Client Bridge, and Repeater modes
Directional Antenna
14 dBi directional antenna
Mounting Hardware
Pole and wall mount hardware included
WiFi 6 AX1200 (5GHz)
Compliant with 802.11ax/n/ac 5GHz technology with data rates up to 1.2Gbps
PoE Power Adapter
Proprietary PoE power adapter included
LED Indicators
LEDs convey wireless connection quality for ease of installation
Outdoor Rated
Durable enclosure with an IP55 outdoor weather rating
Encrypted Wireless
Support for wireless encryption of up to WPA3
More from the Manufacturer
Point-to-Point Bridge
The outdoor wireless access point supports wireless AX1200
point-to-point networking (5GHz) with access point, client bridge, and
repeater modes.
WiFi 6 AX1200
Supports WiFi 6 AX1200 (5GHz) to maximize point-to-point networking
speeds and includes convenient wireless connection quality LEDs for ease
of installation.
Outdoor Ready
Built for outdoor environments with an IP55 weather rating, and an operating temperature range of -20° – 60° C (-4° – 140° F).
TRENDnet’s 14 dBi WiFi 6 AX1200 Outdoor Directional PoE Access Point,
model TEW-940APBO, is designed for point-to-point WiFi bridging
applications. The 5GHz outdoor wireless access point supports wireless
point-to-point installation scenarios with Access Point, Client Bridge,
and Repeater modes. The IP55 rated housing is designed for outdoor
environments, and includes wall and pole mounting hardware. Faster
speeds are possible on this WiFi 6 access point with OFDMA and MU-MIMO
technologies. MU-MIMO technology processes multiple data streams
simultaneously, increasing real-time WiFi performance on the outdoor
wireless access point when multiple devices access the network.
14 dBi WiFi 6 AX1200 Outdoor Directional PoE Access Point

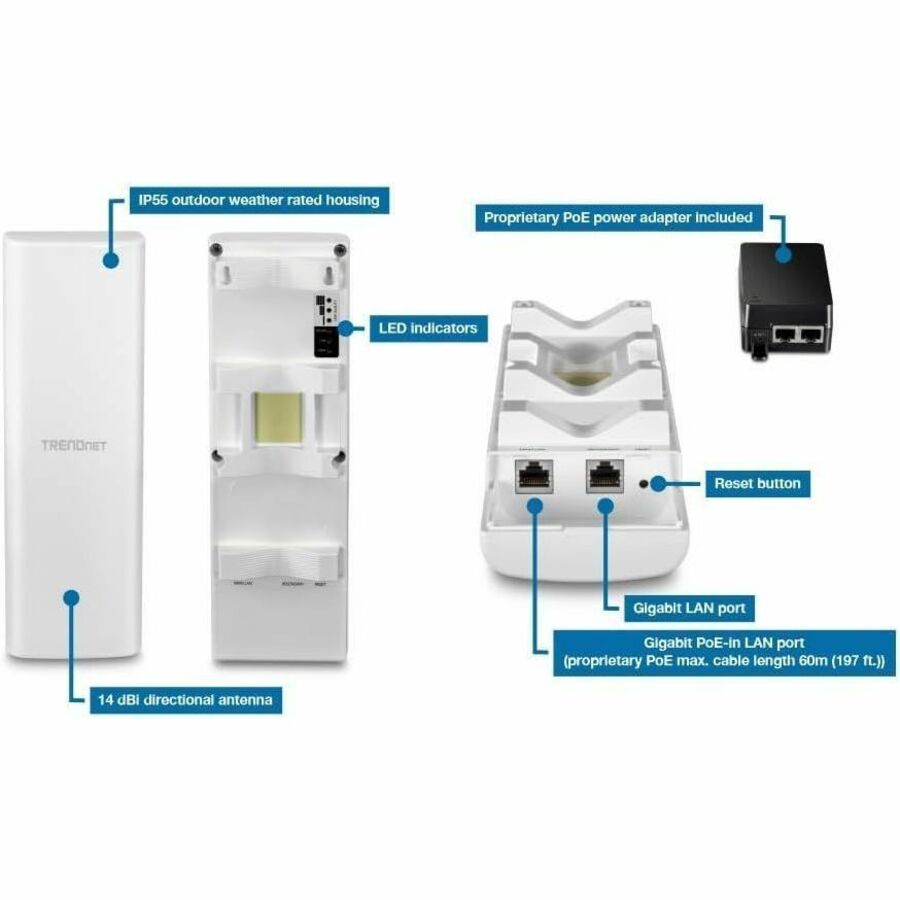

DEVICE INTERFACE: 1 x Gigabit PoE-in LAN port (proprietary PoE max. cable length 60m (197 ft.)); 1 x Gigabit LAN port; LED indicators; Reset button
POINT TO POINT BRIDGE: The outdoor wireless access point supports wireless AX1200 point-to-point networking (5GHz) with access point, client bridge, and repeater modes.
WIFI 6 AX1200: Supports WiFi 6 AX1200 (5GHz) to maximize point-to-point networking speeds and includes convenient wireless connection quality LEDs for ease of installation
DIRECTIONAL ANTENNA: 14 dBi Directional patch antenna
OUTDOOR READY: Built for outdoor environments with an IP55 weather rating, and an operating temperature range of -20° – 60° C (-4° – 140° F).
POWER ADAPTER INCLUDED: A proprietary PoE power adapter included
NDAA / TAA compliant (U.S. and Canada only)
Aenean mollis id sem quis porttitor. Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie velit, ut congue nulla dignissim quis. Pellentesque habitant morbi tristique senectus et netus et malesuada fames ac turpis egestas. Suspendisse efficitur ante.
Wireless Modes
Supports Access Point, Client Bridge, and Repeater modes
WiFi 6 AX1200 (5GHz)
Compliant with 802.11ax/n/ac 5GHz technology with data rates up to 1.2Gbps*
Outdoor Rated
Durable enclosure with an IP55 outdoor weather rating
Directional Antenna
14 dBi directional antenna
PoE Power Adapter
Proprietary PoE power adapter included
Encrypted Wireless
Support for wireless encryption of up to WPA3
Mounting Hardware
Pole and wall mount hardware included
LED Indicators
LEDs convey wireless connection quality for ease of installation
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.1d
IEEE 802.1Q
IEEE 802.1X
IEEE 802.11a
IEEE 802.11k
IEEE 802.11n (5GHz: up to 300Mbps)*
IEEE 802.11ac (5GHz: up to 867Mbps)*
IEEE 802.11ax (5GHz: up to 1201Mbps)*
Hardware Interface
1 x Gigabit PoE-in LAN port (proprietary PoE max. cable length 60m (197 ft.))
1 x Gigabit LAN port
LED indicators
Reset button
Features
802.11ax WiFi 6 support
IP55 rated housing
MU-MIMO
Band steering
Airtime fairness
802.1Q VLAN assignment per SSID
IPv6 support
LEDs on/off
802.11k intelligent radio resource management
RSSI Threshold (client signal strength and connectivity control)
LLDP
Bonjour/UPnP
Operation Modes
Access Point
Client Bridge
Repeater
Management/Monitoring
Web based management (HTTP/HTTPS)
Command Line Interface (SSH)
SNMP v2c/v3
Spanning Tree Protocol (STP)
Event logging
Ping test
Traceroute
Performance throughput test
Schedule WiFi radio enable/disable
Ping watchdog/gateway connection monitor
Reboot & scheduled automatic reboot
Channel utilization scan/AP detection
Access Control
Wireless encryption: OWE (Opportunistic Wireless Encryption), WPA/WPA2/WPA3-RADIUS (Enterprise), WPA-PSK/WPA2-PSK/WPA3-SAE (Personal)
MAC filter (max entries: 32)
Maximum client limit
Client isolation/separate stations
QoS
WMM
Bandwidth control per SSID
SSID
Up to 8 SSIDs
Frequency
5.150GHz – 5.250GHz, 5.725GHz – 5.850GHz
Wireless Channels
5 GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165
Modulation
BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA
Antenna Gain
14 dBi internal directional patch antenna
Antenna Pattern
5G Antenna 1
5G Antenna 2
Distance
Up to 1km**
Wireless Output Power
802.11a: 23 dBm (max.)
802.11n: 22 dBm (max.)
802.11ac: 22 dBm (max.)
802.11ax: 22 dBm (max.)
Receiving Sensitivity (per chain)
802.11a: -71 dBm (typical) @ 54Mbps
802.11n: -66 dBm (typical) @ 300Mbps
802.11ac: -55 dBm (typical) @ 867Mbps
802.11ax: -54 dBm (typical) @ 1201Mbps
Power
Input: 100 – 240V AC, 50/60Hz, 0.8A
Output: 54V DC, 0.6A proprietary/passive PoE injector
Max. Consumption: 10.1W
Operating Temperature
-20° – 60° C (-4° – 140° F)
Operating Humidity
Max. 90% non-condensing
Certifications
FCC
Dimensions
82 x 257 x 50mm (7.3 x 3.9 x 1.4 in.)
Weight
598g (21.09 oz.)
Warranty
3 year

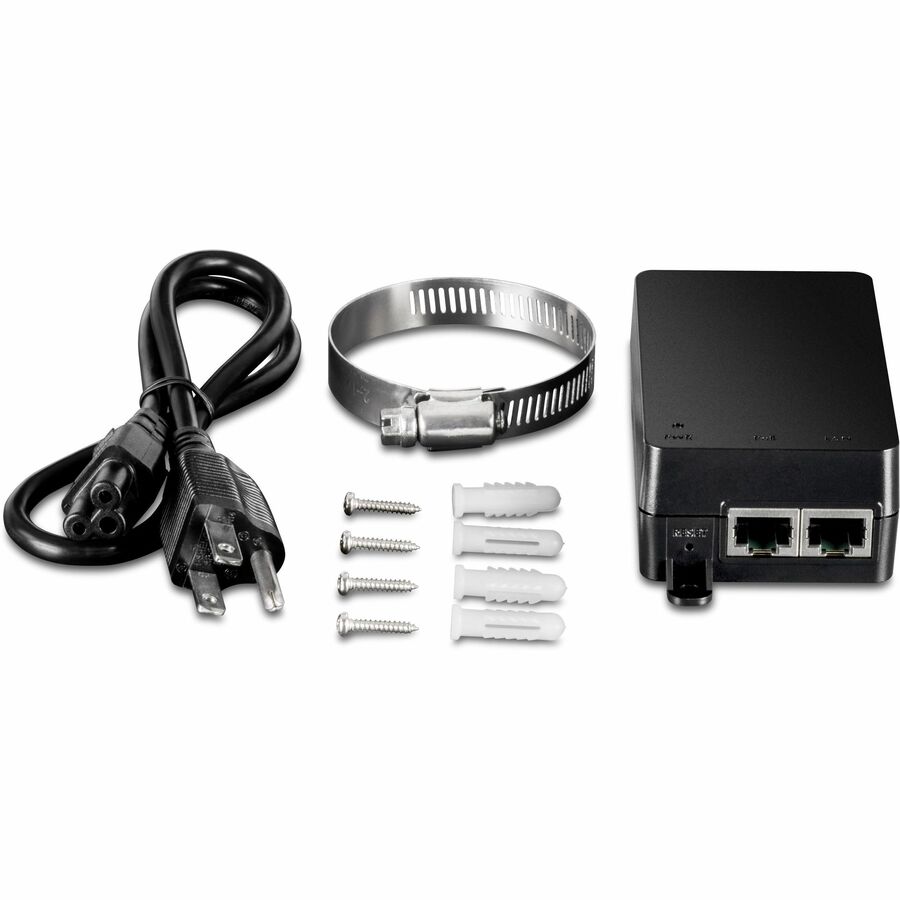

PACKAGE CONTENTS
TEW-940APBO
Quick Installation Guide
Proprietary/Passive PoE injector (54V DC, 0.6A)
Mounting hardware
Disclaimer:
* Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna alignment, receiving sensitivity, and radio interference. Additionally, environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.
** The distance listed in the specification is based on internal wireless connectivity between two TEW-940APBO units with consideration to acceptable data transmission rates performance throughput. Actual achievable connectivity and performance throughput may vary based on environmental factors in the installed locations.
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Limited Warranty: 3 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEW-940APBO |
| Brand Name | TRENDnet |
| Product Model | TEW-940APBO |
| Product Name | TEW-940APBO Wireless Bridge |
| Product Type | Wireless Bridge |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Communication Protocols | LLDP, STP, SNMP v2c, SNMP v3, SSH, HTTP, HTTPS, RADIUS |
| Physical Characteristics | |
| Form Factor | Pole-mountable, Wall Mountable |
| Antenna Form Factor | Internal |
| Height | 10.1" |
| Width | 3.2" |
| Depth | 2" |
| Weight (Approximate) | 1.32 lb |
| Power Description | |
| Power Consumption | 10.10 W |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/n/ac/ax/k |
| Network Band | Single Band |
| Frequency Band | 5 GHz |
| Indoor/Outdoor | Outdoor |
| Wireless Transmission Speed | 1.20 Gbit/s |
| MIMO Technology | Yes |
| Data Encryption | Yes |
| Encryption Standard | WPA3, WPA, WPA2, WPA3-ENT, WPA-PSK, WPA2-PSK, WPA3-SAE |
| Ingress Protection (IP) Rating | IP55 |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
