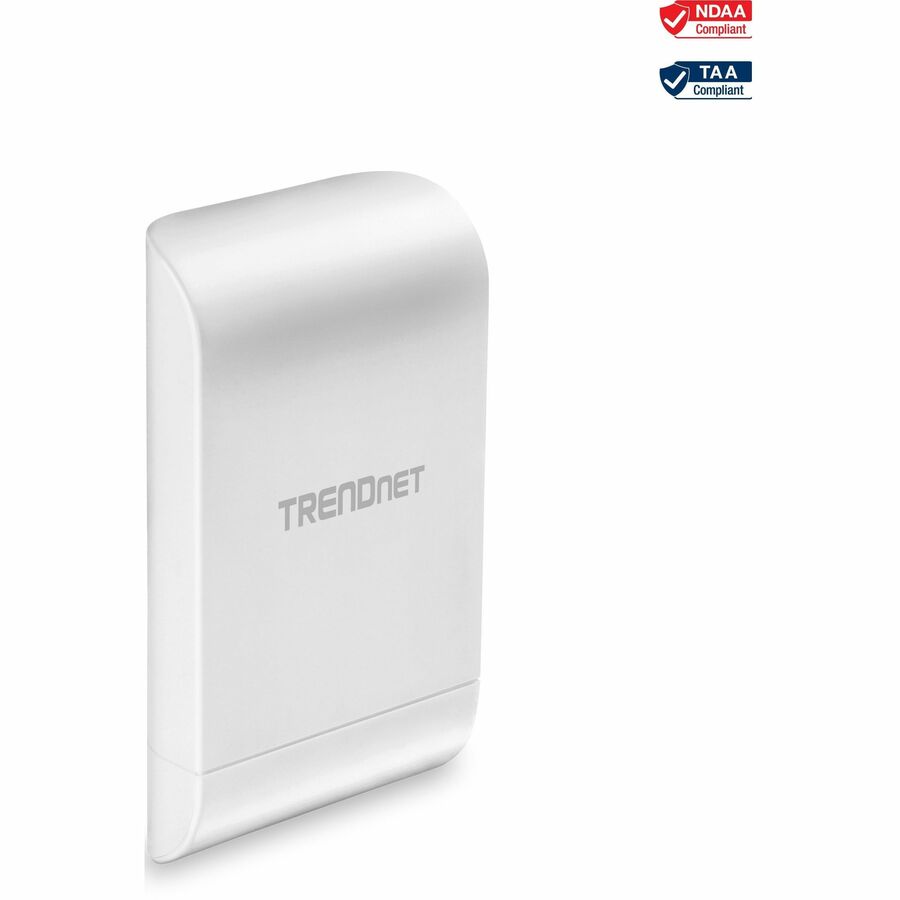

TRENDnet 10dBi Wireless N300 Outdoor PoE Access Point; TEW-740APBO; Point-to-Point (2.4 GHz); Multiple SSID; AP; WDS; Client Bridge; WISP; IPX6 Rated Housing; Built-in 10 dBi Directional Antenna

• POINT TO POINT BRIDGE: 10 dBi Outdoor PoE Access Point with wireless N300 point-to-point networking (2.4 GHz)

• WIRELESS N300 (2.4 GHz): The N300 Oudoor access point is compliant with 802.11b/g/n technology (2.4 GHz) with data rates up to 300 Mbps

• WIRELESS MODES: Supports Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes

• OUTDOOR READY: The PoE Access Point has a durable enclosure with an IPX6 outdoor weather rating. Operating Temperature of -20 - 60° C (-4 - 140° F)

• DIRECTIONAL ANTENNA: The 10 dBi Access Point has a built-in 10 dBi directional antenna

• NDAA / TAA compliant (U.S. and Canada only)

TRENDnet's 10 dBi Outdoor PoE Access Point, model TEW-740APBO, provides wireless N300 point-to-point connectivity. A variety of installation scenarios are facilitated with Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes. The IPX6 rated housing comes with wall and pole mounting hardware.

Point-to-Point Bridge

The outdoor wireless access point supports reliable, high-speed wireless N300 point-to-point networking (2.4GHz).

PoE Power Adapter

Included passive PoE injector provides power and data over a single Ethernet cable with a maximum distance of 20m (66 ft.).

Outdoor Ready

Durable enclosure with an IP56 outdoor weather rating, and an operating temperature range of -22° - 60° C (-7.6° - 140° F).

More from the Manufacturer

TRENDnet’s 10 dBi Outdoor PoE Access Point, model TEW-740APBO, provides wireless N300 point-to-point connectivity. A variety of installation scenarios are facilitated with Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes. The IPX6 rated housing comes with wall and pole mounting hardware.

Overview

Point-to-Point Bridge

Wireless N300 point-to-point networking (2.4 GHz)

PoE Power Adapter

Included power adapter provides power and data over a single Ethernet cable with a maximum distance of 20 m (65 ft.)

Outdoor Ready

Durable enclosure with an IPX6 outdoor weather rating

Wireless Modes

Supports Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes

Wireless N300 (2.4 GHz)

Compliant with 802.11b/g/n technology (2.4 GHz) with data rates up to 300 Mbps

Outdoor Rated

Durable enclosure with an IPX6 outdoor weather rating

Directional Antenna

Built-in 10 dBi directional antenna

Installing Outdoor Wireless Access Points

10 dBi Wireless N300 Outdoor PoE Access Point

Wireless N300 point-to-point networking (2.4 GHz)

Supports Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes

Built-in 10 dBi directional antenna

Proprietary PoE power adapter included

1 x 10/100Mbps PoE-in port, and 1 x 10/100Mbps port

NDAA / TAA compliant (U.S. and Canada only)

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1X

IEEE 802.11d

IEEE 802.11e

IEEE 802.11f

IEEE 802.11h

IEEE 802.11i

IEEE 802.11b

IEEE 802.11g

IEEE 802.11k

IEEE 802.11n (2.4GHz up to 300Mbps)

IEEE 802.11r

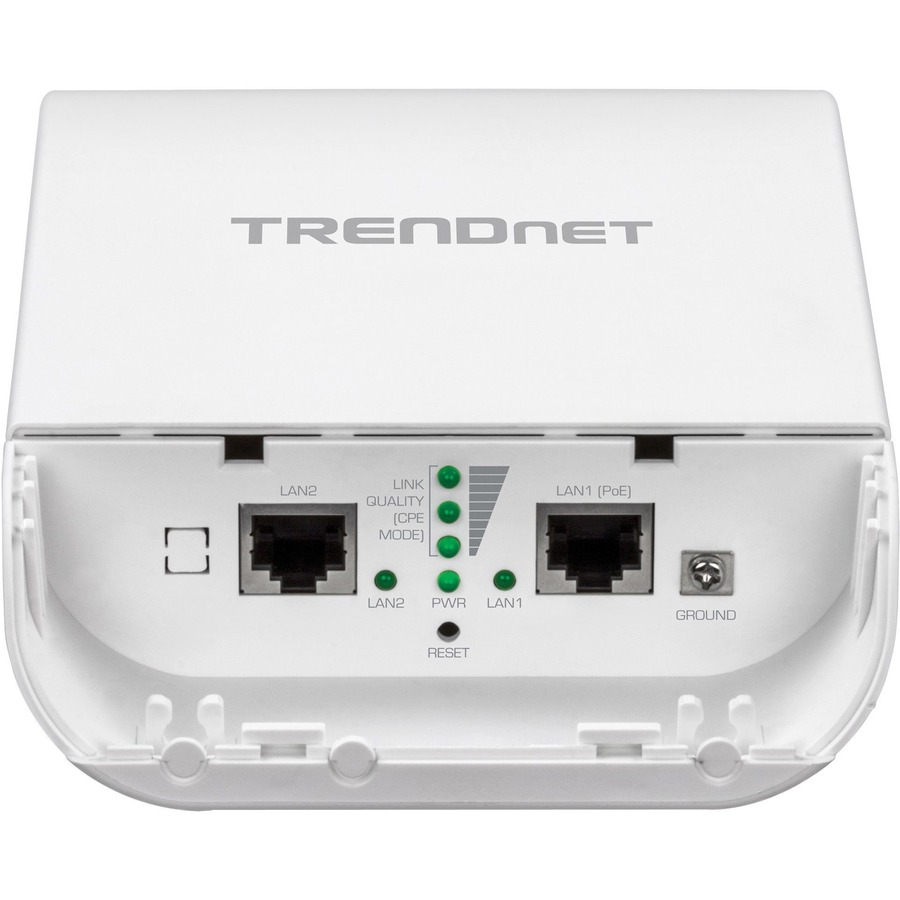

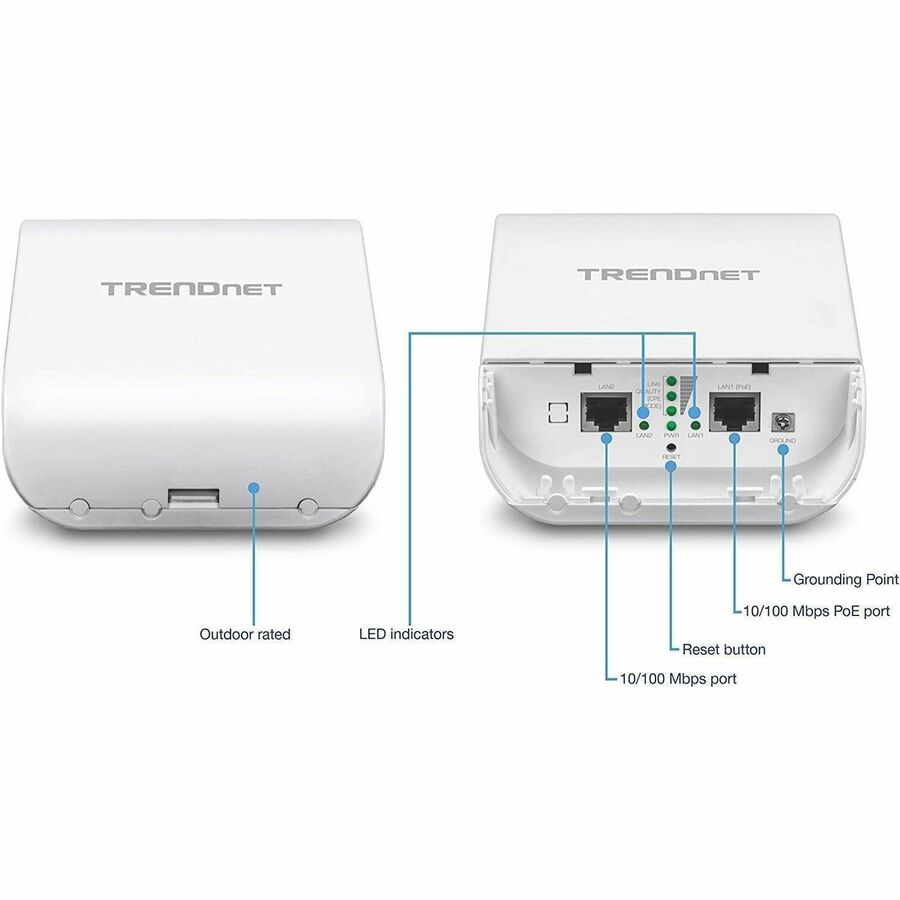

Hardware Interface

1 x 10/100Mbps LAN1 port (proprietary PoE max. cable length 20m (66 ft.))

1 x 10/100Mbps LAN2 port

LED indicators

Reset button

Grounding Point

Special Features

IP56 weather rated

802.1Q VLAN assignment per SSID

Schedule radio on/off time policy

802.11r / 802.11k fast roaming

Access Control

Wireless encryption: WPA/WPA2-PSK, WPA/WPA2-Enterprise, 802.1X

Firewall (CPE Mode): NAT, Virtual Server, DMZ Host, PPTP/L2TP/IPsec VPN Passthrough

Access Controls: MAC, IP Filter, Layer 2 Client Isolation, Per-SSID client limiting

802.1Q VLAN

OAuthentication 2.0 / Walled Garden for guest authentication

Customizable captive portal for guest authentication

QoS

WMM

Operation Modes

Access Point (AP)

Access Point (AP) + WDS

Wireless Distribution System (WDS)

WISP (CPE) + AP

Client Bridge + AP

Router

Control AP (CAP)

SSID

Up to 7 SSIDs

Internet Connection Types (WISP (CPE) + AP & Router modes)

Dynamic IP (DHCP)

Static IP (Fixed)

PPPoE (Dynamic IP/Static IP)

PPTP (Dynamic IP/Static IP)

Management/Monitoring

Local/remote web based management (HTTP, HTTPS)

Local/remote CLI based management (Telnet, SSH)

SNMP v2c/v3

SNMP Trap

Upgrade firmware

Backup/restore configuration

Event logging

Authentication log

Reboot

Restore to factory defaults

Ping test

Traceroute

LED Control

Frequency

FCC: 2.412 - 2.462GHz

ETSI: 2.412 – 2.472GHz

IC: 2.412 - 2.462GHz

Wireless Channels

FCC: 1-11

ETSI: 1-13

Modulation

802.11b: DBPK, DQPSK, CCK with DSSS

802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM

Media Access Protocol

CSMA/CA with ACK

Antenna Gain

10 dBi internal sector antenna

Wireless Output Power

802.11b: FCC: 26 dBm (max.) / CE: 10.4 dBm (max.) / IC: 26 dBm (max.) @ 11Mbps

802.11g: FCC: 25 dBm (max.), CE: 10.5 dBm (max.) / IC: 25 dBm (max.) @ 54Mbps

802.11n: FCC: 28 dBm (max.), CE: 10.6 dBm (max.) / IC: 28 dBm (max.) @ 150Mbps

802.11n: FCC: 27 dBm (max.), CE: 10.6 dBm (max.) / IC: 27 dBm (max.) @ 300Mbps

Receiving Sensitivity

802.11b: -88 dBm (typical) @ 11Mbps

802.11g: -74 dBm (typical) @ 54Mbps

802.11n: -71 dBm (typical) @ 150Mbps

802.11n: -69 dBm (typical) @ 300Mbps

Power

Input: 100 – 220V AC, 50/60Hz, 0.5A

Output: 12V DC, 1A proprietary/passive PoE injector

Max. Consumption: 6.6W

Operating Temperature

-22° – 60° C (-7.6° – 140° F)

Operating Humidity

Max. 99% non-condensing

Certifications

FCC

CE

IC

Dimensions

195 x 118 x 61 mm (7.6 x 4.6 x 2.4 in.)

Weight

304g (10.7 oz.)

Warranty

3 year

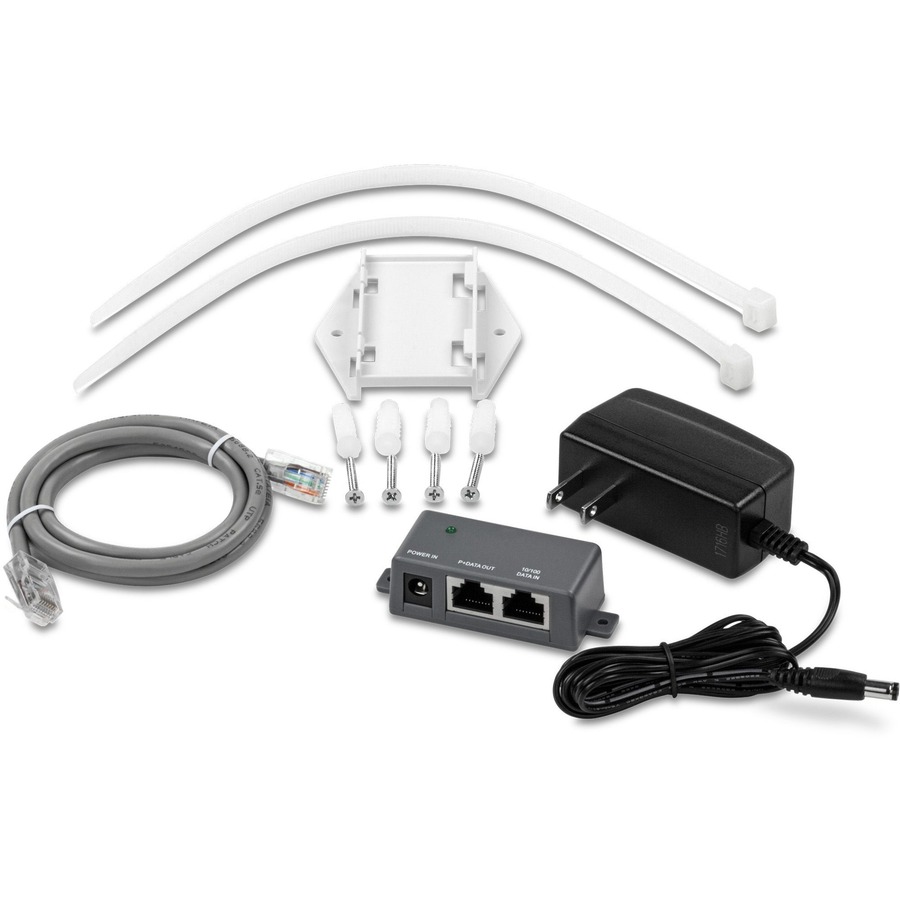

PACKAGE CONTENTS

TEW-740APBO

Quick Installation Guide

Power adapter (12V DC, 1A)

Proprietary/Passive PoE injector

Grounding wire

Mounting hardware

Rubber seal

* Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna alignment, receiving sensitivity, and radio interference. Additionally, environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.
