TRENDnet 14 dBi WiFi 6 AX1200 Outdoor Directional PoE Access Point Bridge Kit, TEW-940APBO2K, Includes Two Preconfigured TEW-940APBO Access Points, 5GHz WiFi 6 Point-to-Point Bridge, White

TRENDnet's 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point Bridge Kit, model TEW-940APBO2K, provides reliable, long-range wireless AX1200 point-to-point connectivity. This preconfigured 5GHz outdoor WiFi 6 bridge kit provides installers the simplest way to create a long-distance wireless point-to-point bridge. The outdoor WiFi 6 bridge kit conveniently links two locations together with WiFi 6 AX1200 speed and performance. Faster speeds are possible with this outdoor point-to-point WiFi 6 bridge kit with OFDMA and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the outdoor wireless access point when multiple devices access the network. The IP55 rated housing is designed for outdoor environments, and includes wall and pole mounting hardware.

• DEVICE INTERFACE: 1 x Gigabit PoE-in LAN port (proprietary PoE max. cable length 60m (197 ft.)); 1 x Gigabit LAN port; LED indicators; Reset button

• MANUFACTURER PROTECTION: We stand by the quality of our products.The TEW-940APBO2K 14 dBi WiFi 6 AX1200 Outdoor Directional PoE Access Point Bridge Kit is backed and supported with 3 years of TRENDnet Manufacturer Protection.

• POWER ADAPTER INCLUDED: A proprietary PoE power adapter included

• POINT TO POINT BRIDGE: The outdoor wireless access point supports wireless AX1200 point-to-point networking (5GHz) withaccess point, client bridge, and repeater modes.

• WIFI 6 AX1200: Supports WiFi 6 AX1200 (5GHz) to maximize point-to-point networking speeds and includes convenientwireless connection quality LEDs for ease of installation

• DIRECTIONAL ANTENNA: 14 dBi Directional patch antenna

• OUTDOOR READY: Built for outdoor environments with an IP55 weather rating, and an operating temperature range of -20° - 60° C (-4° - 140° F).

More from the Manufacturer

TRENDnet’s 14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point

Bridge Kit, model TEW-940APBO2K, provides reliable, long-range wireless

AX1200 point-to-point connectivity. This preconfigured 5GHz outdoor

WiFi 6 bridge kit provides installers the simplest way to create a

long-distance wireless point-to-point bridge. The outdoor WiFi 6 bridge

kit conveniently links two locations together with WiFi 6 AX1200 speed

and performance. Faster speeds are possible with this outdoor

point-to-point WiFi 6 bridge kit with OFDMA and MU-MIMO technologies.

MU-MIMO technology processes multiple data streams simultaneously,

increasing real-time WiFi performance on the outdoor wireless access

point when multiple devices access the network. The IP55 rated housing

is designed for outdoor environments and includes wall and pole mounting

hardware.

14 dBi WiFi 6 AX1200 Outdoor PoE Preconfigured Point-to-Point Bridge Kit

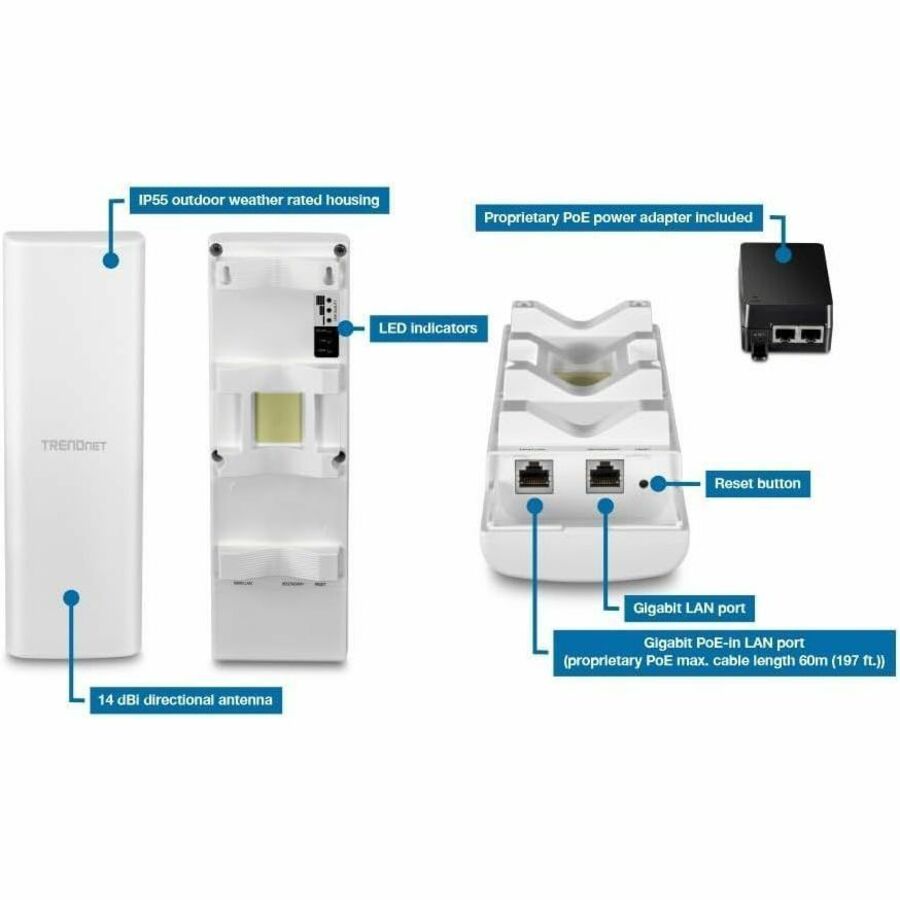

DEVICE INTERFACE: 1 x Gigabit PoE-in LAN port (proprietary PoE max. cable length 60m (197 ft.)); 1 x Gigabit LAN port; LED indicators; Reset button

2 ACCESS POINT KIT: Includes two TEW-940APBO Access Points

POINT TO POINT BRIDGE: The outdoor wireless access point supports wireless AX1200 point-to-point networking (5GHz) with access point, client bridge, and repeater modes.

WIFI 6 AX1200: Supports WiFi 6 AX1200 (5GHz) to maximize point-to-point networking speeds and includes convenient wireless connection quality LEDs for ease of installation

DIRECTIONAL ANTENNA: 14 dBi Directional patch antenna

OUTDOOR READY: Built for outdoor environments with an IP55 weather rating, and an operating temperature range of -20° – 60° C (-4° – 140° F).

POWER ADAPTER INCLUDED: A proprietary PoE power adapter included

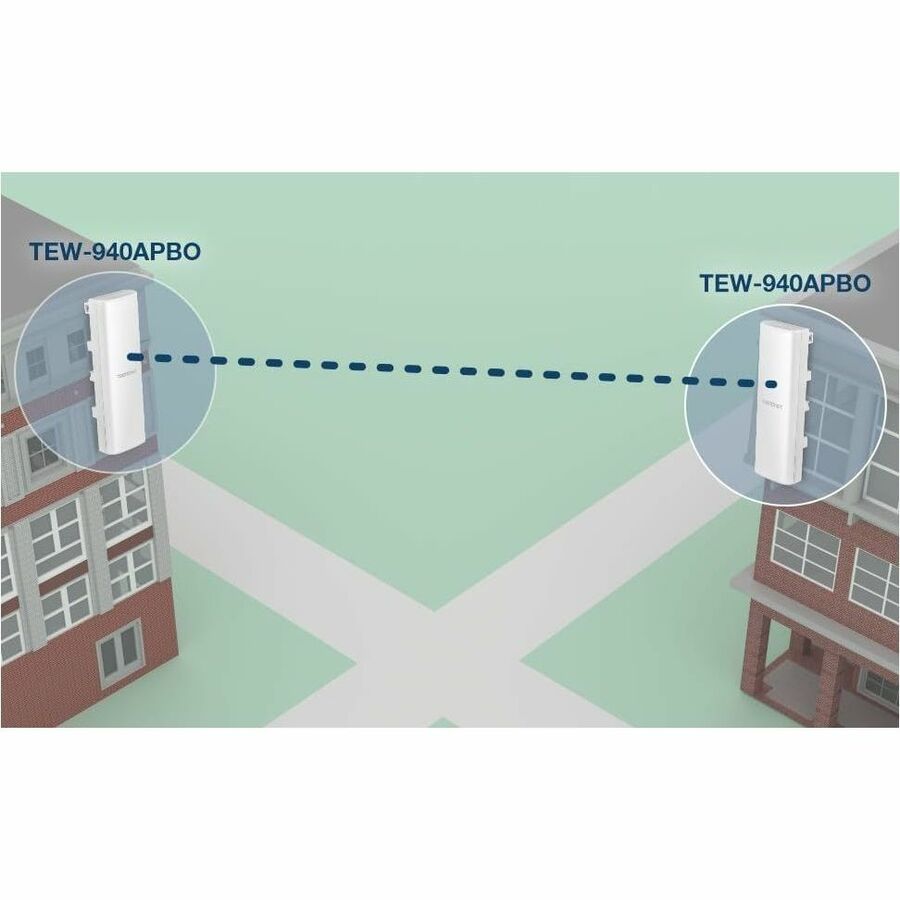

Point-to-Point Bridge

Aliquam dignissim magna vel enim dignissim vehicula. Maecenas efficitur urna vitae egestas congue. Nam semper molestie.

WiFi 6 AX1200

Supports WiFi 6 AX1200 (5GHz) to maximize point-to-point networking

speeds and includes convenient wireless connection quality LEDs for ease

of installation.

WiFi 6 AX1200

Built for outdoor environments with an IP55 weather rating, and an operating temperature range of -20° – 60° C (-4° – 140° F).

PoE Power Adapters

Proprietary PoE power adapters included

WiFi 6 AX1200 (5GHz)

Compliant with 802.11ax/n/ac 5GHz technology with data rates up to 1.2Gbps*

Outdoor Rated

Outdoor WiFi 6 bridge kit features durable enclosure with an IP55 outdoor weather rating

Directional Antennas

Built-in 14 dBi directional antennas

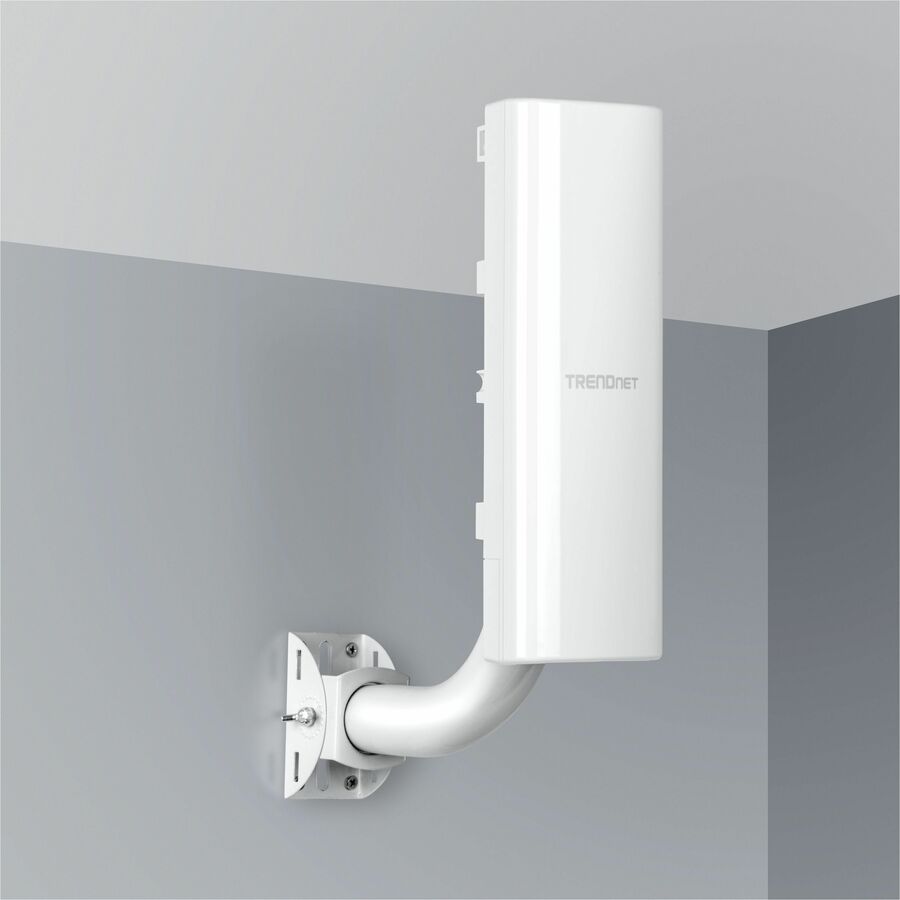

Mounting Hardware

Pole and wall mount hardware included

LED Indicators

LEDs on the outdoor WiFi 6 bridge kit convey connection quality for ease of installation

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.1d

IEEE 802.1Q

IEEE 802.1X

IEEE 802.11a

IEEE 802.11k

IEEE 802.11n (5GHz: up to 300Mbps)*

IEEE 802.11ac (5GHz: up to 867Mbps)*

IEEE 802.11ax (5GHz: up to 1201Mbps)*

Hardware Interface

1 x Gigabit PoE-in LAN port (proprietary PoE max. cable length 60m (197 ft.))

1 x Gigabit LAN port

LED indicators

Reset button

Features

802.11ax WiFi 6 support

IP55 rated housing

MU-MIMO

Band steering

Airtime fairness

802.1Q VLAN assignment per SSID

IPv6 support

LEDs on/off

802.11k intelligent radio resource management

RSSI Threshold (client signal strength and connectivity control)

LLDP

Bonjour/UPnP

Operation Modes

Access Point

Client Bridge

Repeater

Management/Monitoring

Web based management (HTTP/HTTPS)

Command Line Interface (SSH)

SNMP v2c/v3

Spanning Tree Protocol (STP)

Event logging

Ping test

Traceroute

Performance throughput test

Schedule WiFi radio enable/disable

Ping watchdog/gateway connection monitor

Reboot & scheduled automatic reboot

Channel utilization scan/AP detection

Access Control

Wireless encryption: OWE (Opportunistic Wireless Encryption), WPA/WPA2/WPA3-RADIUS (Enterprise), WPA-PSK/WPA2-PSK/WPA3-SAE (Personal)

MAC filter (max entries: 32)

Maximum client limit

Client isolation/separate stations

QoS

WMM

Bandwidth control per SSID

SSID

Up to 8 SSIDs

Frequency

5.150GHz – 5.250GHz, 5.725GHz – 5.850GHz

Wireless Channels

5 GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165

Modulation

BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM/OFDMA

Antenna Gain

14 dBi internal directional patch antenna

Antenna Pattern

5G Antenna 1

5G Antenna 2

Distance

Up to 1km**

Wireless Output Power

802.11a: 23 dBm (max.)

802.11n: 22 dBm (max.)

802.11ac: 22 dBm (max.)

802.11ax: 22 dBm (max.)

Receiving Sensitivity (per chain)

802.11a: -71 dBm (typical) @ 54Mbps

802.11n: -66 dBm (typical) @ 300Mbps

802.11ac: -55 dBm (typical) @ 867Mbps

802.11ax: -54 dBm (typical) @ 1201Mbps

Power

Input: 100 – 240V AC, 50/60Hz, 0.8A

Output: 54V DC, 0.6A proprietary/passive PoE injector

Max. Consumption: 10.1W

Operating Temperature

-20° – 60° C (-4° – 140° F)

Operating Humidity

Max. 90% non-condensing

Certifications

FCC

Dimensions

82 x 257 x 50mm (7.3 x 3.9 x 1.4 in.) per access point

Weight

598g (21.09 oz.) per access point

Warranty

3 year

PACKAGE CONTENTS

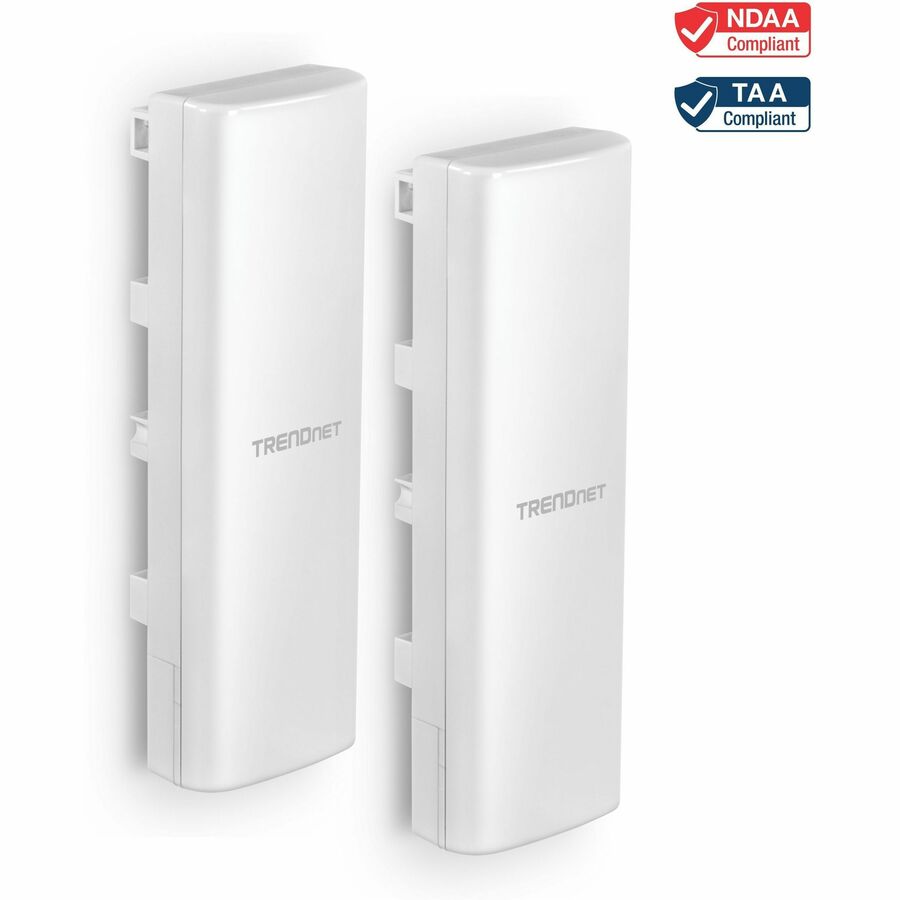

2 x TEW-940APBO

Quick Installation Guide

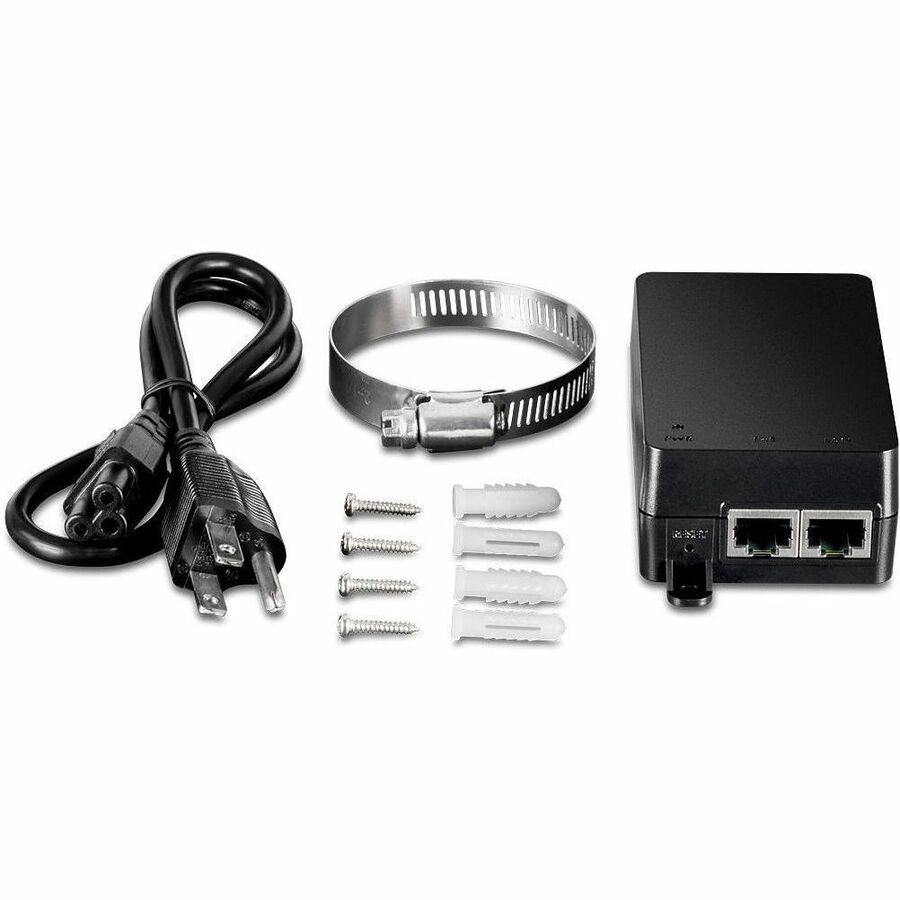

2 x Proprietary/Passive PoE injectors (54V DC, 0.6A)

Mounting hardware

Disclaimer:

* Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna alignment, receiving sensitivity, and radio interference. Additionally, environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.

** Distance Disclaimer

** The distance listed in the specification is based on internal wireless connectivity between two TEW-940APBO units with consideration to acceptable data transmission rates performance throughput. Actual achievable connectivity and performance throughput may vary based on environmental factors in the installed locations.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
