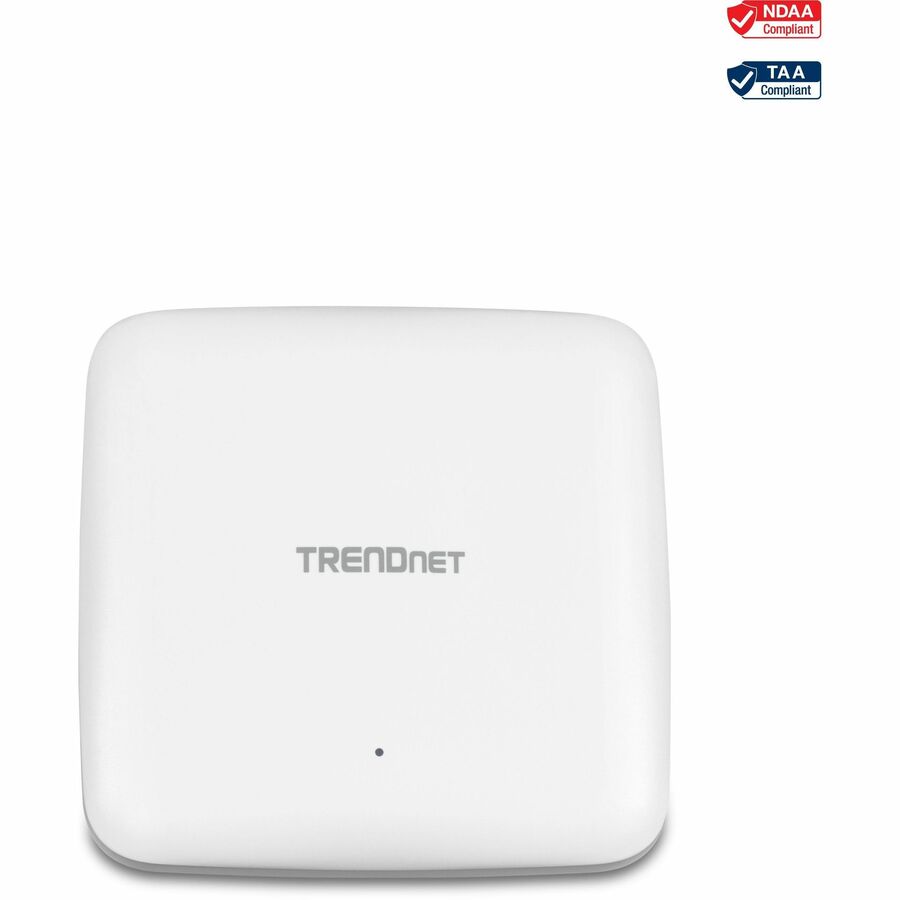

TRENDnet AX1800 Dual Band WiFi 6 PoE+ Access Point, 1201Mbps WiFi AX + 576Mbps WiFi N, MU-MIMO, OFDMA,1024 QAM, WDS, Client Bridge, WDS Bridge, AP, WDS Station, White, TEW-921DAP

• High-performance AX1800 PoE+ WiFi 6 access point

• OFDMA and MU-MIMO technology boosts performance in a busy environment

• Two concurrent WiFi bands maximize device networking speeds

• AX1800 Dual Band: 1201Mbps (5GHz) + 567Mbps (2.4GHz) bands

• Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes

• Supports up to WPA3 encryption

• 1 x Gigabit PoE+ LAN port

• Captive portal for hotspot applications

• Low-profile housing blends into most environments

• Includes wall / ceiling mounting plate TRENDnet's high-performance AX1800 Dual Band WiFi 6 PoE+ Access Point, model TEW-921DAP, features two concurrent WiFi bands to maximize device networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds up to 1201Mbps on the 5GHz band, and 567Mbps on the 2.4GHz band. Faster speeds are possible on this WiFi 6 access point with 1024-QAM, OFDMA, and MU-MIMO technologies.

This WiFi 6 access point supports innovative networking technology that improves coverage, speed, and capacity. The increase of QAM to 1024-QAM allows data to flow through a much wider 'pipe' than previous WiFi technologies. With OFDMA (Orthogonal Frequency-Division Multiple Access), the number of clients that can be connected to this WiFi 6 access point increases. OFDMA efficiently manages traffic in congested areas by separating channel frequencies into different subcarriers. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the WiFi 6 AP when multiple devices access the network.

The TEW-921DAP WiFi 6 access point features advanced access control, QoS, traffic management, band steering, and captive portal support. The low-profile housing design seamlessly blends into most environments, with a convenient wall / ceiling mounting plate included. For application flexibility, the TEW-921DAP supports Access Point (AP), Client Bridge, Wireless Distribution System Access Point (WDS AP), WDS Bridge, WDS Station, and Repeater modes.

Easily manage and configure TRENDnet's AX1800 Dual Band WiFi 6 PoE+ Access Point remotely by updating the access point to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on this WiFI 6 access point with TRENDnet's reliable cloud service.

More from the Manufacturer

OVERVIEW

TRENDnet’s high-performance AX1800 Dual Band WiFi 6 PoE+ Access Point, model TEW-921DAP, features two concurrent WiFi bands to maximize device networking speeds with the latest WiFi 6 technology. The two separate high-speed WiFi 6 bands provide speeds up to 1201Mbps on the 5GHz band, and 567Mbps on the 2.4GHz band. Faster speeds are possible on this WiFi 6 access point with 1024-QAM, OFDMA, and MU-MIMO technologies.

This WiFi 6 access point supports innovative networking technology that improves coverage, speed, and capacity. The increase of QAM to 1024-QAM allows data to flow through a much wider ‘pipe’ than previous WiFi technologies. With OFDMA (Orthogonal Frequency-Division Multiple Access), the number of clients that can be connected to this WiFi 6 access point increases. OFDMA efficiently manages traffic in congested areas by separating channel frequencies into different subcarriers. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance on the WiFi 6 AP when multiple devices access the network.

The TEW-921DAP WiFi 6 access point features advanced access control, QoS, traffic management, band steering, and captive portal support. The low-profile housing design seamlessly blends into most environments, with a convenient wall / ceiling mounting plate included. For application flexibility, the TEW-921DAP supports Access Point (AP), Client Bridge, Wireless Distribution System Access Point (WDS AP), WDS Bridge, WDS Station, and Repeater modes.

Easily manage and configure TRENDnet’s AX1800 Dual Band WiFi 6 PoE+ Access Point remotely by updating the access point to the latest firmware for access to TRENDnet Hive. TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required on this WiFI 6 access point with TRENDnet’s reliable cloud service.

AX1800 WiFi 6

Two concurrent high-speed WiFi 6 bands to maximize device networking speeds: 1201Mbps on 5GHz and 576Mbps on 2.4GHz.

Built For Busy Environments

MU-MIMO and OFDMA technologies process multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network.

Access Point Flexibility

Supports Access Point, Client Bridge, WDS AP, WDS Bridge, WDS Station, and Repeater modes for multiple applications.

Concurrent Dual Band

AX1800: concurrent 1201Mbps on 5GHz band + 576Mbps on 2.4GHz band

Power over Ethernet (PoE+)

Saves on installation time and costs with gigabit PoE+ support (with optional power port for non-PoE installations)

WiFi Operation Modes

Supports Access Point (AP), Client Bridge, Wireless Distribution System Access Point (WDS AP), WDS Bridge, WDS Station, and Repeater modes for each WiFi band independently

Hive Enabled (Optional)

Remotely monitor, manage, configure, and diagnose this WiFi 6 access point via TRENDnet’s cloud service (Additional fee applies)

MU-MIMO & OFDMA Performance

MU-MIMO and OFDMA technologies increase coverage, speed, and capacity

Band Steering

Band steering alleviates network congestion by automatically directing wireless devices from the 2.4GHz band to the less congested 5GHz band

WiFi Traffic Shaping

Manage traffic allocation on the WiFi 6 access point per SSID for each band separately

WPA3 Encryption

This WiFi 6 access point supports wireless encryption of up to WPA3

Multiple SSIDs

Create up to 8 SSIDs per band (16 total)

Captive Portal

Create a customized web portal for your users to authenticate using unique login credentials

Airtime Fairness

Airtime fairness support on this WiFi 6 access point provides higher priority to faster WiFi clients without limiting slower WiFi clients

Gigabit PoE+ Port

One gigabit PoE+ input port to power and connect the WiFi 6 AP to the network, and one gigabit port to connect it to a nearby device

LED Control

LED controls reduce product visibility by disabling LED indicators

Low Profile

The wireless AX access point’s low-profile housing design blends into most environments

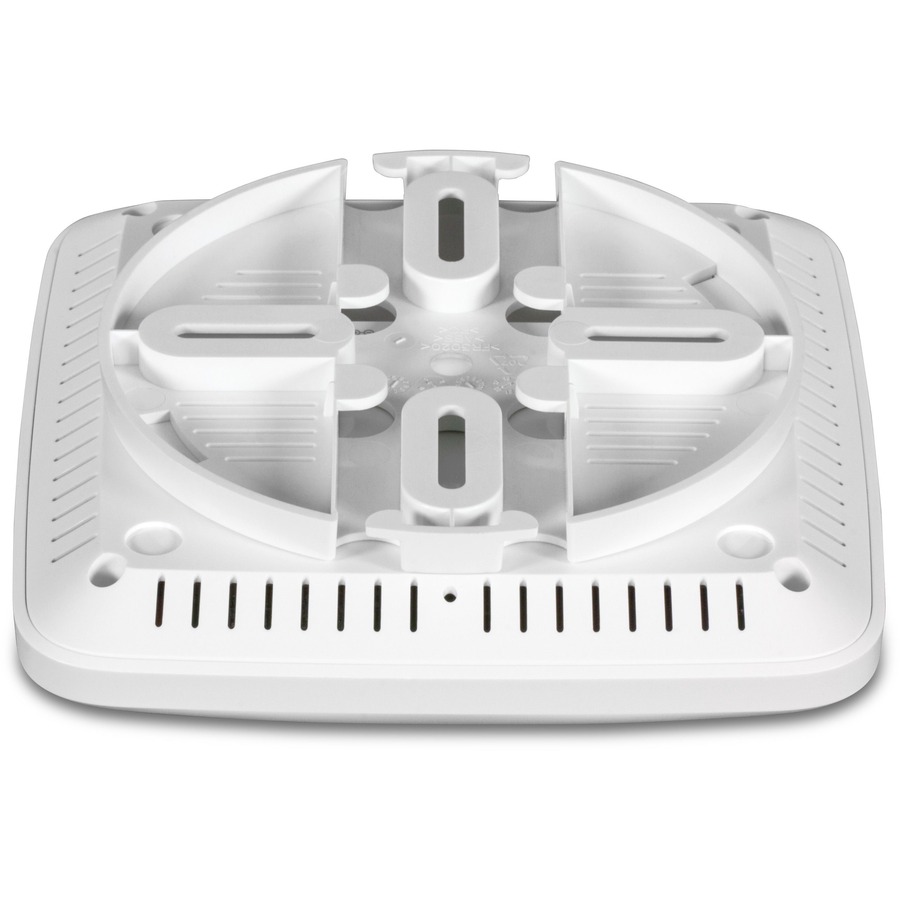

Mounting Plate

Wall / Ceiling mounting plate for this WiFi 6 access point is included

TRENDnet Hive Cloud Manager

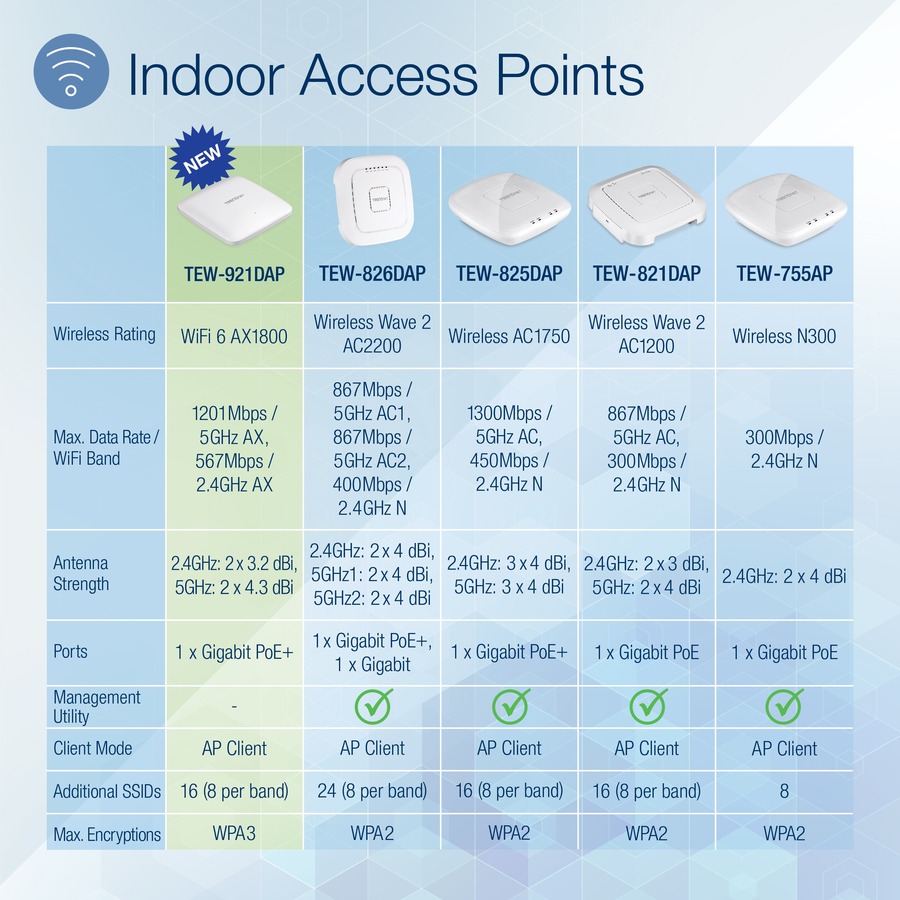

TRENDnet's Reliable, High-Performance WiFi 6 PoE+ Access Points

TRENDnet’s high-performance Dual Band WiFi 6 PoE+ Access Points, features two concurrent WiFi bands to maximize networking speeds with the latest WiFi 6 technology. These WiFi 6 access points also supports Access Point (AP) and Repeater modes.

Faster speeds are possible on this WiFi 6 access point with 1024-QAM, OFDMA, and MU-MIMO technologies. MU-MIMO technology processes multiple data streams simultaneously, increasing real-time WiFi performance when multiple devices access the network. The wireless access points features access control, bandwidth control, and band steering. The low-profile housing design blends into most environments, and includes a convenient wall / ceiling mounting plate.

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3at

IEEE 802.1Q

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11k

IEEE 802.11n (up to 400Mbps)*

IEEE 802.11r

IEEE 802.11v

IEEE 802.11w

IEEE 802.11ac Wave 2 (up to 867Mbps)*

IEEE 802.11ax (up to 1201Mbps)*

Hardware Interface

1 x PoE+ Gigabit LAN port (power input)

Power port (optional power adapter sold separately)

LED indicators

Mounting plate

Reset button

Features

MU-MIMO

OFDMA

Band steering

WiFi traffic shaping

802.1Q VLAN assignment per SSID

IPv6 support (Link-Local, Static IPv6, Auto-Configuration (SLAAC/DHCPv6))

Multi-Language interface, English, French, Spanish, German, Russian

LEDs on/off

External Captive Portal (Coovachilli server authentication)

Internal Captive Portal (Local user account authentication and customizable portal page)

Redirect Captive Portal

802.11k intelligent radio resource management

RSSI Threshold (client signal strength and connectivity control)

Airtime Fairness

IGMP Snooping

Operation Modes

Access Point

Client Bridge

WDS AP

WDS Bridge

WDS Station

Repeater

Management/Monitoring

Web based management

SNMP v1/v3

STP

Event logging

Ping test

Traceroute

Telnet

Reboot & scheduled automatic reboot

Hive Cloud Management

Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser, or through the mobile app

Multi-device management

Provisioning through scheduled batch firmware or configuration updates for multiple switches

Event/hardware network monitoring (CPU/memory utilization)

Configure features such as IP address settings, WiFi settings, operation modes, and LED control through cloud management

Access Control

Wireless encryption: WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS, WPA3-PSK

MAC filter

Maximum client limit

QoS

Bandwidth control per SSID or client

SSID

Up to 8 SSIDs per wireless band (24 total)

Frequency

2.4GHz: 2.412 – 2.472GHz

5GHz: 5.180 – 5.320GHz

Wireless Channels

2.4GHz: FCC: 1–11, ETSI: 1 – 13

5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161 and 165 ETSI: 36, 40, 44, 48 (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140) **

Modulation

DBPSK/DQPSK/CCK for DSSS technique

BPSK/QPSK/16-QAM/64-QAM/256-QAM/1024-QAM for OFDM technique

OFDMA

Antenna Gain

2.4GHz: 2 x 3.2 dBi internal

5Ghz: 2 x 4.3 dBi internal

Wireless Output Power

802.11a: FCC: 30 dBm (max.) / CE: 28 dBm (max.)

802.11b: FCC: 29 dBm (max.) / CE: 18 dBm (max.)

802.11g: FCC: 29 dBm (max.) / CE: 19 dBm (max.)

802.11n (2.4GHz): FCC: 29 dBm (max.) / CE: 19 dBm (max.)

802.11n (5GHz): FCC: 30 dBm (max.) / CE: 28 dBm (max.)

802.11ac: FCC: 30 dBm (max.) / CE: 28 dBm (max.)

802.11ax (2.4GHz): FCC: 29 dBm / CE: 19 dBm

802.11ax (5GHz): FCC: 30 dBm / CE: 28 dBm

Receiving Sensitivity

802.11a: -75 dBm (typical) @ 54Mbps

802.11b: -90 dBm (typical) @ 11Mbps

802.11g: -77 dBm (typical) @ 54Mbps

802.11n (2.4 GHz): -77 dBm (typical) @ 400Mbps

802.11n (5 GHz): -71 dBm (typical) @ 400Mbps

802.11ac: -71 dBm (typical) @ 867 Mbps

802.11ax (2.4GHz): -65 dBm (typical) @ 574Mbps

802.11ax (5GHz): -63 dBm (typical) @ 1201Mbps

Power

IEEE 802.3at Type 2 PoE PD Class 4

Input: 100 - 240V AC, 50/60Hz, Output: 12V DC, 1.5A external power adapter (optional power adapter sold separately)

Max. consumption: 15W

Operating Temperature

0° – 40° C (32° – 104° F)

Operating Humidity

Max. 95% non-condensing

Certifications

CE

FCC

Dimensions

160 x 160 x 34mm (6.3 x 6.3 x 1.34 in.)

Weight

486g (1.07 lbs.)

Warranty:

3 year

PACKAGE CONTENTS

TEW-921DAP

Network cable (1.5m/5 ft.)

Quick Installation Guide

Mounting plate
