TRENDnet 10dBi Wireless N300 Outdoor PoE Pre-configured Point-to-Point Bridge Bundle Kit, Two Pre-Configured Wireless N Access Points, IPX6 Rated Housing, 10 dBi Antennas, White, TEW-740APBO2K

• POINT TO POINT BRIDGE:2 10 dBi Outdoor PoE Access Points with wireless N300 point-to-point networking (2.4 GHz)

• PRECONFIGURED KIT: 2 x Preconfigured Wireless N access points. Reduce installation and setup time with this preconfigured and pre-encrypted long range wireless bridge kit

• POE POWER ADAPTER: Included power adapter provides power and data over a single Ethernet cable with a maximum distance of 60 m (197 ft.)

• WIRELESS N300 (2.4 GHz): The N300 Oudoor access point kit is compliant with 802.11b/g/n technology (2.4 GHz) with data rates up to 300 Mbps

• WIRELESS MODES: Supports Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes

• OUTDOOR READY: The PoE Access Point has a durable enclosure with an IPX6 outdoor weather rating. Operating Temperature of -20 - 60° C (-4 - 140° F).

• DIRECTIONAL ANTENNA: The 10 dBi Access Point has a built-in 10 dBi directional antenna

• NDAA / TAA compliant (U.S. and Canada only)

TRENDnet's 10 dBi Wireless N300 Outdoor PoE Preconfigured Point-to-Point Bridge Kit, model TEW-740APBO2K, is the easiest way for you to provide long-distance, point-to-point wireless connectivity. The long-range outdoor access point kit is ideal for use with building-to-building communications, utility poles, surveillance solutions, and more.

Reduce installation time and infrastructure costs. This preconfigured directional point-to-point bridge kit is ready to install out of the box, with no additional WiFi configurations required*. Conveniently link two locations together with Wireless N300 speeds and performance, especially when you are unable to run network cables.

The durable access point housing is IP56 weather rated housing, and designed and tested for harsh, outdoor environments. This long-range outdoor access point bridge kit features built-in, high-performance 10 dBi antennas, and conveniently includes both wall and pole mounting hardware for installation flexibility.

Preconfigured Point-to-Point Bridge Reduce installation cost and setup time with this preconfigured, and pre-encrypted long-range outdoor wireless access point bridge kit.

PoE Power Adapter Included passive PoE injector provides power and data over a single Ethernet cable with a maximum distance of 60m (197 ft.).

Outdoor Ready Durable enclosure with an IP56 outdoor weather rating, and an operating temperature range of -22° - 60° C (-7.6° - 140° F).

More from the Manufacturer

OVERVIEW

TRENDnet's 10 dBi Wireless N300 Outdoor PoE Preconfigured Point-to-Point Bridge Kit, model TEW-740APBO2K, is the easiest way for you to provide long-distance, point-to-point wireless connectivity. The long-range outdoor access point kit is ideal for use with building-to-building communications, utility poles, surveillance solutions, and more.

Reduce installation time and infrastructure costs. This preconfigured directional point-to-point bridge kit is ready to install out of the box, with no additional WiFi configurations required*. Conveniently link two locations together with Wireless N300 speeds and performance, especially when you are unable to run network cables.

The durable access point housing is IP56 weather rated housing, and designed and tested for harsh, outdoor environments. This long-range outdoor access point bridge kit features built-in, high-performance 10 dBi antennas, and conveniently includes both wall and pole mounting hardware for installation flexibility.

*For future troubleshooting, we recommend assigning the APs valid IP addresses within your existing network.

Preconfigured Point-to-Point Bridge

Reduce installation and setup time with this preconfigured and pre-encrypted long range wireless bridge kit

PoE Power Adapter

Included power adapter provides power and data over a single Ethernet cable with a maximum distance of 20 m (65 ft.)

Outdoor Ready

Durable enclosure with an IPX6 outdoor weather rating

Preconfigured Kit

Reduce installation and setup time with this preconfigured and pre-encrypted long-range outdoor wireless access point bridge kit

Wireless N300 (2.4 GHz)

Compliant with 802.11b/g/n technology (2.4 GHz) with data rates up to 300Mbps*

Outdoor Rated

Durable enclosure with an IP56 outdoor weather rating, and an operating temperature range of -22° – 60° C (-7.6° – 140° F) featured on this long-range outdoor access point kit

Directional Antenna

Built-in 10 dBi directional antenna in each long-range outdoor access point

PoE Power Adapter

Included passive PoE injector provides power and data over a single Ethernet cable with a maximum distance of 60m (197 ft.)

Mounting Hardware

Pole and wall mount hardware included

LED Indicators

LEDs on the long-range outdoor access points convey wireless link quality in WISP mode

Installing Outdoor Wireless Access Points

POINT TO POINT BRIDGE:2 10 dBi Outdoor PoE Access Points with wireless N300 point-to-point networking (2.4 GHz)

PRECONFIGURED KIT: 2 x Preconfigured Wireless N access points. Reduce installation and setup time with this preconfigured and pre-encrypted long range wireless bridge kit

POE POWER ADAPTER: Included power adapter provides power and data over a single Ethernet cable with a maximum distance of 60 m (197 ft.)

WIRELESS N300 (2.4 GHz): The N300 Oudoor access point kit is compliant with 802.11b/g/n technology (2.4 GHz) with data rates up to 300 Mbps

WIRELESS MODES: Supports Access Point (AP), Wireless Distribution System (WDS), Client Bridge + AP, Wireless ISP (WISP) + AP, CPE + AP, and control AP (CAP) modes

OUTDOOR READY: The PoE Access Point has a durable enclosure with an IPX6 outdoor weather rating. Operating Temperature of -20 - 60° C (-4 - 140° F).

DIRECTIONAL ANTENNA: The 10 dBi Access Point has a built-in 10 dBi directional antenna

NDAA / TAA compliant (U.S. and Canada only)

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.1d

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1X

IEEE 802.11d

IEEE 802.11e

IEEE 802.11f

IEEE 802.11h

IEEE 802.11i

IEEE 802.11b

IEEE 802.11g

IEEE 802.11k

IEEE 802.11n (2.4GHz up to 300Mbps)

IEEE 802.11r

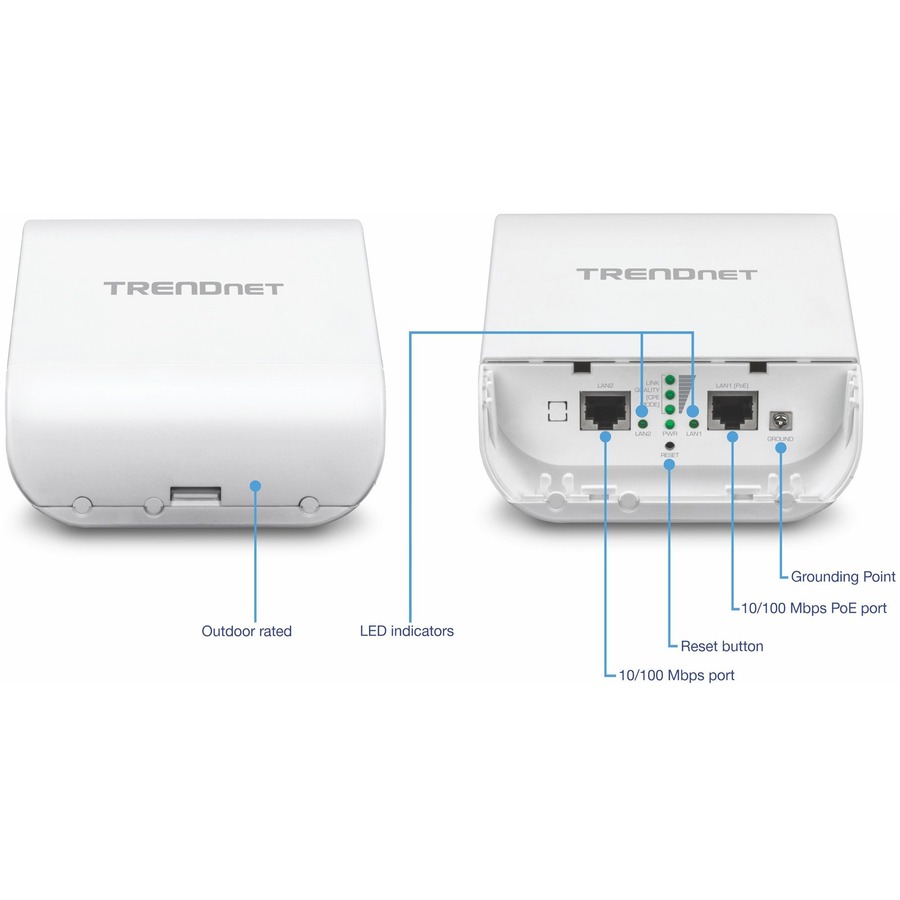

Hardware Interface

1 x 10/100Mbps LAN1 port (proprietary PoE max. cable length 60m (197 ft.))

1 x 10/100Mbps LAN2 port

LED indicators

Reset button

Grounding Point

Special Features

IP56 weather rated

802.1Q VLAN assignment per SSID

Schedule radio on/off time policy

802.11r / 802.11k fast roaming

Preconfigured point-to-point bridge kit

Access Control

Wireless encryption: WPA/WPA2-PSK, WPA/WPA2-Enterprise, 802.1X

Firewall (CPE Mode): NAT, Virtual Server, DMZ Host, PPTP/L2TP/IPsec VPN Passthrough

Access Controls: MAC, IP Filter, Layer 2 Client Isolation, Per-SSID client limiting

802.1Q VLAN

OAuthentication 2.0 / Walled Garden for guest authentication

Customizable captive portal for guest authentication

QoS

WMM

Operation Modes

Access Point (AP)

Access Point (AP) + WDS

Wireless Distribution System (WDS)

WISP (CPE) + AP

Client Bridge + AP

Router

Control AP (CAP)

SSID

Up to 7 SSIDs

Internet Connection Types (WISP (CPE) + AP & Router modes)

Dynamic IP (DHCP)

Static IP (Fixed)

PPPoE (Dynamic IP/Static IP)

PPTP (Dynamic IP/Static IP)

Management/Monitoring

Local/remote web-based management (HTTP, HTTPS)

Local/remote CLI based management (Telnet, SSH)

SNMP v2c/v3

SNMP Trap

Upgrade firmware

Backup/restore configuration

Event logging

Authentication log

Reboot

Restore to factory defaults

Ping test

Traceroute

LED Control

Frequency

FCC: 2.412 - 2.462GHz

ETSI: 2.412 – 2.472GHz

IC: 2.412 - 2.462GHz

Wireless Channels

FCC: 1-11

ETSI: 1-13

Modulation

802.11b: DBPK, DQPSK, CCK with DSSS

802.11g/n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM

Media Access Protocol

CSMA/CA with ACK

Antenna Gain

10 dBi internal sector antenna

Wireless Output Power

802.11b: FCC: 26 dBm (max.) / CE: 10.4 dBm (max.) / IC: 26 dBm (max.) @ 11Mbps

802.11g: FCC: 25 dBm (max.), CE: 10.5 dBm (max.) / IC: 25 dBm (max.) @ 54Mbps

802.11n: FCC: 28 dBm (max.), CE: 10.6 dBm (max.) / IC: 28 dBm (max.) @ 150Mbps

802.11n: FCC: 27 dBm (max.), CE: 10.6 dBm (max.) / IC: 27 dBm (max.) @ 300Mbps

Receiving Sensitivity

802.11b: -88 dBm (typical) @ 11Mbps

802.11g: -74 dBm (typical) @ 54Mbps

802.11n: -71 dBm (typical) @ 150Mbps

802.11n: -69 dBm (typical) @ 300Mbps

Power

Input: 100 – 220V AC, 50/60Hz, 0.5A

Output: 12V DC, 1A proprietary/passive PoE injector

Max. Consumption: 6.6W

Operating Temperature

-22° – 60° C (-7.6° – 140° F)

Operating Humidity

Max. 99% non-condensing

Certifications

FCC

CE

IC

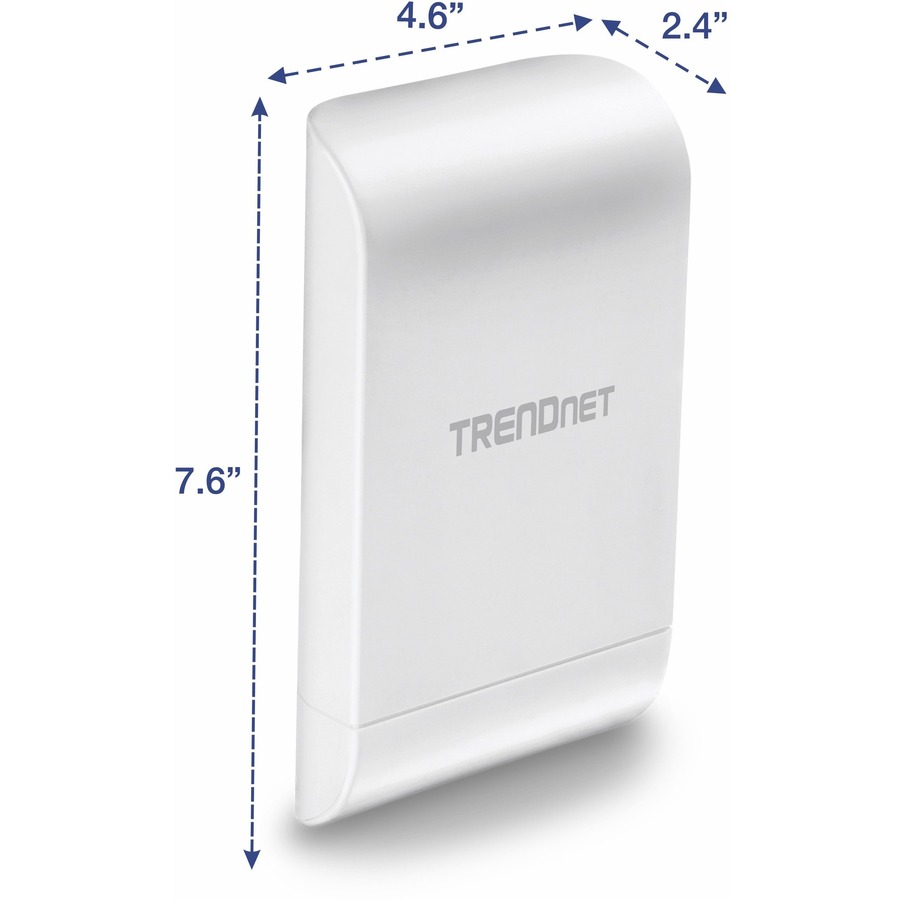

Dimensions

195 x 118 x 61mm (7.6 x 4.6 x 2.4 in.) per access point

Weight

304g (10.7 oz.) per access point

Warranty

3 year

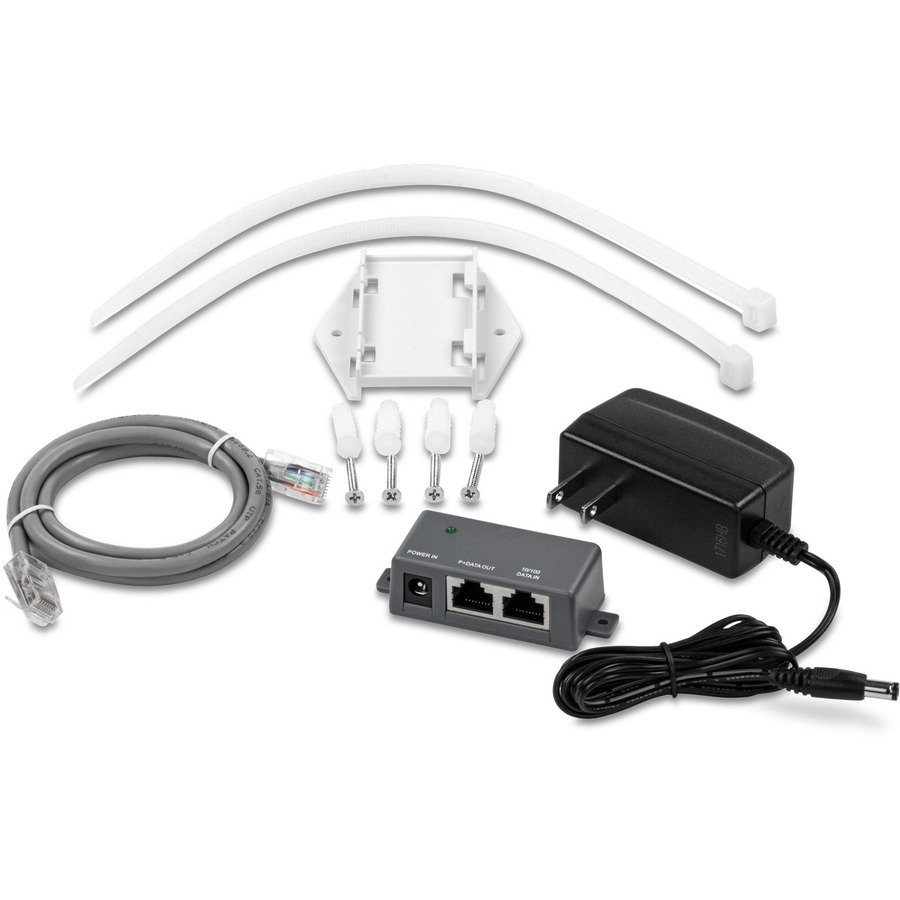

PACKAGE CONTENTS

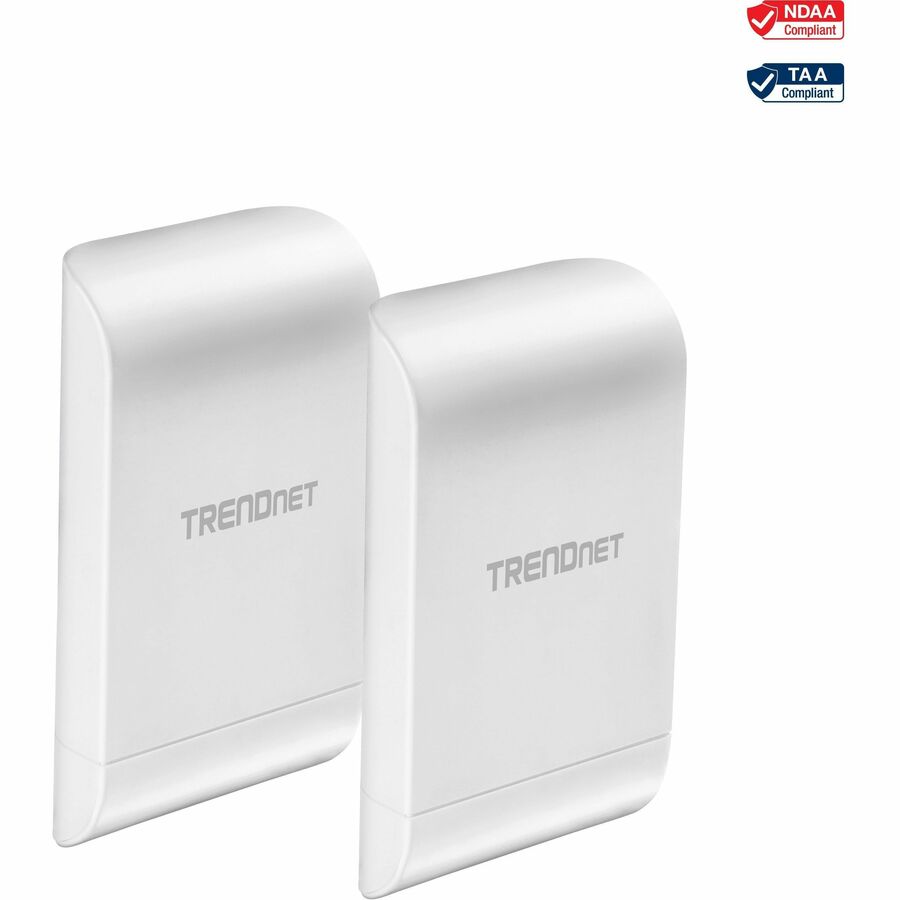

2 x TEW-740APBO

Quick Installation Guide

Proprietary/Passive PoE injectors

Power adapters (12V DC, 1A)

Grounding wires

Mounting hardware

2 X Rubber seals
