Best Wall-Mount Server Racks and Rack Enclosures
Open brackets, 2-post frames and enclosed cabinets that hang on a wall — read by usable depth first, then U height, weight capacity and whether the body swings out for rear access.
Wall-mount racks in stock at Uniqcli
How to choose →A curated selection with live pricing — in-stock lines first, then back-ordered lines with a typical lead time. Every line is sourced through authorized distribution and screened for TAA country-of-origin and NDAA §889 status before checkout.
- StarTech.comStarTech 1U 19in Steel Vertical Wall Mount Equipment Rack Bracket, TAA - Mount a server, network or telecommunications device vertically with this 1U wall-mountable rack - wall mount rack - wallmount rack - vertical wall mount rack - vertical wall mount bracket - 1u wall mount rackRK119WALLV
$57.39
$47.12

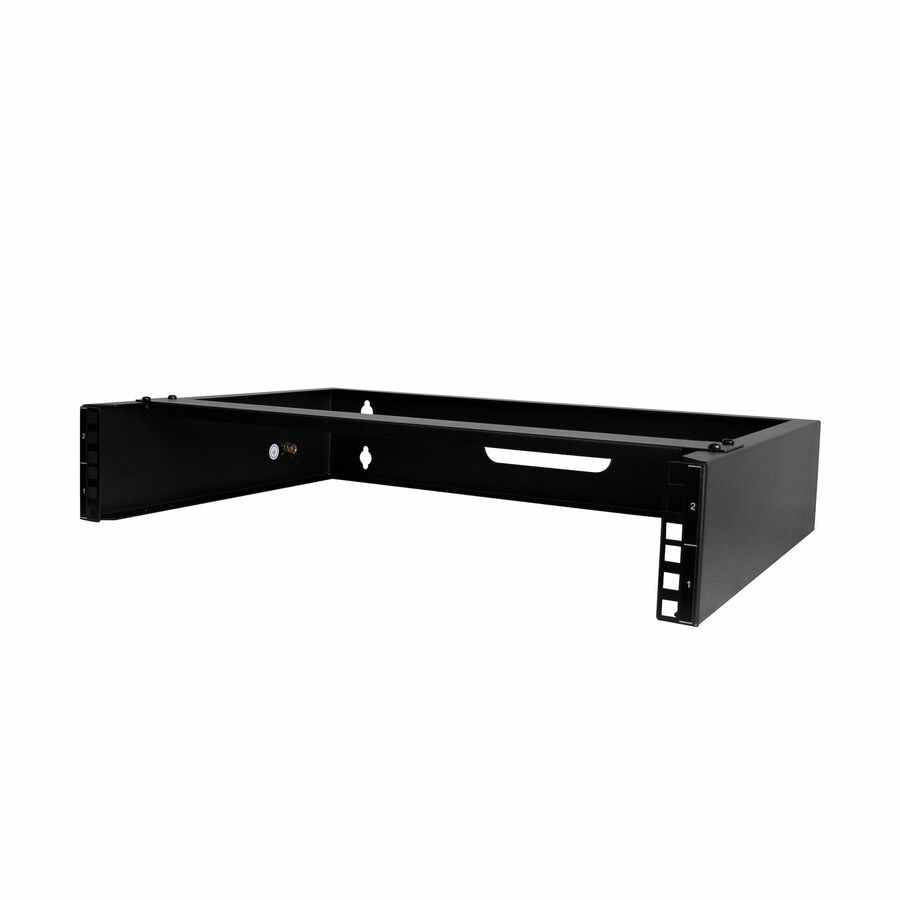

756 in stock - StarTech.comStarTech 2U 19in Steel Vertical Wall Mount Equipment Rack Bracket, TAA - Mount a server, network or telecommunications device vertically with this 2U wall-mountable rack - wall mount rack - wallmount rack - vertical wall mount rack - vertical wall mount bracket - 2u wall mount rackRK219WALLV
$63.54
$52.85

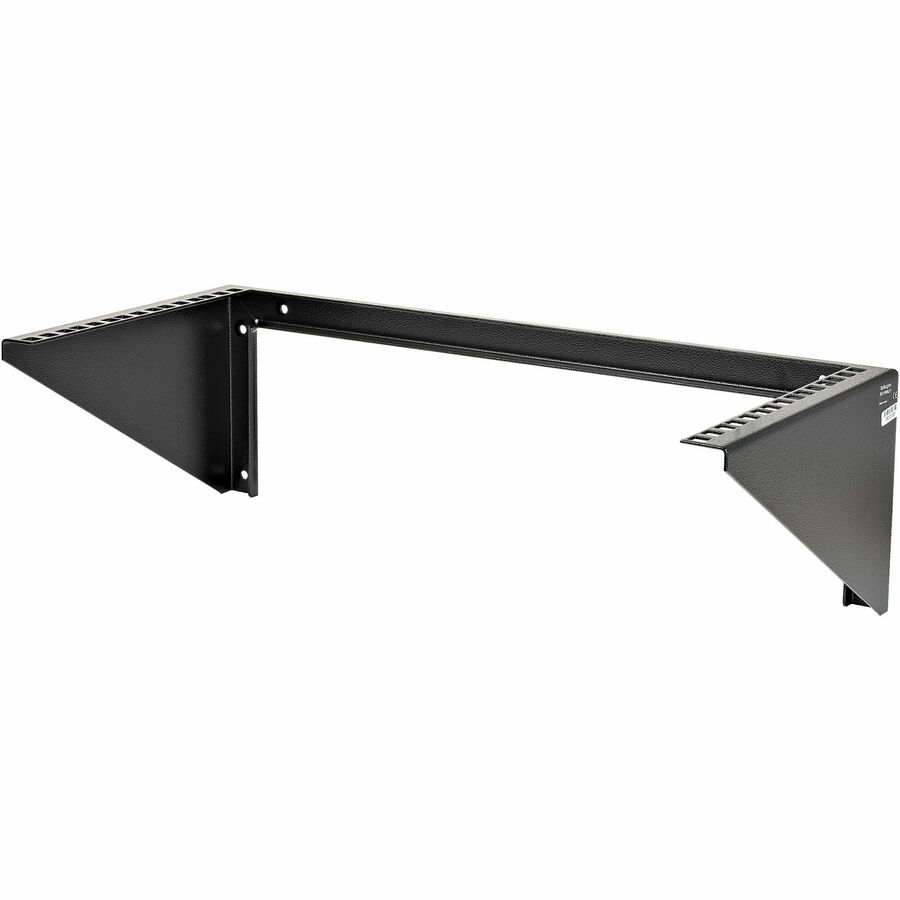

866 in stock - StarTech.comStarTech 4U 19in Steel Vertical Wallmount Equipment Rack Bracket, TAA - Mount server, network or telecommunications devices vertically with this 4U wall-mountable rack - wall mount rack - wall mount rack - vertical wall mount rack - vertical wall mount bracket - 4u wall mount rackRK419WALLV
$80.96
$75.35
2,584 in stock
6U bracket rack
StarTech.com
StarTech 6U Wall Mount Rack, 14in Deep, 19 inch Wall Mount Network…
WALLMOUNT6
A 6U 19-inch wall-mount rack in cold-rolled steel at 13.78 inches of mount depth with a 44 lb capacity, supplied with the wall and equipment hardware.
Bracket-style and open: right for a patch panel and a switch, and not for anything deep or heavy.
$82.04In stock12U bracket, TAA
StarTech.com
StarTech 12U Wall Mount Rack, 14in Deep, 19in Wall Mount Network Rack…
WALLMNT12
The same 14-inch-deep bracket family at 12U with a 125 lb capacity and the mounting hardware included, in cold-rolled steel.
Titled TAA Compliant — a per-part fact to confirm on the row you order.
$163.06In stock12U open frame
StarTech.com
StarTech 2-Post 12U Heavy-Duty Wall-Mount Network Rack, 19" Open Frame…
RK12WALLO
A heavy-duty 2-post 12U open-frame wall-mount rack rated to 200 lb, EIA/ECA-310 compliant, shipped flat with cage nuts and screws included.
Open frame in a room that is already secure: airflow instead of a door, and the load rating to match.

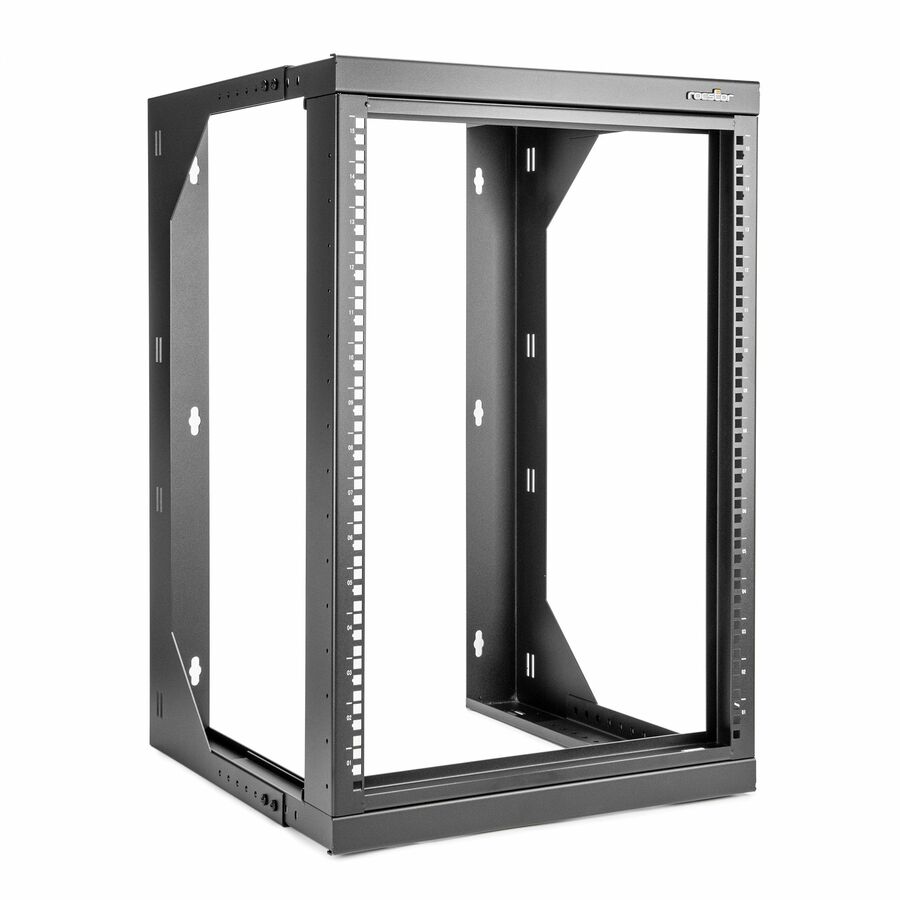

$139.24In stock12U adjustable depth
Rocstor
SolidRack 12U Wall Mount Rack
Y10E028-B1

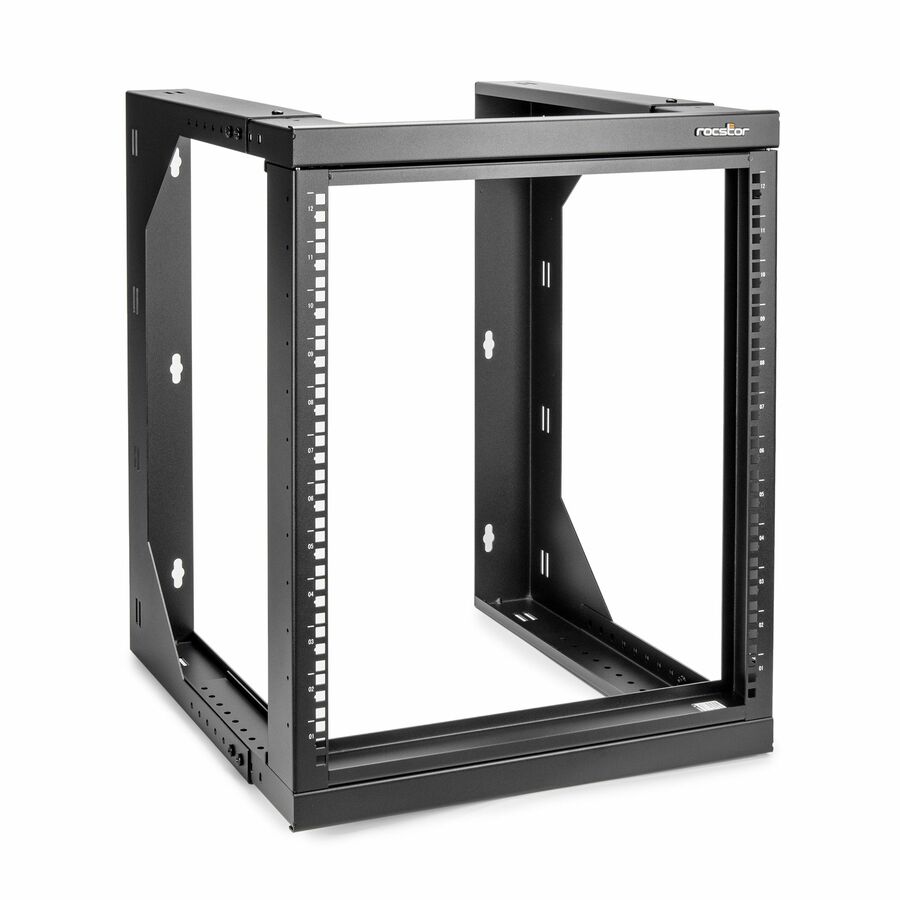

A 12U 2-post open-frame wall rack with depth adjustable from 18 to 25.6 inches, 19-inch compatible and EIA/ECA-310 rated, with M6 screws and cage nuts.
The adjustable depth is the reason to shortlist it when the equipment list is not final.
$179.58In stock6U glass cabinet
Rocstor
Rocstor SolidRack Wall Mount Rack Enclosure
Y10E001-B1
A 6U wall-mount rack enclosure with a tempered-glass window, front and side door locks, 14.8 inches of rack depth and a 200 lb capacity, shipped assembled.
Switch-depth: sized for a LAN switch and VoIP gear, per its own listing.
$161.57In stock12U glass cabinet
Rocstor
Rocstor SolidRack Wall Mount Rack Enclosure
Y10E003-B1
The same locking enclosure family at 12U — tempered-glass window, front and side locks, 14.8 inches of rack depth and a 200 lb capacity, assembled.
$310.79In stock12U TechEdge, TAA
Rack Solutions
Rack Solutions 12U TechEdge Wall Mount Rack 18in Depth
119-6040
A 12U open-frame wall-mount rack in powder-coated steel at 18.05 inches of rack depth, rated to 200 lb.
Titled TAA Compliant.

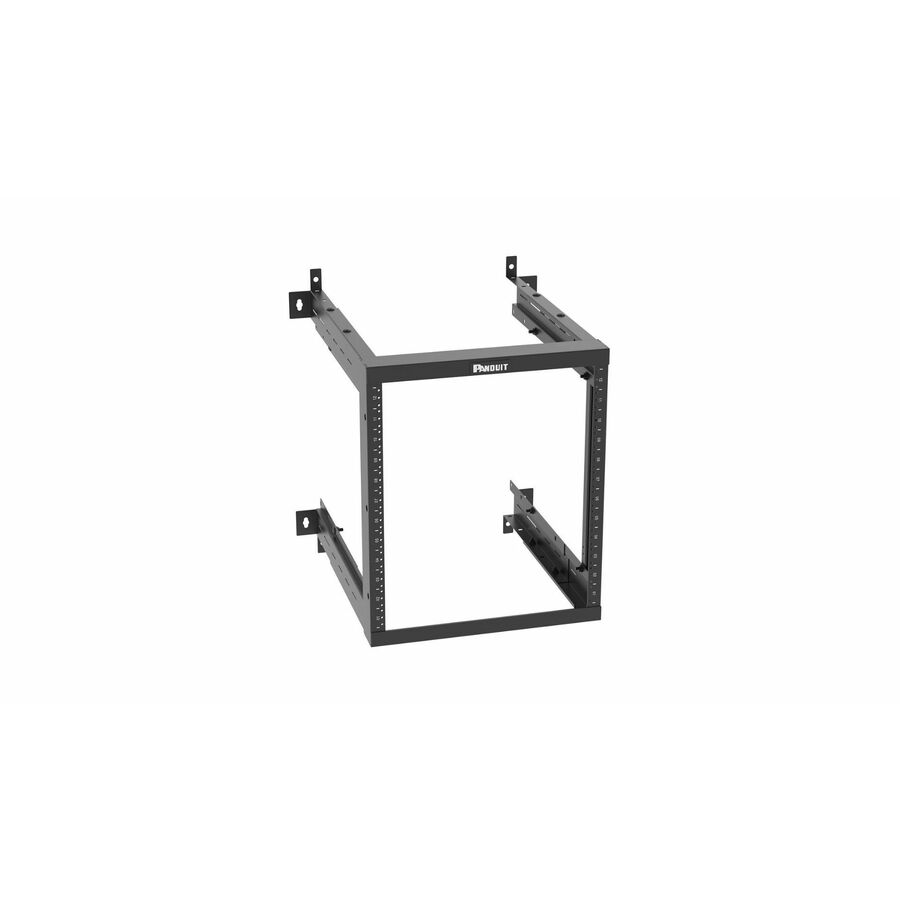

$178.04Back-ordered12U adjustable, open
PANDUIT
PanZone Adjustable Depth Wall Mount Rack, 12RU, Black
AWMR12

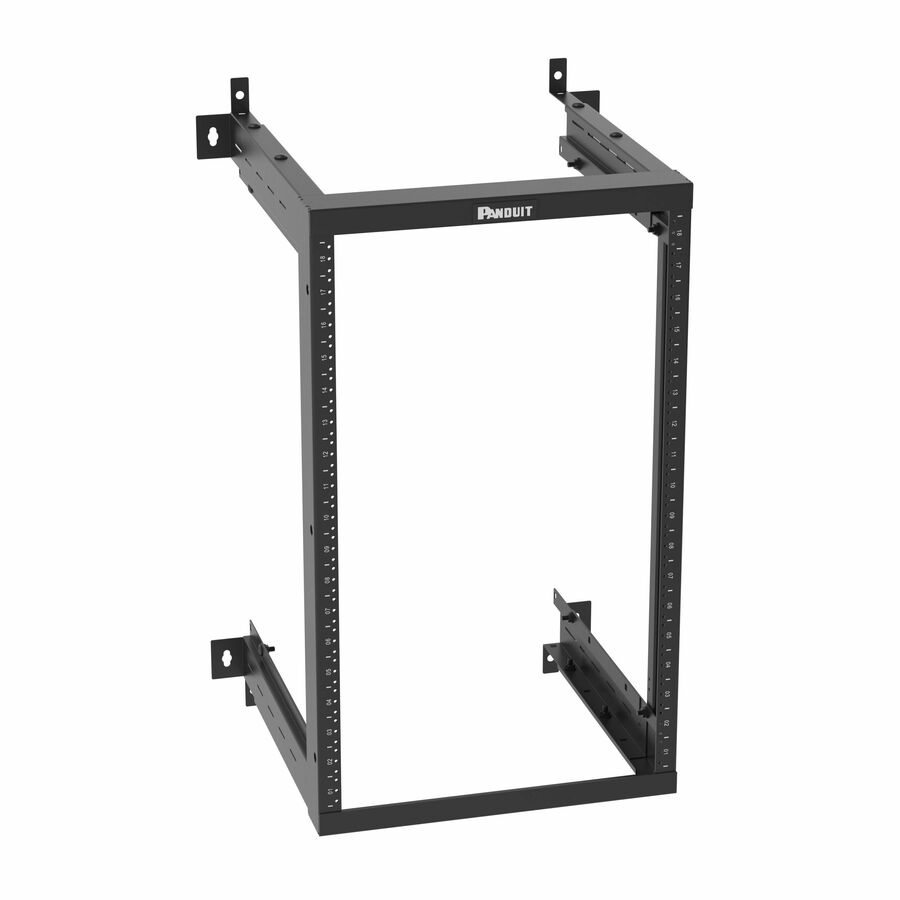

A 12U adjustable-depth wall-mount open-frame rack in powder-coated steel with a 150 lb capacity — the frame for a closet that needs depth flexibility without a door.

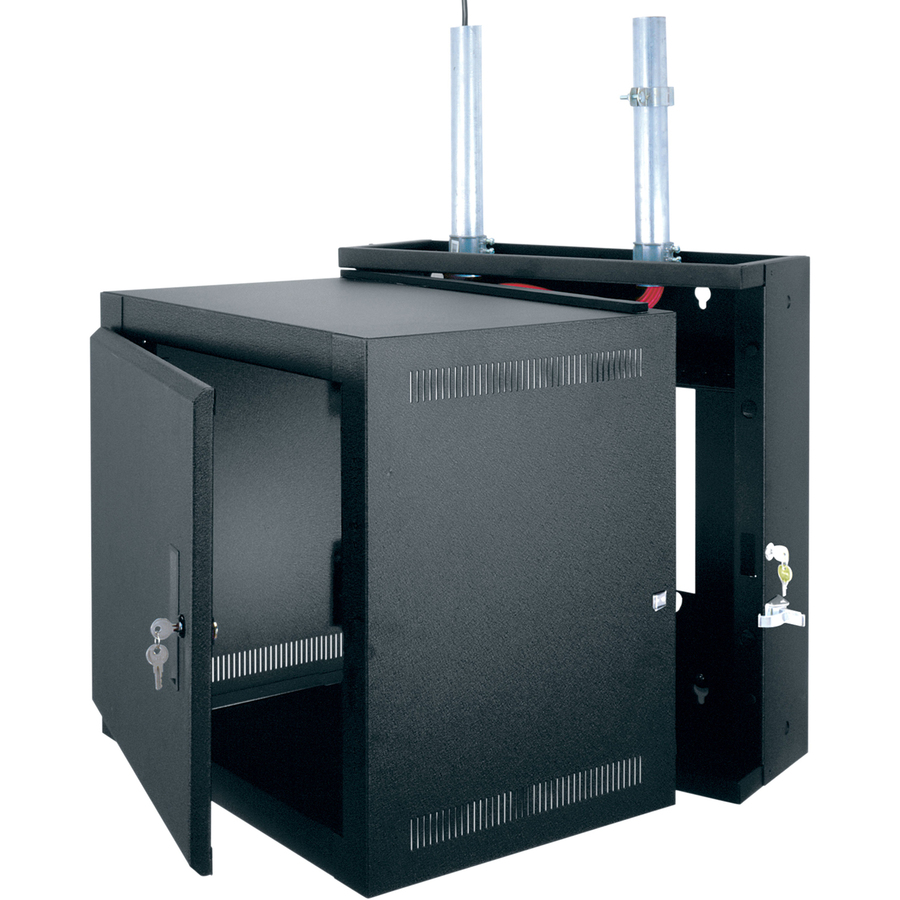

$700.03Back-ordered10U pivoting, TAA
Legrand
Middle Atlantic EWR 10RU Pivoting Wall Mount Enclosure
EWR1022

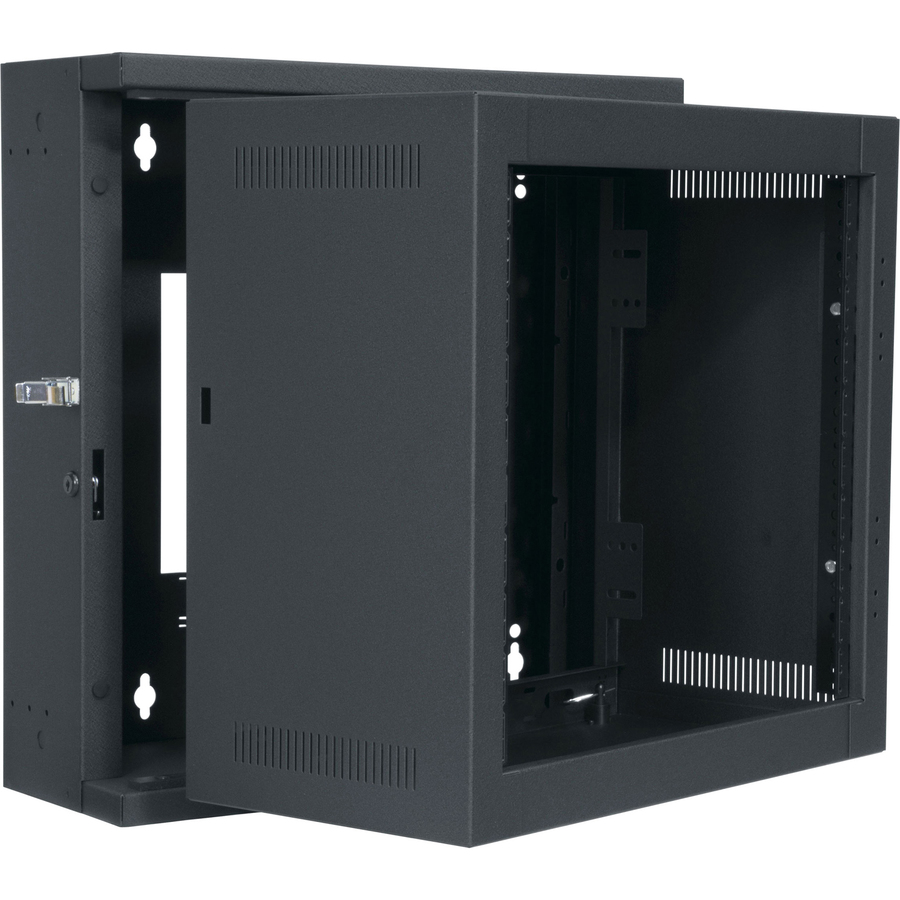

A 10U pivoting wall-mount enclosure at 22 inches of depth with a 150 lb capacity — the whole body hinges off the wall so the rear is reachable without unracking.
Titled TAA Compliant.

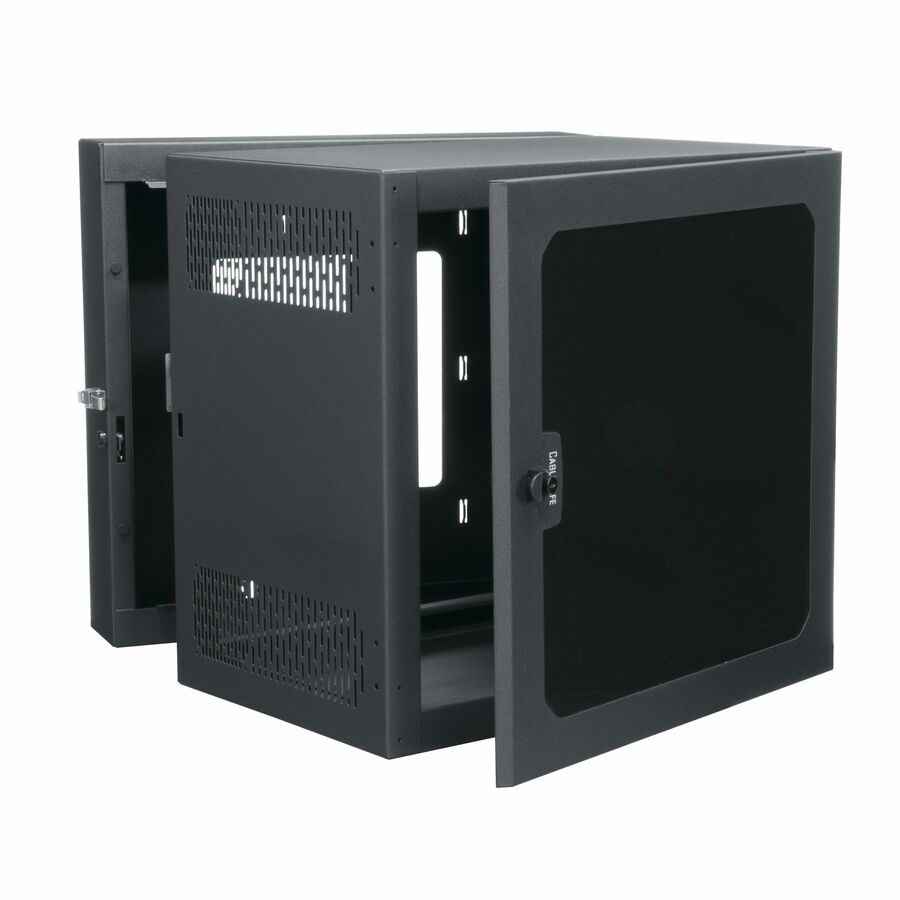

$566.96In stock12U swinging, TAA
Legrand
Middle Atlantic CWR 12RU Wall Mount Rack
CWR-12-22PD
A 12U swinging wall-mount rack at 22 inches of depth in steel, 26 inches wide with 20 inches of rack depth — a deeper body for a closet that has to take more than a switch.
Titled TAA Compliant.
$1,110.13In stock18U pivoting cabinet
Legrand
Middle Atlantic DWR 18RU Pivoting Wall Mount Rack
DWR-18-22PD
An 18U pivoting wall-mount cabinet at 22 inches of depth with a front door and a 250 lb capacity, in steel and Plexiglas.
Titled TAA Compliant. The largest U height and load rating in this pick set.
$1,297.33In stock12U server-depth
Eaton
Tripp Lite by Eaton 12U Wall Mount Rack Enclosure Server Cabinet…
SRW12USDP
A 12U wall-mount rack enclosure with a swinging hinged door at 24.5 inches of rack depth and a 200 lb static capacity, listed for a UPS.
The depth figure is the reason this one is on the list — most wall enclosures are shallower than this.
$1,007.84In stock4U vertical-mount
Eaton
Tripp Lite by Eaton SmartRack 4U Low-Profile Vertical-Mount…
SRWF4U
A 4U low-profile vertical-mount wall enclosure at 20 inches of rack depth with a 150 lb capacity, listed for a patch panel and a LAN switch.
Vertical-mount: the equipment hangs sideways against the wall, which is what makes a low-profile body possible.
$733.67Back-ordered12U 28-inch cabinet
Vertiv
Great Lakes Wall Mount
GL24WMCMS-B-SC-AF-00
A 12U enclosed wall-mount cabinet at 28 inches of rack depth with a 200 lb capacity — the deepest body in this pick set, for equipment a shallow enclosure cannot take.
Confirm the wall and the clearance for a body this deep before the order; it projects further into the room than a switch-depth enclosure.
$1,807.34Back-orderedMore rack equipment in the Uniqcli catalog
See all 5,028 rack equipmentMore from across this category. In-stock lines lead, and a back-ordered line carries the same estimated availability its product page does — with live pricing throughout and the same TAA country-of-origin and NDAA §889 screening before checkout.

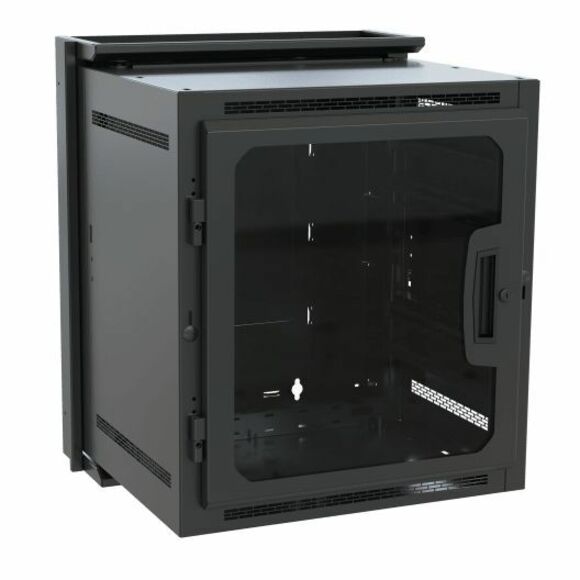

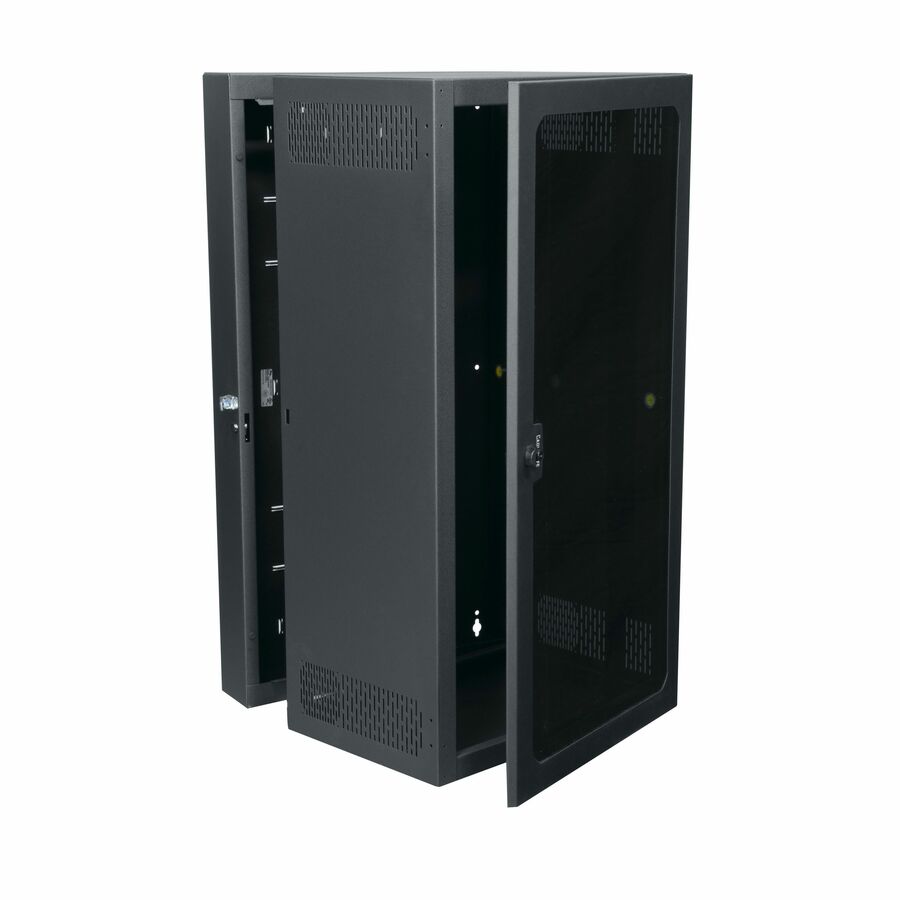

- LegrandMiddle Atlantic DWR 24RU Pivoting Wall Mount Rack - Plexi Front Door - 17in Depth Wall Mount Cabinet - TAA Compliant - 24U Rack Height x 19" Rack Width x 17" Rack Depth - Wall Mountable - Black Powder Coat - Steel, Plexiglass - 300 lb Maximum Weight CapacityDWR2417PD
$1,838.00
$1,410.11

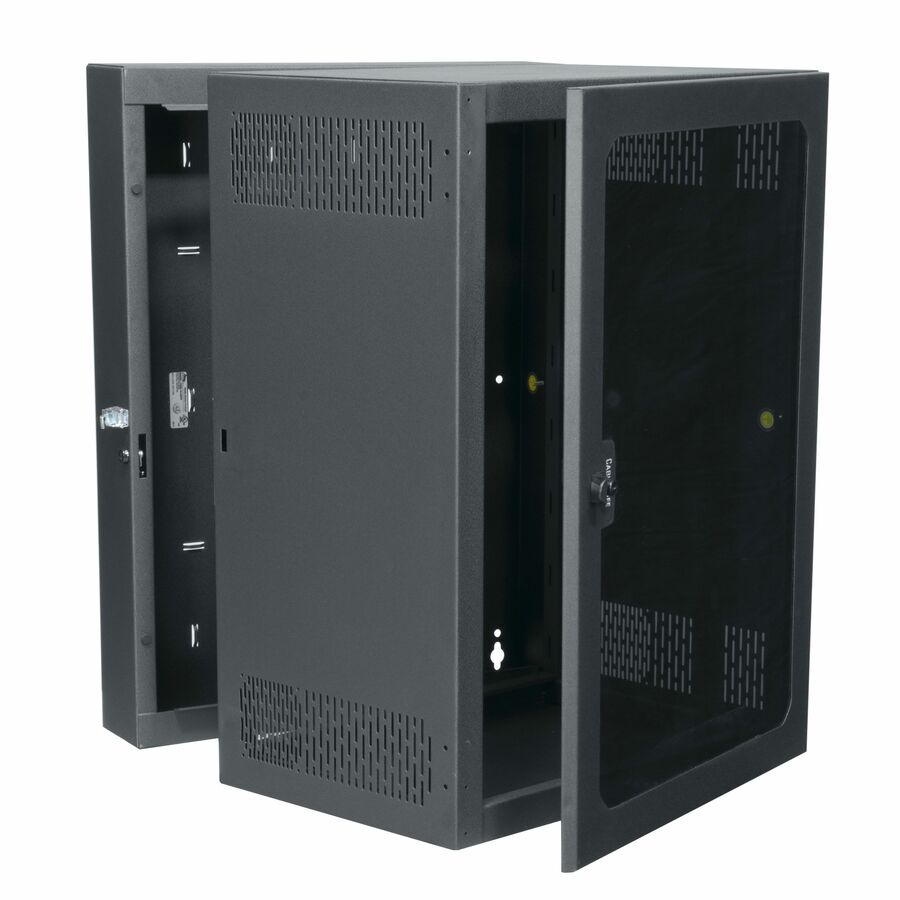

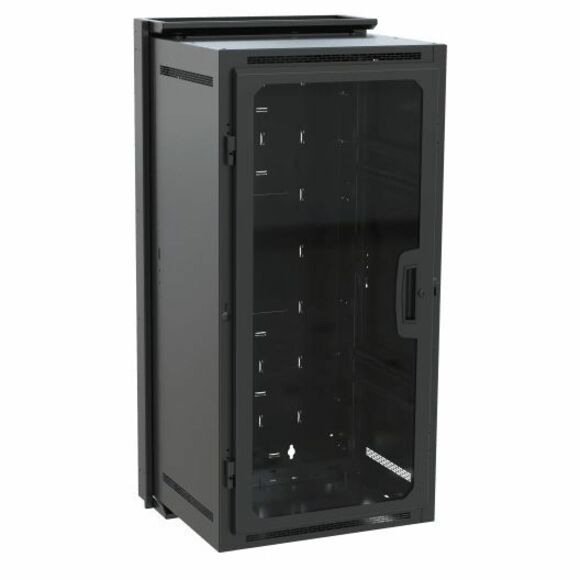

1 in stock - LegrandMiddle Atlantic CWR 18RU Wall Mount Rack - Swinging Wall Mount Rack - Plexi Door - 32in Depth - TAA Compliant - For Patch Panel - 18U Rack Height x 19" Rack Width x 30" Rack Depth - Wall Mountable - Black Powder Coat - Steel, Plexiglass - 200 lb Maximum Weight CapacityCWR-18-32PD
$1,750.00
$1,342.60

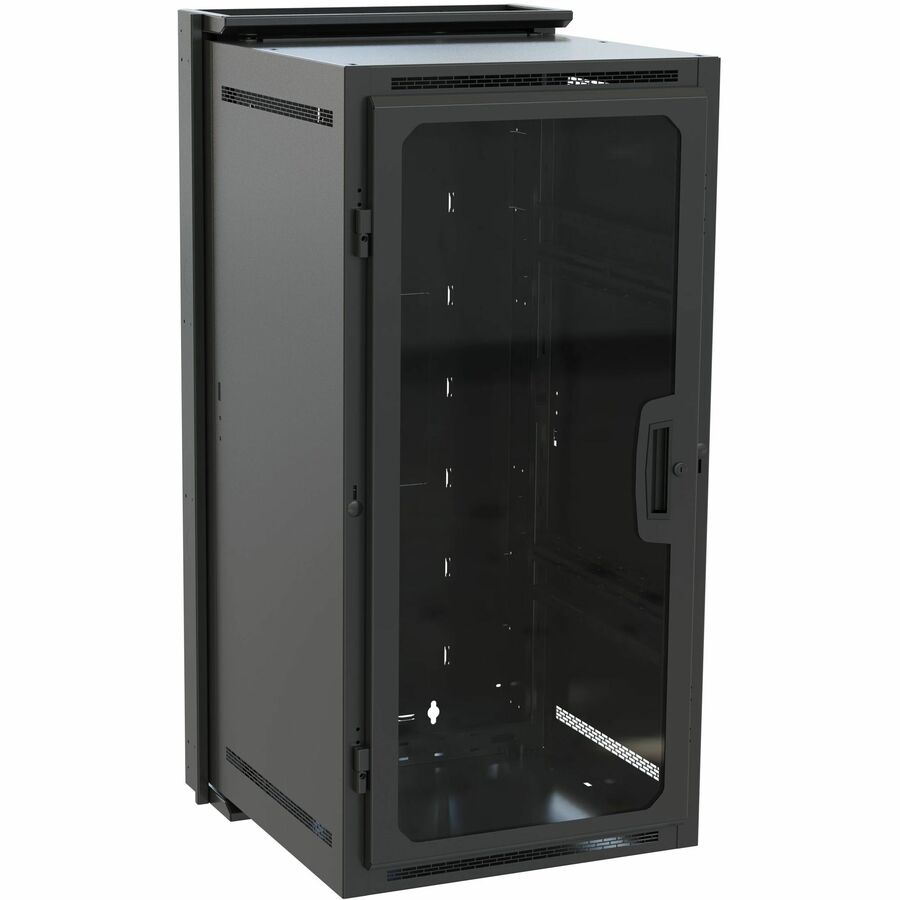

12 in stock - LegrandMiddle Atlantic CWR Series 22RU Wall Mounted Rack - Swing Wall Mount Rack - 22in Depth - BlackCWR-26-22PD
$1,725.00
$1,323.42
6 in stock - LegrandMiddle Atlantic CWR 12RU Wall Mount Rack - Swinging Wall Mount Rack - 32in Depth - TAA Compliant - For Patch Panel - 12U Rack Height x 19" Rack Width x 30" Rack Depth - Wall Mountable Enclosed Cabinet - Black Powder Coat - Steel - 200 lb Maximum Weight CapacityCWR-12-32PD
$1,667.00
$1,278.91
22 in stock - LegrandMiddle Atlantic DWR 16RU Pivoting Wall Mount Rack - Plexi Front Door - 22in Depth Wall Mount Cabinet - TAA Compliant - 16UDWR1622PD
$1,584.00
$1,215.24
20 in stock - LegrandMiddle Atlantic CWR 12RU Wall Mount Rack - Swinging Wall Mount Rack - Plexi Door - 26in Depth - TAA Compliant - For Patch Panel - 12U Rack Height x 19" Rack Width x 24" Rack Depth - Wall Mountable - Black Powder Coat - Steel - 250 lb Maximum Weight CapacityCWR-12-26PD
$1,531.00
$1,174.57
13 in stock - LegrandMiddle Atlantic CWR Series 12RU Wall Mounted Rack - Swing Wall Mount Rack - 17in Depth - BlackCWR-12-17PD
$1,317.00
$1,010.40

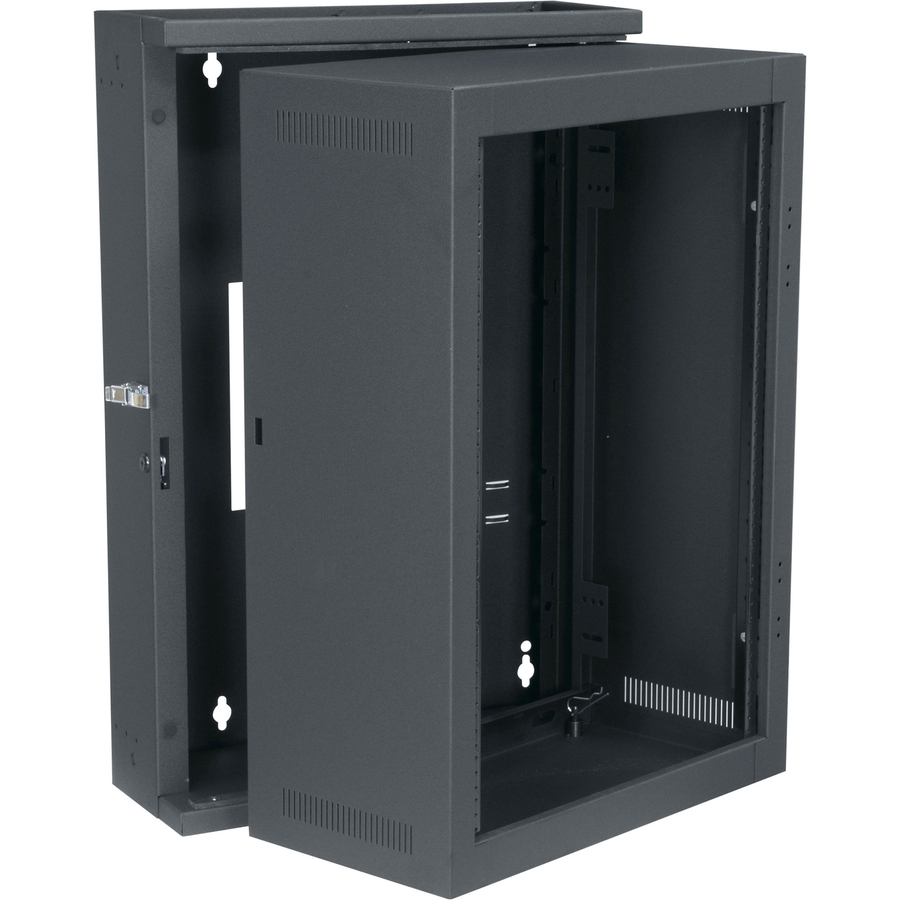

10 in stock - LegrandMiddle Atlantic DWR 10RU Pivoting Wall Mount Rack - 17in Depth Wall Mount Cabinet - Includes Front Door - TAA Compliant - 10U Rack Height x 19" Rack Width x 15" Rack Depth - Wall Mountable - Black Powder Coat - Steel, Plexiglas - 200 lb Maximum Weight CapacityDWR1017PD
$1,174.00
$900.68
8 in stock - LegrandMiddle Atlantic VWM Series 4RU Vertical Wall Mount Rack - Low Profile Wall Rack with Solid Top - BlackVWM-SD-4-36K-BW
$939.00
$720.40
17 in stock - EatonTripp Lite by Eaton 12U Wall Mount Rack Enclosure Server Cabinet Swinging Hinged Door Deep - For UPS - 12U Rack Height x 19? Rack Width x 24.50? Rack Depth - Wall Mountable - Black - 200 lb Maximum Weight Capacity - 200 lb Static/Stationary Weight CapacitySRW12USDP
$1,095.48
$1,007.84

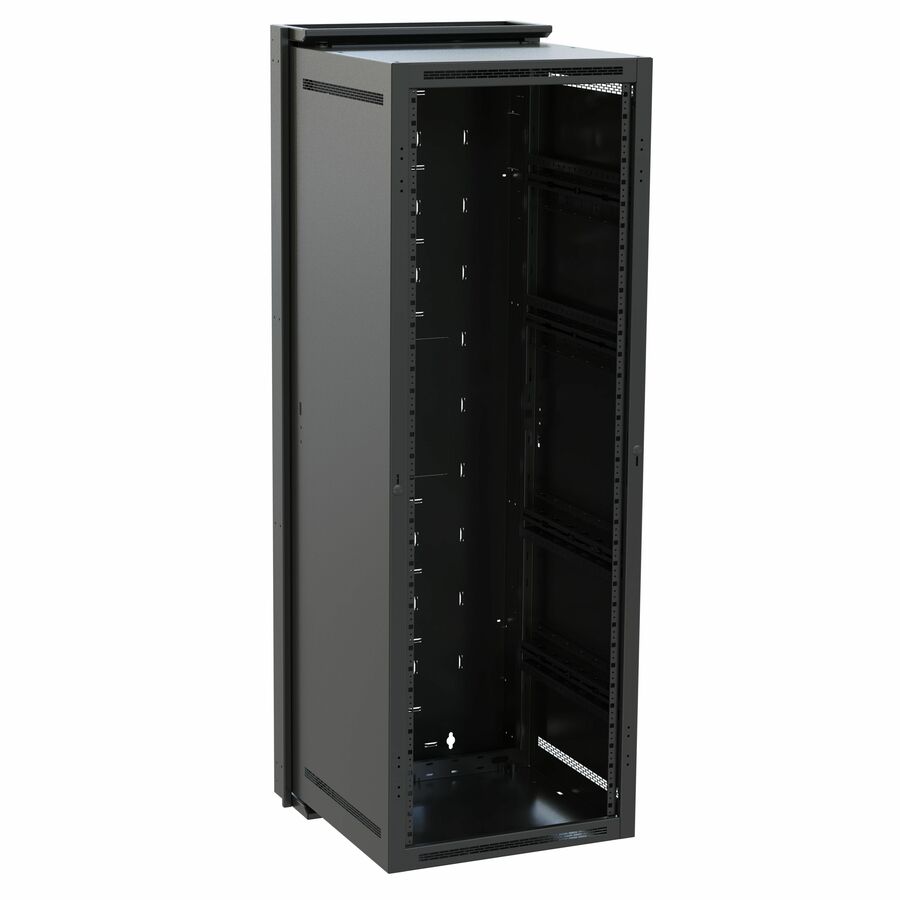

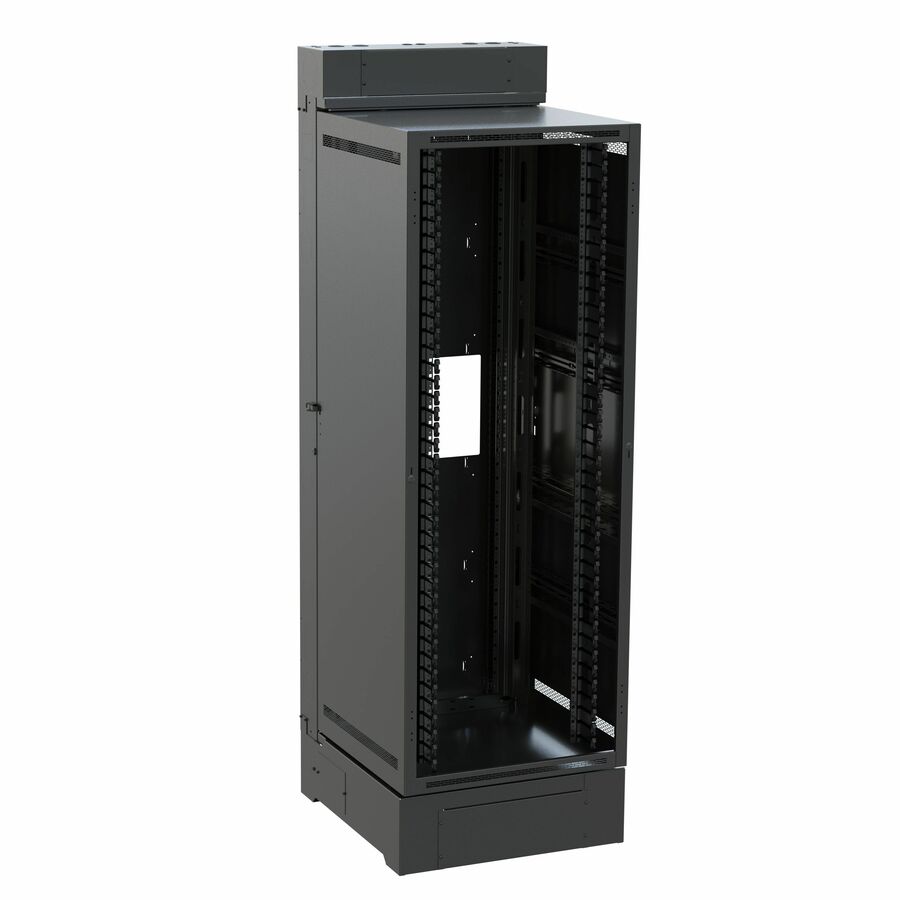

912 in stock - LegrandMiddle Atlantic SR 46RU Large Wall Mount Network Cabinet - 32in Depth Wall Mount Rack - TAA Compliant - 40U Rack Height x 19" Rack Width x 25.50" Rack Depth - Wall Mountable - Black Powder Coat - Steel - 2000 lb Static/Stationary Weight CapacitySR28-40-32
$3,529.00
$2,707.44
Back-orderedBack-ordered — expected back in stock the week of Sep 7–13.

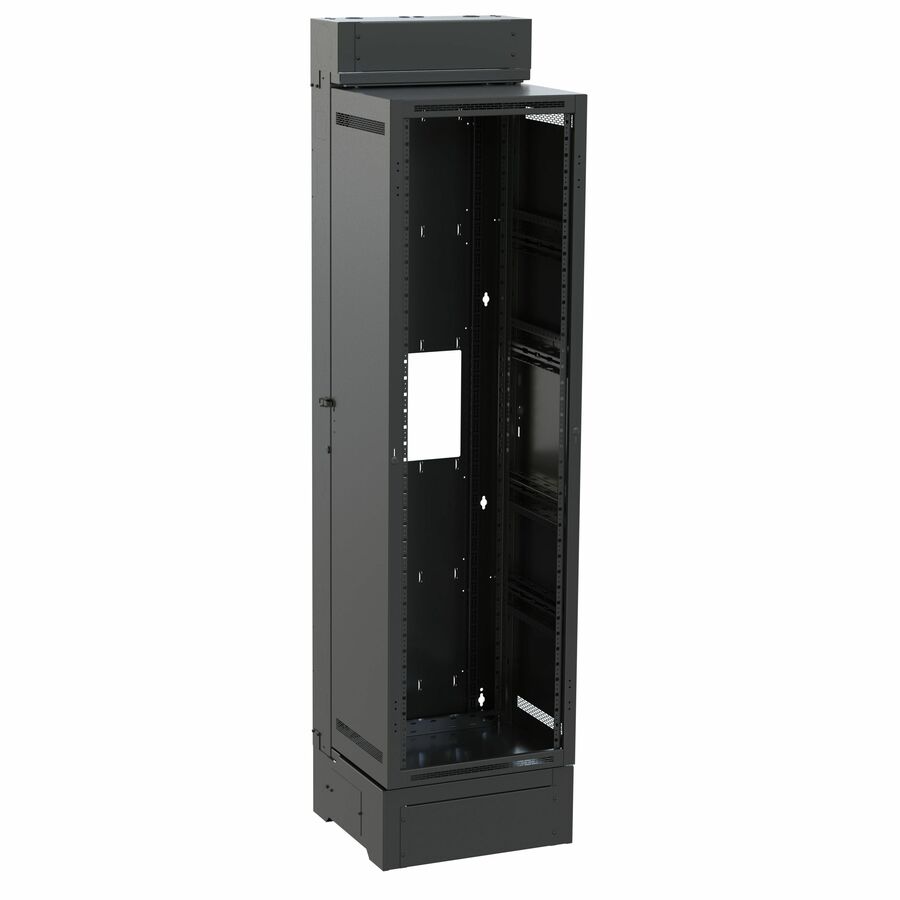

- LegrandMiddle Atlantic SR 40RU Large Wall Mount Network Cabinet - 32in Depth Wall Mount Rack - TAA Compliant - For UPS, Equipment - 40U Rack Height x 19" Rack Width x 30" Rack Depth - Wall Mountable Enclosed Cabinet - Black - Steel - 500 lb Maximum Weight CapacitySR4032
$2,954.00
$2,266.29
Back-orderedBack-ordered — expected back in stock the week of Sep 7–13.

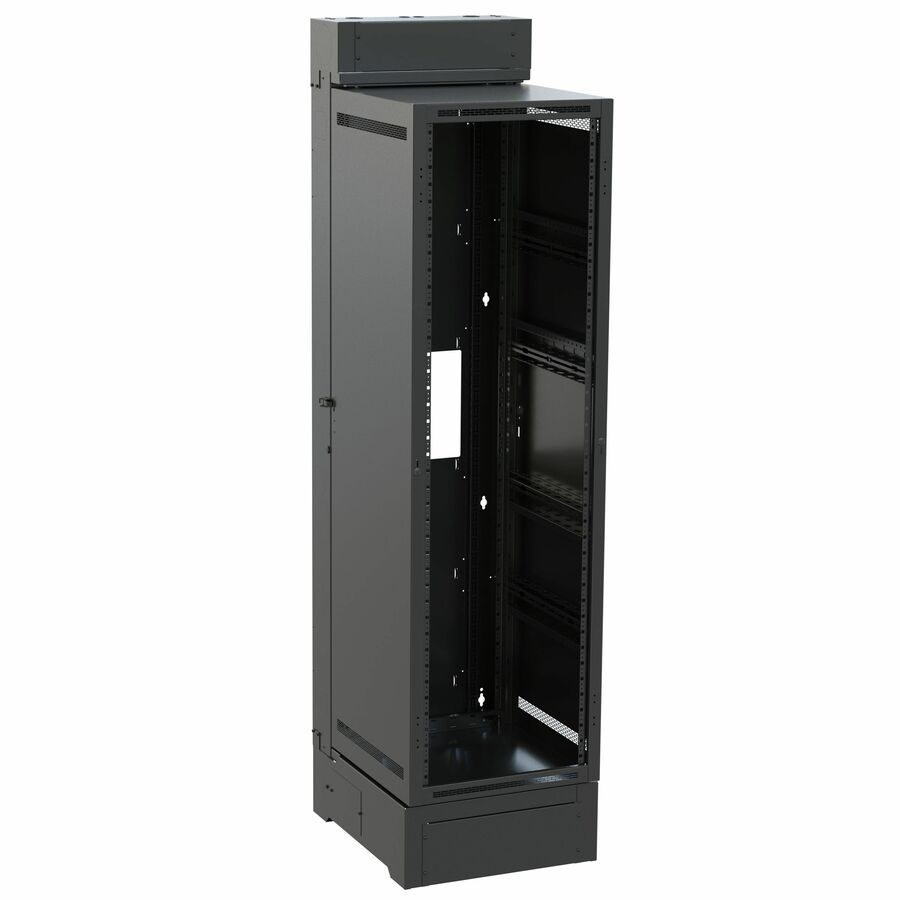

- LegrandMiddle Atlantic SR 40RU Large Wall Mount Network Cabinet - 28in Depth Wall Mount Rack - TAA Compliant - For UPS, Equipment - 40U Rack Height x 19" Rack Width x 26" Rack Depth Enclosed Cabinet - Black - Steel - 500 lb Maximum Weight Capacity - TAA CompliantSR4028
$2,656.00
$2,037.67
Back-orderedBack-ordered — expected back in stock the week of Sep 7–13.
- LegrandMiddle Atlantic SR 24RU Large Wall Mount Network Cabinet - 32in Depth Wall Mount Rack - TAA Compliant - For UPS, Equipment - 24U Rack Height x 19" Rack Width x 30" Rack Depth - Floor Standing, Wall Mountable Enclosed Cabinet - Black Powder Coat - Steel - 500 lb Maximum Weight Capacity - TAA CompliantSR2432
$2,486.00
$1,907.24
Back-orderedBack-ordered — expected back in stock the week of Sep 7–13.
- LegrandMiddle Atlantic SR 40RU Large Wall Mount Network Cabinet - 22in Depth Wall Mount Rack - TAA Compliant - For Equipment, UPS - 40U Rack Height20" Rack Depth - Wall Mountable Enclosed Cabinet - Black - Steel - 500 lb Maximum Weight Capacity - TAA CompliantSR4022
$2,286.00
$1,753.80
Back-orderedBack-ordered — expected back in stock the week of Sep 7–13.
- LegrandMiddle Atlantic DWR 35RU Pivoting Wall Mount Rack - No Front Door - 26in Depth Wall Mount Cabinet - TAA Compliant - 26U Rack Height x 19" Rack Width x 24" Rack Depth - Wall Mountable Enclosed Cabinet - Black - Steel, Plexiglass - 300 lb Maximum Weight Capacity - TAA CompliantDWR3526
$2,196.00
$1,684.76
Back-orderedBack-ordered — expected back in stock the week of Sep 7–13.
Need pricing on wall-mount racks?
Tell us where to reach you and a Uniqcli specialist will follow up by email with current pricing, availability and lead time for the quantities you need — including parts that aren’t shown on this page.
Buying for an organization or for yourself — both work. No payment up front.
A wall-mount rack is what you buy when there is no floor to give up: a branch office comms cupboard, a classroom, a retail back room, a plant-floor corner, a riser closet on a floor that was never designed to have one. The decision is not really about the rack — it is about depth. Almost everything else on this page can be worked around after the fact; a body that is four inches too shallow for the equipment cannot, and it is the single most common reason a wall rack is ordered twice.
There are three bodies here and they are different products. An open bracket rack is a pair of vertical rails on a wall plate: cheap, quick, unenclosed, and the right answer for a patch panel, a small switch and nothing else. A 2-post open-frame wall rack adds depth and load capacity while staying open, which suits a closet that is already lockable and needs airflow more than it needs a door. An enclosed cabinet adds a lockable door, side panels and a defined thermal path, and it is what to specify anywhere the closet is shared, public-facing or dusty. Several of the enclosures swing or pivot away from the wall on a hinge, which is the only practical way to reach the back of a populated wall rack — worth choosing deliberately, because the alternative is unracking equipment to change a cable.
The heading says server racks and the rows here say what each body is for, so read them together. A rack-mount server is a deep, heavy, hot device: it needs a deep cabinet, a load rating that carries it and airflow the closet can actually supply, and most shallow wall racks are built for switches and patch panels rather than for servers. The picks below the grid separate the two cases explicitly. Nothing on this page is a test result; every card carries live pricing and current availability from the catalog.
Buyer's checklist
How to choose a wall-mount rack
- Measure depth first, and measure the deepest thing going in it — including the cable bend radius and the power cords behind it, not just the chassis. Switch-depth wall racks and server-depth wall racks are different products, and the rows name their depth.
- Count the U height for what goes in plus what is coming: the equipment, the patch panel, a rack PDU and a blanking or brush panel, then leave spare U. A wall rack that is full on day one is a second purchase order.
- Read the weight capacity on the row against the real load. These rows state their maximum weight capacity, and the figures across this page range from tens of pounds on a bracket to hundreds on a cabinet — a stack of switches, a small UPS and a patch panel adds up faster than people expect.
- Choose the body for the room: an open bracket for a patch panel and a switch in a room that is already secure, a 2-post open frame where airflow matters more than a door, an enclosed lockable cabinet where the space is shared, public-facing or dusty.
- Specify rear access deliberately. A swinging or pivoting body lets the whole rack hinge off the wall to reach the back — on a fixed rack in a tight closet, changing a cable at the rear can mean unracking the equipment in front of it.
- Treat the wall itself as part of the specification. The fixings that come with a rack suit some wall types and not others, and a loaded cabinet on plasterboard needs backing or a stud line — confirm the mounting with whoever is installing it before the order, not on the day.
- Plan the heat and the power with the rack. A closed cabinet in a small unventilated room concentrates whatever the equipment produces; fans, vented doors and where the rack PDU goes are decisions to make at purchase rather than after the first thermal shutdown.
- Where the purchase order names TAA, read it on the part number: many of these racks carry TAA Compliant in the manufacturer's own title and others do not, including neighbouring sizes in the same family.
Depth is the specification everything else follows
Wall racks are sold on U height because that is the number people know, and they fail on depth because that is the number nobody measures. A 19-inch rack-mount switch is shallow; a 1U server is not, and neither is a rack-mount UPS. Usable depth is the internal figure minus the door, minus the cable management, minus the bend radius of everything plugged into the back — which is why a cabinet advertised at 22 inches can be tight for a device specified at 20. The honest approach is to take the deepest device on the equipment list, add several inches for cabling and airflow, and then read the rack's own depth figure against that total. Where the answer is marginal, the fix is a deeper cabinet or a hinged body that swings clear of the wall, not a shoehorn.
The corollary is that a shallow wall rack is not a bad product — it is a switch-and-patch-panel product. A great deal of branch and classroom infrastructure is exactly that, and a shallow enclosure that closes neatly on a switch, a panel and a small power strip is a better answer than a deep cabinet that dominates the room. The mistake is only ever buying the shallow one for the deep job.
Closed, open, and the heat that decides between them
An enclosed wall cabinet buys security and tidiness, and it also traps heat: everything the equipment produces stays inside a small box on a wall in a room that usually has no cooling of its own. Vented or perforated doors, a fan kit and honest airflow planning are what make it work, along with blanking panels so that the air that leaves the equipment does not simply circulate back into it. An open-frame wall rack has none of that problem and none of the security either, which is why the choice is really about the room: a locked comms cupboard can take an open frame, a corridor or a classroom cannot.
Power belongs in the same conversation. A wall rack with a rack PDU or a small UPS in it is the normal case, and both add weight and heat to the figures above — so size the load rating and the airflow with them included rather than adding them later. Send the equipment list, the room and the wall type, and Uniqcli will quote the rack, the PDU, the cable management and the installation labour together on one document with lead times attached.
FAQ
Common questions
- Can you actually put a server in a wall-mount rack?
- Yes, in the right body — and that means reading depth and weight rather than U height. A rack-mount server is deeper and heavier than the switches and patch panels most wall racks are designed around, so it needs a server-depth cabinet with a load rating that carries it and a closet that can shed the heat. Several rows on this page name a deep or extended-depth body and a weight capacity in the hundreds of pounds; many others are switch-depth and are meant for a patch panel, a switch and a power strip. Check the deepest and heaviest device on the equipment list against the rack's own figures before ordering.
- Open frame or enclosed cabinet for a wall rack?
- Decide it on the room rather than on the equipment. An enclosed cabinet with a lockable door is right where the space is shared, public-facing, dusty or simply not a controlled comms room — a classroom, a corridor, a back-of-house area. An open frame is right where the room itself is already secure and airflow matters more than a door, and it is easier to work in and cheaper. If you choose enclosed, plan the thermals at the same time: a sealed box on a wall in an unventilated room concentrates all the heat the equipment makes, so vented doors, a fan kit and blanking panels belong in the same order.
- What does a swinging or pivoting wall rack give you?
- Access to the back without unracking anything. A fixed wall rack presents its rear to the wall, so a cable change on a populated rack can mean removing the equipment in front of it; a hinged body swings the whole rack away from the wall and turns that into a two-minute job. It is one of the few wall-rack features that reliably pays for itself, and it also affects the installation — a swinging rack needs clearance beside it to open, which is worth checking against the actual closet before the order rather than after.
- How much weight can a wall-mount rack carry?
- It is stated per part, and the range across this page is wide — from tens of pounds on a light bracket rack to several hundred on a steel cabinet. Read the maximum weight capacity on the exact row and size it against the whole load: switches, patch panels, a rack PDU, any small UPS, and the cabling. Then treat the wall as the other half of the answer, because the rack's rating assumes it is mounted into something that will hold it. Stud lines, backing boards and the right fixings for the wall type are an installation decision to confirm with whoever is mounting it.
- Can business, government and education buyers order these?
- Every line Uniqcli quotes is sourced through US distribution and screened for TAA country-of-origin and NDAA §889 status before checkout — with documentation tied to the specific part number, not a product family.
