Gigabit PoE Splitter
$26.26
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

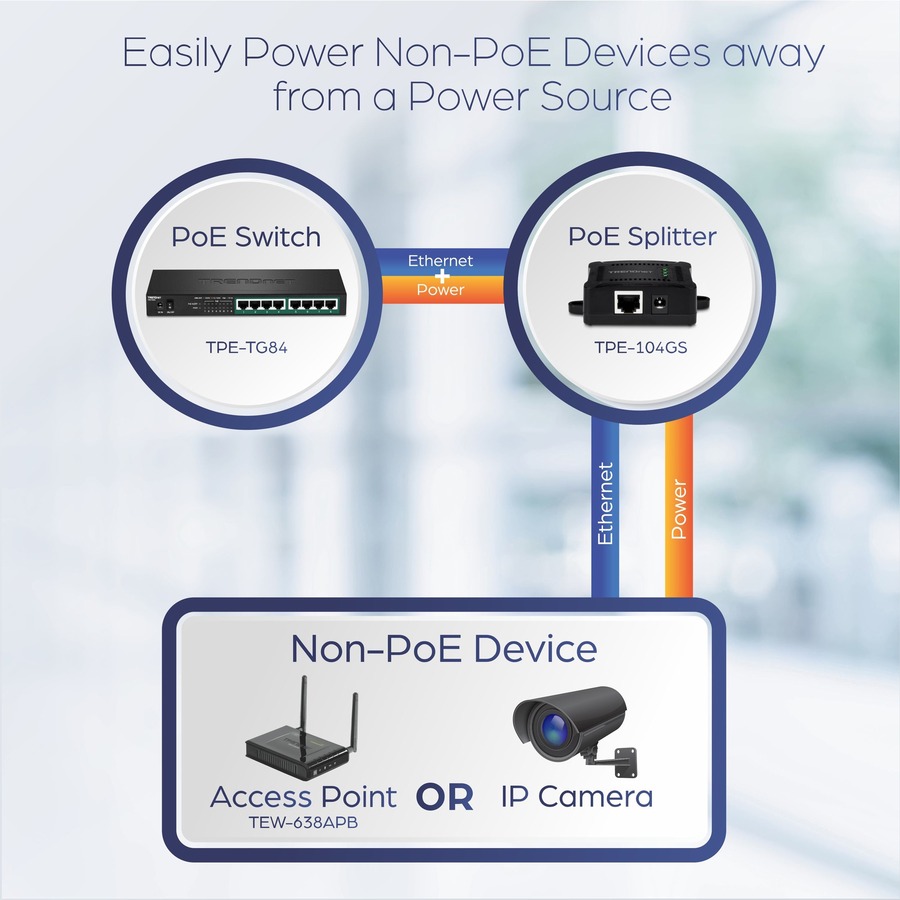

TRENDnet's Gigabit PoE Splitter, model TPE-104GS, networks a non-PoE device in a remote location using a PoE network connection. The TPE-104GS splits a Gigabit PoE connection into separate power and Gigabit data sources. A convenient dip-switch adjusts output power to 5V, 9V, or 12V in order to match non-PoE device power requirements. The included combination 2.0 and 2.5mm jumper cable provides greater device compatibility.
• GIGABIT ETHERNET DEVICE INTERFACE: 1 x Gigabit data/power port in; 1 x Gigabit data out port; 1 x DC Power out port; LED indicators; Adjustable output power DIP switch (5V, 9V, 12V)
• NDAA COMPLIANT: With our NDAA compliant Splitter, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• MANUFACTURER PROTECTION: We stand by the quality of our products.The TPE-104GS Gigabit PoE Splitter is backed and supported with 3 years of TRENDnet Manufacturer Protection.
• POE POWER: No power adapter necessary; the Gigabit PoE Splitter takes a PoE network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328 ft.).
• ADJUSTABLE VOLTAGE OUTPUT: Convenient dip-switch adjusts voltage output to 5V, 9V, or 12V in order to match non-PoE device power requirements. The included combination 2.0 and 2.5mm jumper cable provides greater device compatibility.
• WALL MOUNTABLE: Wall mountable design of the PoE Splitter accommodates most installation scenarios.
• DATA TRANSFER RATES: Ethernet: 10Mbps (half duplex), 20Mbps (full duplex); Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex); Gigabit: 2000Mbps (full duplex)
More from the Manufacturer
OVERVIEW
TRENDnet's Gigabit PoE Splitter, model TPE-104GS, networks a non-PoE device in a remote location using a PoE network connection. The TPE-104GS splits a Gigabit PoE connection into separate power and Gigabit data sources. A convenient dip-switch adjusts output power to 5V, 9V, or 12V in order to match non-PoE device power requirements. The included combination 2.0 and 2.5mm jumper cable provides greater device compatibility.
PoE Powered
No power adapter necessary; the TPE-104GS takes a PoE network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328 ft.).
Adjustable Voltage Output
Convenient dip-switch adjusts voltage output to 5V, 9V, or 12V in order to match non-PoE device power requirements.
Wall Mountable
Wall mountable design accommodates most installation scenarios.
Gigabit Ethernet
1 x gigabit PoE input port, 1 x gigabit output port
PoE Powered
No power adapter necessary; the TPE-104GS takes a PoE network connection and splits power and data into separate connections to network a non-PoE device with power up to 100m (328 ft.)
Adjustable Voltage Output
Convenient dip-switch adjusts voltage output to 5V, 9V or 12V in order to match non-PoE device power requirements

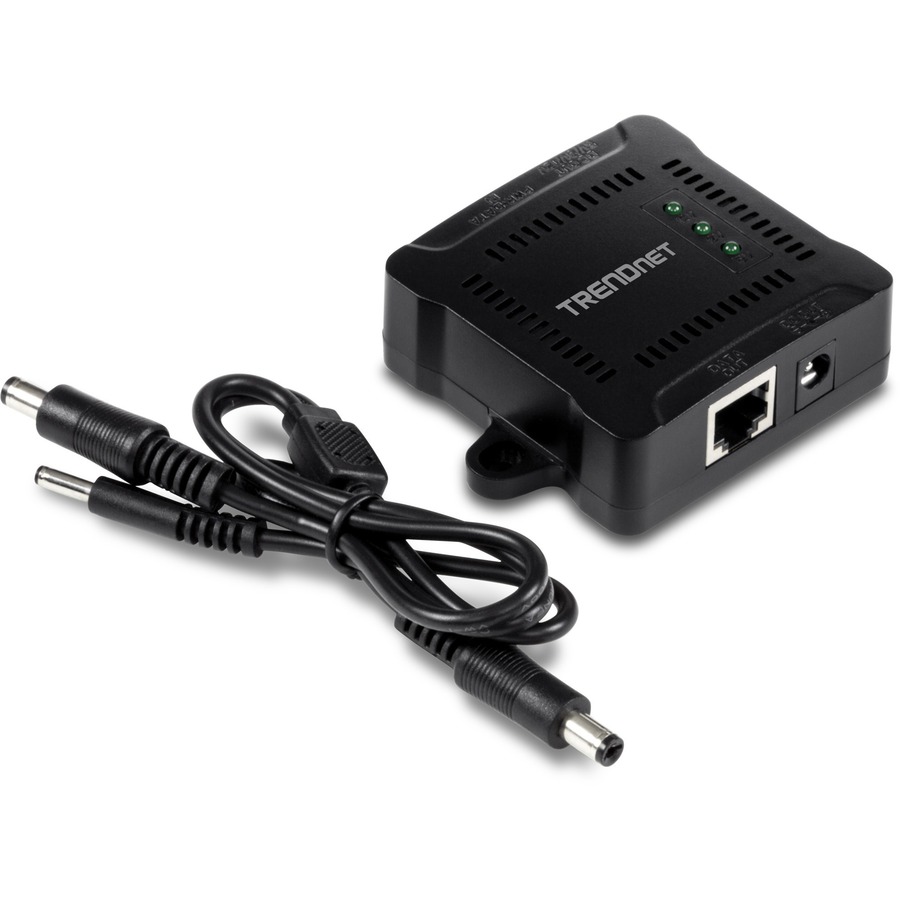

Jumper Cable
The included combination 2.0 and 2.5mm jumper cable provides greater device compatibility
Gigabit PoE Splitter
Power a non-PoE device up to 100 meters (328 ft.) away
Splits a gigabit PoE signal into separate power and gigabit data sources
Adjustable voltage output supports 5V, 9V, or 12V devices
Use this compact device with PoE switches or injectors
Save on installation and equipment cost
Full Duplex Gigabit speeds
IEEE 802.3af PoE compatible
NDAA compliant
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3af
Device Interface
1 x Gigabit data/power port in
1 x Gigabit data out port
1 x DC Power out port
LED indicators
Adjustable output power DIP switch (5V, 9V, 12V)
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Power Cable
2.5 to 2.0/2.5mm
Power
Output: 5V (2A), 9V (2A), 12V (1.5A)
Consumption: 0.5 Watts (max.)
Operating Temperature
0° – 40° C (32° – 104° F)
Operating Humidity
Max. 90% non-condensing
Dimensions
84 x 63 x 22 mm (3.3 x 2.5 x 0.87 in.)
Weight
64g (2.3 oz.)
Certifications
CE
FCC
Warranty
3 year
PACKAGE CONTENTS
TPE-104GS
Quick Installation Guide
Jumper cables (2.5 to 2.0/2.5mm)
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Limited Warranty: 3 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TPE-104GS |
| Brand Name | TRENDnet |
| Product Model | TPE-104GS |
| Product Name | Gigabit Power over Ethernet (PoE) Splitter |
| Product Condition | New |
| Product Type | PoE Splitter |
| Interfaces/Ports | |
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x 10/100/1000Base-T |
| Physical Characteristics | |
| Height | 6" |
| Width | 9" |
| Length | 7" |
| Weight (Approximate) | 2.10 oz |
| Power Description | |
| Maximum Output Voltage | 12 V DC |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Compatibility |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
