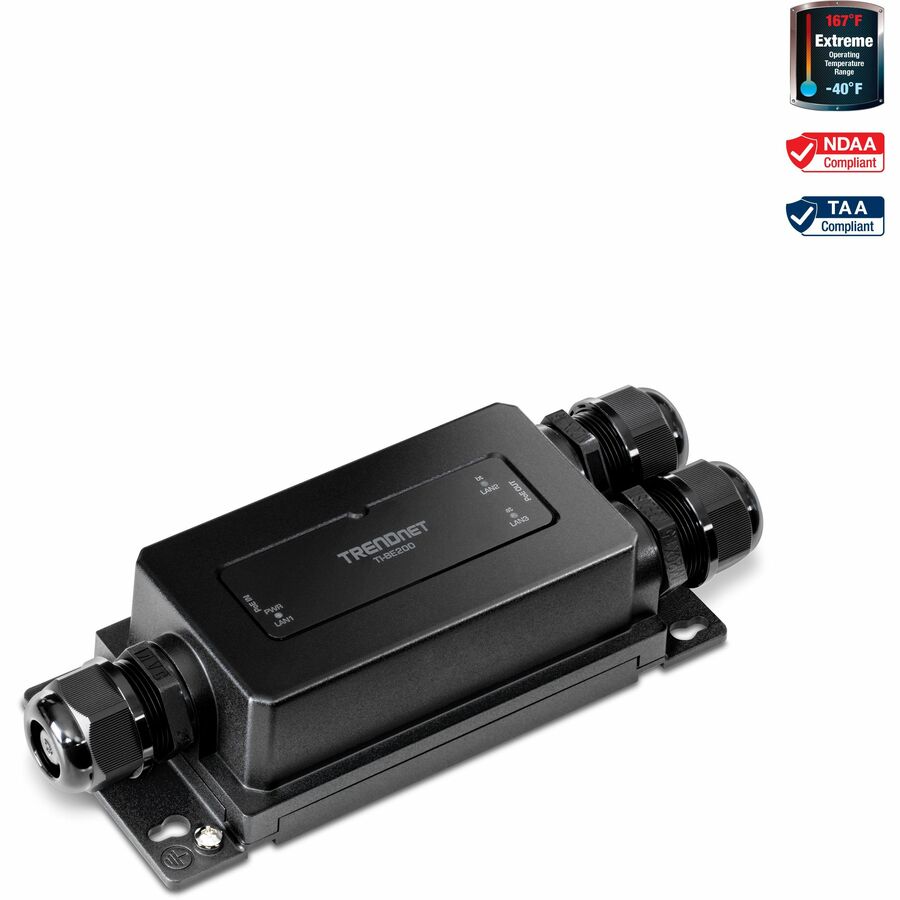

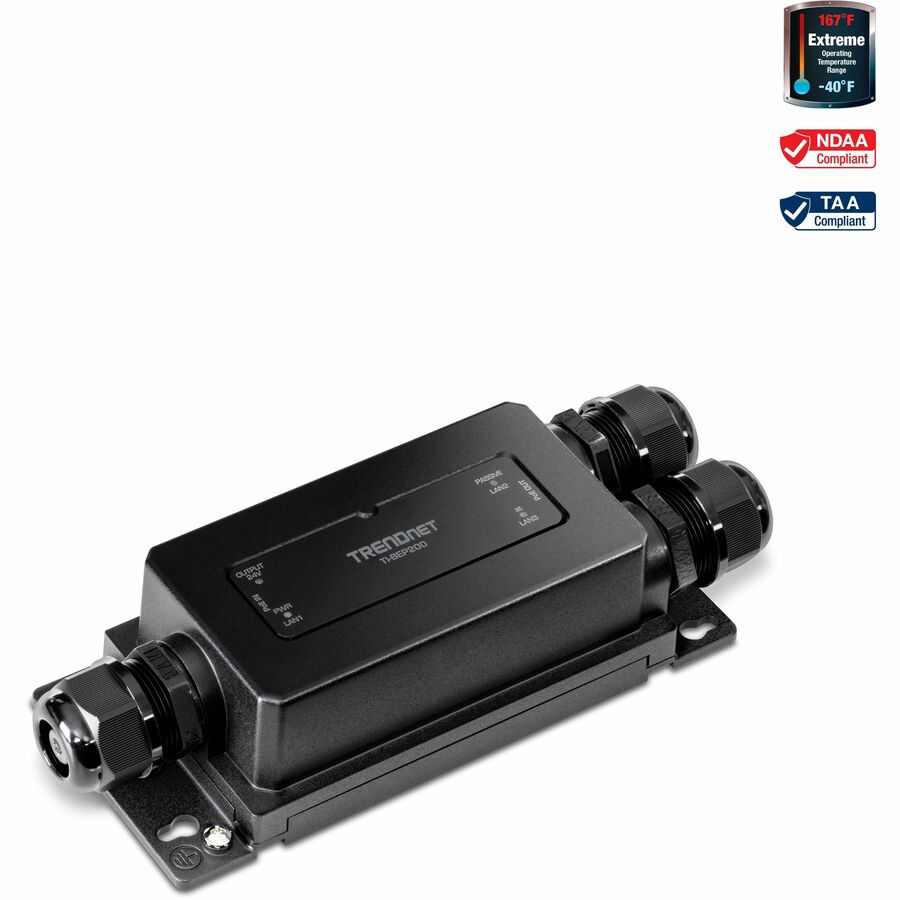

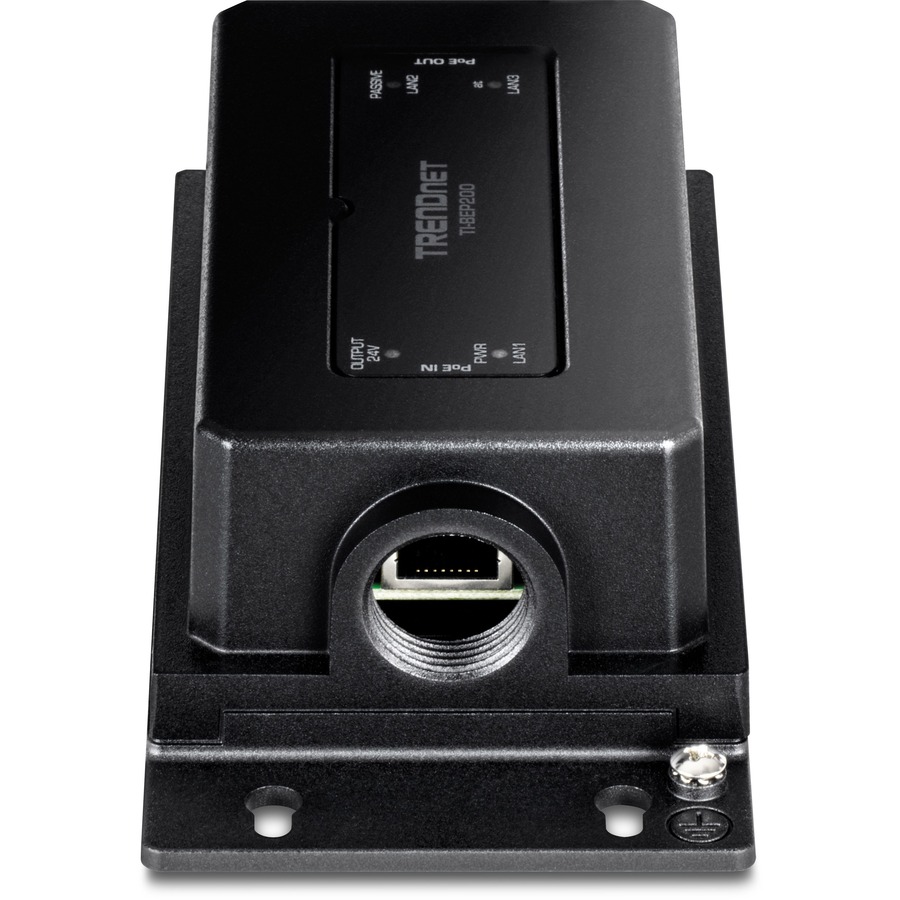

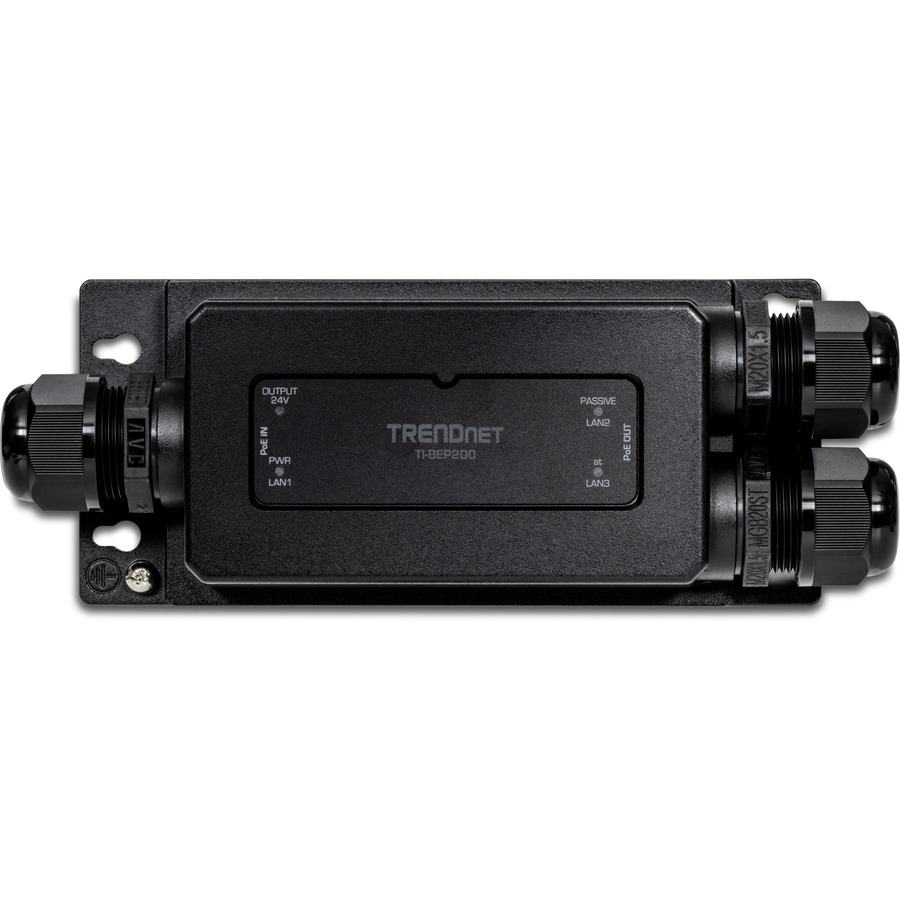

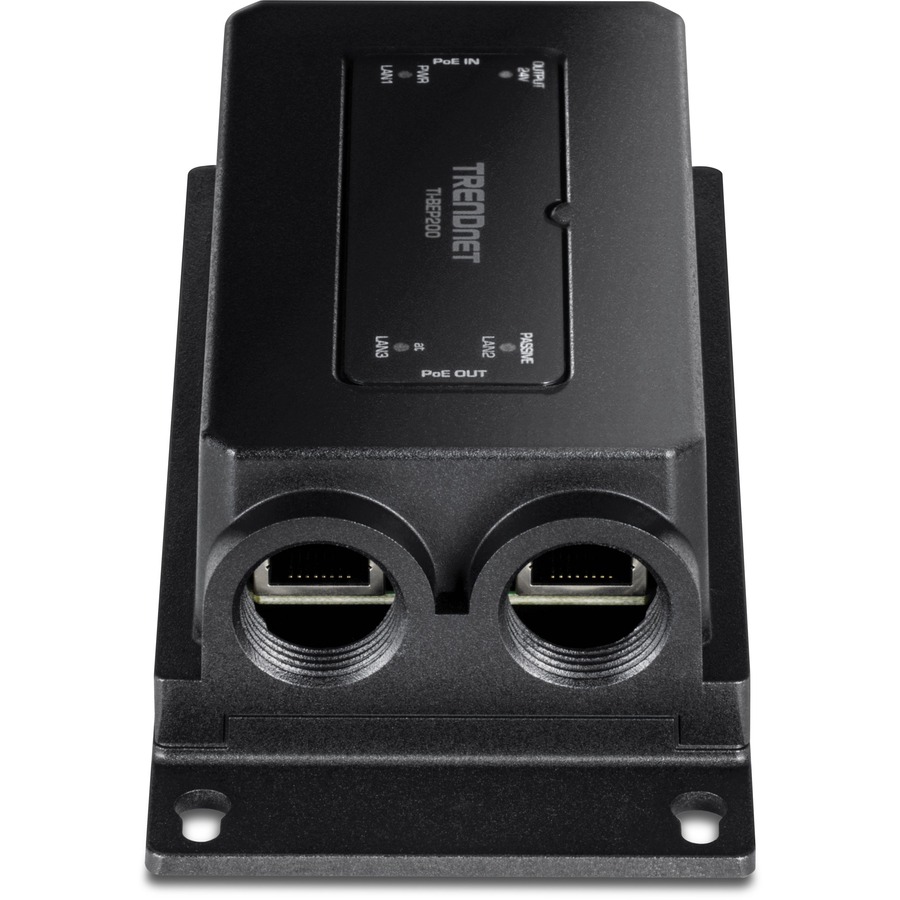

TRENDnet 2-Port Industrial Outdoor Gigabit PoE Extender, Hardened IP67 Extreme Temperature Rated Housing, Extends 100m for Total Distance up to 200m (656 ft.) for up to 2 Devices, Black, TI-BEP200

TRENDnet's 2-Port Industrial Outdoor Gigabit PoE Extender, model TI-BEP200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE devices. It auto-detects a PoE (15.4W), PoE+ (30W), or PoE+ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1,640 ft.). This outdoor PoE extender features a single PoE++ input port, and one PoE+ and one Passive PoE output ports.

• DEVICE INTERFACE: 1 x Gigabit PoE++ in port; 1 x Gigabit PoE+ out port; 1 x Gigabit 24/48V DC Passive PoE out port; LED Indicators; Wall mount

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant PoE+ Extender, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-BEP200 2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender is backed and supported with 3 years of TRENDnet Manufacturer Protection.

• EXTENSION DISTANCE: Take a single PoE++ (90W)connection and extend it an additional 100 meters (328 ft.) toPoE (15.4W), PoE+ (30W), and PoE++ (60W) devices for atotal distance up to 200m (656 ft.)

• DAISY CHAIN: Daisy chain up to 4 gigabit PoE extenders fora total PoE network extension of up to 500m (1640 ft.)

• POE POWERED: The extender does not require externalpower which saves installation time and costs

• OUTDOOR RATED: Built for outdoor and industrial environments, with an IP67 weather rated metal housing and an operating temperature range of -40°- 75° C (-40° - 167° F).

• PoE POWERED: No external power required-saves installation time and cost

• GIGABIT PORTS: Features one gigabit PoE++ input port and two gigabit PoE output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE devices.

More from the Manufacturer

TRENDnet’s 2-Port Industrial Outdoor Gigabit PoE Extender, model TI-BEP200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE devices. It auto-detects a PoE (15.4W), PoE+ (30W), or PoE+ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1,640 ft.). This outdoor PoE extender features a single PoE++ input port, and one PoE+ and one Passive PoE output ports.

Easy installation

Extends 100m for a total distance of up to 200m (656 ft.)

Daisy chain up to 4 units for a total PoE network extension of up to 500m (1,640 ft.)*

Use a single PoE++ connection to extend PoE for up to two devices

Supports PoE (15.4W), PoE+ (30W), and Passive PoE (24-48V) devices

Supports single output Passive PoE (24-48V)

Wide operating temperature range of -40°– 75° C (-40° – 167° F)

IP67 outdoor weather rated housing

No external power adapter required

Built-in True Surge 4kV Protection

Wall mountable

NDAA / TAA compliant (U.S. and Canada only)

PoE Power

Extends a PoE++ (90W) connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and Passive PoE (24-48V) devices. **

Gigabit Ports

Features one gigabit PoE++ input port and two gigabit PoE output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE devices.

Outdoor Rated

Built for outdoor and industrial environments, with an IP67 weather rated metal housing and an operating temperature range of -40°– 75° C (-40° – 167° F).

Extension Distance

Extends a PoE, PoE+, or Passive PoE network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE source

Daisy Chain

Connect up to 4 units for a PoE network extension of up to 500m (1,640 ft.)*

PoE Powered

No external power required—saves installation time and cost

* Each additional extender added to the daisy chain will decrease the overall available PoE budget.

** To obtain the maximum PoE budget of 60W, the PoE extender must be powered by a 90W PoE++ device.

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bt

Device Interface

1 x Gigabit PoE++ in port

1 x Gigabit PoE+ out port

1 x Gigabit 24/48V DC passive PoE out port

LED indicators

Wall mount

IP67 housing

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2000Mbps (full duplex)

Performance

RAM buffer: 1Mb

MAC Address Table: 2K entries

Jumbo Frame: 9KB

Special Features

Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 500m (1640 ft.)

Cascade up to 4 repeaters

Power

Powered by PoE++ (60W – 90W) Device

Max. consumption: 3.9W (without device connected)

PoE

PoE budget: 60W

PSE Pin: 1,2 (V-), 3,6 (V+), 4,5 (V+), 7,8 (V-)

DIP Switch

Adjust 24/48V DC passive voltage (default 48V DC)

Operating Temperature

- 40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

167 x 74 x 44mm (6.6 x 2.9 x 1.7 in.)

Weight

266g (12.9 oz.)

Certifications

CE

FCC

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

IEC 60068-2-27 (Shock)

IEC 60068-2-32 (Free Fall)

IEC 60068-2-6 (Vibration)

Warranty

3 year

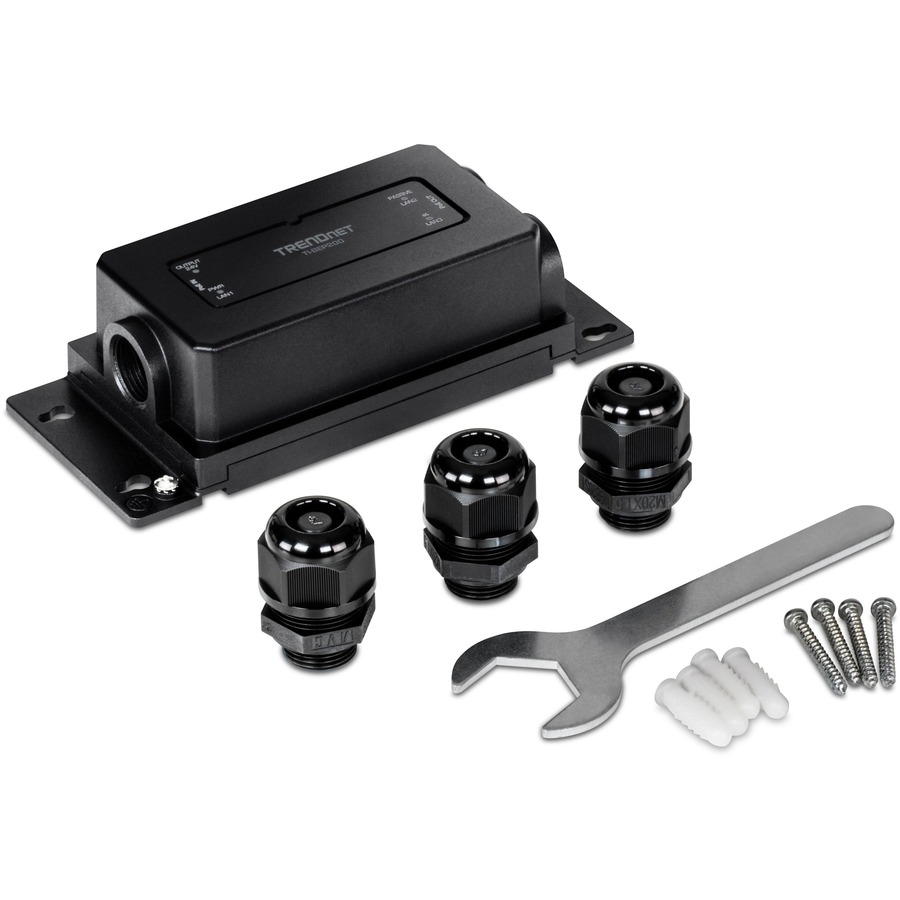

PACKAGE CONTENTS

TI-BEP200

Quick Installation Guide

3 x IP67 weather rated cable glands

Wrench

Wall mount screws
