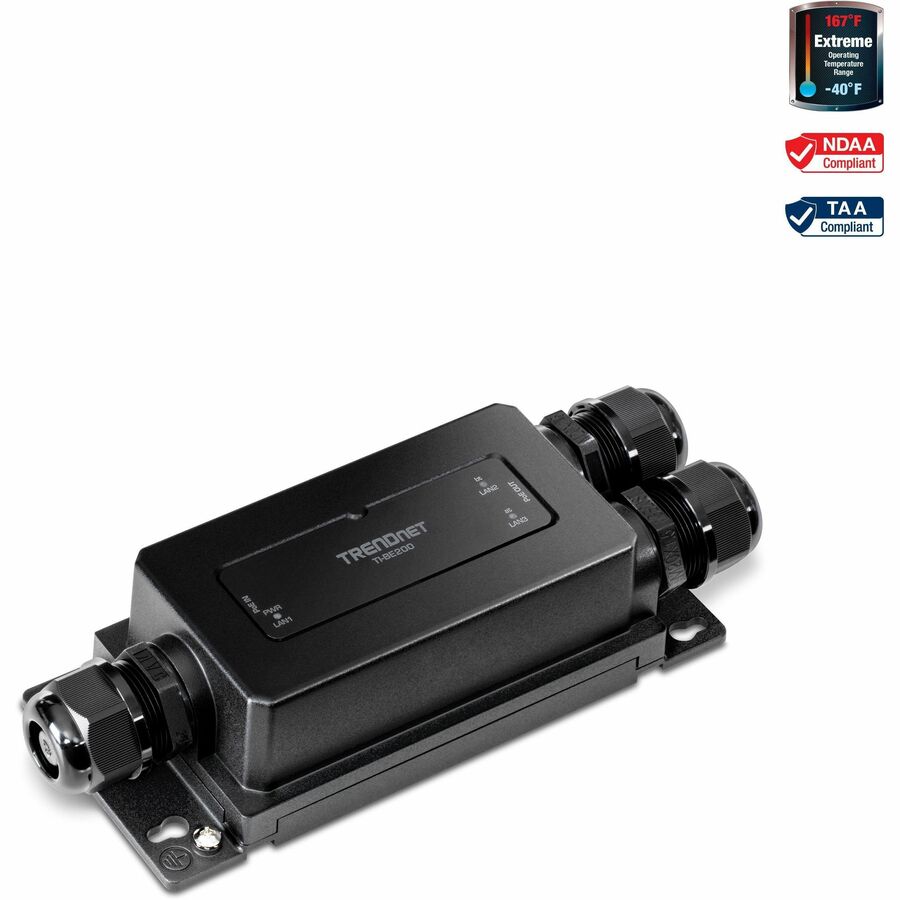

TRENDnet 2-Port Industrial Outdoor Gigabit PoE++ Extender, Hardened IP67 Extreme Temperature Rated Housing, Extends PoE++ Connection up to 200m (656 ft.) for up to 2 Devices, Black, TI-BE200

TRENDnet's 2-Port Industrial Outdoor Gigabit PoE++ Extender, model TI-BE200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. The industrial outdoor PoE++ extender auto-detects a PoE (15.4W), PoE+ (30W), or PoE++ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to four outdoor PoE++ extenders together for a total PoE network extension of up to 500 meters (1,640 ft.). This industrial PoE++ extender features a single PoE++ input port and two PoE+ output ports encased in an IP67 weather rated housing.

• DEVICE INTERFACE: 1 x Gigabit PoE++ in port; 1 x Gigabit PoE++ out port; 1 x Gigabit PoE+ out port; LED Indicators; Wall mount

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant 2-Port Industrial Outdoor Gigabit PoE++ Extender, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-BE200 , 2-Port Industrial Outdoor Gigabit PoE++ Extender is backed and supported with 3 years of TRENDnet Manufacturer Protection.

• EXTENSION DISTANCE: Take a single PoE++ (90W) connection and extend it an additional 100 meters (328 ft.) to PoE(15.4W), PoE+ (30W), and PoE++ (60W) devices for a total distance up to 200m (656 ft.)

• PoE++ POWER: Supports PoE (15.4W), PoE+ (30W), PoE++ (60W) devices

• DAISY CHAIN: Daisy chain up to 4 gigabit PoE++ extenders for a total PoE network extension of up to 500m (1640 ft.)

• POE POWERED: The extender does not require external power which saves installation time and costs

• OUTDOOR READY: This PoE extender is equipped with IP67 rated housing with a wide operating temperature range of -40°- 75° C (-40° - 167° F)

• Built-in True Surge 4kV Protection

More from the Manufacturer

TRENDnet’s 2-Port Industrial Outdoor Gigabit PoE++ Extender, model TI-BE200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. The industrial outdoor PoE++ extender auto-detects a PoE (15.4W), PoE+ (30W), or PoE++ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to four outdoor PoE++ extenders together for a total PoE network extension of up to 500 meters (1,640 ft.). This industrial PoE++ extender features a single PoE++ input port and two PoE+ output ports encased in an IP67 weather rated housing.

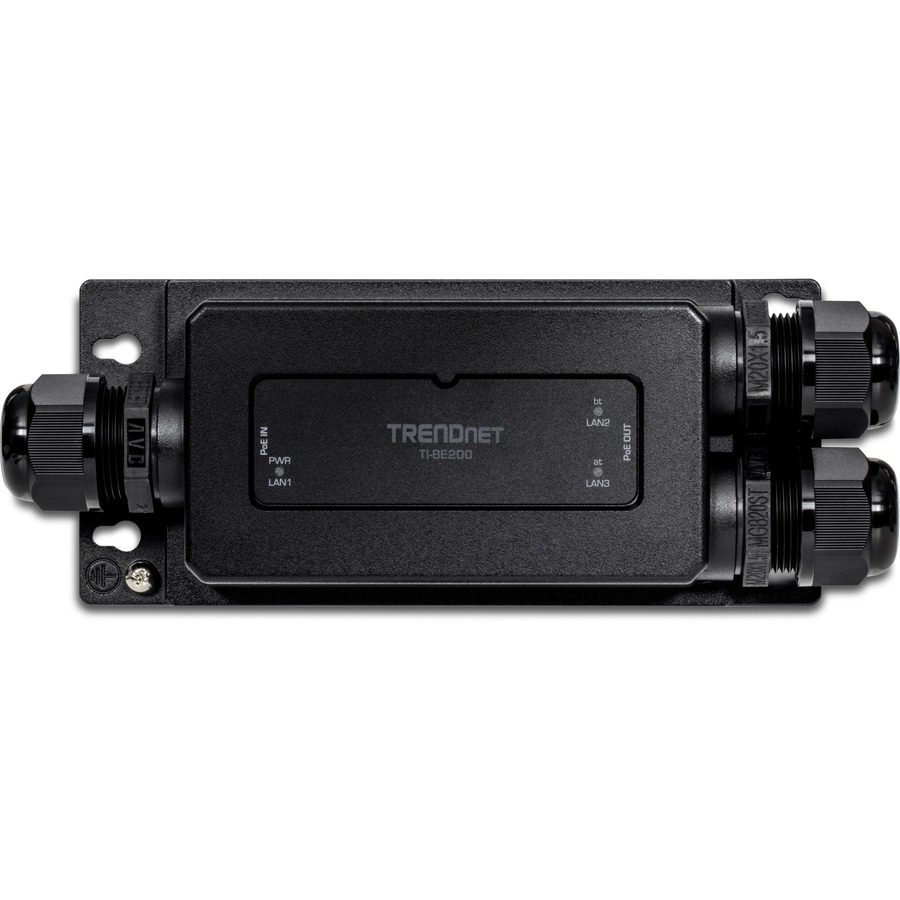

2-Port Industrial Outdoor Gigabit PoE++ Extender

Easy installation

Extends PoE++ 100m for a total distance of up to 200m (656 ft.)

Daisy chain up to 4 units for a total PoE network extension of up to 500m (1,640 ft.)*

Use a single PoE++ connection to extend PoE for up to two devices

Supports PoE (15.4W), PoE+ (30W), PoE++ (60W) devices

Wide operating temperature range of -40°– 75° C (-40° – 167° F)

IP67 outdoor weather rated housing

No external power adapter required

Built-in True Surge 4kV Protection

Wall mountable

PoE++ Power

Extends a PoE++ (90W) connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices. **

Gigabit Ports

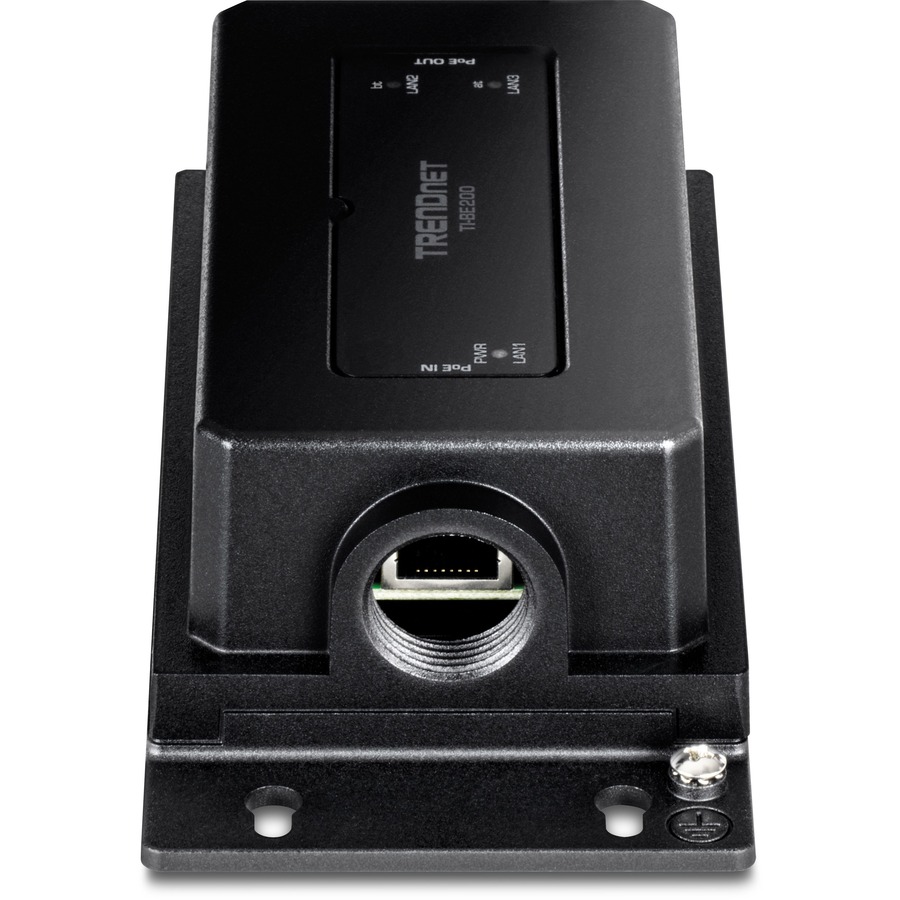

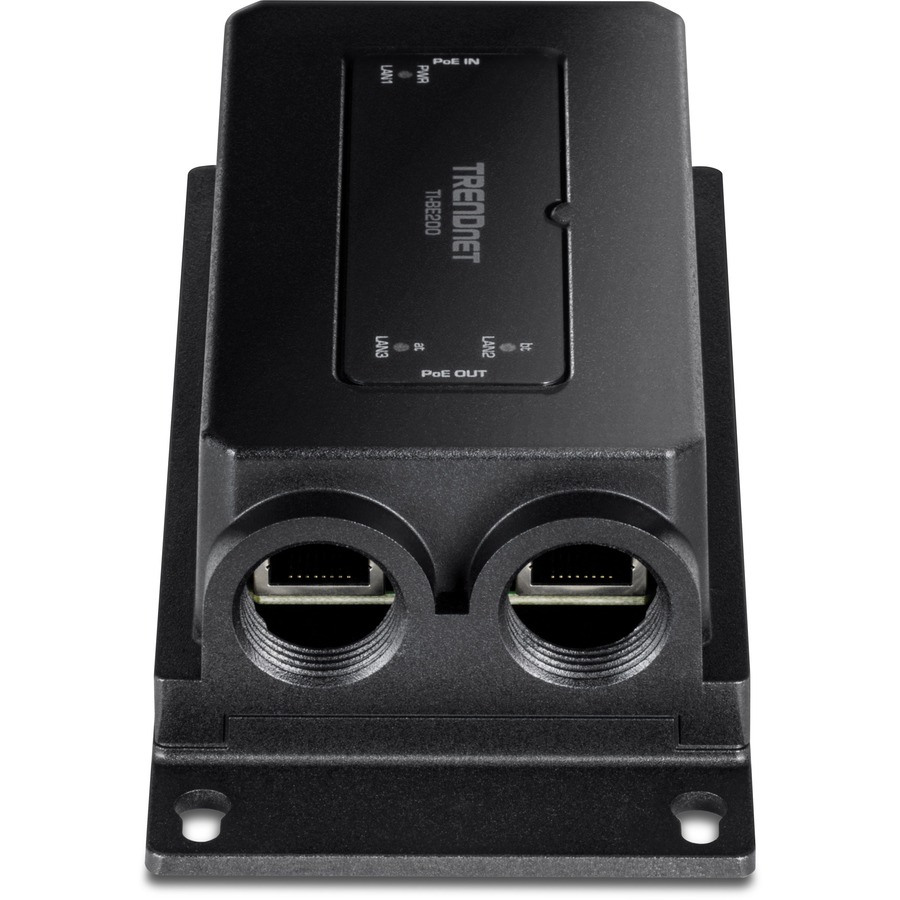

Features one gigabit PoE++ input port and two gigabit PoE+ output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE+ devices.

Outdoor Rated

Built for outdoor and industrial environments, with an IP67 weather rated metal housing and an operating temperature range of -40°– 75° C (-40° – 167° F).

Extension Distance

Extends a PoE, PoE+, or PoE++ network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE source

PoE Powered

No external power required—saves installation time and cost

Daisy Chain

Connect up to 4 outdoor PoE++ repeaters for a total PoE network extension of up to 500m (1,640 ft.)*

* Each additional extender added to the daisy chain will decrease the overall available PoE budget.

** To obtain the maximum PoE budget of 60W, the outdoor PoE++ extender must be powered by a 90W PoE++ device.

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bt

Device Interface

1 x Gigabit PoE++ in port

1 x Gigabit PoE++ out port

1 x Gigabit PoE+ out port

LED indicators

Wall mount

IP67 housing

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2000Mbps (full duplex)

Performance

RAM buffer: 1Mb

MAC Address Table: 2K entries

Jumbo Frame: 9KB

Special Features

Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 500m (1,640 ft.)

Cascade up to 4 repeaters

Power

Powered by PoE++ (60W – 90W) Device

Max. consumption: 2.8W (without device connected)

PoE

PoE budget: 60W

PSE Pin: 1,2 (V-), 3,6 (V+), 4,5 (V+), 7,8 (V-)

PoE Power Output

PoE Input

Max PoE Output

90W

60W

60W

51W

30W

25W

Single Port Daisy Chain

Daisy Chains From PSE

Max. PoE Output

1 (up to 100m)

90W Input: 60W

60W Input: 51W

30W Input: 25W

2 (up to 200m)

90W Input: 34W

60W Input: 33W

30W Input: 22W

3 (up to 300m)

90W Input: 17W

60W Input: 16W

30W Input: 14W

4 (up to 400m)

90W Input: 9W

60W Input: 8W

30W Input: 6W

Operating Temperature

- 40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

167 x 74 x 44mm (6.6 x 2.9 x 1.7 in.)

Weight

364g (12.8 oz.)

Certifications

CE

FCC

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

IEC 60068-2-27 (Shock)

IEC 60068-2-32 (Free Fall)

IEC 60068-2-6 (Vibration)

Warranty

3 year

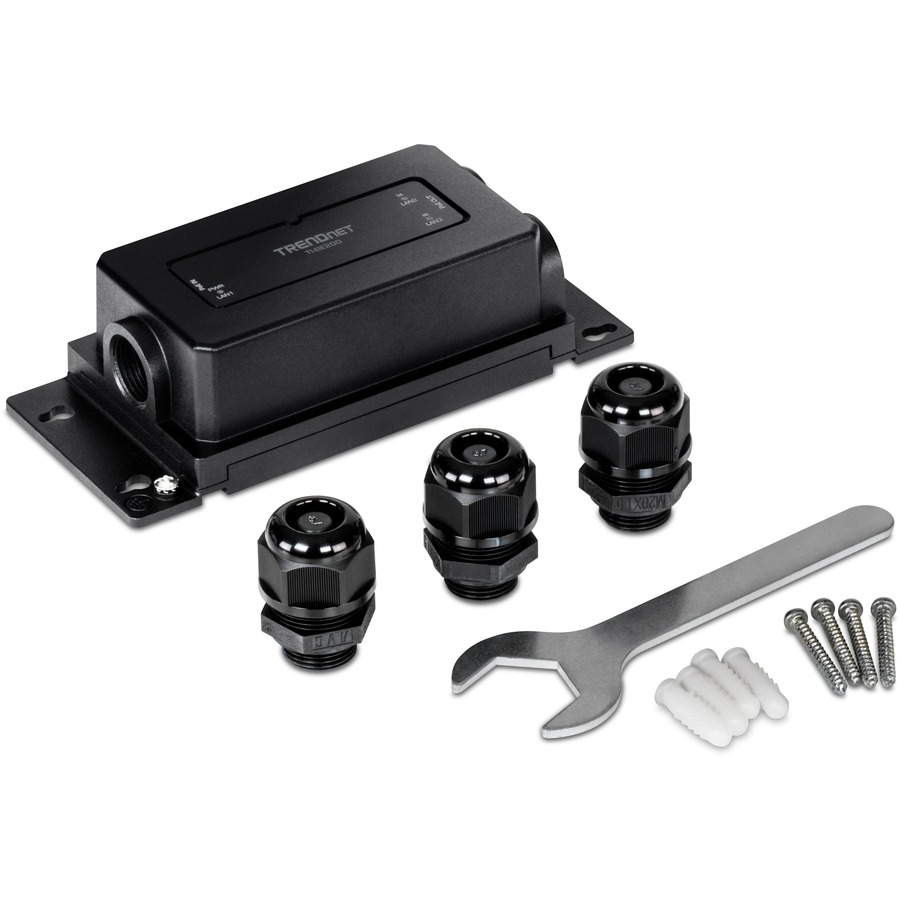

PACKAGE CONTENTS

TI-BE200

Quick Installation Guide

3 x IP67 weather rated cable glands

Wrench

Wall mount screws
