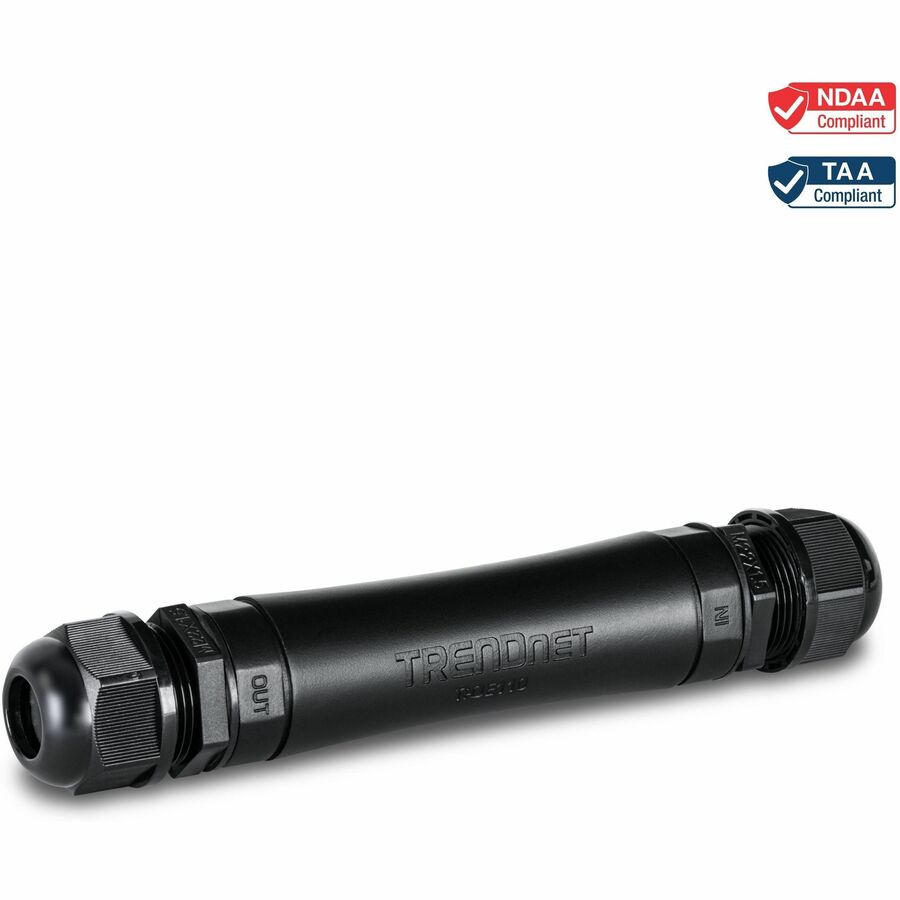

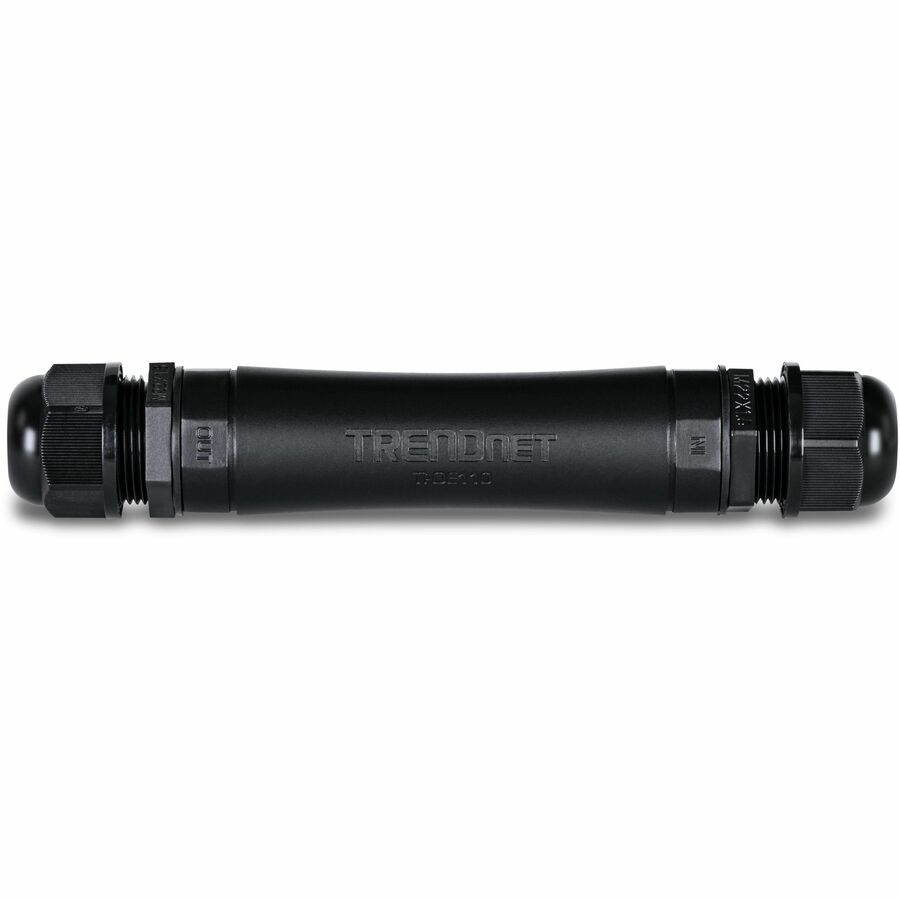

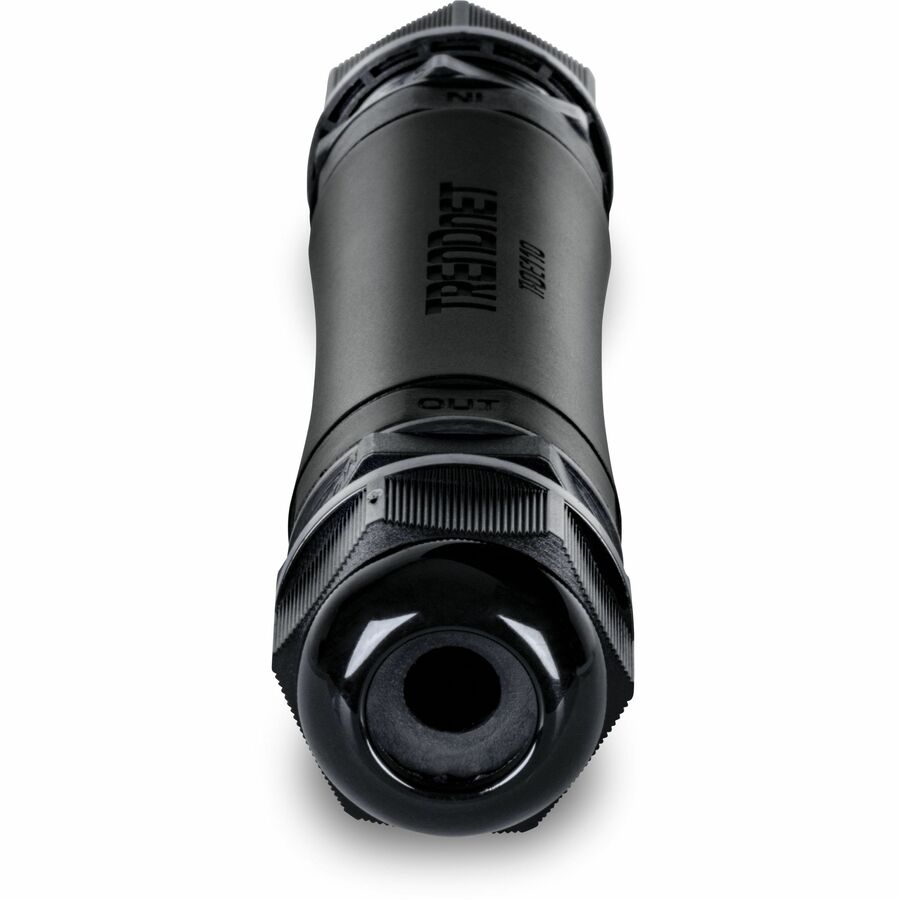

TRENDnet Industrial Waterproof Gigabit PoE+ Extender, TI-OE110, Extend PoE+ Connection up to an Additional 100m (328 ft.), Supports PoE (15.4W) and PoE+ (30W), IP67 Rated Enclosure, NDAA TAA Compliant

TRENDnet's Industrial Waterproof Gigabit PoE+ Extender, model TI-OE110, takes a single PoE+ connection and extends it up to an additional 100m (328 ft.) for a remote PoE or non-PoE device installation. Daisy-chain up to two outdoor PoE+ extenders for a total PoE network extension of 300m (984 ft.) away from the PoE power source equipment. The industrial outdoor PoE+ extender conveniently auto-detects a PoE or PoE+ connection, and features a rugged IP67 waterproof enclosure for installation flexibility.

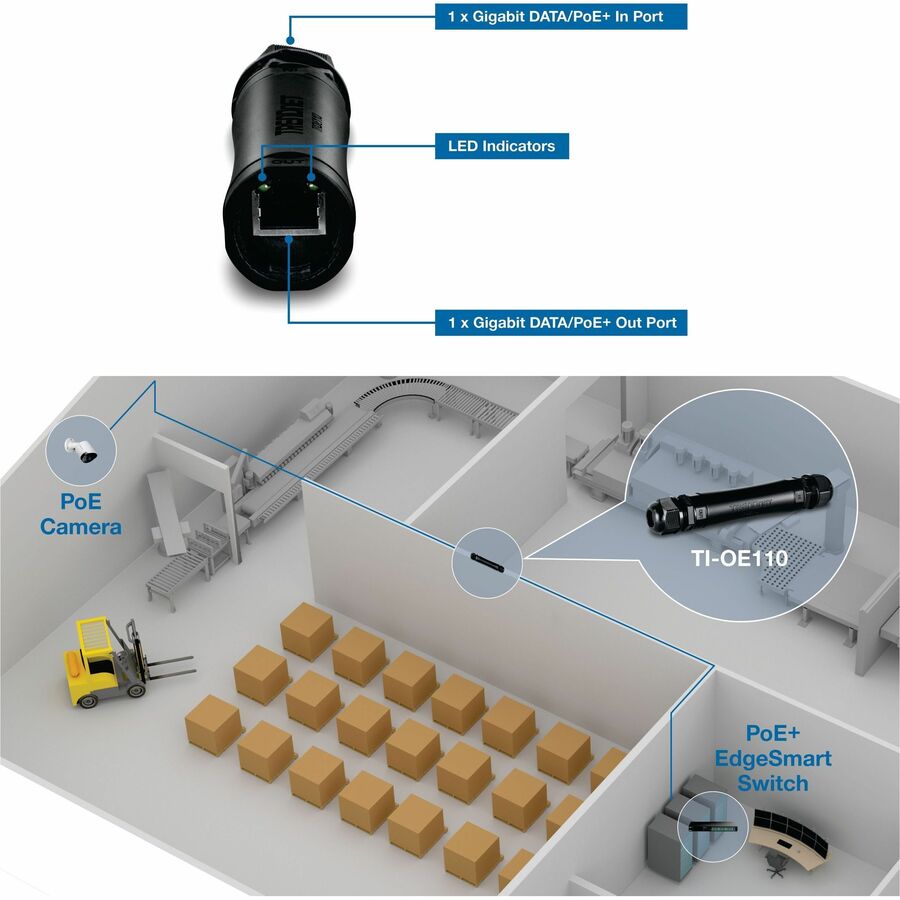

• DEVICE INTERFACE: 1 x Gigabit PoE+ in Port; 1 x Gigabit PoE+ out Port; LED Indicators

• NDAA + TAA COMPLIANT: With NDAA and TAA compliant products, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only)

• EXTENSION DISTANCE: Extends a PoE/PoE+ network connection an additional 100m for a total distance of up to 200m (656 ft.) from the PoE power source equipment

• DAISY CHAIN CAPABLE: Daisy chain up to two industrial PoE+ extenders for a total PoE+ network extension of up to 300m (984ft.).

• POE POWERED: Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE (15.4W) or PoE+ (30W) device

• GIGABIT PORTS: The industrial outdoor PoE+ extender features one gigabit PoE+ input port and one gigabit PoE+ output port

• INDUSTRIAL GRADE DESIGN: Built for industrial network environments, with an IP67 enclosure rating, and an extreme operating temperature range of -40°- 75° C (-40° - 167° F).

• LED INDICATORS: LED indicators on this outdoor PoE+ extender convey status

More from the Manufacturer

OVERVIEW

TRENDnet’s Industrial Waterproof Gigabit PoE+ Extender, model TI-OE110, takes a single PoE+ connection and extends it up to an additional 100m (328 ft.) for a remote PoE or non-PoE device installation. Daisy-chain up to two outdoor PoE+ extenders for a total PoE network extension of 300m (984 ft.) away from the PoE power source equipment. The industrial outdoor PoE+ extender conveniently auto-detects a PoE or PoE+ connection and features a rugged IP67 waterproof enclosure for installation flexibility.

FEATURES

PoE Powered

Extends a single PoE/PoE+ network connection up to an additional 100m (328 ft.) for a remote PoE/PoE+ or non-PoE device installation.

Daisy Chainable

Daisy chain up to two industrial PoE+ extenders for a total PoE+ network extension of up to 300m (984 ft.).

Industrial Grade Design

Built for industrial network environments, with an IP67 enclosure rating, and an extreme operating temperature range of -40°– 75° C (-40° – 167° F).

Industrial Waterproof Gigabit PoE+ Extender

Easy installation

Extends 100m for a total distance of up to 200m (656 ft.) for PoE and non-PoE device

Daisy chain up to two units for a total PoE network extension of up to 300m (984 ft.)*

Supports PoE (15.4W) and PoE+ (30W)

Extreme operating temperature range of -40°– 75° C (-40° – 167° F)

IP67 rated waterproof enclosure

Compact design

PoE powered – no external power adapter required

NDAA / TAA compliant

Extension Distance

Extends a PoE/PoE+ network

connection an additional 100m for

a total distance of up to 200m

(656 ft.) from the PoE power

source equipment

Daisy-Chain

Connect up to two TI-OE110

outdoor PoE+ extenders for a

total PoE+ network extension of

up to 300m (984 ft.)

PoE

Auto-sensing technology

conveniently delivers the correct

wattage needed to power your

PoE (15.4W) or PoE+ (30W)

device

Gigabit Ports

The industrial outdoor PoE+

extender features one gigabit

PoE+ input port and one gigabit

PoE+ output port

Outdoor Ready

Rugged IP67 outdoor weather

rated housing

PoE Powered

No external power

required—saves on cost and

installation time

LED Indicators

LED indicators on this

outdoor PoE+ extender

convey status

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3af

IEEE 802.3at

Device Interface

1 x Gigabit PoE+ in port

1 x Gigabit PoE+ out port

LED Indicators

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2Gbps (full duplex)

Performance

RAM Buffer: 128KB

MAC Address Table: 2K

Jumbo Frame: 9KB

Power

PD Power Input: 802.3af 15.4W / 802.3at 30W

PoE Power Output: Up to 26W (max.)*

6kV Surge Protection

Max. consumption: 1.7W (without PoE)

Maximum PoE Power Output Distance*

PoE Input

Number of extenders from PSE / PoE Output

802.3at 30W

1 Extender Unit / 24W @ 656ft (200m) max.

2 Extender Units / 15.5W @ 984ft (300m) max.

802.3af 15.4W

1 Extender Unit / 12W @ 656ft (200m) max.

2 Extender Units / 10W @ 984ft (300m) max

*Max. PoE output power based on 802.3at 30W PSE or PD Input and cable length from PSE to extender is 100m and cable length from extender to PD is 1.5m. Daisy chain max. distance values tested at 100m cable lengths from PSE, between extender units, and to PD.

Enclosure

IP67 rated

Tool-less design

MTBF

2,517,107 hrs @ 25° C

Operating Temperature

-40° – 75° C (-40° – 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

165 x 25mm (6.5 x 0.98 in.)

Weight

96g (3.4 oz.)

Certifications

CE

FCC

LVD

IEC 60068-2-27 (Shock)

IEC 60068-2-31 (Freefall)

IEC 60068-2-6 (Vibration)

Warranty

3 year

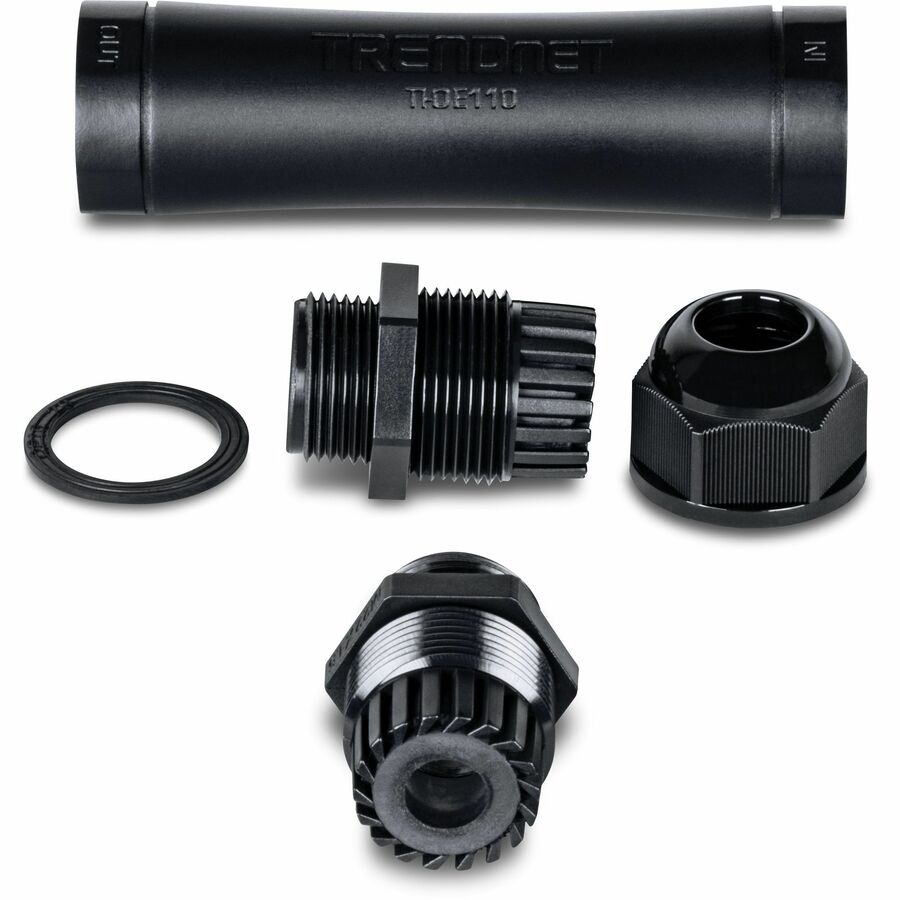

PACKAGE CONTENTS

TI-OE110

2 x Removable cable glands

* Each additional extender added to the daisy chain and extended cable lengths will decrease the overall available PoE budget.

** To obtain the maximum PoE budget of 26W, the PoE extender must be powered by a 30W PoE+ PSE device.

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
