TRENDnet 2-Port Gigabit PoE++ Extender, 1 x Gigabit PoE++ In Port, 2 x Gigabit PoE Out Ports, Extends 100m (328 ft) Up to 200m (656 ft), Daisy Chain 4 Units for up to 500m (1640 ft), Black, TPE-BE200

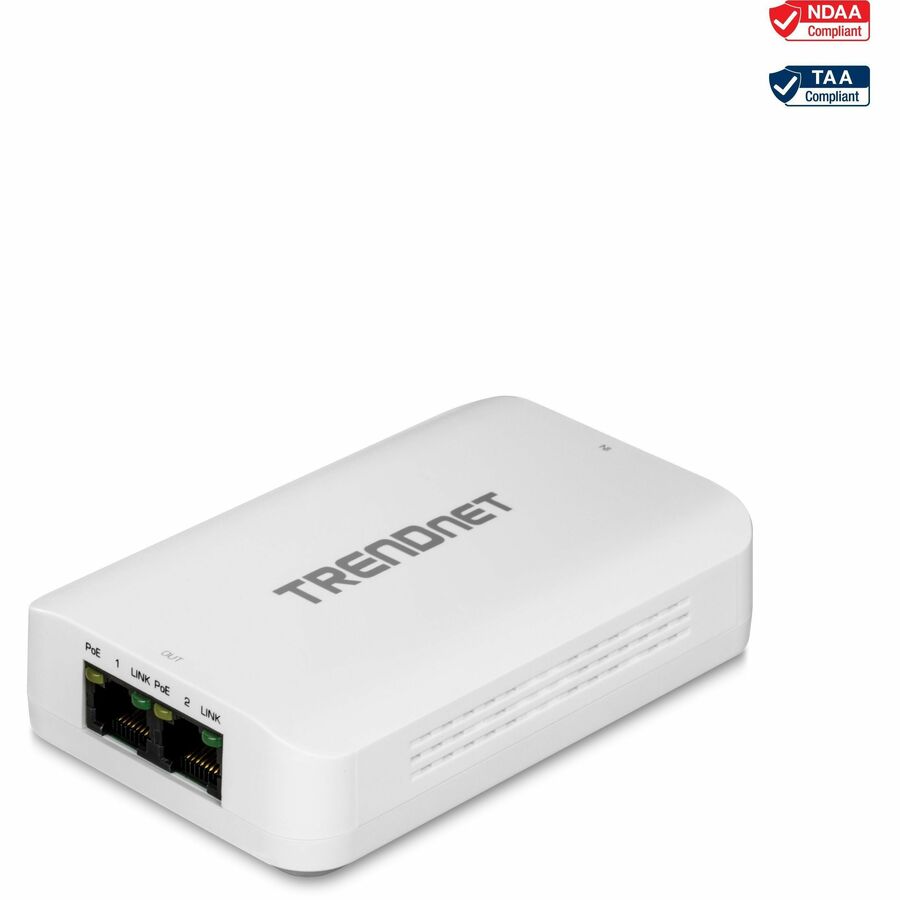

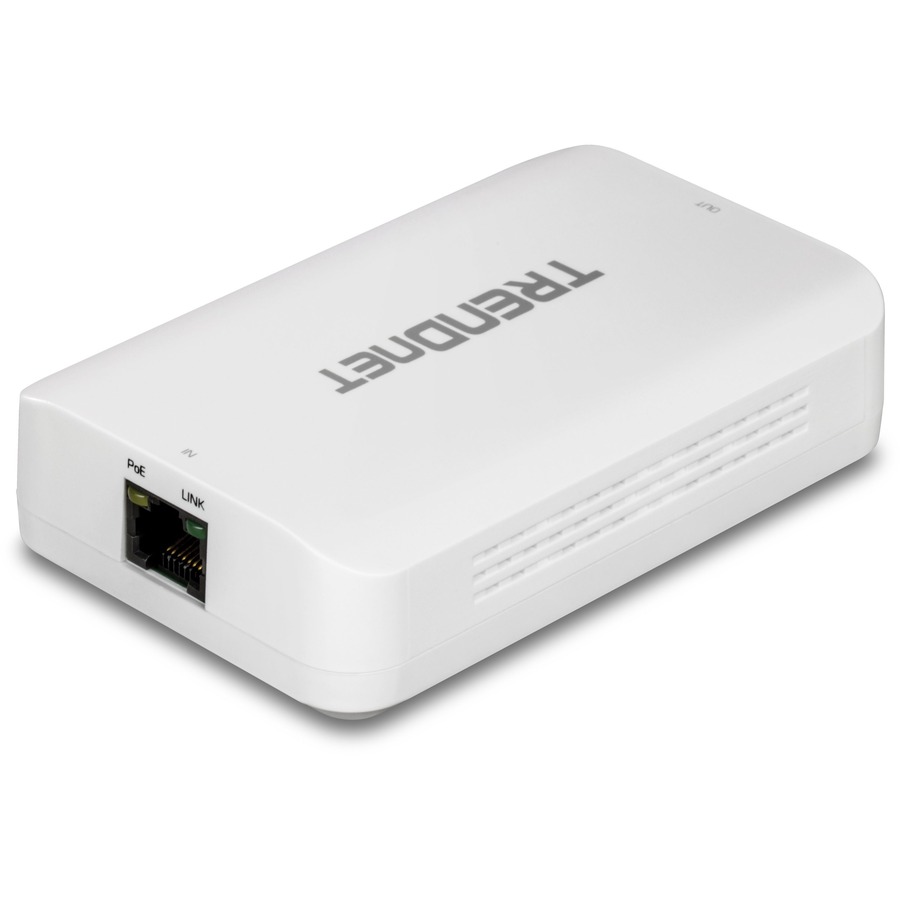

TRENDnet's 2-Port Gigabit PoE++ Extender, model TPE-BE200, takes a single PoE++ (60W) connection and extends it an additional 100m (328 ft.) for up to two PoE+ (30W) devices. This dual/multi-port extender auto-detects a PoE (15.4W), PoE+ (30W), or PoE++ (60W) input, and extends it for a total distance of up to 200m (656 ft.) from the PoE source. Daisy chain up to four extenders for a total PoE network extension of up to 500m (1,640 ft.). This gigabit PoE++ range extender features a single PoE++ (60W) input port and two PoE+ (30W) output ports.

• DEVICE INTERFACE: 1 x Gigabit PoE++ In Port; 2 x Gigabit PoE Out Ports; LED Indicators

POE++ POWER: The Gigabit PoE++ Extender extends a PoE++ connection up to 10m (328 ft.) to PoE (15.4W), PoE+ (30W),

and PoE++ (60W) devices. No external power required. Powered via Power over Ethernet.

GIGABIT PORTS: The 2-Port PoE Extender features one gigabit PoE++ input port and two gigabit PoE+ output ports that

extend a single PoE++ connection an additional 100m (328 ft.) to two PoE+ devices. DAISY CHAIN: Daisy chain up to 4 units for a total PoE network extension of up to 500m (1640 ft.).

EXTENSION DISTANCES: Extends a PoE/PoE+/PoE++ network connection an additional 100m (328 ft.) for a total distance of up to 200m (656 ft.) from the PoE source

COMPATIBLE DEVICES: The extender supports PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices

TRENDnet PROTECTION: The TPE-BE200 2-Port Gigabit PoE++ Extender comes with 3 year TRENDnet ManufacturerProtection.

More from the Manufacturer

TRENDnet’s 2-Port Gigabit PoE++ Extender, model TPE-BE200, takes a single PoE++ (60W) connection and extends it an additional 100m (328 ft.) for up to two PoE+ (30W) devices. This dual/multi-port extender auto-detects a PoE (15.4W), PoE+ (30W), or PoE++ (60W) input, and extends it for a total distance of up to 200m (656 ft.) from the PoE source. Daisy chain up to four extenders for a total PoE network extension of up to 500m (1,640 ft.). This gigabit PoE++ range extender features a single PoE++ (60W) input port and two PoE+ (30W) output ports.

• DEVICE INTERFACE: 1 x Gigabit PoE++ In Port; 2 x Gigabit PoE Out Ports; LED Indicators

• POE++ POWER: The Gigabit PoE++ Extender extends a PoE++ connection up to 10m (328 ft.) to PoE (15.4W), PoE+ (30W),

and PoE++ (60W) devices. No external power required. Powered via Power over Ethernet.

• GIGABIT PORTS: The 2-Port PoE Extender features one gigabit PoE++ input port and two gigabit PoE+ output ports that

extend a single PoE++ connection an additional 100m (328 ft.) to two PoE+ devices.

• DAISY CHAIN: Daisy chain up to 4 units for a total PoE network extension of up to 500m (1640 ft.).

• EXTENSION DISTANCES: Extends a PoE/PoE+/PoE++ network connection an additional 100m (328 ft.) for a total distance of

up to 200m (656 ft.) from the PoE source

• COMPATIBLE DEVICES: The extender supports PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices

• TRENDnet PROTECTION: The TPE-BE200 2-Port Gigabit PoE++ Extender comes with 3 year TRENDnet Manufacturer

Protection.

PoE++ Power

Extends a PoE++ connection up to 100m (328 ft.) to PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices.

Gigabit Ports

One gigabit PoE++ input port and two gigabit PoE+ output ports extend a single PoE++ connection an additional 100m (328 ft.) to two PoE+ devices.

Daisy Chain

Connect up to four PoE++ extenders for a total PoE network extension of up to 500m (1,640 ft.).

Extension Distance

Extends a PoE/PoE+/PoE++ network connection an additional 100m (328 ft.) for a total distance of up to 200m (656 ft.) from the PoE source

PoE/PoE+/PoE++

Supports PoE (15.4W), PoE+ (30W), and PoE++ (60W) network connections

Daisy Chain

Connect up to 4 PoE++ extenders for a PoE network extension of up to 500m (1,640 ft.)

Installation Flexibility

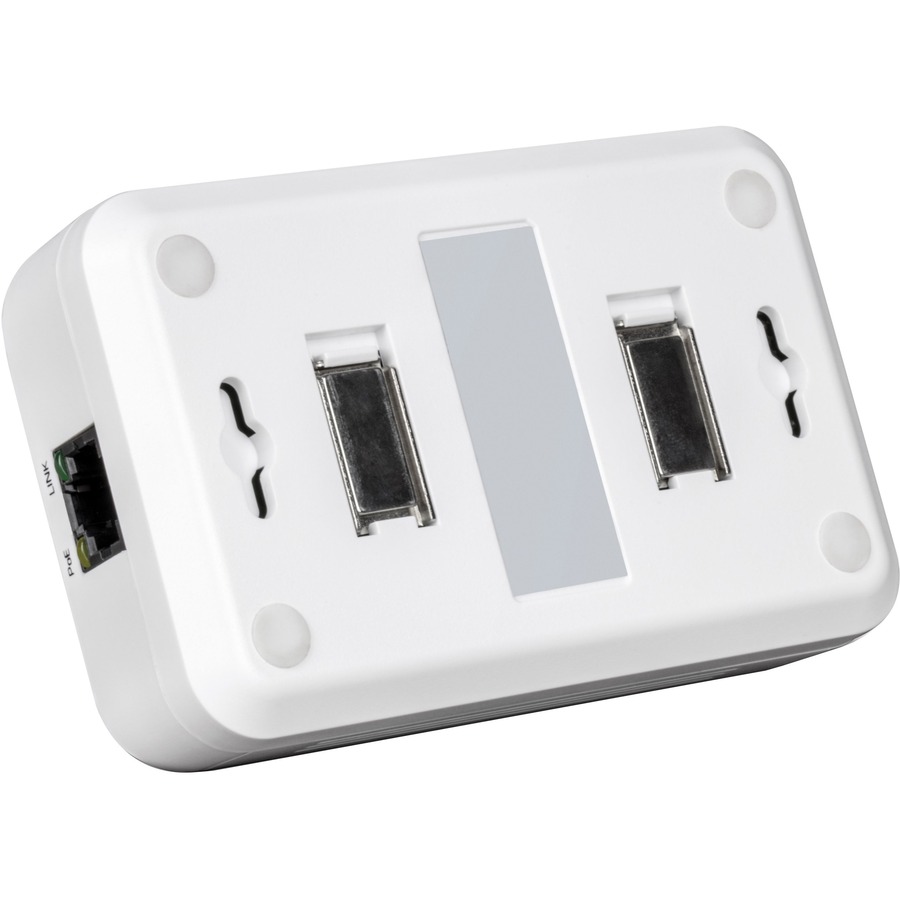

Wall mountable design accommodates most installations scenarios

PoE Powered

No external power required—the PoE++ extender (sometimes referred to as a PoE++ repeater) is conveniently powered via Power over Ethernet

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3az

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bt

Device Interface

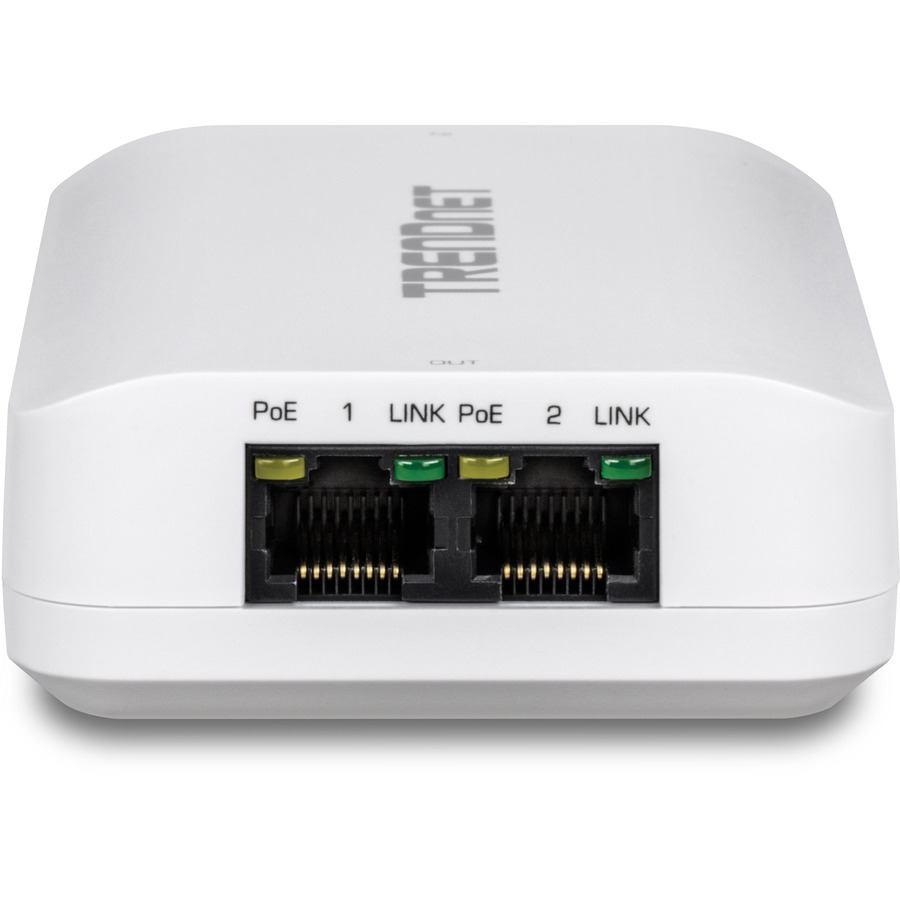

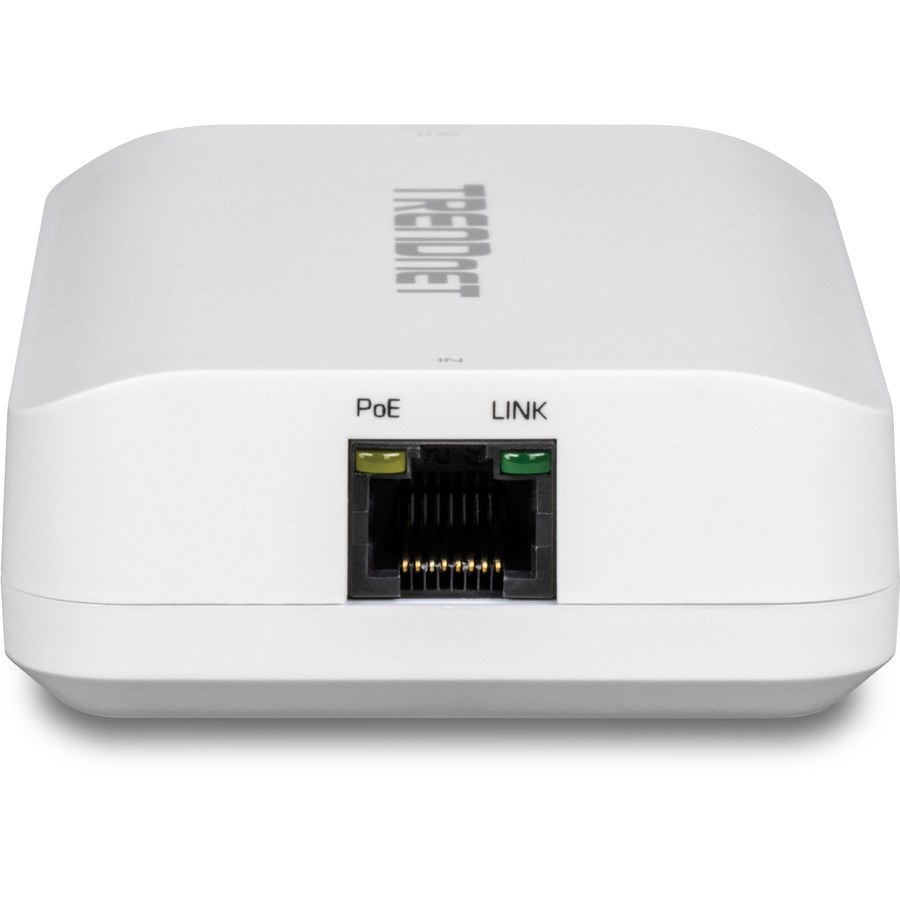

1 x Gigabit PoE++ in port

2 x Gigabit PoE out port

LED indicators

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2000Mbps (full duplex)

Performance

RAM buffer: 1Mb

MAC Address Table: 2K entries

Jumbo Frame: 9KB

Special Features

Extends a PoE/PoE+ network connection an additional 100 meters for a total distance of up to 500m (1640 ft.)

Cascade up to 4 repeaters

Power

Powered by PoE++ Device

Max. consumption: 3.3W

PoE

PoE budget: 60W

PD Pin: 1,2,4,5 (+) and 3,6,7,8 (-)

PSE Pin: 1,2 (+) and 3,6 (-)

Operating Temperature

0° – 45° C (32° - 113° F)

Operating Humidity

Max. 95% non-condensing

Dimensions

110 x 70 x 29mm (4.3 x 2.8 x 1.1 in.)

Weight

125g (4 oz.)

Certifications

CE

FCC

Warranty

3 year

PACKAGE CONTENTS

TPE-BE200

Quick Installation Guide
