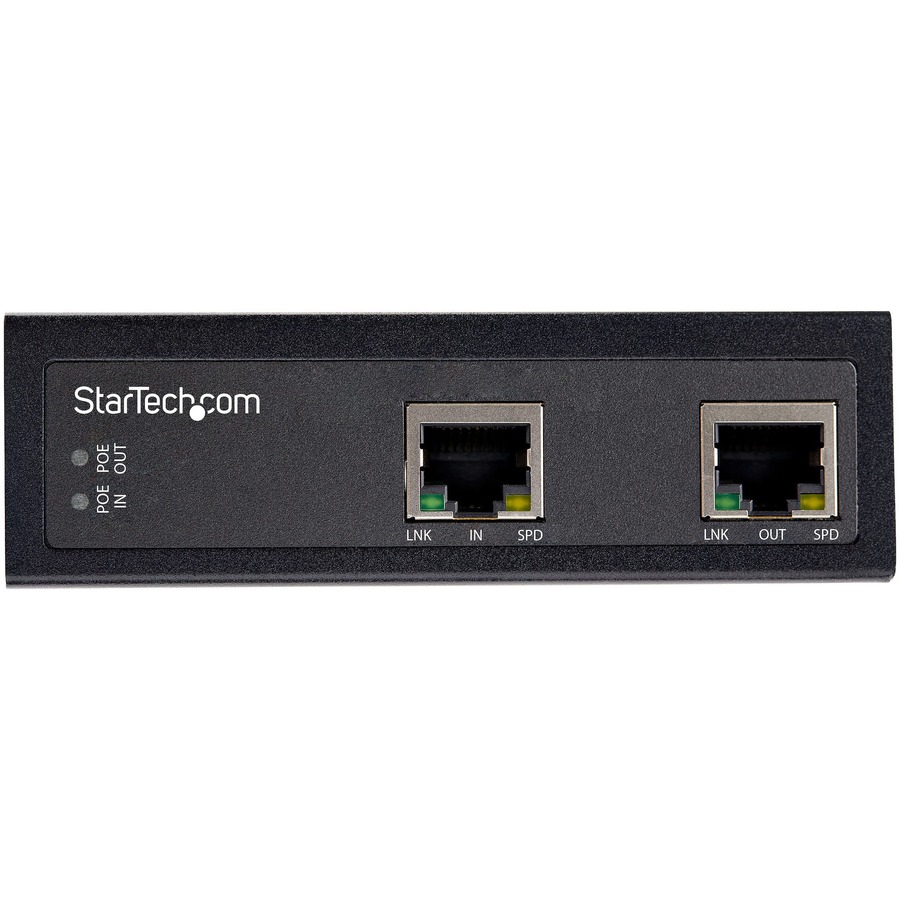

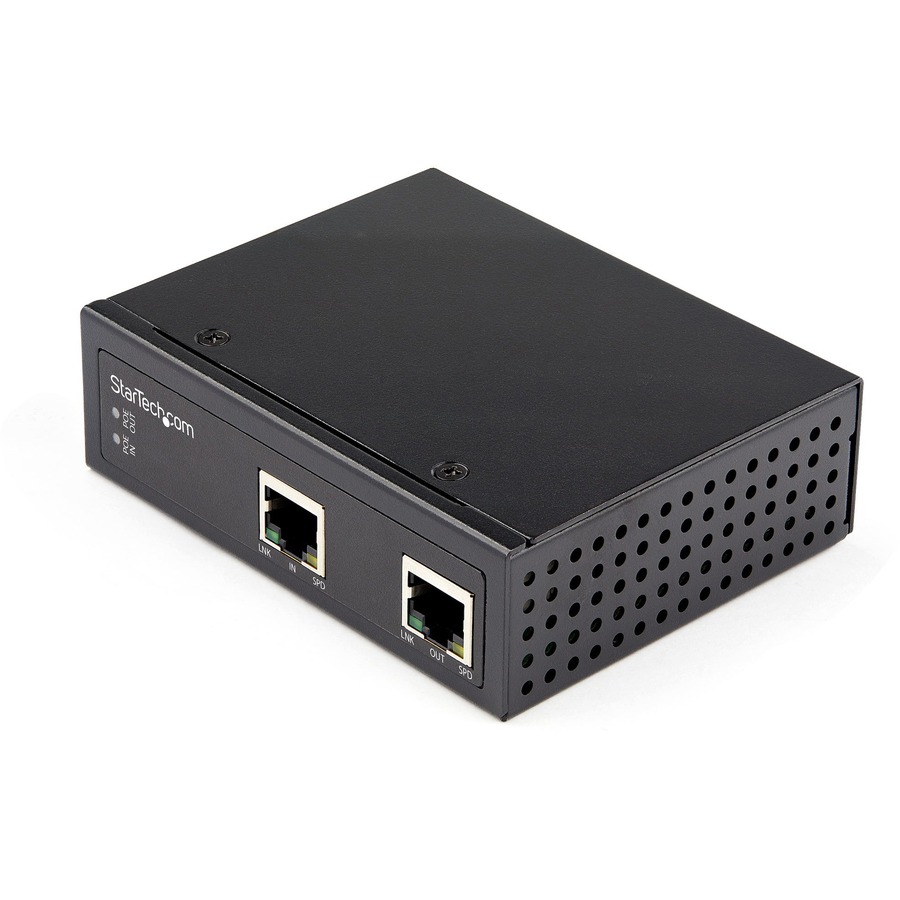

Gigabit PoE Extender extends a power source by 100m to PD devices; Cascade 4 Power over Ethernet/PoE+ network extenders to extend range by 400m - 15W/30W/60W power output auto-selected - 802.3bt - IP-30 industrial hardened/ -40C to 75C temp
MSRP$191.66
$185.37
Save 3%In stock: 20
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Extends the reach of PoE links up to 328' (100 m) to power powered devices (PD) over long distances; up to 4 extenders can be cascaded to extend the range of a PoE source (PSE) device up to an additional 400m, for a total range of 500m from the original PSE source to the target device. Using Cat 5e (or higher rated) Ethernet cabling, it supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) to support PD devices like pan and tilt cameras, lighting, sensors, and wi-fi access points. This PoE extender features IP-30 housing and an MTBF is 500,000+ hrs (Telcordia/Bellcore) at 50C, for long-term reliability and durability. Operating temp of -40C to 75C permits use in a wide range of indoor and outdoor applications that are not temperature controlled. Rated to various vibration, shock, and free-fall standards: Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 PoE Extender also includes hardware for mounting to the DIN rail or wall. Accepts inputs up to 95W from a PSE source and can provide 15W, 30W, or 60W of power output to a target PD device. Low 2.7W power consumption provides more power for devices, especially when multiple extenders are used for a single extension. Features ESD, EFT, and surge protection at the following standards: ESD: IEC 61000-4-2: Contact: 6KV; Air: 8KV EFT: IEC 61000-4-4: Power: 2KV; Signal: 2KV Surge: IEC 61000-4-5: Power: 2KV; Signal: 2KV POEEXT1G60W is backed by a StarTech.com two-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Extend the Reach of PoE Links up to 328 Feet
Extends the reach of PoE links up to 328' (100 m) to power powered devices (PD) over long distances; up to 4 extenders can be cascaded to extend the range of a PoE source (PSE) device up to an additional 400m, for a total range of 500m from the original PSE source to the target device.
Using Cat 5e (or higher rated) Ethernet cabling, it supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) to support PD devices like pan and tilt cameras, lighting, sensors, and wi-fi access points.
Designed for Harsh Environments
This PoE extender features IP-30 housing and an MTBF is 500,000+ hrs (Telcordia/Bellcore) at 50C, for long-term reliability and durability. Operating temp of -40C to 75C permits use in a wide range of indoor and outdoor applications that are not temperature controlled.
Rated to various vibration, shock, and free-fall standards:
Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32

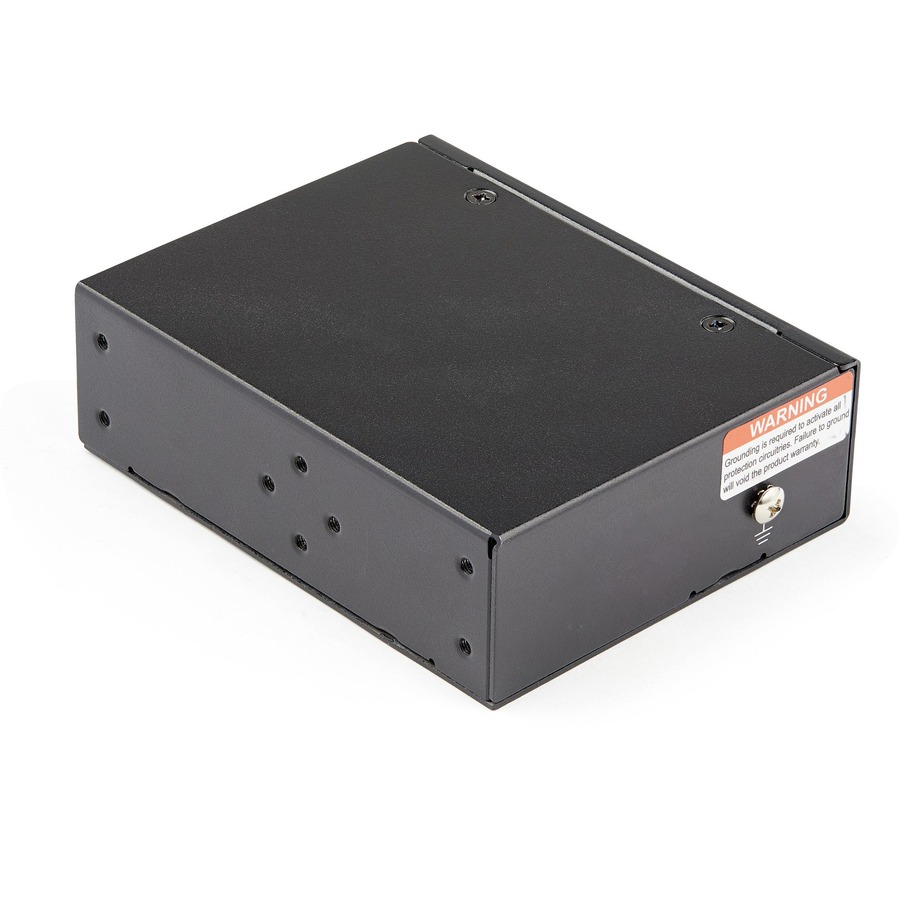

PoE Extender also includes hardware for mounting to the DIN rail or wall.
Flexible Power Outputs
Accepts inputs up to 95W from a PSE source and can provide 15W, 30W, or 60W of power output to a target PD device. Low 2.7W power consumption provides more power for devices, especially when multiple extenders are used for a single extension.
Features ESD, EFT, and surge protection at the following standards:
ESD: IEC 61000-4-2: Contact: 6KV; Air: 8KV
EFT: IEC 61000-4-4: Power: 2KV; Signal: 2KV
Surge: IEC 61000-4-5: Power: 2KV; Signal: 2KV
POEEXT1G60W is backed by a StarTech.com two-year warranty and free lifetime technical support.
Limited Warranty: 2 Year
The StarTech.com Advantage We simplify the lives of IT Professionals by making it easy to find the connectivity accessories and information they need and getting products to their project sites quickly. StarTech.com products are designed by IT pros, for IT pros, to meet their rigorous technical performance requirements. Who We Are While we may manufacture IT connectivity accessories, StarTech.com is truly in the business of making the lives of IT professionals easy. Founded in 1985 in London, Ontario, Canada by Paul Seed and Ken Kalopsis, StarTech.com has always been dedicated to solving technology problems faced by IT professionals. Originally known as StarTech Computer Accessories, the company had very humble beginnings as a “Visa Card” funded operation, manufacturing products like computer dust covers in the basement of a house. By focusing on the needs of our customers and continual innovation, StarTech.com has evolved into a global organization offering accessories that support over 200 different technologies, from legacy to the latest. StarTech.com Founder and CEO, Paul Seed’s dedication to making IT solutions easy to implement has not wavered, nor has his passion for the community. From individual contributions to organization wide campaigns, StarTech.com is committed to staying connected to the community and supporting non-profit organizations across the globe.
| General Information | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | POEEXT1G60W |
| Brand Name | StarTech.com |
| Product Model | POEEXT1G60W |
| Product Name | POEEXT1G60W PoE Extender |
| Packaged Quantity | 1 Each |
| Product Type | PoE Extender |
| Interfaces/Ports | |
| Input Ports | 1 x Ethernet |
| Output Ports | 1 x PoE+ |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | DIN Rail/Wall Mountable |
| Height | 1.3" |
| Width | 3.2" |
| Length | 4.1" |
| Weight (Approximate) | 5.22 oz |
| Power Description | |
| Maximum Output Power | 60 W |
| Technical Information | |
| Protection Type | Surge Protection |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
