2-Port Gigabit Splitter with USB Type C Power
$31.86
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

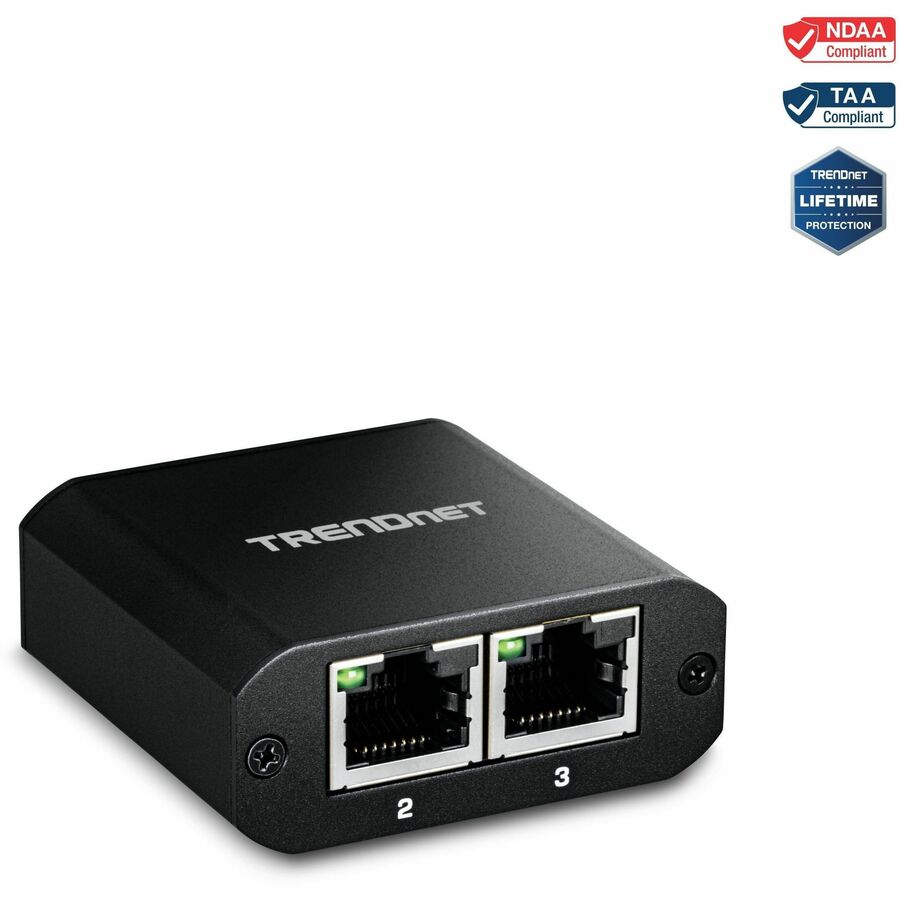

TRENDnet's 2-Port Gigabit Splitter with USB Type C Power, model TEG-102S, provides a highly efficient network expansionsolution. Quickly expand a single network connection into two, allowing two devices to transmit data simultaneously at up to1,000Mbps. The gigabit Ethernet splitter includes a USB Type C power cable, simplifying installation and reducing connections fornetwork setup. Easily power this gigabit Ethernet splitter with an available USB Type A port.
• ETHERNET SPLITTER: This 2 Port Gigabit Ethernet splitter is designed to help expand your network by splitting one network connection into two.
• NDAA + TAA COMPLIANT: This Ethernet splitter is NDAA and TAA compliant which allows you to plan and install the networking solutions that government customers demand today. (U.S. and Canada only)
• TRENDnet 2-YEAR PROTECTION: The TEG-102S, 2-Port Gigabit Splitter with USB Type C Power comes with 2 years of TRENDnet Manufacturer Protection.
• GIGABIT SPEEDS: Two gigabit ports provide high-speed network connections to devices, and a 4Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
• PLUG & PLAY DESIGN: The Ethernet splitter is powered by a USB Type C power cable that is included. No configuration needed; the gigabit Ethernet splitter simply splits one network connection into two.
• COMPACT DESIGN: With a compact metal housing design, this RJ-45 splitter is well-suited for on-the-go applications. Its fanless design is perfect for quiet environments that require silent operation.
• SWITCHING CAPACITY: The Ethernet splitter has a 4Gbps switching capacity
• JUMBO FRAME: Send larger packets, or Jumbo Frames (up to 9KB), for increased performance
• LED INDICATORS: LED indicators on the gigabit Ethernet splitter convey port status
More from the Manufacturer
TRENDnet's 2-Port Gigabit Splitter with USB Type C Power, model TEG-102S, provides a highly efficient network expansion
solution. Quickly expand a single network connection into two, allowing two devices to transmit data simultaneously at up to
1,000Mbps. The gigabit Ethernet splitter includes a USB Type C power cable, simplifying installation and reducing connections for
network setup. Easily power this gigabit Ethernet splitter with an available USB Type A port.
Easy Installation
No configuration needed; the gigabit
Ethernet splitter simply splits one
network connection into two.
Easy Installation
Two gigabit ports provide high-speed
network connections to devices, and a
4Gbps switching capacity allows data
traffic to flow smoothly, reducing traffic
bottlenecks.
Compact Design
With a compact metal housing design,
this RJ-45 splitter is well-suited for on-
the-go applications. Its fanless design is
perfect for quiet environments that
require silent operation.
Easy Installation
No configuration needed; the
gigabit Ethernet splitter simply
splits one network connection into
two

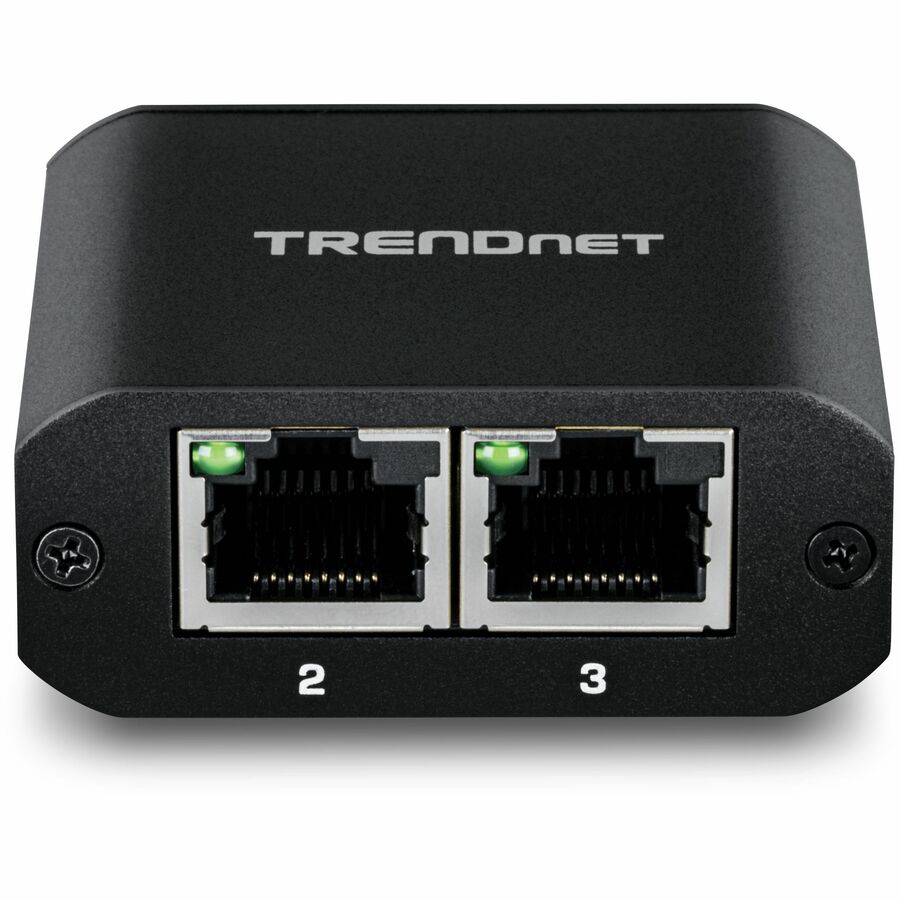

Gigabit Ports
This Ethernet cable splitter is
equipped with 2 gigabit Ethernet
out ports
Switching Capacity
The Ethernet splitter has a
4Gbps switching capacity
Fanless
Fanless design on the Ethernet
splitter lowers energy
consumption and eliminates
operating noise
Housing Design
Compact and sturdy metal housing

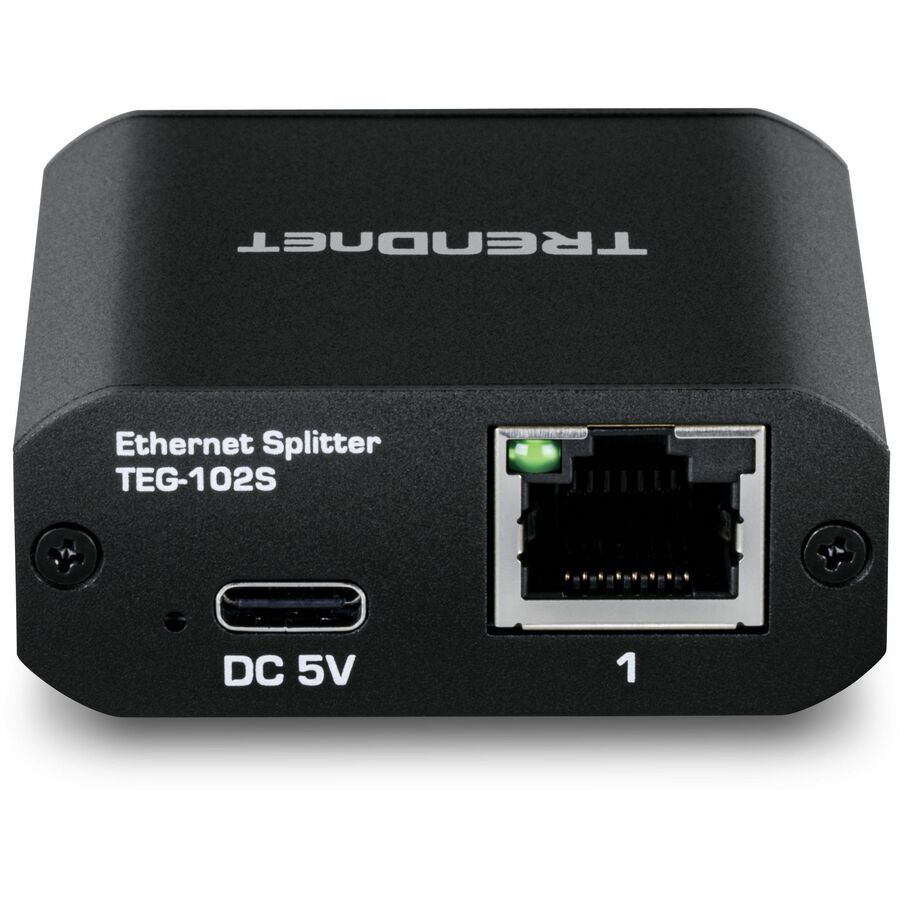

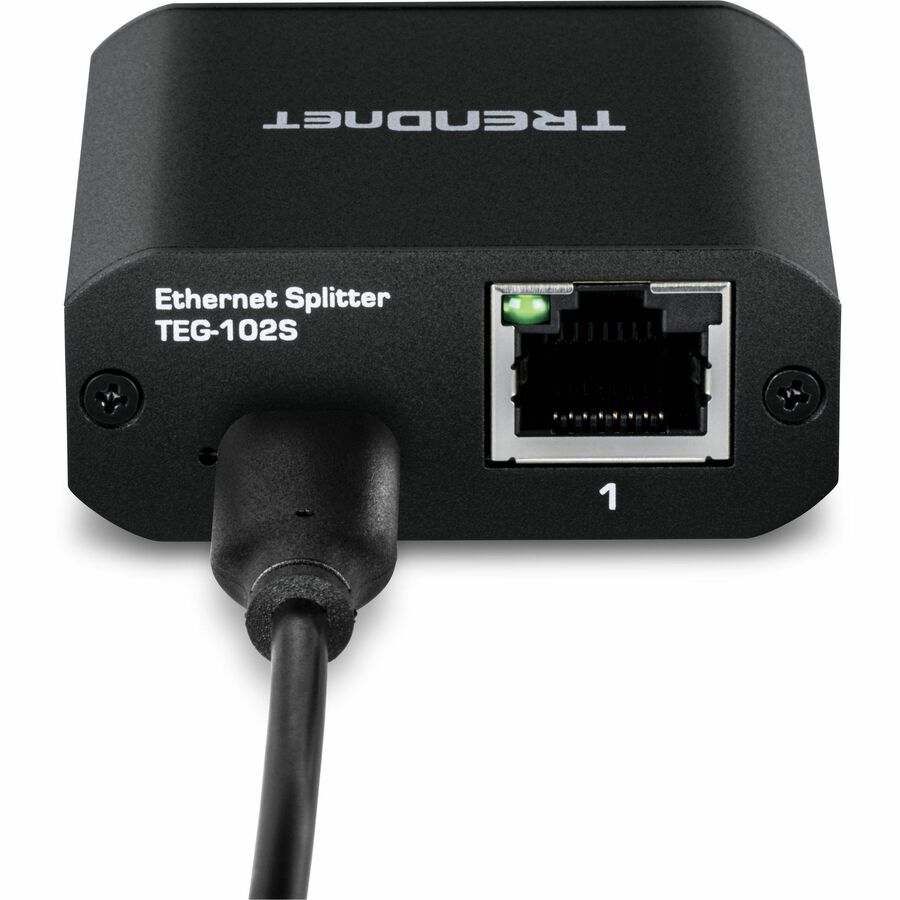

USB Type C Power
Includes one USB Type C power
cable for easier installation
flexibility
Jumbo Frame
Send larger packets, or Jumbo
Frames (up to 9KB), for
increased performance
LED Indicators
LED indicators on the gigabit
Ethernet splitter convey port
status
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
Device Interface
1 x Gigabit data-in port
2 x Gigabit data-out ports
1 x USB Type C power-in port
LED indicator
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Performance
Data RAM Buffer: 128KB
Switching Fabric: 4Gbps
MAC Address Table: 2K entries
Jumbo Frame: 9KB
Forwarding Rate: 2.97Mpps (64-byte packet size)
USB-C Power
DC Input: 5V 1A or 5V 2A
80cm (31.5 in.)
MTBF
2, 173, 812hours @ 40° C
Operating Temperature
0° – 40° C (-32° – 104° F)
Operating Humidity
Max. 95% non-condensing
Dimensions
52 x 50 x 21mm (2 x 2 x 0.8 in.)
Weight
52g (2 oz.)
Certifications
CE
FCC
Warranty
2-year

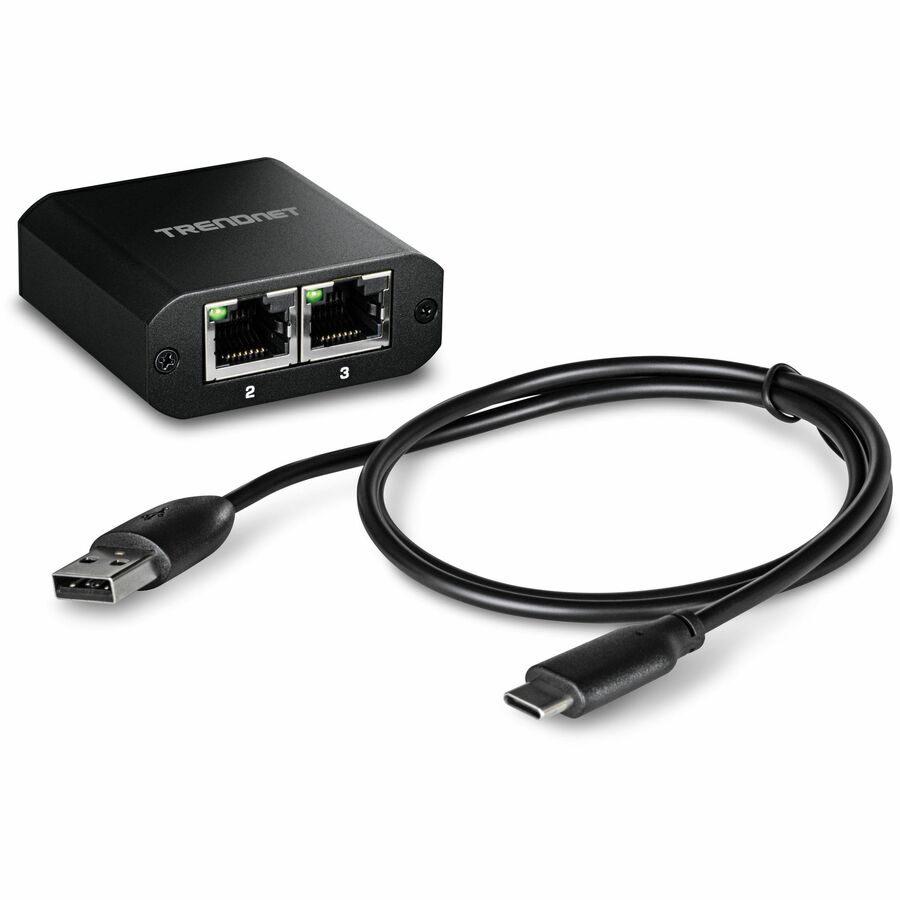

PACKAGE CONTENTS
TEG-102S
Quick Installation Guide
USB Type C power cable (80cm / 31.5 in.)
All references to speed are for
comparison purposes only. Product specifications, size, and shape are
subject to change without notice, and actual product appearance may
differ from that depicted herein.
2-Port Gigabit Splitter with USB Type C Power
Splits one network connection into two
USB Type C power cable included
Compact design
NDAA / TAA compliant (U.S. and Canada only)
Limited Warranty: 2 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TEG-102S |
| Brand Name | TRENDnet |
| Product Name | 2-Port Gigabit Splitter with USB Type C Power |
| Product Type | PoE Splitter |
| Interfaces/Ports | |
| Input Ports | 1 x Gigabit Ethernet |
| Output Ports | 2 x Gigabit Ethernet |
| Physical Characteristics | |
| Height | 2" |
| Width | 2" |
| Depth | 0.8" |
| Weight (Approximate) | 1.83 oz |
| Power Description | |
| Input Voltage | 5 V DC |
| Minimum Input Current | 1 A |
| Maximum Input Current | 2 A |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x Certifications: CE FCC |
| TAA Compliant | Yes |
