Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
EKI-2701PSI-AE
Category
Power Injectors/Splitters
Overview
With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard Ethernet CAT5 cable, EKI-2701PSI plays the role of powered device (PD) and splits power from PoE to Ethernet devices. In this case, both power and data can be transmitted up to 328 feet (100m) from power source equipment (PSE). This product can operate in a wide range of temperature between -40 and 75°C, and the rugged hardware design makes EKI-2701PSI perfect to ensure your PoE Ethernet equipment can meet industrial applications demanding.
Highlights
Supports 10/100/1000 Base-TX for PoE in and Data out
IEEE 802.3af compliant split power/data from PoE equipment
Power isolation and short circuit protection for power output
Supports output power up to 12.95 W at 24 VDC
Provides slim size and DIN-rail/Wall mount with IP30 metal mechanism
Supports operating temperatures from -40 to 75°C
Specifications
Product Type
PoE Splitter
Input Voltage
57 V DC
Manufacturer Part Number
EKI-2701PSI-AE
Limited Warranty
5 Year
Certifications & Standards
UL 60950-1
CAN/CSA-C22.2 No.60950
FCC Part 15 Subpart B Class A
EN 55022 Class A
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6
IEEE 802.3af
Form Factor
DIN Rail/Wall Mountable
Manufacturer
Advantech Co., Ltd
Product Model
EKI-2701PSI
Product Name

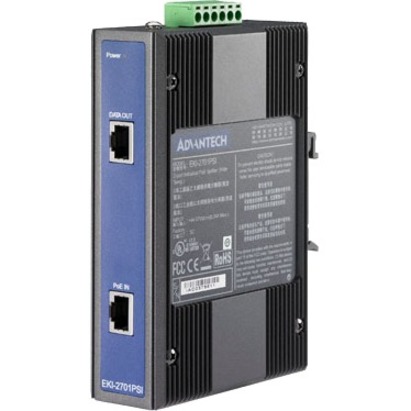

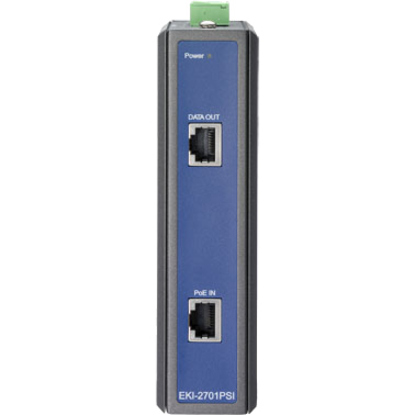

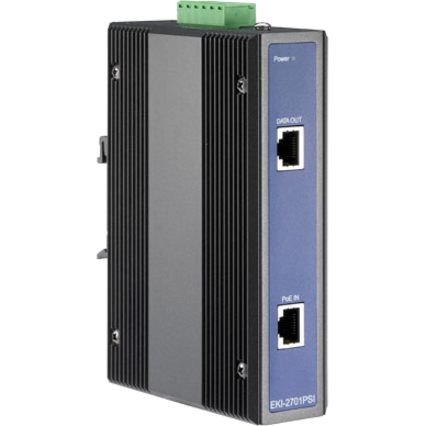

EKI-2701PSI Industrial PoE Splitter with Wide Temperature
Protection Type
Short Circuit, Overload Protection, Over Current
Brand Name
Advantech
Input Ports
1 x 10/100/1000TX
Output Ports
1 x 10/100/1000TX
Height
5.5"
Width
1.5"
Depth
3.7"
Environmentally Friendly
Yes
Maximum Output Power
12.95 W
Maximum Output Voltage
24 V DC
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
