SKU
EKI-2701MPI-5GPS-A
Category
Power Injectors/Splitters
Overview

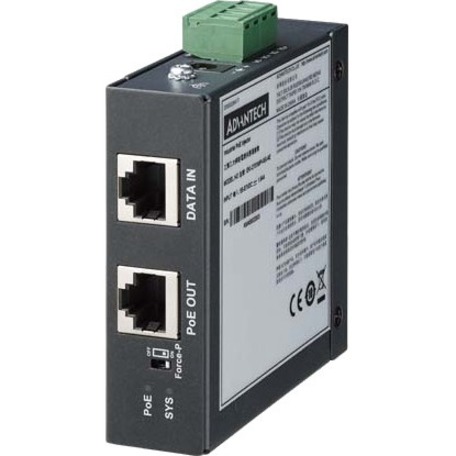

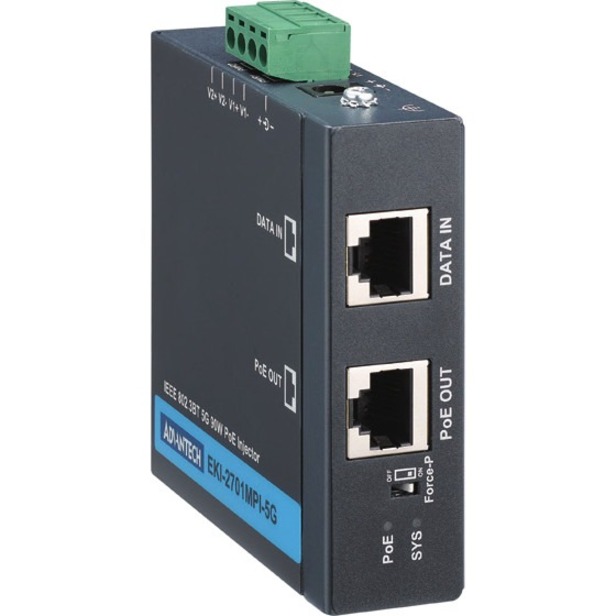

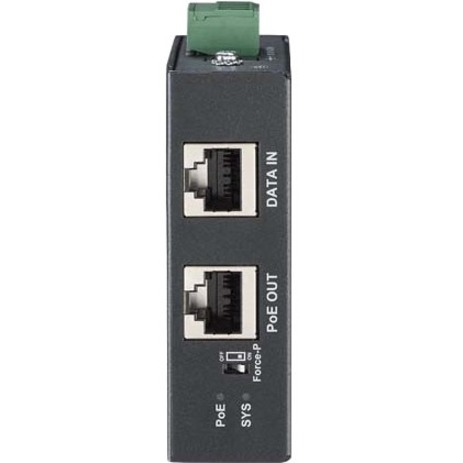

EKI-2701MPI-5G is a next-generation injector which is compliant with IEEE 802.3af/at/bt. With PoE (Power over Ethernet) technology, both data and power to Ethernet-enabled devices run on a standard CAT6(A)/CAT7 cable to serve up to 90W.
EKI-2701MPI-5G injector flexibly deploys standard and high powered PD devices to transfer data and power simultaneously through one Ethernet cable while reaching distance up to 100 meters. It supports dual power inputs via a pluggable terminal block or DC jack. DIN-rail and wall-mounting installation options provide greater user expediency. With the use of EKI-2701MPI-5G,Wifi AP at 5Gbps transmission rate can be easily deployed as it is capable of providing power up to 90W and supporting multi data rate.
Highlights
Supports multi data rate 10M/100M/1G/2.5G/5G for Data in and PoE out
IEEE 802.3af/at/bt compliant
Force mode power supports up to 90W by DIP switch
Power input 54~57 VDC, injects power up to 90W
Provides slim size and DIN-rail with IP40 metal mechanism
Supports operating temperatures from -40 ~ 75°C
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
EKI-2701MPI-5GPS-A
Brand Name
Advantech
Product Model
EKI-2701MPI-5G
Product Name
Hardened Multi-Speed Mega PoE Injector
Product Type
PoE Injector
Interfaces/Ports
Input Ports
1 x 10/100/1000TX
Output Ports
1 x PoE
Physical Characteristics
Form Factor
DIN Rail/Wall Mountable
Height
3.1"
Width
3.3"
Depth
1"
Power Description
Input Voltage
57 V DC
Maximum Output Power
90 W
Miscellaneous
Package Contents
Hardened Multi-Speed Mega PoE Injector
AC Adapter
Certifications & Standards
Communications: IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3bz IP40 EMS: EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EMI: CE FCC Safety: UL62368 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6
