Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
POEINJ30W
Category
Power Injectors/Splitters
Overview

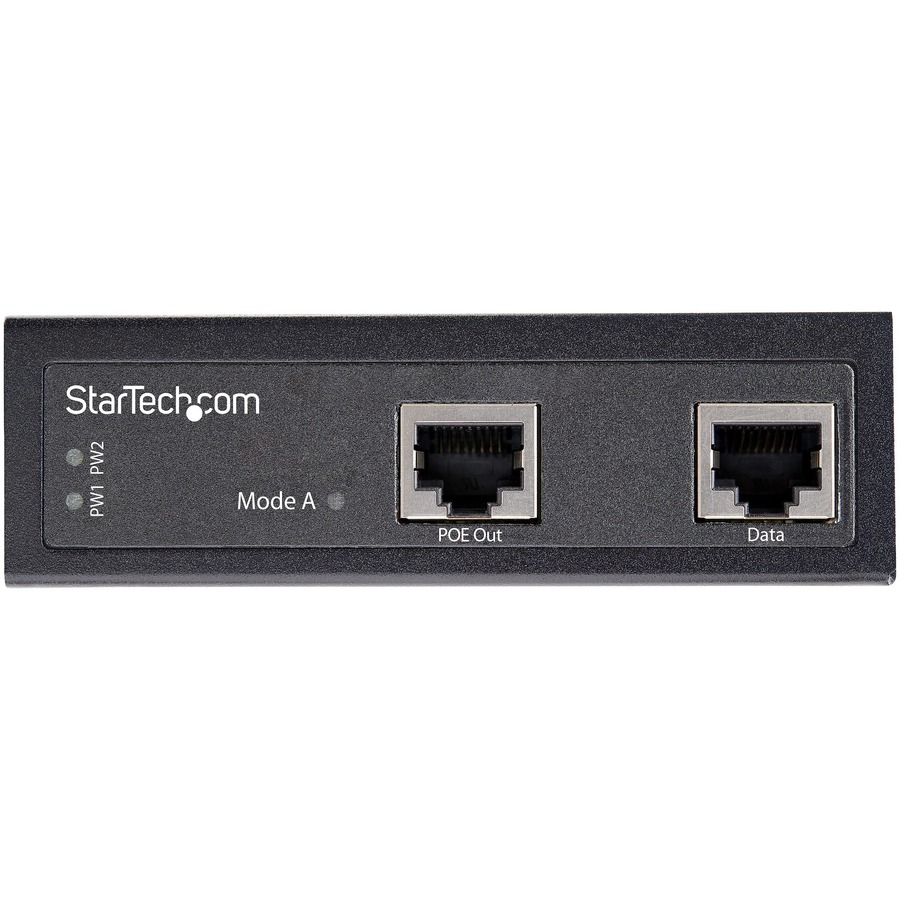

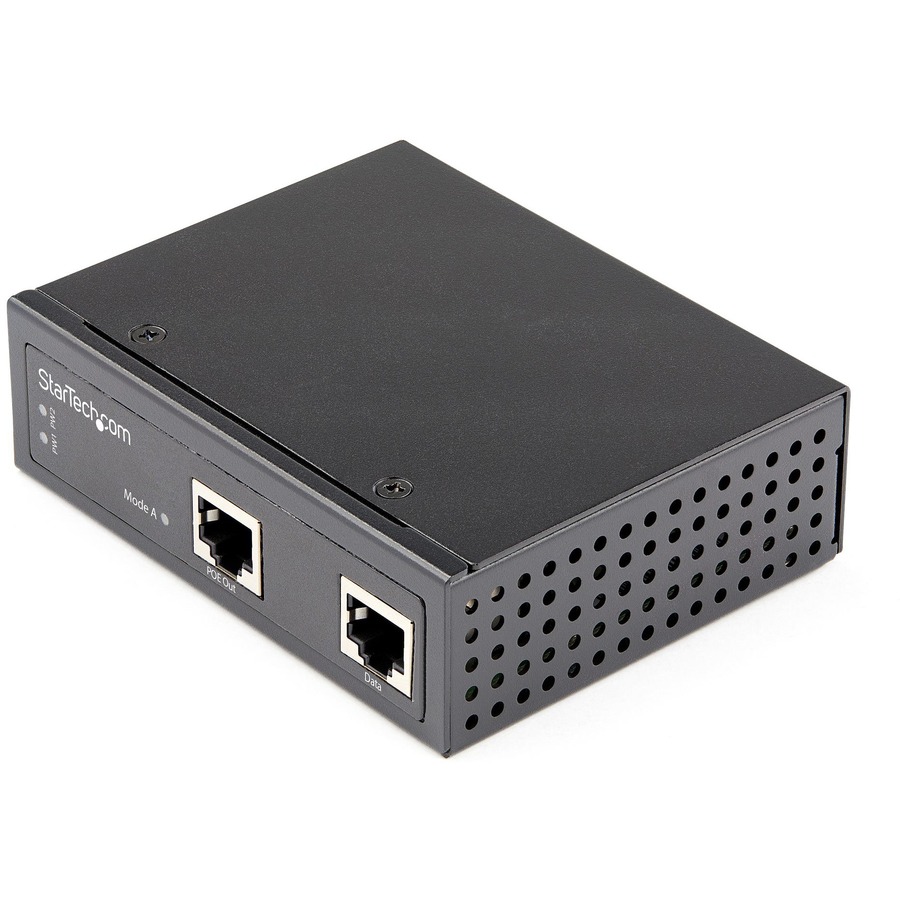

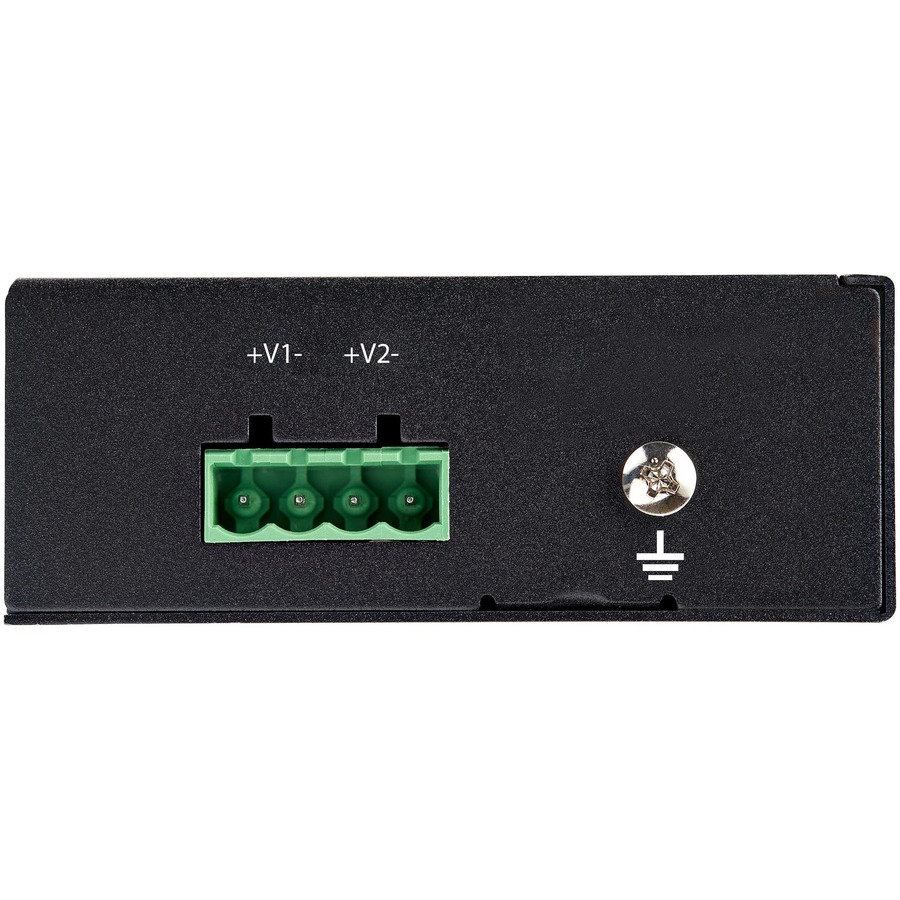

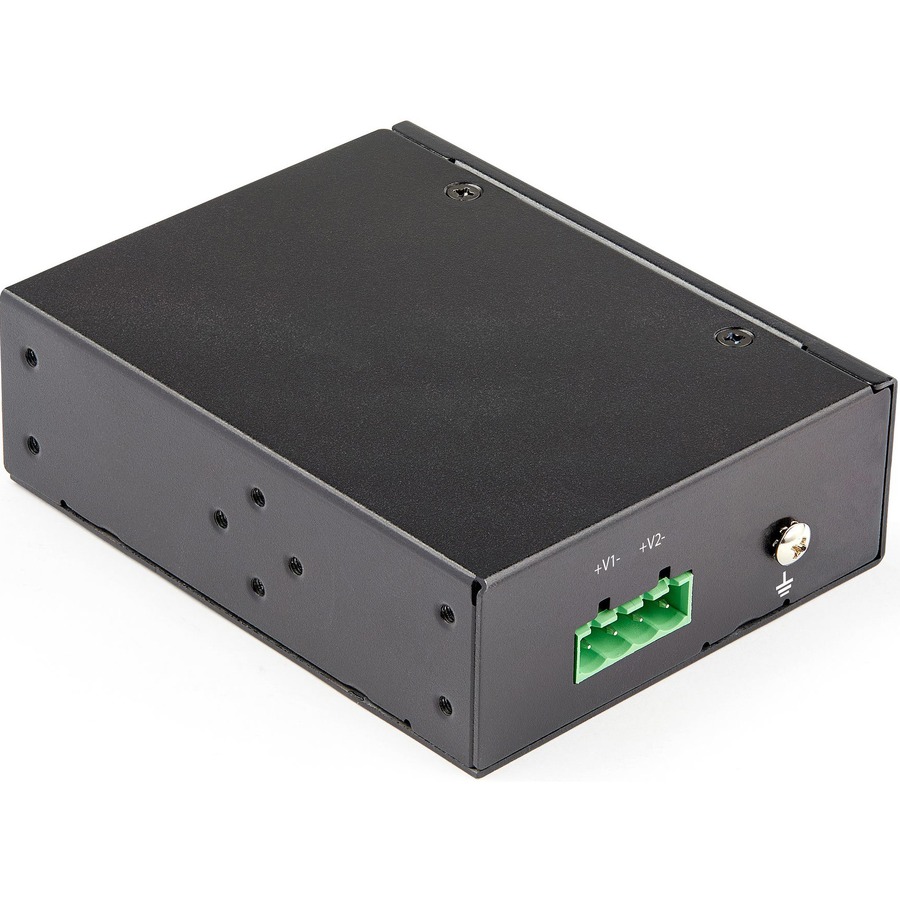

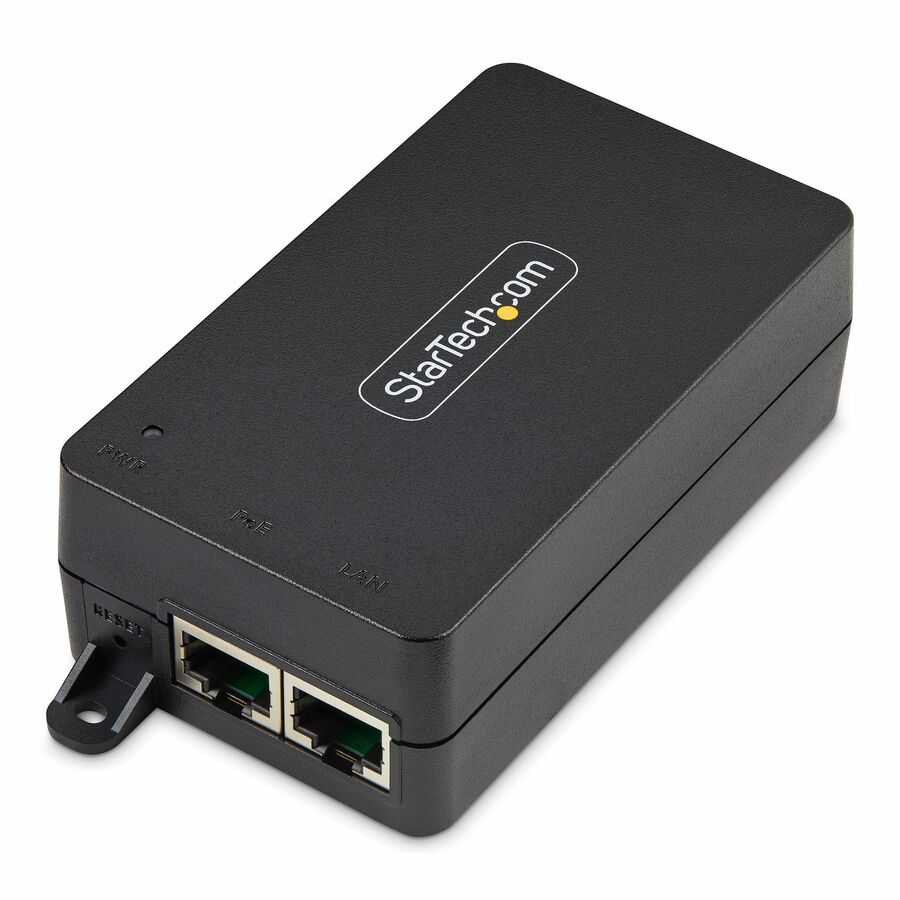

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable. 30 Watt Power Budget Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like: Cameras Sensors Wi-fi access points Uses Cat 5e (or higher rated) Ethernet cabling. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-fall: EN 60068-2-32 600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability. Dual Power Inputs Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights
30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras, sensors, and wi-fi access points
TECH SPECS: 1 Gbps
48V-56VDC input
IEEE 802.3af / IEEE 802.3at (30W)
10/100/1000 Mbps auto negotiation
Link fault passthrough (LFP)
Specifications
Package Contents
POEINJ30W PoE Injector
Mounting Hardware Kit
Quick-Start Guide
Terminal Block to Barrel Power Connector Adapter
Terminal Block
Product Type
PoE Injector
Input Voltage
56 V DC
Manufacturer Part Number
POEINJ30W
Packaged Quantity
1 Each
Limited Warranty
2 Year
Certifications & Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
IEC 61000-4-2
IEC 61000-4-4
IEC 61000-4-5
EN 60068-2-6
EN 60068-2-32
MET (UL) 60950-1
EN60950-1
Form Factor
DIN Rail/Wall Mountable
Manufacturer
StarTech.com
Product Model
POEINJ30W
Product Name
POEINJ30W PoE Injector
Protection Type
Overload Protection
Brand Name
StarTech.com
Input Ports
1 x Fast Ethernet
Output Ports
1 x PoE+
Country of Origin
Taiwan
Environmentally Friendly
Yes
Product Color
Black
Color Family
Black
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
