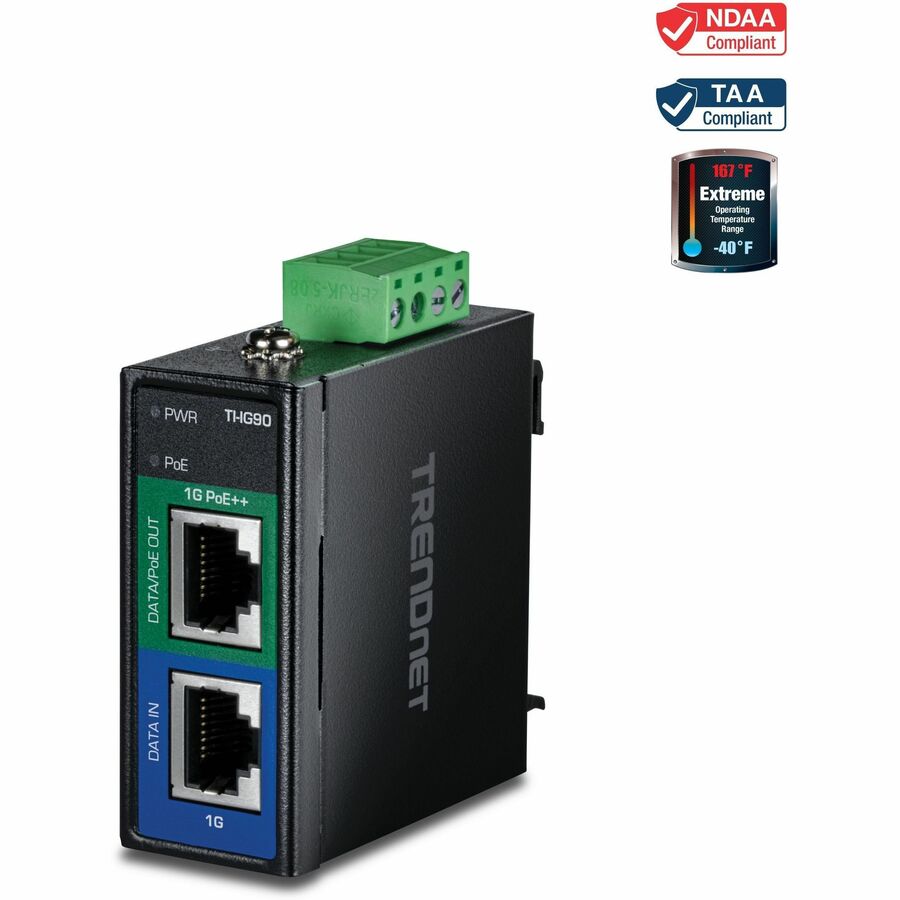

TRENDnet Industrial 95W Gigabit PoE++ Injector, TI-IG90, 1 x Gigabit Port, 1 x Gigabit PoE++ Port, Provides PoE (15.4W), PoE+ (30W), PoE++ (95W), NDAA & TAA Compliant

TRENDnet's TI-IG90 is a reliable IP50 rated Industrial Gigabit PoE++ Injector with hardened components rated for extreme and rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE gigabit switch, and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, or PoE++ (up to 95W) device. This industrial PoE injector features dual redundant power inputs with overload current protection to support zero downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector. DEVICE INTERFACE: 1 x Gigabit port (10Mbps/100Mbps/1Gbps); 1 x Gigabit PoE++ port (10Mbps/100Mbps/1Gbps); 4- pin

power terminal block; LED Indicators

NDAA + TAA COMPLIANT: With NDAA and TAA compliant network products, you can plan and install the networking solutions

that government customers demand today. (U.S. and Canada only)

POE++: Supplies power to a PoE (up to 15.4W), PoE+ (up to 30W), or PoE++ (up to 95W) device.

CONNECTION DISTANCE: Connect the TI-IG90 industrial PoE injector to a non-PoE gigabit switch, and then run an Ethernet

cable up to 100 meters (328 ft.) to network a PoE device.

INDUSTRIAL HARDENED DESIGN: Equipped with a rugged IP50 rated housing, designed to withstand a high degree of

vibration and shock, and operate within an extreme temperature range of -40° - 75° C (-40° - 167° F).

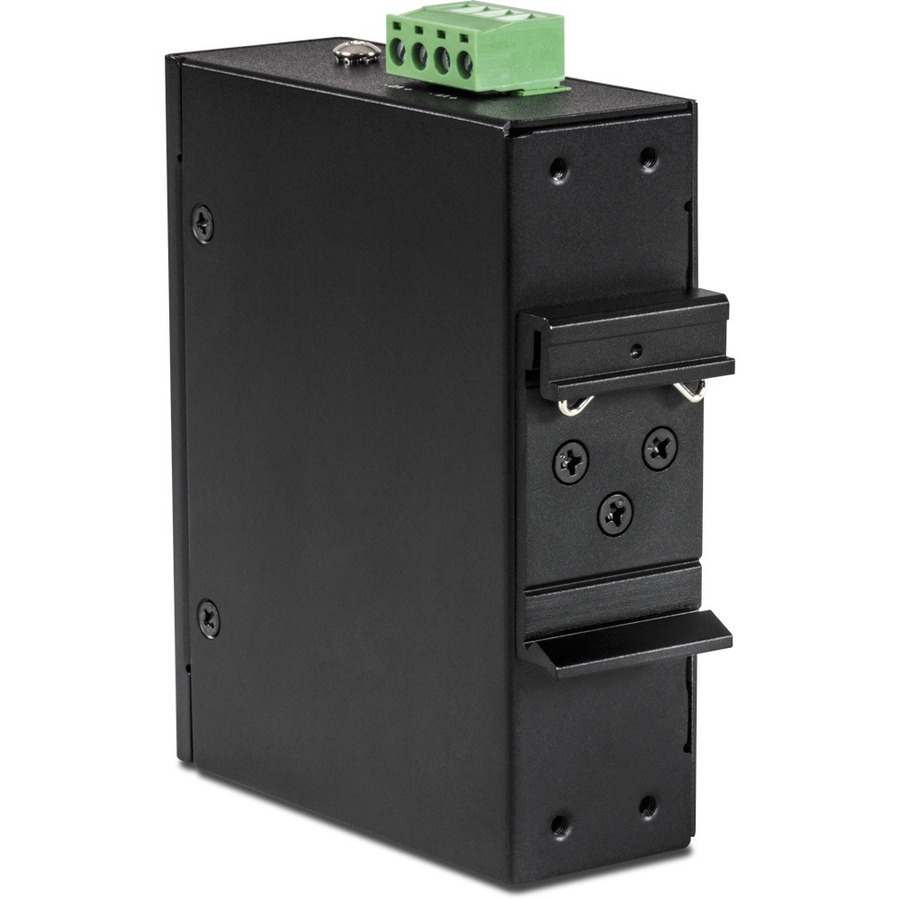

DIN RAIL & WALL MOUNTS: IP50 rated industrial injector includes DIN-Rail mount and wall mount hardware

POWER SUPPLY SOLD SEPARATELY: Use this industrial injector with the compatible power supply model TI-S15052 (Sold

Separately)

FAULT TOLERANCE: The industrial PoE++ injector features 48 - 57V DC power input with overload current protection

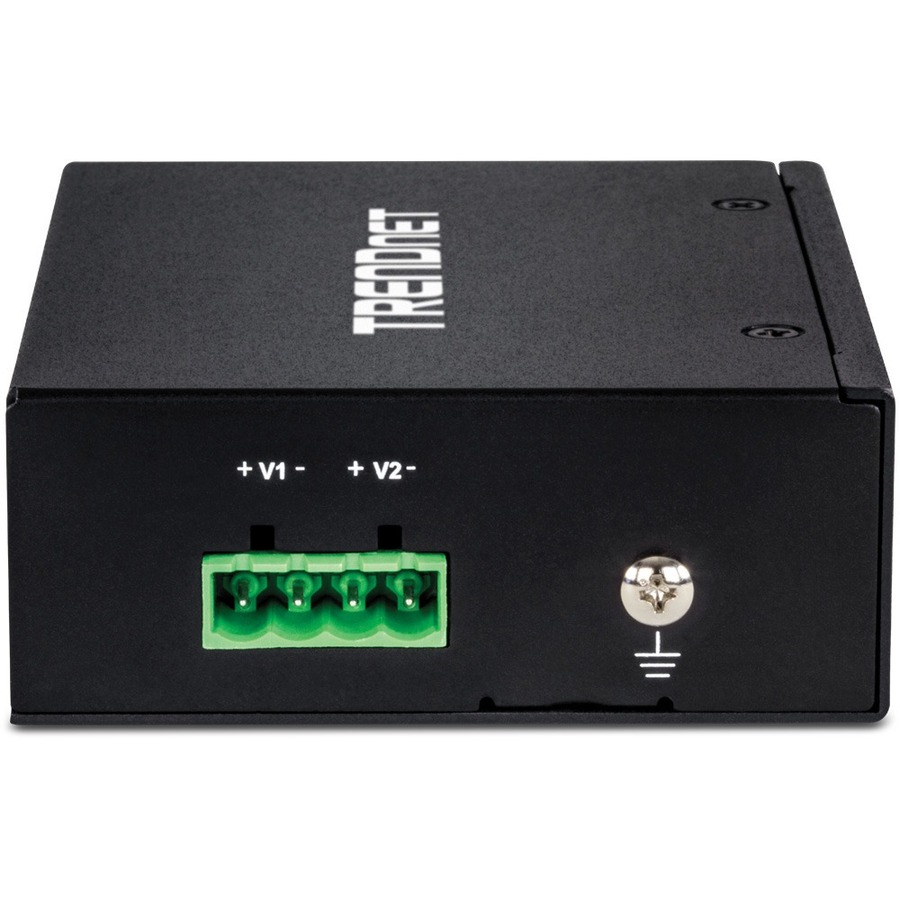

GROUNDING POINT: The injector features a grounding point to protect equipment from external electrical surges

ELECTRO MAGNETIC COMPLIANCE: Complies with industrial EMS certifications ESD (IEC 61000-4-2): Level 3 Contact: 6kV,

Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power: 2kV, Signal: 6kV

More from the Manufacturer

TRENDnet’s TI-IG90 is a reliable IP50 rated Industrial Gigabit PoE++ Injector with hardened components rated for extreme and

rugged industrial environments. Connect the TI-IG90 industrial PoE injector to a non-PoE gigabit switch, and then run an Ethernet

cable up to 100 meters (328 ft.) to network a PoE device. The TI-IG90 industrial PoE injector supplies power to a PoE, PoE+, or PoE++

(up to 95W) device. This industrial PoE injector features dual redundant power inputs with overload current protection to support zero

downtime applications. Both DIN-rail and wall mount hardware are included with the industrial PoE injector.

Industrial 95W Gigabit PoE++ Injector

• Hardened IP50 rated Gigabit PoE++ Injector

• PoE (15.4W), PoE+ (30W), or PoE++ (95W) power

• Network a PoE device located up to 100m (328 ft.) away

• Extreme - 40° — 75° C (-40° — 167° F) operating temperature range

• Redundant power inputs with overload current protection

• 6kV RJ45 Ethernet surge protection

• Includes DIN-rail mount and wall mount

• Power supply sold separately (model: TI-S15052)

• NDAA / TAA compliant (U.S. and Canada only)

PoE++

Supplies power to a PoE (up to 15.4W),

PoE+ (up to 30W), or PoE++ (up to

95W) device.

Fault Tolerance

48 – 57V DC power input with overload

current protection; power supply sold

separately (model: TI-S15052)

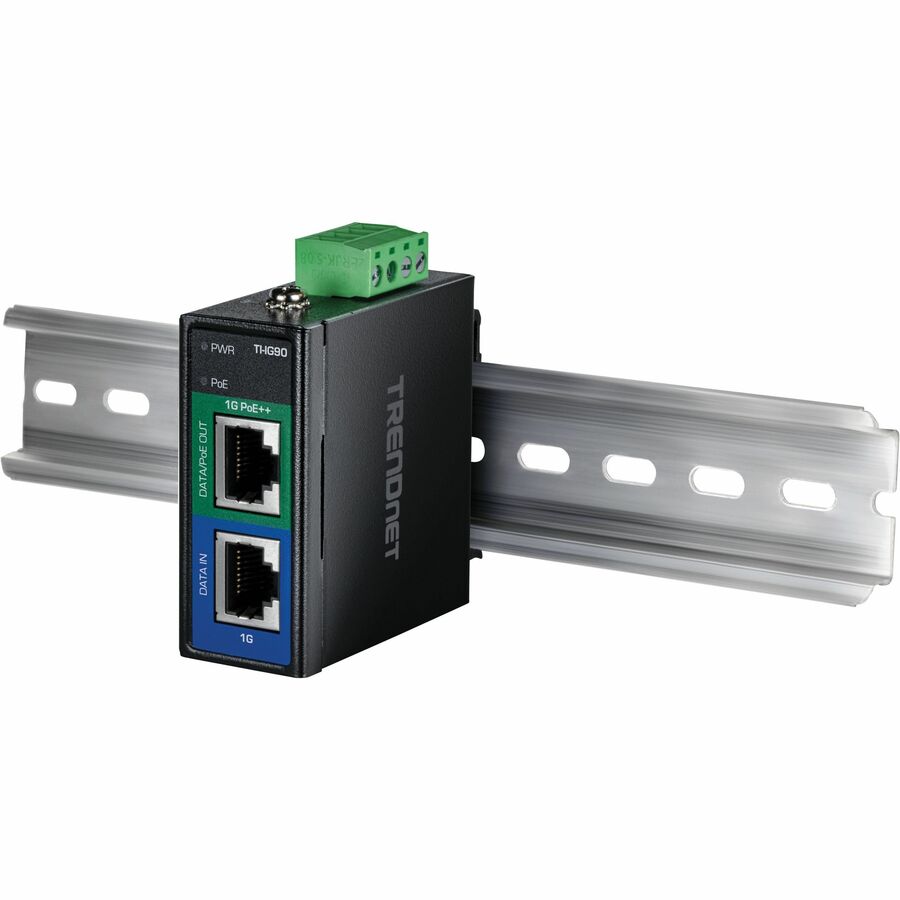

Installation Flexibility

A rugged IP50 rated metal enclosure with

DIN-rail and wall mount brackets

accommodate most installations scenarios.

PoE++

Supplies power to a PoE (up

to 15.4W), PoE+ (up to 30W),

or PoE++ (up to 95W) device

Gigabit Ports

1 x Gigabit port and 1 x

Gigabit PoE++ port

PoE Distance

Provides a PoE network connection

up to 100m (328 ft.) away from the

industrial PoE injector

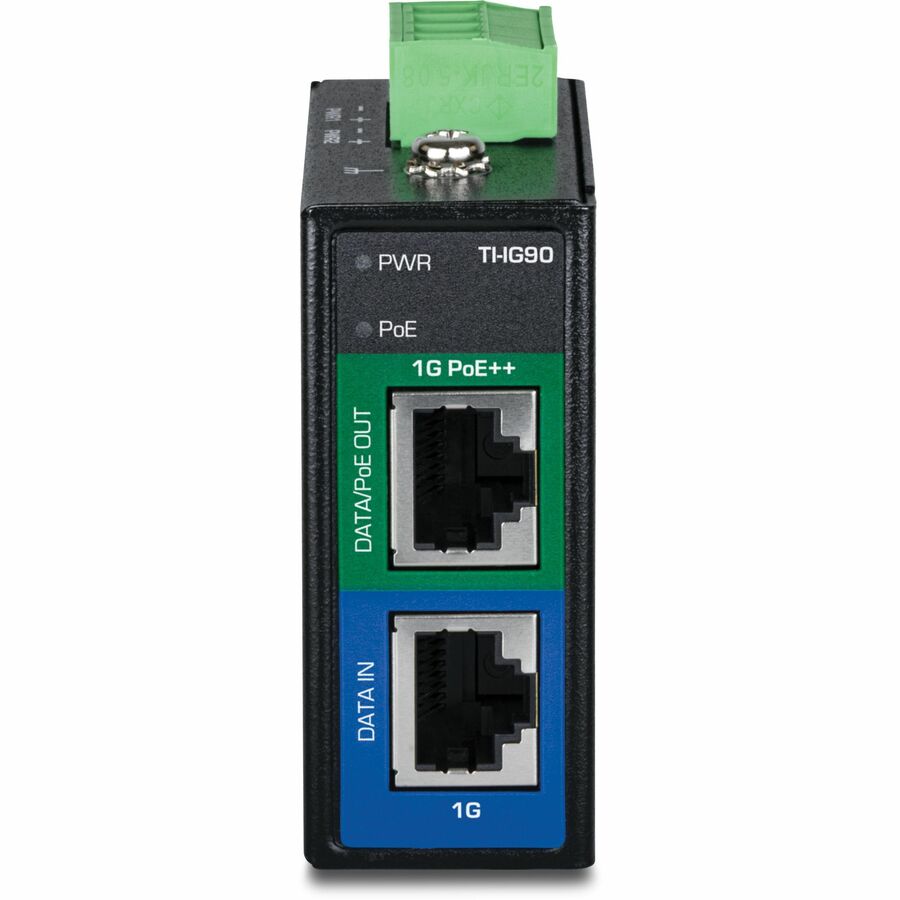

LED Indicators

LED indicators on the industrial

PoE injector conveys power

and PoE connectivity

Fault Tolerance

48 – 57V DC power input with

overload current protection;

power supply sold separately

(model: TIS15052)

Dust Protected

The industrial PoE injector’s IP50

rated metal housing provides

ingress protection from dust

Extreme Temperature Range

Operates within an extreme

operating temperature range of

40° – 75° C (-40° – 167° F)

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27),

freefall (EN 60068-2-31), and

vibration (EN 60068-2-6)

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bt

Device Interface

1 x Gigabit port (10Mbps/100Mbps/1Gbps)

1 x Gigabit PoE++ port (10Mbps/100Mbps/1Gbps)

4-pin power terminal block

LED indicators

Power

Input: 48 – 57V DC

Compatible power supply: TI-S15052 (sold separately)

Max. consumption: 10.6W (without PoE) @ 56V DC

PoE

PoE budget: 95W

Pins 3, 4, 5, 6 +; 1, 2, 7, 8 -

Terminal Block

Redundant power inputs, 4 pin

Wire range: 0.34mm2 to 2.5mm2

Solid wire (AWG): 14-22

Stranded wire (AWG): 14-22

Torque: 4.4 lb. – In

Wire strip length: 7-8mm

MTBF

7,531,265 hours @ 25° C

Housing

IP50 metal case

DIN-Rail mount

Wall mount

Grounding point

6kV ESD protection

6kV RJ45 surge protection

Operating Temperature

- 40° — 75° C (-40° — 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions (L x W x H)

60 x 60 x 25 mm (4.1 x 3.2 x 1.2 in.)

Weight

134g (4.47 oz.)

Certifications

CE

FCC

LVD

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-31)

Vibration (IEC 60068-2-6)

IEC 61000-4-2

IEC 61000-4-4

IEC 61000-4-5

Warranty

3-year

PACKAGE CONTENTS

TI-IG90

Removable terminal block

DIN-rail and wall mount kit
