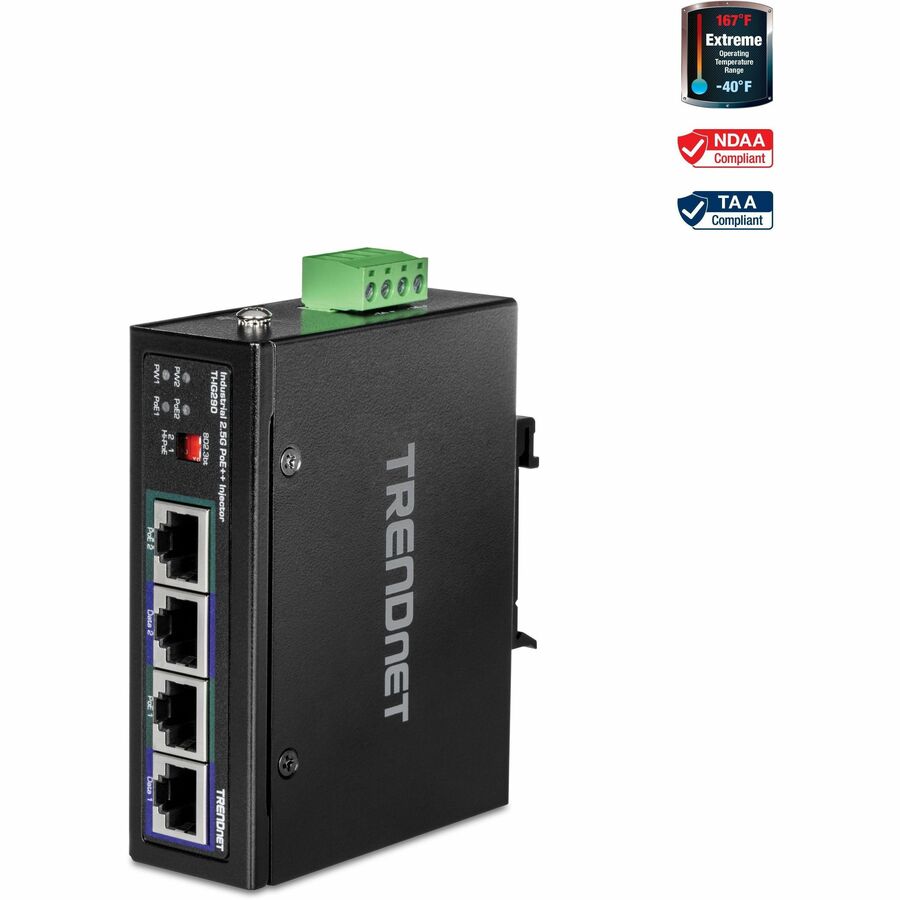

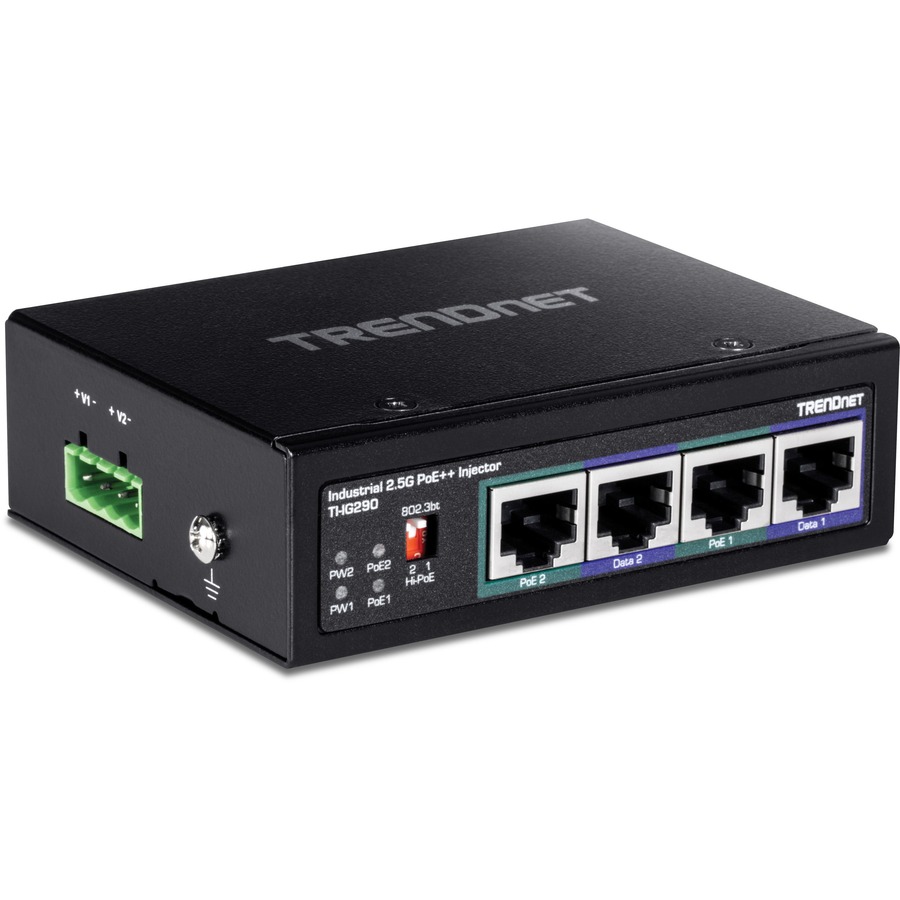

TRENDnet 95W 2-Port Industrial 2.5G PoE++ Injector, Supports PoE IEEE 802.3af, PoE+ IEEE 802.3at, And PoE++ IEEE 802.3bt, Not Compatible With Passive PoE Devices, Black, TI-IG290

TRENDnet's 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 70° C (-40° - 167° F) for harsh industrial environments.

• DEVICE INTERFACE: 2 x 2.5G ports (Data in); 2 x 2.5G PoE++ ports (Data + PoE out)

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant Injector, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-IG290, 90W 2-Port Industrial 2.5G PoE++ Injector is backed and supported with 3 years of TRENDnet Manufacturer Protection.

• 2-PORT POE++: The Industrial 2-port PoE++ injector supplies up to 95W of power to two PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), and PoE++ (IEEE 802.3bt) with a total PoE budget of 180W.

• 2.5G PORTS: The poe injector comes with two 2.5G ports (data in) and two 2.5G PoE++ ports (data + PoE out)

• INDUSTRIAL DESIGN: The 2-Port 2.5G PoE++ Injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40 to 75 °C (-40 to 167 °F) for industrial environments.

• POWER SUPPLY SOLD SEPARATELY: Power supply sold separately (model TI-S24052, TI-S24048)

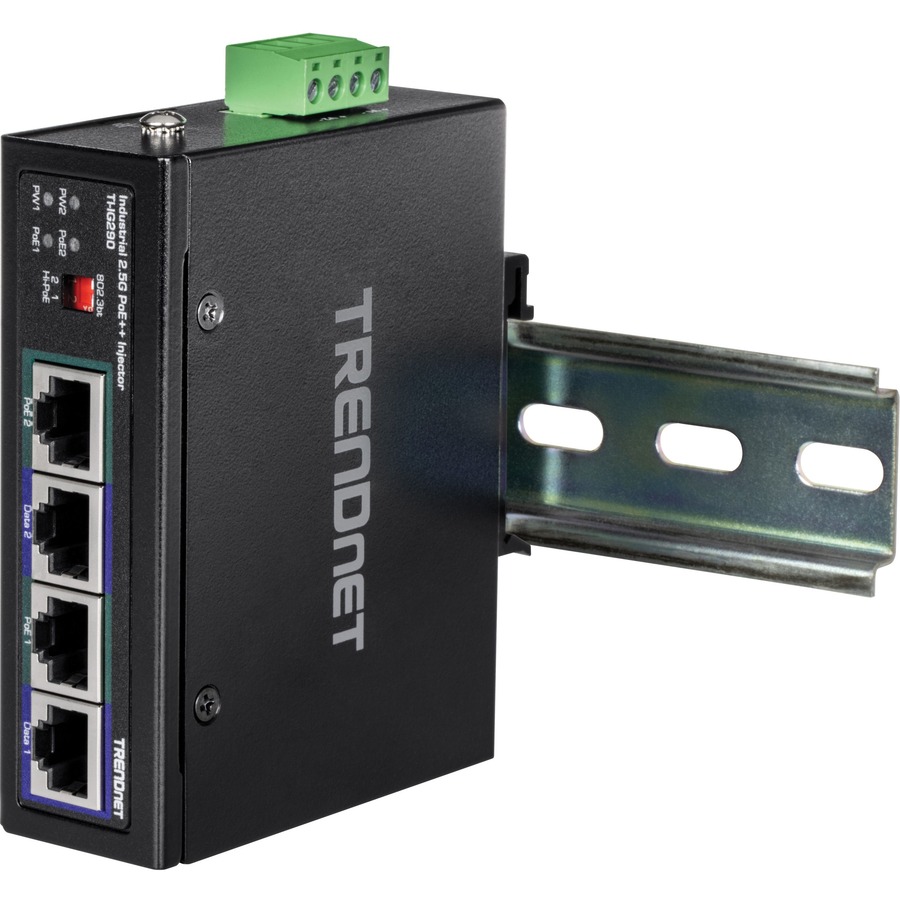

• DIN-RAIL MOUNT AND WALL MOUNT: Includes DIN-Rail mount and wall mount

• FANLESS DESIGN: Fanless design on the 2-port industrial 2.5G PoE++ injector conveniently eliminates operating noise and lowers unnecessary energy consumption

More from the Manufacturer

Sed bibendum ullamcorper efficitur

OVERVIEW

TRENDnet’s 95W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 167° F) for harsh industrial environments.

2-Port PoE

This multi-port 2.5G PoE++ injector supplies up to 95W of power to two PoE devices with a total PoE budget of 180W.

2.5G Ports

Features two high-speed 2.5G ports (data in) and two high-speed 2.5G PoE++ ports (data + PoE out).

Industrial Design

IP30 rated metal enclosure with a high degree of vibration and shock resistance, and a wide operating temperature range of -40° – 70° C (-40° – 158° F).

• DEVICE INTERFACE: 2 x 2.5G ports (Data in); 2 x 2.5G PoE++ ports (Data + PoE out)

• 2-PORT POE++: The Industrial 2-port PoE++ injector supplies up to 95W of power to two PoE (IEEE 802.3af), PoE+ (IEEE

802.3at), and PoE++ (IEEE 802.3bt) with a total PoE budget of 180W.

• 2.5G PORTS: The poe injector comes with two 2.5G ports (data in) and two 2.5G PoE++ ports (data + PoE out)

• INDUSTRIAL DESIGN: The 2-Port 2.5G PoE++ Injector is equipped with an IP30 rated metal enclosure, designed to withstand

a high degree of vibration and shock, while operating within a wide temperature range of -40 to 75 °C (-40 to 167 °F) for

industrial environments.

• POE DISTANCE: The PoE++ injector provides two PoE network connections up to 100m (328 ft.) away from the 2-port

industrial PoE injector

• SHOCK & VIBRATION RESISTANT DESIGN: Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN

60068-2-6)

• DIN-RAIL & WALL MOUNT KIT: This 2.5G injector includes a DIN-Rail mount and wall mount hardware

• FANLESS DESIGN: The fanless design on the 2-port PoE++ injector conveniently eliminates operating noise and lowers

energy consumption.

• GROUNDING POINT: Grounding point on the industrial PoE++ injector protects equipment from external electrical surges

• Power supply sold separately (model TI-S24052, TI-S24048)

• NDAA / TAA compliant

2-Port PoE++

The 2-port industrial 802.3 bt PoE++ injector supplies up to 95W of power to two PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) devices

Industrial Design

Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments

2.5G Ports

2 x 2.5G ports (data in) and 2 x 2.5G PoE++ ports (data + PoE out)

PoE Distance

Provides two PoE network connections up to 100m (328 ft.) away from the 2-port industrial 802.3bt PoE++ adapter

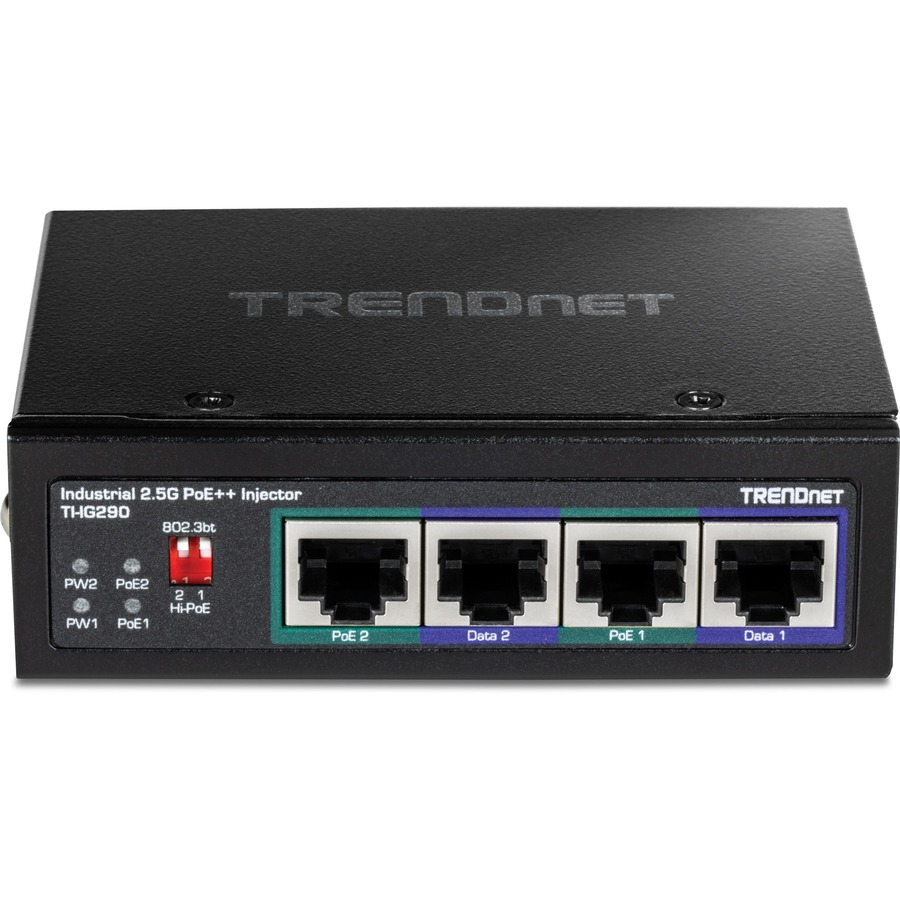

LED Indicators

LEDs indicate PoE connectivity and power status

Shock and Vibration Resistant

Rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

Fanless Design

Fanless design on the 2-port industrial 2.5G PoE++ injector conveniently eliminates operating noise and lowers unnecessary energy consumption

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3af

IEEE 802.3at

IEEE 802.3bt

IEEE 802.3bz

Device Interface

2 x 2.5GBASE-T ports

2 x 2.5GBASE-T PoE++ ports

4-pin removable terminal block

LED indicators

Wall mount

Grounding point

Data Transfer Rate

Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

Gigabit: 2000Mbps (full duplex)

2.5 Gigabit: 5000Mbps (full duplex)

Special Features

90W 4-Pair PoE ports

2.5Gbps speed

Hardened components rated for extreme temperatures

Dual redundant power inputs

Auto-Negotiation

Power

Input: 52 – 56 V DC

Compatible power supply: TI-S24052, TI-S24048 (sold separately)

Max. consumption 186W (full PoE load)

Max. consumption 1W (no PoE load)

PoE

PoE budget: 180W

Pin 3,6 for power+ and pin 1,2 for power-

Pin 4,5 for power+ and pin 7,8 for power-

Terminal Block

Redundant power inputs, 4 pin

Wire range: 0.34mm^2 to 2.5mm^2

Solid wire (AWG): 12-24/14-22

Stranded wire (AWG): 12-24/14-22

Torque: 5 lb. – In / 0.5Nm / 0.56 Nm

Wire strip length: 7-8mm

MTBF

716,685 hours

Housing

IP30 metal case

DIN-rail mount

Wall mount

Grounding point

Contact 6KV/Air 8 KV ESD protection

2 KV surge protection

Operating Temperature

- 40° — 75° C (-40° — 167° F)

Operating Humidity

Max. 95% non-condensing

Dimensions (L x W x H)

103 x 81 x 30mm (4 x 3.2 x 1.2 in.)

Weight

170g (6 oz.)

Certifications

CE

FCC

IEC EN60950-1

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

Warranty

3 year

PACKAGE CONTENTS

TI-IG290

Quick Installation Guide

Removable terminal block

DIN-rail and wall mount kit
