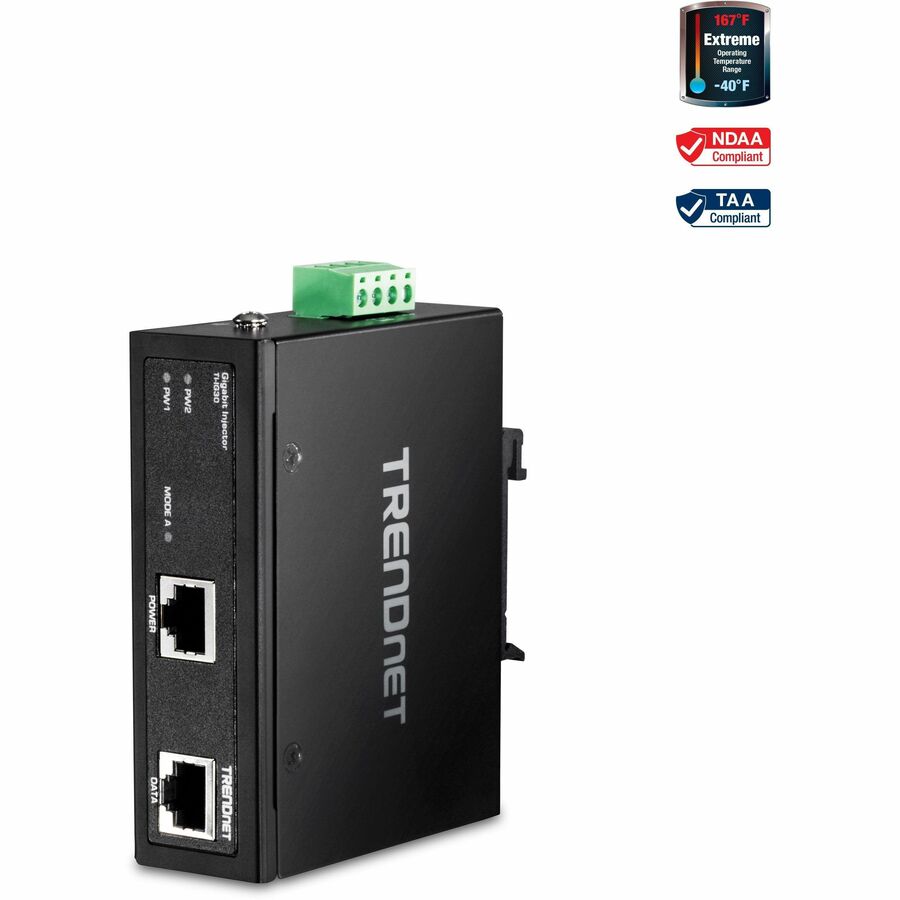

TRENDnet Hardened Industrial Gigabit PoE+ Injector, DIN-Rail, Wall Mount, IP30 Rated Housing, DIN-rail & Wall Mounts Included, TI-IG30

TRENDnet's TI-IG30 is a reliable IP30 rated Industrial Gigabit PoE+ Injector with hardened components rated for extreme industrial environments. Connect the TI-IG30 to a non-PoE Gigabit switch and then run an Ethernet cable up to 100 meters (328 ft.) to network a PoE, PoE+, or high power PoE+ device. Dual redundant power inputs (power supply sold separately: TI-S15052, TI-S12048) with overload current protection support zero downtime applications. Both DIN-rail and wall mount hardware is included.

• GIGABIT PORTS: 1 x Gigabit Ethernet port and 1 x PoE+ Gigabit Ethernet port

• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant WiFi Injector, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)

• MANUFACTURER PROTECTION: We stand by the quality of our products.The TI-IG30, Hardened Industrial Gigabit PoE+ Injector is backed and supported with 3 years of TRENDnet Manufacturer Protection.

• REDUNDANT POWER: Dual redundant power inputs with overload current protection (power supply sold separately: model (TI-S15052, TI-S12048)

• DIN-RAIL/WALL MOUNTS: IP30 rated metal enclosure with included DIN-rail and wall mount hardware

• EXTREME TEMPERATURES: Hardened converter is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

• SHOCK AND VIBRATION RESISTANT:Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

• ELECTRO MAGNETIC COMPLIANCE: Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

• EXTENSION DISTANCE: Extends a PoE network connection up to 100 meters (328 ft.)

More from the Manufacturer

TRENDnet's TI-IG30 is a reliable IP30 rated Gigabit PoE + industrial injector with hardened components rated for extreme industrial environments. Connect the TI-IG30 to a non-PoE Gigabit switch, then run an Ethernet cable up to 328.1 ft (328 ft) to connect a high-power PoE, PoE +, or PoE + device. Dual redundant power inputs (power supply sold separately: TI-S12048) with overload current protection supports zero downtime applications. Both DIN rail bracket and wall mount are included.

Plug and Play

Plug and play PoE network devices

PoE/PoE+

Supplies power to a PoE (up to 15 W) and PoE + (up to 30 W) device

Gigabit Ports

1 x Gigabit Ethernet port and 1 x PoE+ Gigabit Ethernet port

Extension Distance

Extends a PoE network connection up to 100 meters (328 ft.)

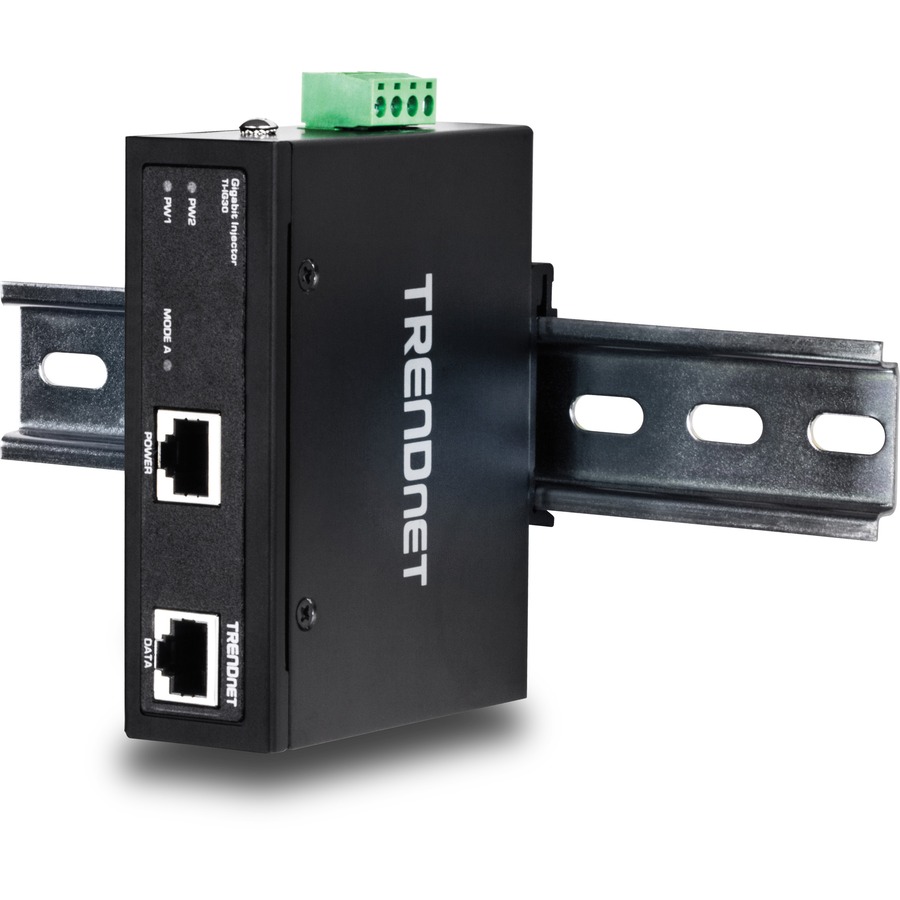

DIN-Rail/Wall Mounts

IP30 rated metal enclosure with included DIN-rail and wall mount hardware

Redundant Power

Dual redundant power inputs with overload current protection (power supply sold separately: model TI-M6024)

Extreme Temperatures

Hardened converter is rated for an operating temperature range of -40 to 75 ºC (-40 to 167 ºF)

Electro Magnetic Compliance

Complies with FCC Part 15 Subpart B Class A and CE EN 55022 Class A standards

Certifications

Rated for information technology (ITE) equipment (EN55022/24) and industrial, scientific, and medical (ISM) Equipment (EN55011)

Shock and Vibration Resistant

Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32), and vibration (IEC 60068-2-6)

Grounding Point

Grounding point protects equipment from external electrical surges

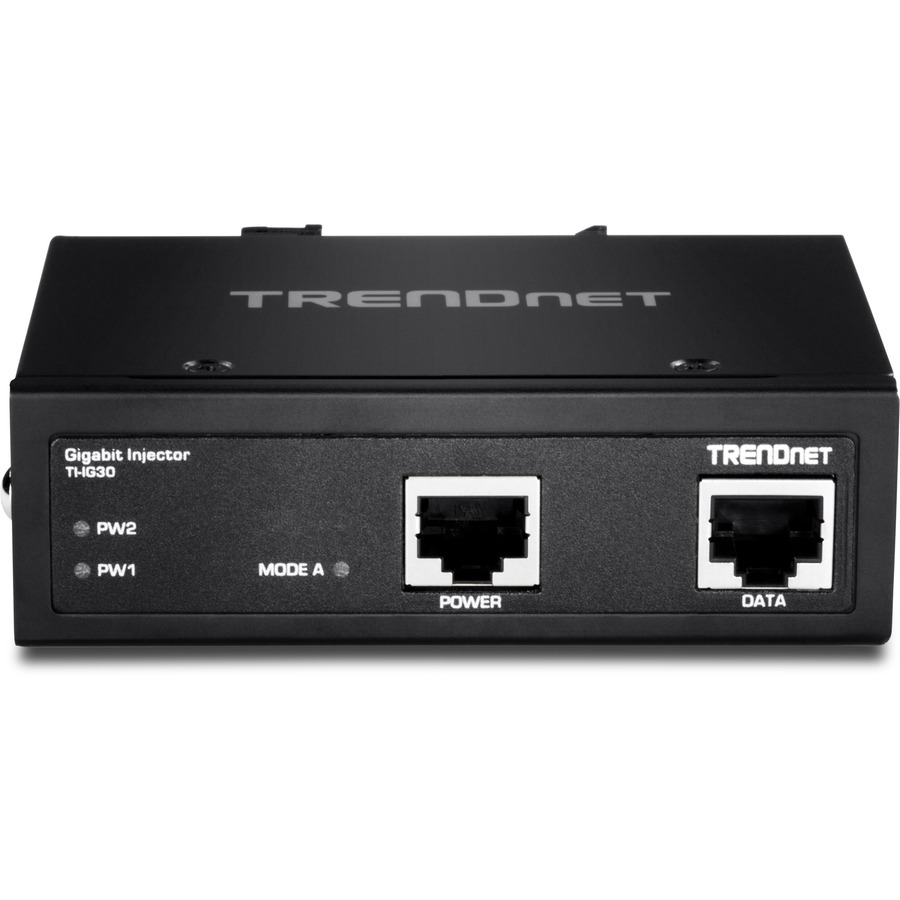

LED indicators

LED indicators confirm PoE and network connectivity

SPECIFICATIONS

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3ab

IEEE 802.3af

IEEE 802.3at

Device Interface

1 x Gigabit port

1 x PoE+ Gigabit port

4-pin removable terminal block

LED indicators

DIN-Rail mount

Wall mount

Grounding point

Data Transfer Rate

Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)

Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Gigabit: 2000 Mbps (full duplex)

Special Features

Hardened components rated for extreme temperatures

Dual redundant power inputs

Auto-Negotiation

ESD 8 KV and Surge 6 KV protection

Power

Input: 48 – 56 V DC

Compatible power supply: TI-S15052, TI-S12048 (sold separately)

Consumption: Max. 36 Watts

PoE

PoE budget: 30 Watts

Pin 1,2 for power+ and pin 3,6 for power- (mode A)

Terminal Block

Redundant power inputs, 4 pin

Wire range: 0.34 mm^2 to 2.5 mm^2

Solid wire (AWG): 12-24/14-22

Stranded wire (AWG): 12-24/14-22

Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm

Wire strip length: 7 – 8 mm

MTBF

510,304 hours

Housing

IP30 metal case

DIN-rail mount

Wall mount

Grounding point

8 KV ESD protection

6 KV surge protection

Operating Temperature

- 40 to 75 °C (-40 to 167 °F)

Operating Humidity

Max. 95 % non-condensing

Dimensions

104 x 82 x 32 mm. (4.1 x 3.2 x 1.2 in.)

Weight

134 g (4.7 oz.)

Certifications

CE

FCC

Shock (IEC 60068-2-27)

Freefall (IEC 60068-2-32)

Vibration (IEC 60068-2-6)

Warranty

3 year

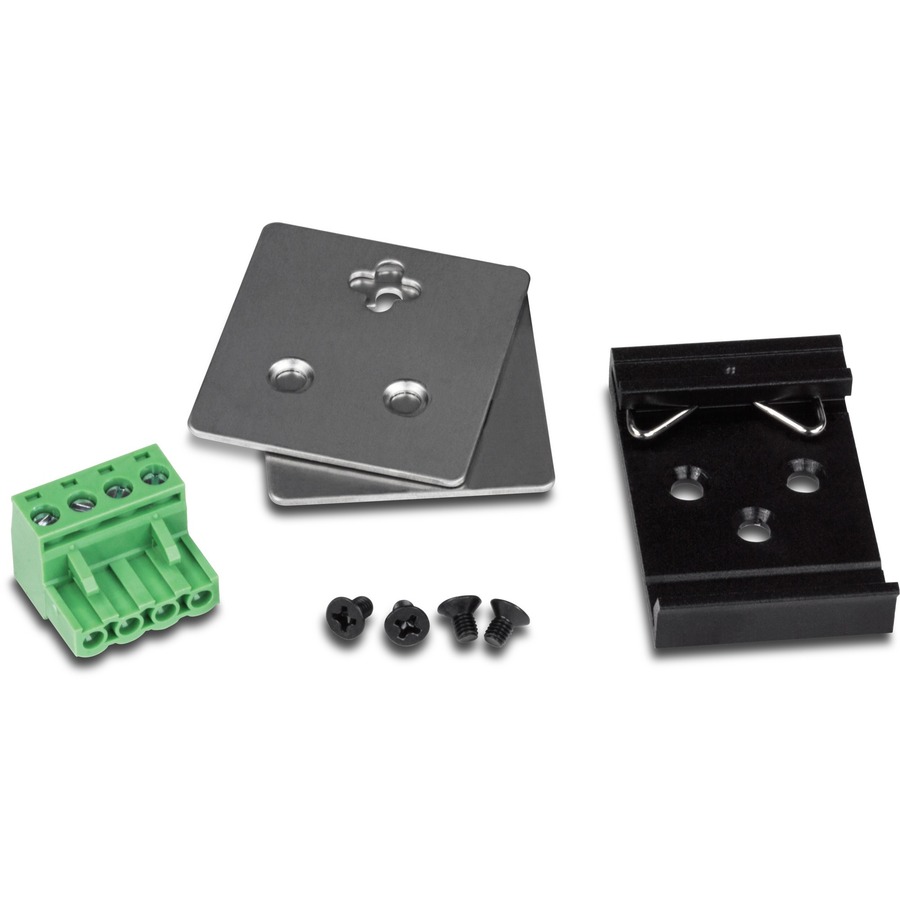

PACKAGE CONTENTS

TI-IG30

Quick Installation Guide

Removable terminal block

DIN-rail and wall mount kit

All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.

Hardened Industrial Gigabit PoE+ Injector

Hardened IP30 rated Gigabit PoE+ Injector

High power PoE+

Network a PoE device located up to 100 meters (328 ft.) away

Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range

Dual redundant power inputs with overload current protection

Includes DIN-rail and wall mounts

Power supply sold separately (model TI-S15052, TI-S12048)

NDAA / TAA compliant
