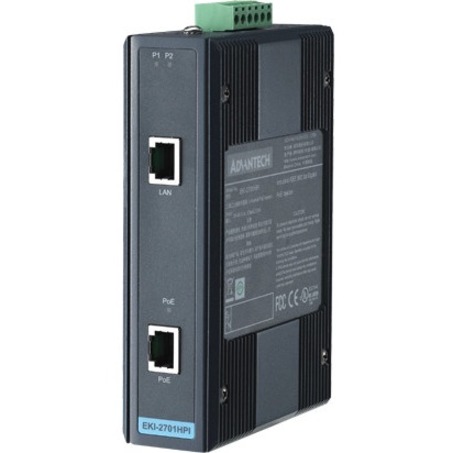

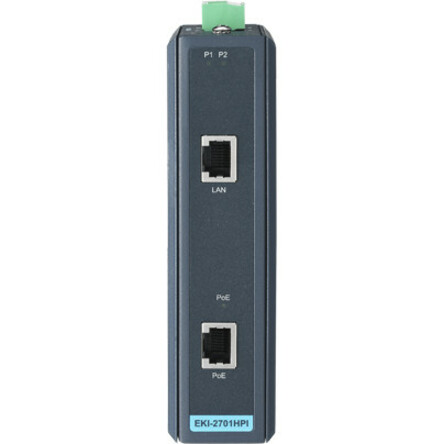

Advantech EKI-2701HPI PoE Injector
Advantech

Advantech EKI-2701HPI PoE Injector

24 V DC, 48 V DC Input - 55 V DC Output - 1 x 10/100/1000TX Input Port(s) - 1 x 10/100/1000TX Output Port(s) - 30 W

SKU
EKI-2701HPI-AE
Category
Power Injectors/Splitters

MSRP$202.00

$163.84

Save 19%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EKI-2701HPI-AE
Category
Power Injectors/Splitters

Overview

With the technology of PoE (Power over Ethernet), we can transfer both data and electrical power to Ethernet-enabled devices using a standard CAT5 cable. EKI-2701HPI is compliant IEEE 802.3af/at and inject 30W for PD device. This product can operate in a wide range of Temp. between -40 to 75°C and support wide power input range between 24 to 48 VDC.

Highlights

  • Supports 10/100/1000Base-T (X) for PoE+ OUT and Data IN
  • IEEE 802.3af/at compliant, supports a full 30 watt output
  • Power input (24 ~ 48 VDC), inject 30 W for each port
  • Provides slim size and DIN-rail/Wall mount with IP30 metal mechanism
  • Supports operating temperatures from -40 to 75°C

Specifications

Product TypePoE Injector
Input Voltage24 V DC, 48 V DC
Manufacturer Part NumberEKI-2701HPI-AE
Limited Warranty5 Year
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3af/at
  • IEEE 802.3ab
Form FactorDIN Rail/Wall Mountable
ManufacturerAdvantech Co., Ltd
Product ModelEKI-2701HPI
Product NameEKI-2701HPI PoE Injector
Protection TypeOver Current, Power Reverse
Brand NameAdvantech
Input Ports1 x 10/100/1000TX
Output Ports1 x 10/100/1000TX
Country of OriginChina
Height4.7"
Width1.1"
Depth3.3"
Environmentally FriendlyYes
Maximum Output Power30 W
Maximum Output Voltage55 V DC
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
