24 V DC, 57 V DC Input - 1 x Gigabit Ethernet Input Port(s) - 1 x Gigabit PoE++ Output Port(s) - 95 W
$188.35
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

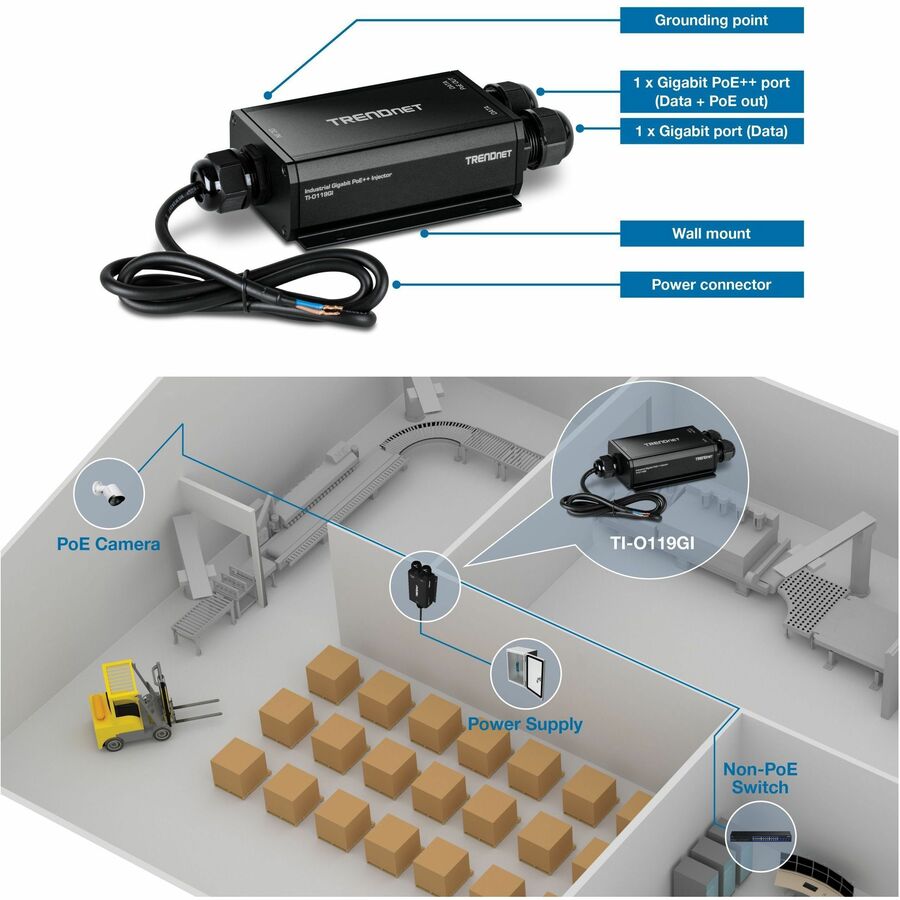

TRENDnet's Outdoor IP67 Gigabit PoE++ Injector, model TI-O119GI, is an 802.3bt PoE++ injector that combines electrical power with a gigabit network connection to produce a high-powered 95W PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+, and PoE++ device. Connect the outdoor PoE++ injector to a nonPoE switch, and then run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away. The outdoor PoE++ injector is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° - 75° C (-40° - 167° F) for outdoor environments.
PoE++
This outdoor PoE++ injector supplies up to 95W of power to one PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) device.
Gigabit Ports
Features one high-speed gigabit data in port and one high-speed gigabit PoE++ data out port.
Industrial Design
IP67 rated metal enclosure with a high degree of vibration and shock resistance, and a wide operating temperature range of - 40° - 75° C (-40° - 167° F).
FEATURES | PoE++
This industrial 802.3bt outdoor PoE++ injector supplies up to 95W of power to one PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) device.
Extreme Operating Temperature
Operating temperature range of - 40° - 75° C (-40° - 167° F) allows for installations in environments with extreme hot or cold conditions
Ethernet Surge Protection
Supports RJ-45 surge protection up to 6kV
Grounding Point
Grounding point on the outdoor PoE++ injector protects equipment from external electrical surges
Waterproof Design
This waterproof PoE++ injector features a durable enclosure with an IP67 outdoor weather rating
Gigabit Ports
Features one high-speed gigabit data in port and one high-speed gigabit PoE++ data out port
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27), freefall (EN 60068-2-31), and vibration (EN 60068-2-6)
Industrial Design
Designed to withstand a high degree of vibration and shock
PoE Distance
The outdoor-rated PoE++ injector provides PoE network connections up to 100m (328 ft.) away
Electro Magnetic Compliance
The outdoor PoE++ injector complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power to ground: 2kV, Signal: 6kV
More from the Manufacturer
OVERVIEW
TRENDnet’s Outdoor IP67 Gigabit PoE++ Injector, model TI-O119GI, is an 802.3bt PoE++ injector that combines electrical power with a gigabit network connection to produce a high-powered 95W PoE++ network signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE, PoE+, and PoE++ device. Connect the outdoor PoE++ injector to a non-PoE switch and then run an Ethernet cable with data + power to network a PoE device up to 100 meters (328 ft.) away. The outdoor PoE++ injector is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within an extreme temperature range of -40° – 75° C (-40° – 167° F) for outdoor environments.
FEATURES
PoE++
This outdoor PoE++ injector supplies up to 95W of power to one PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) device.
Gigabit Ports
Features one high-speed gigabit data in port and one high-speed gigabit PoE++ data out port.
Industrial Design
IP67 rated metal enclosure with a high degree of vibration and shock resistance, and a wide operating temperature range of - 40° – 75° C (-40° – 167° F).
PoE++
This industrial 802.3bt outdoor
PoE++ injector supplies up to
95W of power to one PoE (IEEE
802.3af), PoE+ (IEEE 802.3at), or
PoE++ (IEEE 802.3bt) device
Waterproof Design
This waterproof PoE++ injector
features a durable enclosure
with an IP67 outdoor weather
rating
Industrial Design
Designed to withstand a high
degree of vibration and
shock
Extreme OperatingTemperature
Operating temperature range of -
40° – 75° C (-40° – 167° F) allows
for installations in environments
with extreme hot or cold conditions
Gigabit Ports
Features one high-speed
gigabit data in port and one
high-speed gigabit PoE++ data
out port
PoE Distance
The outdoor-rated PoE++ injector
provides PoE network
connections up to 100m (328 ft.)
away
Ethernet Surge Protection
Supports RJ-45 surge protection
up to 6kV
Shock and Vibration Resistant
Rated for shock (EN 60068-2-27),
freefall (EN 60068-2-31), and
vibration (EN 60068-2-6)
Electro Magnetic Compliance
The outdoor PoE++ injector
complies with industrial EMS
certifications ESD (IEC 61000-4-2):
Contact: 6kV, Air: 8kV; EFT (IEC
61000-4-4): Power 2kV, Signal:
1kV; Surge (IEC 61000-4-5):
Power to ground: 2kV, Signal: 6kV
Grounding Point
Grounding point on the outdoor
PoE++ injector protects
equipment from external electrical
surges
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt
Device Interface
1 x Gigabit PoE++ port (Data + PoE out)
1 x Gigabit port (Data)
1 x Power connector
Wall mount
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Special Features
Auto shut down if the current is over 700mA or in event of short circuit on either Ethernet ports
Power
Input: 24 – 57V DC
Max. consumption: 3.84W (without PD)
Power cable: 91.5cm / 3ft.
PoE
Up to 95W @ 52 – 57V DC
Up to 30W @ 24 – 48V DC
PoE Mode A: Pins 1, 2, 3, and 6 for power
MTBF
250,880 hours @ 25° C
Housing
IP67 rated metal case
Wall mount
Grounding point
6kV ESD protection
8kV Air ESD protection
6kV RJ-45 surge protection
Line to Ground 2kV surge protection
Operating Temperature
- 40° — 75° C (-40° — 167° F)
Operating Humidity
Max. 95% non-condensing
Dimensions (L x W x H)
190 x 76 x 42mm (7.5 x 3 x 1.65 in.)
Weight
576g (20.3 oz.)
Certifications
CE
FCC
LVD
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-31)
Vibration (IEC 60068-2-6)
Warranty
3-year

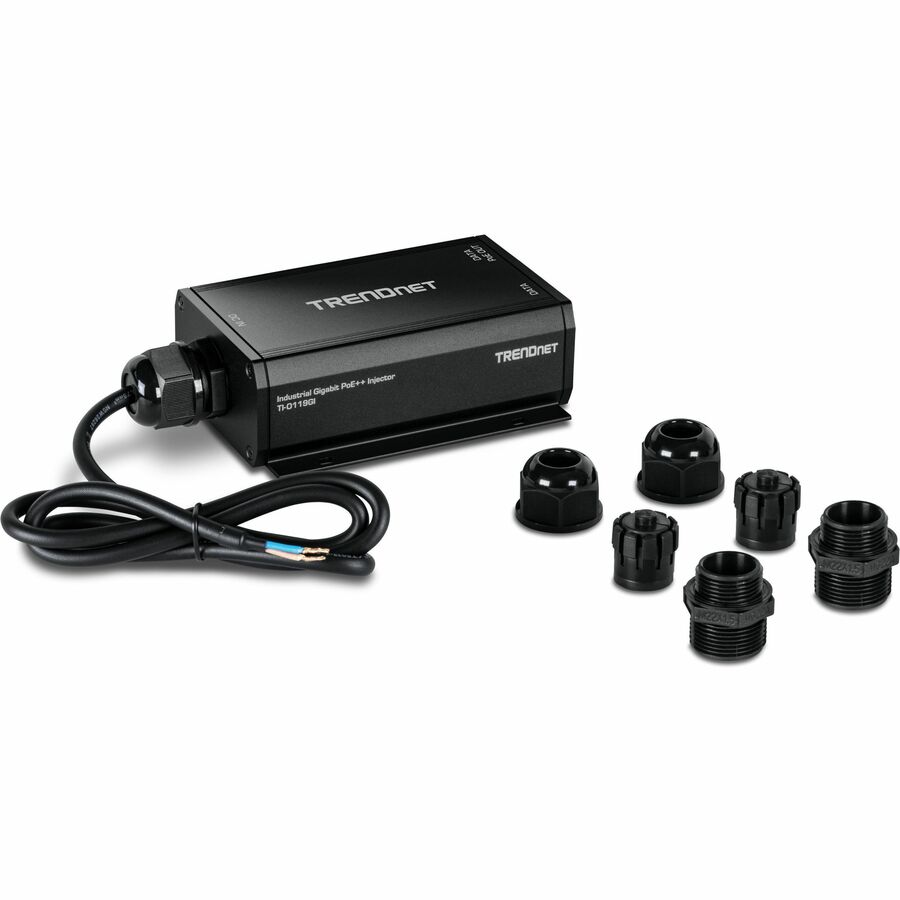

PACKAGE CONTENTS
TI-O119GI
Mounting kit
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Outdoor IP67 Gigabit PoE++ Injector (24 – 57V)
DEVICE INTERFACE: 1 x Gigabit PoE++ Port (Data + PoE Out); 1 x Gigabit Port (Data);1 x Two-wire Power Connector; Wall Mount
NDAA + TAA COMPLIANT: With NDAA and TAA compliant network products, you can plan and install the networking solutions that government customers demand today. (U.S. and Canada only)
RELIABLE TECH SUPPORT: Our team of advisors, support and tech experts are English speaking, and available for all your needs during normal business hours. We take pride in being there for our customers.
POE++: This outdoor PoE++ injector supplies up to 95W of power to one PoE (IEEE 802.3af), PoE+ (IEEE 802.3at), or PoE++ (IEEE 802.3bt) device.
GIGABIT PORTS: Features one high-speed gigabit data in port and one high-speed gigabit PoE++ data out port.
EXTREME TEMPERATURE DESIGN: IP67 rated metal enclosure of this PoE++ injector comes with a high degree of vibration and shock resistance, and a wide operating temperature range of -40° – 75° C (-40° – 167° F).
POWER SUPPLY SOLD SEPARATELY: Supports 24 – 57V DC power input (power supply sold separately, model: TI-S15052)
SURGE PROTECTION: Supports RJ-45 surge protection up to 6kV
ELECTRO MAGNETIC COMPLIANCE: The outdoor PoE++ injector complies with industrial EMS certifications ESD (IEC 61000-4-2): Contact: 6kV, Air: 8kV; EFT (IEC 61000-4-4): Power 2kV, Signal: 1kV; Surge (IEC 61000-4-5): Power to ground: 2kV, Signal: 6kV
AUTO SHUT DOWN: The PoE++ injector will automatically shut down if the current is over 700mA or in event of short circuit on either Ethernet ports
Limited Warranty: 3 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-O119GI |
| Brand Name | TRENDnet |
| Product Model | TI-O119GI |
| Product Name | Outdoor IP67 Gigabit PoE++ Injector (24 - 57V) |
| Packaged Quantity | 1 / Case |
| Product Type | PoE++ Injector |
| Interfaces/Ports | |
| Input Ports | 1 x Gigabit Ethernet |
| Output Ports | 1 x Gigabit PoE++ |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 1.7" |
| Width | 3" |
| Length | 7.5" |
| Weight (Approximate) | 1.27 lb |
| Power Description | |
| Input Voltage | 24 V DC, 57 V DC |
| Maximum Output Power | 95 W |
| Technical Information | |
| Protection Type | ESD Protection, Surge Protection |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Country of Origin | Taiwan |
