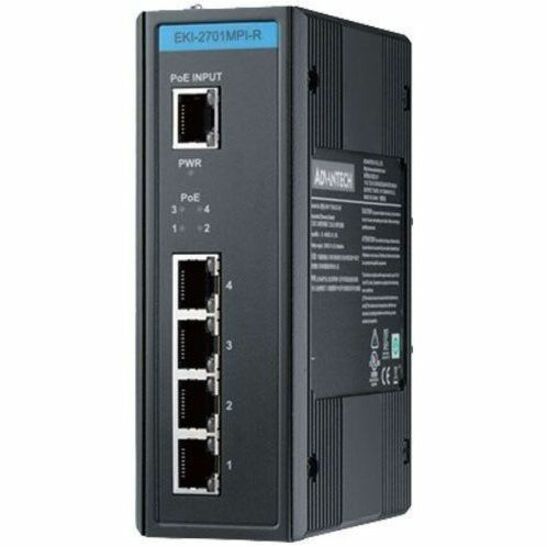

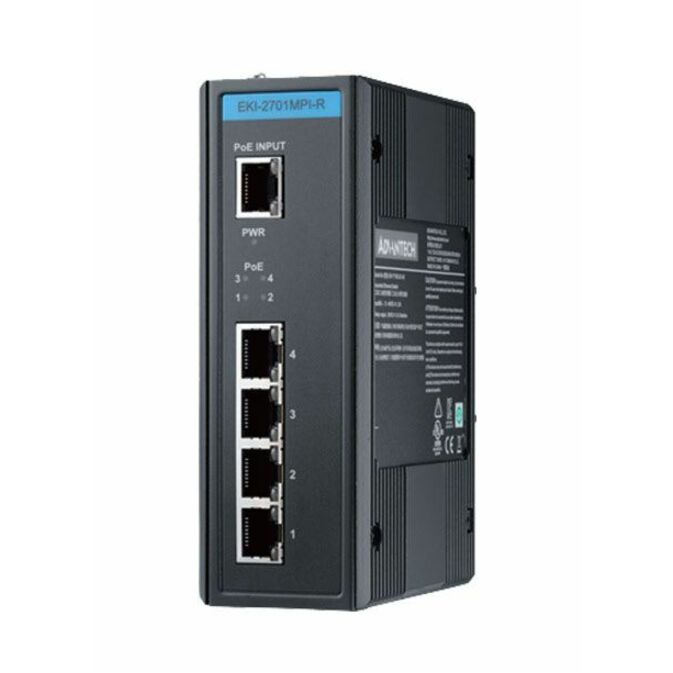

Advantech EKI-2701MPI-R 60W PoE Extender
Advantech

Advantech EKI-2701MPI-R 60W PoE Extender

50 V DC, 57 V DC Input - 1 x RJ-45 Input Port(s) - 4 x RJ-45 Output Port(s) - 60 W

SKU
EKI-2701MPI-R-AE
Category
Power Injectors/Splitters

MSRP$485.00

$451.61

Save 7%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EKI-2701MPI-R-AE
Category
Power Injectors/Splitters

Overview

The EKI-2701MPI-R with high power PoE extender is designed to extend the connection easily without redeploying cables and power up to 30 watts with each PD device. It enables connections of Ethernet equipment to extend the distance of network communications. The EKI-2701MPI-R expands power and data, allowing PD device to be powered via an external PoE extender as if it had a local power supply.

Highlights

  • Supports 10/100/1000Base-T (X) for HDBaseT PoE and Data in/out
  • IEEE 802.3af/at compliant
  • Power input 50 to 57 VDC, power up to 60W
  • DIN-rail with IP40 metal mechanism
  • Supports operating temperatures from -40 to 75°C

Specifications

Product TypePoE Extender
Input Voltage50 V DC, 57 V DC
Manufacturer Part NumberEKI-2701MPI-R-AE
Packaged Quantity1 Pack
Weight (Approximate)7.05 oz
Certifications & Standards
  • IP40
  • IEEE 802.3af
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3at
  • IEEE 802.3ab
  • CE
  • FCC
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-5
  • EN 61000-4-6
  • EN 61000-4-8
  • IEC 60068-2-27
  • IEC 60068-2-32
  • IEC 60068-2-6
Form FactorDin Rail
ManufacturerAdvantech Co., Ltd
Product ModelEKI-2701MPI-R
Product NameEKI-2701MPI-R 60W PoE Extender
Protection TypePower Reverse
Product SeriesEKI
Brand NameAdvantech
Input Ports1 x RJ-45
Output Ports4 x RJ-45
Height5.5"
Width1.9"
Depth3.7"
Maximum Output Power60 W
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
