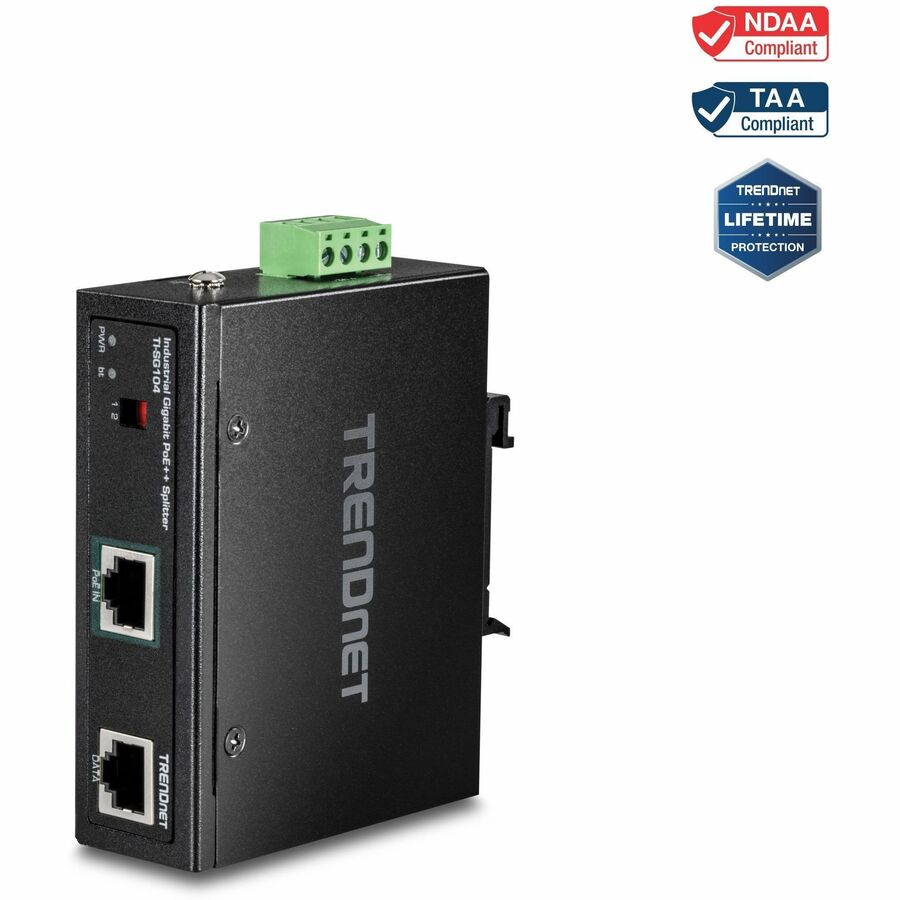

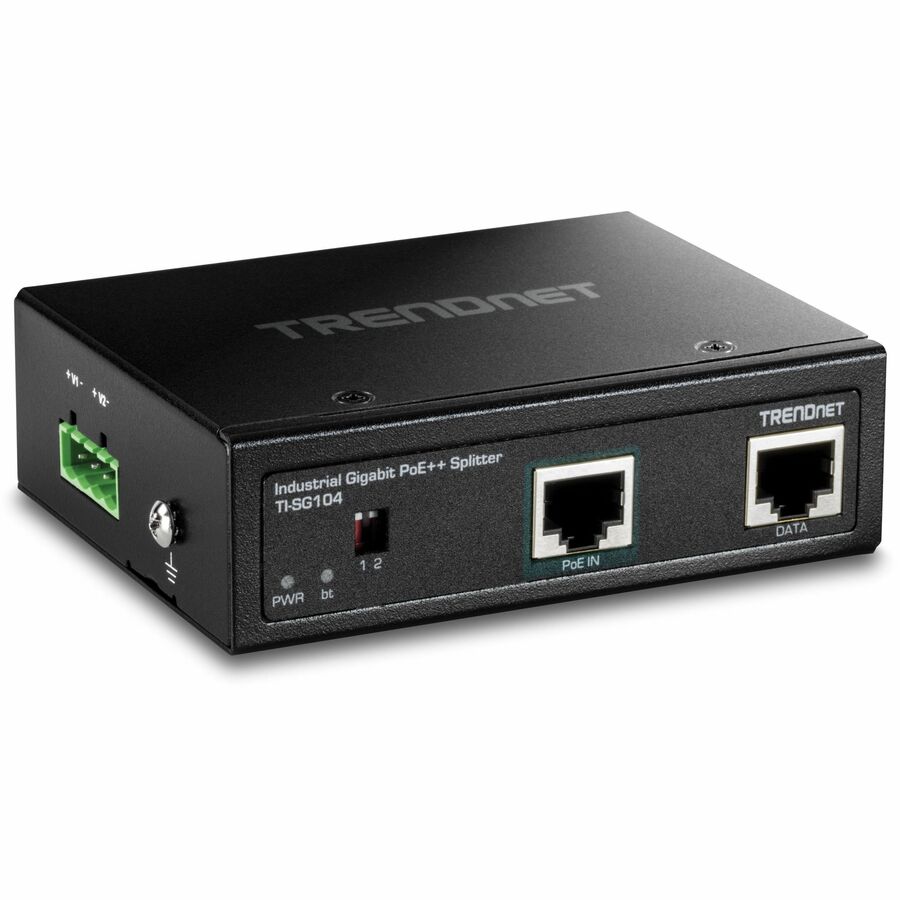

Industrial Gigabit PoE++ Splitter
$87.91
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

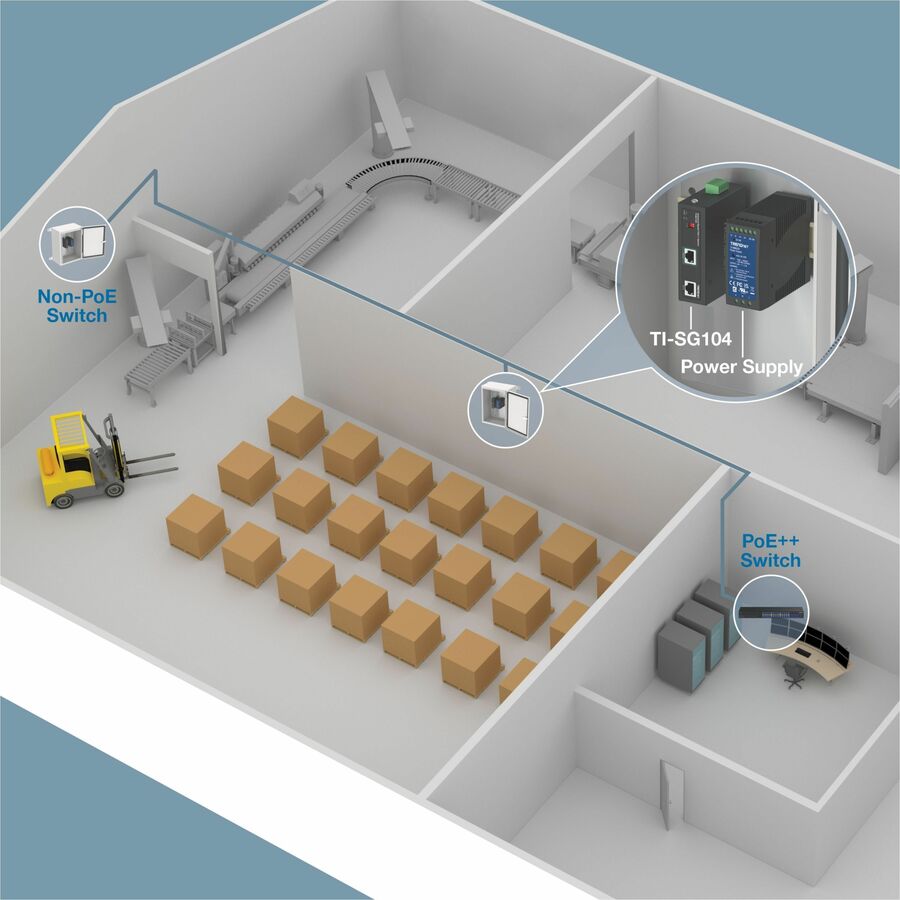

TRENDnet's Industrial Gigabit PoE++ Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit PoE++ connection and splitting it into separate power and gigabit data sources. The industrial gigabit PoE++ splitter can power to up to two devices from a single PoE source. A convenient DIP switch on the PoE++ splitter adjusts output power to 12V, 16V, 24V, or 48V to match varying power requirements for non-PoE devices. The PoE++ splitter's dual DC power output provides greater device compatibility.
DEVICE INTERFACE: 1 x Gigabit Port; 1 x Gigabit PoE++ Port; 4-pin Removable Terminal Block (Dual DC Output); Adjustable output power DIP Switch (48V, 24V, 16V, 12V)
• POE++ POWERED: No power adapter necessary; the PoE++ splitter takes a PoE++ network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.).
• ADJUSTABLE VOLTAGE OUTPUT: Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A) or 48V (1.5A) to match non-PoE device power requirements.
• DUAL DC POWER OUTPUT TERMINAL BLOCK: The PoE++ splitter includes a dual DC power output terminal block, powering for up to two devices
• EXTREME OPERATING TEMPURATURE: Designed for industrial environments with a wide operating temperature range of -40° - 75° C (-40° - 167° F)
• WALL MOUNTABLE: The splitter comes with a wall mount kit that accommodates most installation scenarios
• DIN-RAIL MOUNTABLE: The PoE++ splitter comes with a DIN-Rail mount kit that fits a standard TS35 DIN-Rails
• POWER: Input: 15.4W/30W/60W/90W PoE power; Max. consumption: 1W (splitter only)
• Max. combined DC Output: 48V (1.5A), 24V (2.3A), 16V (2.3A), 12V (2.3A)
• NDAA / TAA compliant (U.S. and Canada only)
More from the Manufacturer
TRENDnet’s Industrial Gigabit PoE++ Splitter, model TI-SG104, networks a non-PoE device by using a Gigabit PoE++ connection and
splitting it into separate power and gigabit data sources. The industrial gigabit PoE++ splitter can power to up to two devices from a
single PoE source. A convenient DIP switch on the PoE++ splitter adjusts output power to 12V, 16V, 24V, or 48V to match varying power
requirements for non-PoE devices. The PoE++ splitter’s dual DC power output provides greater device compatibility.
PoE++ Powered
No power adapter necessary; the
PoE++ splitter takes a PoE++ network
connection, and splits power and data
into separate connections to network a
non-PoE device with power up to 100m
(328ft.) away.
Adjustable Voltage Output
Convenient DIP switch adjusts
voltage output to 12V (2.3A), 16V
(2.3A), 24V (2.3A), or 48V (1.5A) to
accommodate varying non-PoE
device power requirements.
Flexible Mounting Options
The PoE++ splitter’s wall and DIN
Rail mounting options provide better
setup flexibility and accommodate
most installation scenarios.

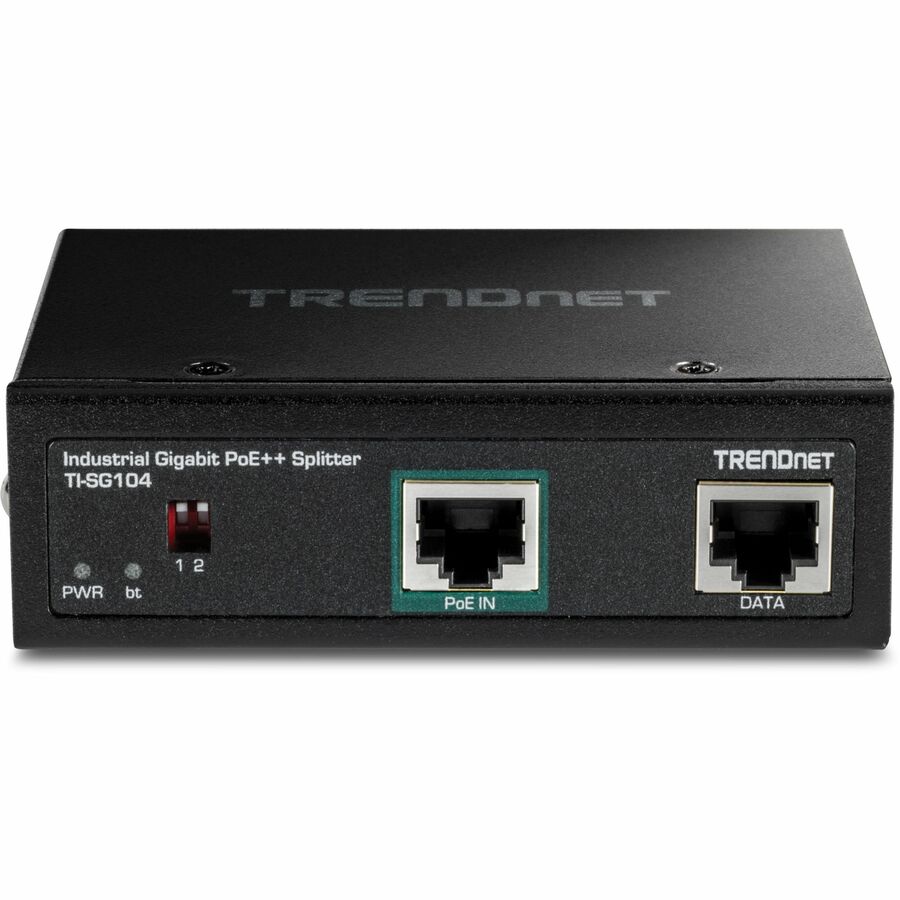

Gigabit Ethernet
1 x Gigabit PoE++ in port, 1 x Gigabit out port
PoE++ Powered
No power adapter necessary; the PoE++ splitter takes a PoE++ network connection, and splits power and data into separate connections to network a non-PoE device with power up to 100m (328ft.) away
Adjustable Voltage Output
Convenient DIP switch adjusts voltage output to 12V (2.3A), 16V (2.3A), 24V (2.3A), or 48V (1.5A) to match non-PoE device power requirements
Dual DC Power Output Terminal Block
The PoE++ splitter includes a dual DC power output terminal block, powering up to two devices
Extreme Temperatures
An operating temperature range of - 40° – 75° C (-40° – 167° F) allows for installations in industrial environments with extreme hot or cold conditions.
Wall Mountable
Wall mountable design accommodates most installation scenarios
DIN-Rail Mountable
DIN-Rail mountable design of the industrial PoE++ splitter fits a standard TS35 DIN-Rail
SPECIFICATIONS
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt

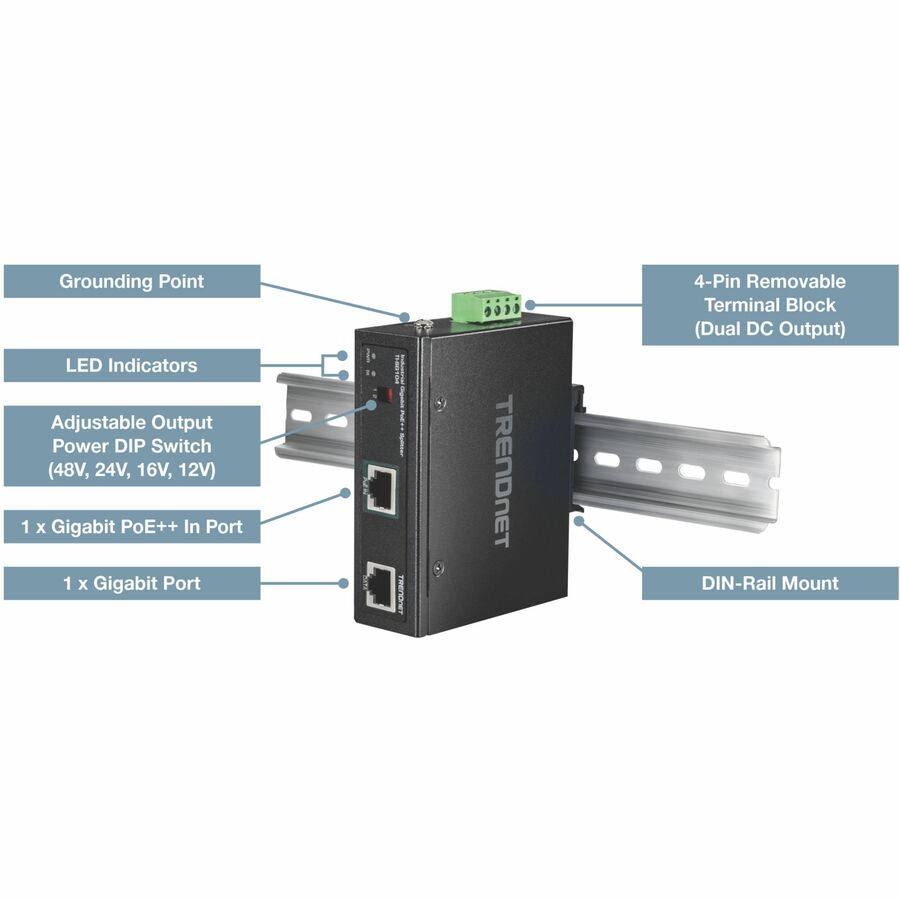

Device Interface
1 x Gigabit port
1 x Gigabit PoE++ in port
4-pin removable terminal block (dual DC output)
Adjustable output power DIP switch (48V, 24V, 16V, 12V)
LED indicator
DIN-Rail mount
Wall mount
Grounding point
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit: 2000Mbps (full duplex)
Special Features
Hardened components rated for extreme temperatures
Dual DC power output
Auto-Negotiation
ESD 6kV and Surge 2kV protection
Power
Input: 15.4W/30W/60W/95W PoE power
Max. Consumption: 7W (splitter only)
Max. Combined DC Output: 48V (1.25A), 24V (2.3A), 16V (2.3A), 12V (2.3A)
PoE Input
Max. DC Output (split between two devices)
90W
48V(1.5A) DC Output: 72W
24V(2.3A) DC Output: 55W
16V(2.18A) DC Output: 35W
12V(2.25A) DC Output: 27W
60W
48V(1.16A) DC Output: 56W
24V(2.12A) DC Output: 51W
16V(2.18A) DC Output: 35W
12V(2.16A) DC Output: 26W
30W
48V(0.52A) DC Output: 25W
24V(0.95A) DC Output: 23W
16V(1.37A) DC Output: 22W
12V(1.83A) DC Output: 22W
15.4W
48V(0.22A) DC Output: 10.6W
24V(0.44A) DC Output: 10.7W
16V(0.63A) DC Output: 10.2W
12V(0.85A) DC Output: 10.2W
Terminal Block
Dual DC power outputs, 4 pin
Wire range: 0.34mm2 to 2.5mm2
Solid wire (AWG): 12-24
Stranded wire (AWG): 12-24
Torque: 5 lb. – In / 0.5Nm / 0.56Nm
Wire strip length: 7-8mm
DIP Switch
DIP 1
DIP 2
Function
Up
Up
48V DC (default)
Down
Up
24V DC
Up
Down
16V DC
Down
Down
12V DC
MTBF
684,452 hours
Housing
IP30 metal housing
DIN-Rail mount
Wall mount
Grounding point
6kV ESD protection
2kV surge protection
Operating Temperature
- 40° – 75° C (-40° – 167° F)
Operating Humidity
Max. 95% non-condensing
Dimensions
104 x 82 x 32mm (4.1 x 3.2 x 1.2 in.)
Weight
150g (5.2 oz.)
Certifications
CE
FCC
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)
Warranty
3 year
PACKAGE CONTENTS
TI-SG104
Quick Installation Guide
Removable terminal block
DIN-Rail and wall mount kit
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Limited Warranty: 3 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TI-SG104 |
| Brand Name | TRENDnet |
| Product Model | TI-SG104 |
| Product Name | Industrial Gigabit |
| Product Condition | New |
| Product Type | PoE Splitter |
| Interfaces/Ports | |
| Input Ports | 1 x UPoE |
| Output Ports | 1 x Gigabit Ethernet |
| Physical Characteristics | |
| Form Factor | DIN Rail/Wall Mountable |
| Height | 3" |
| Width | 7" |
| Length | 9" |
| Weight (Approximate) | 6.07 oz |
| Power Description | |
| Minimum Output Voltage | 12 V DC |
| Maximum Output Voltage | 48 V DC |
| Technical Information | |
| Protection Type | Surge Protection, ESD Protection |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt compatible Certifications: CE FCC IEC EN60950-1 Shock (IEC 60068-2-27) Freefall (IEC 60068-2-32) Vibration (IEC 60068-2-6) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
