Stand-alone Fast Ethernet PoE Media Converter 10/100Base-TX PoE PSE to 100Base-FX
10/100BASE-TX RJ45 PoE to 100BASE-FX, MM LC, 2 KM with -EU Power Supply
SKU
Category
Transceivers/Media Converters
MSRP$398.00
$310.20*
Save 22%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 6 and Nov 10, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote — commercial pricing may differ.
Genuine Transition Networks through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Transceivers/Media Converters
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

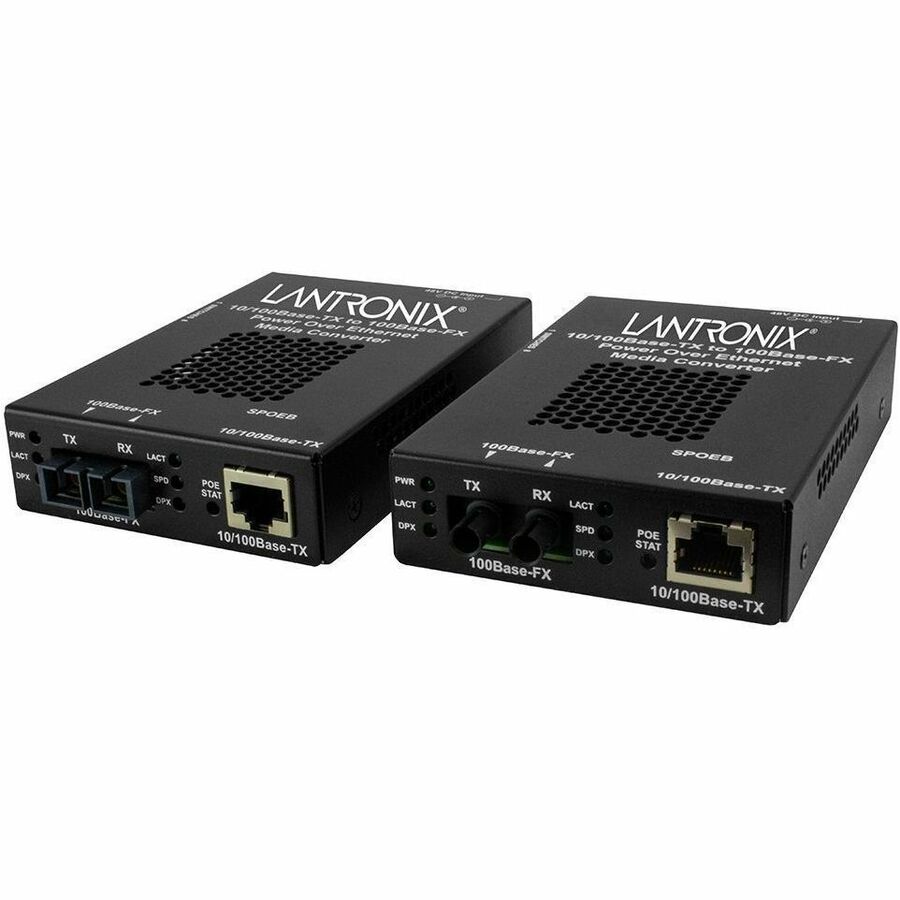

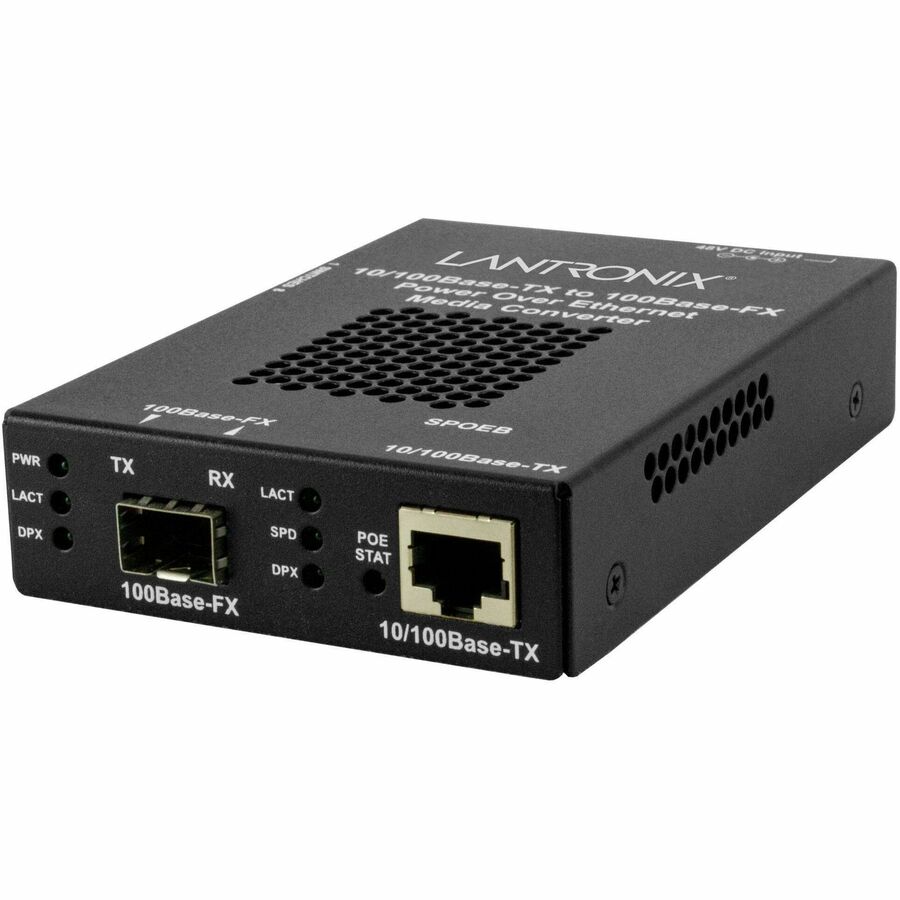

The SPOEB Series is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection. NDAA Compliant, TAA Compliant
Warranty
Limited Warranty: Lifetime
Highlights
External AC power supply
IEEE 802.3af Power-over-Ethernet Compatible
48 VDC PSE Output Voltage
Signal Pair or Spare Pair Power Insertion
PD Detection Signature
Over-Current Protection & Under-Current Detection
Powered Device Reset
Switch selectable and port settings
Minimum Load Sensing
Fault Protection Input
Auto-Negotiation
Auto-MDI/MDIX
Link Pass Through LPT
Far-End-Fault FEF
Automatic Link Restoration
Specifications
General Information
Manufacturer
Lantronix, Inc
Manufacturer Part Number
SPOEB1039-105-EU
Brand Name
Lantronix
Product Series
SPOEB
Product Model
SPOEB1039-105
Product Name
SPOEB1039-105 Transceiver/Media Converter
Product Type
Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports
2
Network (RJ-45)
Yes
DVI
No
USB
No
Management Port
No
Number of LC Ports
1
LC Port Type
Duplex
Media & Performance
Media Type Supported
Optical Fiber, Twisted Pair
Fiber Mode Supported
Multi-mode
Fiber Optic Cable Wavelength
1300 nm
Maximum Distance Supported
2 km
Network & Communication
Ethernet Technology
Fast Ethernet
Network Technology
10/100Base-T, 100Base-FX
Physical Characteristics
Form Factor
Wall Mountable, Rail-mountable
Height
1"
Width
3.3"
Depth
4.8"
Weight (Approximate)
2 lb
Power Description
Power Source
Power Supply
Power Consumption
20 W
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
SPOEB1039-105 Transceiver/Media Converter
Power Supply
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
