SKU
M/E-ISW-FX-02(SM)
Category
Transceivers/Media Converters
Overview

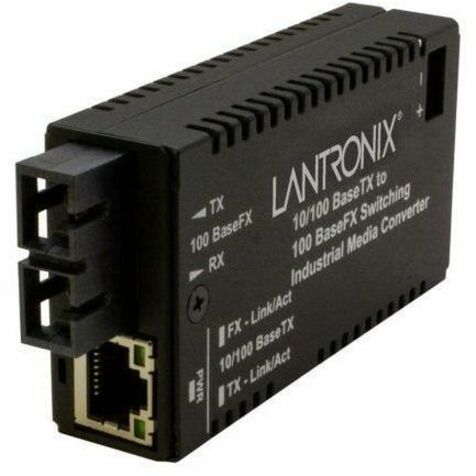

The ME-ISW Series is a hardened Fast Ethernet Mini media converter that provides a cost effective, plug-and-play media conversion between 10/100Base-TX ports and 100Base-FX ports for hardened or outdoor 10/100 environments. With its supported operating temperature range of -40°C to 75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments. NDAA Compliant, TAA Compliant
Highlights
Unit and Port LEDs provide quick status
Auto-Negotiation
Fixed Full-Duplex on fiber
Auto-MDI/MDIX
Link Pass Through
Active Link Pass Through on SFP version
Automatic Link Restoration
Far-End-Fault FEF
DC and AC power inputs via terminal block
If the voltage of your power source doesn't match the device input power, external power supplies are available
Includes barrel connector pig-tail cable
Overload Current Protection
Reverse Polarity Protection
Easily integrate fiber into industrial, hardened, or outdoor locations to reach devices at the edge of the network
Small mechanical size allows use in enclosures with space constraints
No configuration required

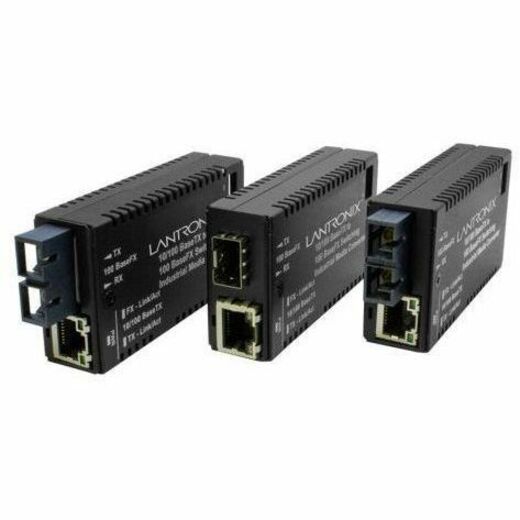

Available with LC, ST or SC fiber interfaces and available for multimode or single mode fiber
Multiple mounting options:
DIN Rail clip and velcro included
Wall mount bracket sold separately
Specifications
Package Contents
Hardened Mini Fast Ethernet Media Converter
Barrel Connector Pig-Tail Cable
Product Type
Transceiver/Media Converter
Manufacturer Part Number
M/E-ISW-FX-02(SM)
Maximum Distance Supported
20 km
Power Source
Power Supply
Limited Warranty
Lifetime
Weight (Approximate)
2 lb
Form Factor
Wall Mountable, Rail-mountable
Manufacturer
Lantronix, Inc
Product Name
Hardened Mini Fast Ethernet Media Converter
Network Technology
10/100Base-TX, 100Base-FX
Power Consumption
2.50 W
Product Series
M/E-ISW
Brand Name
Lantronix
Country of Origin
Taiwan
Height
0.9"
Width
1.8"
Depth
3.3"
Ethernet Technology
Fast Ethernet
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Number of SC Ports
1
Media Type Supported
Optical Fiber, Twisted Pair
Fiber Mode Supported
Single-mode
Total Number of Ports
2
SC Port Type
Duplex
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
