StarTech 10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km, TAA
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber - fiber converter - ethernet media converter - fibre converter - 10/100 media converter - utp to fiber
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
MCM110ST2
Category
Transceivers/Media Converters
Overview

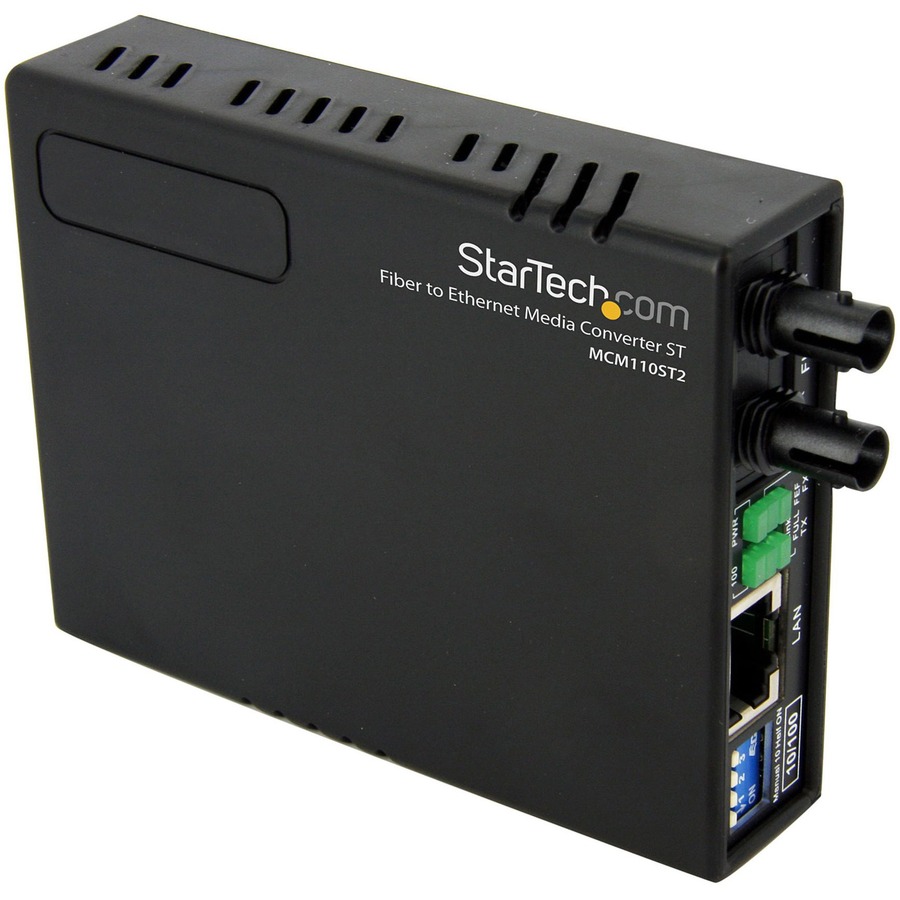

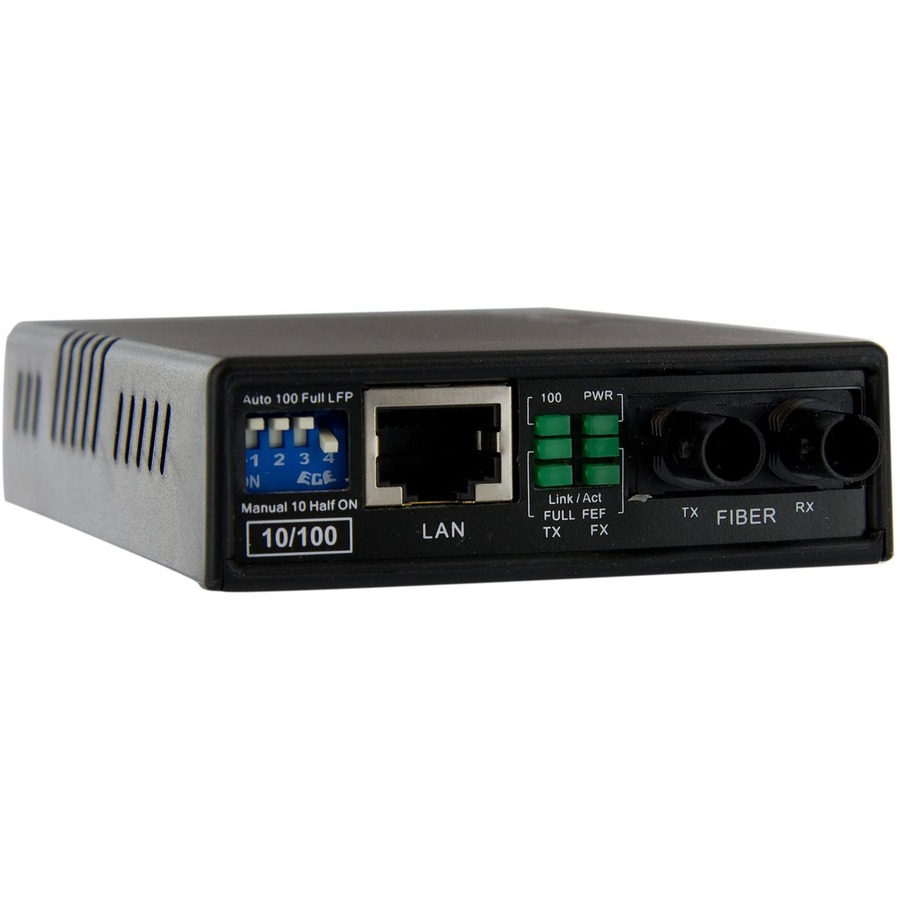

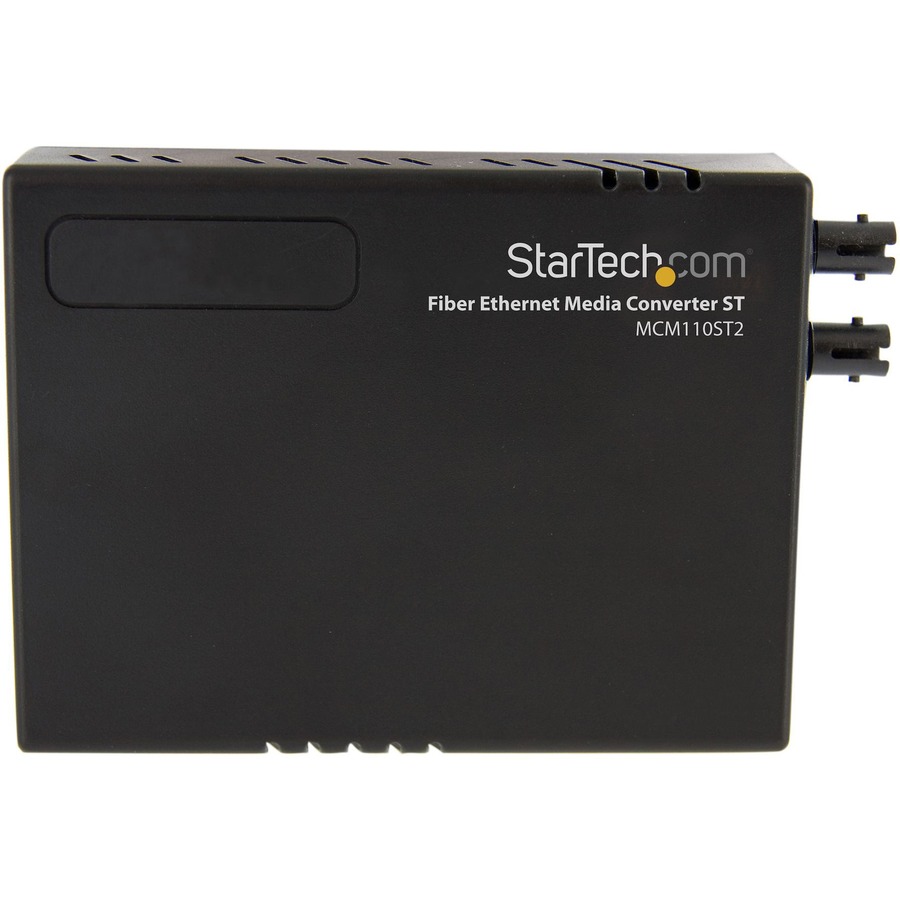

The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone. The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability. Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights
Supports a maximum multi mode fiber optic cable distance of 2 km
Supports full or half-duplex operation
Compatible with 3com, Cisco, Lucent and Nortel networks
Supports Link Fault Pass through (LFP)
Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX and 100Base-FX industry standards
Supports IEEE 802.1q Tag VLAN pass thru
Supports Q in Q double tagged frame transparent
LED Indicators for simple Ethernet/Fiber network link monitoring
Support flow control (Pause)
Specifications
Package Contents
10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km
1 x Power Adapter
1 x Instruction Manual
Product Type
Transceiver/Media Converter
Manufacturer Part Number
MCM110ST2
Maximum Distance Supported
2 km
Packaged Quantity
1 Each

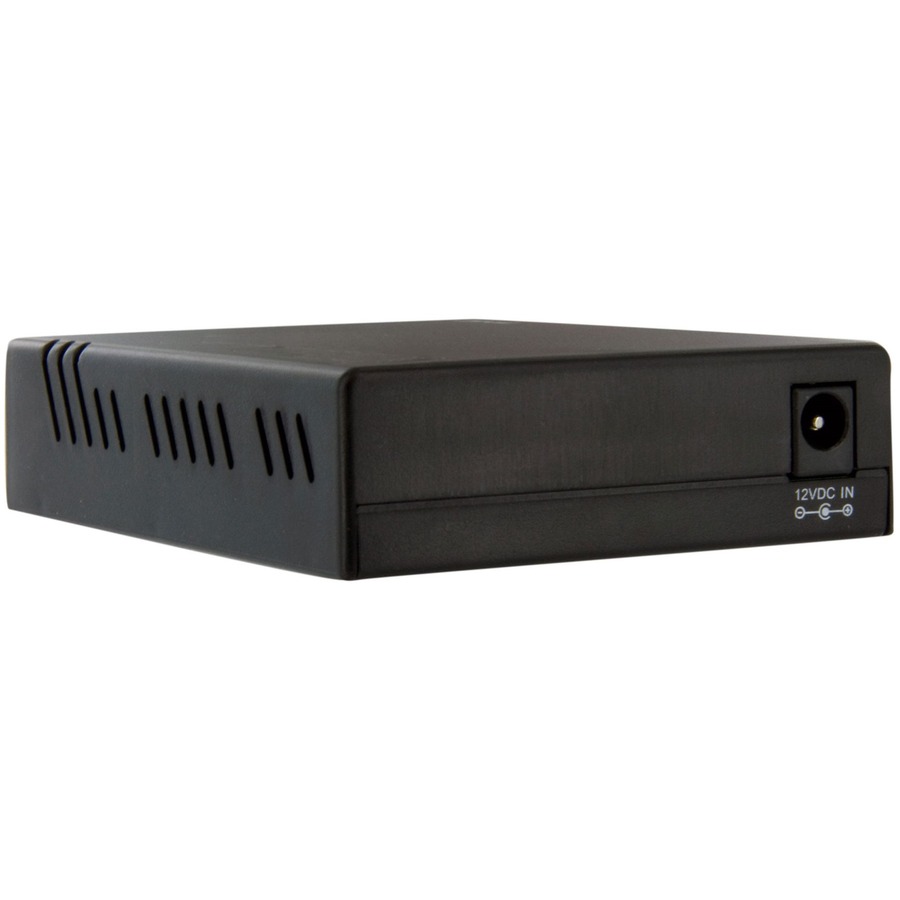

Power Source
AC Adapter
Limited Warranty
2 Year
Weight (Approximate)
2.90 oz
Form Factor
External
Manufacturer
StarTech.com
Product Name
10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km
Network Technology
10Base-T, 100Base-FX
Power Consumption
2.40 W
Brand Name
StarTech.com
Plug/Connector Type
Type M
Country of Origin
Taiwan
Height
0.8"
Width
3"
Depth
3.7"
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Ethernet Technology
Fast Ethernet
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Number of ST Ports
1
Media Type Supported
Optical Fiber, Twisted Pair
Fiber Mode Supported
Multi-mode
Total Number of Ports
2
ST Port Type
Duplex
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
