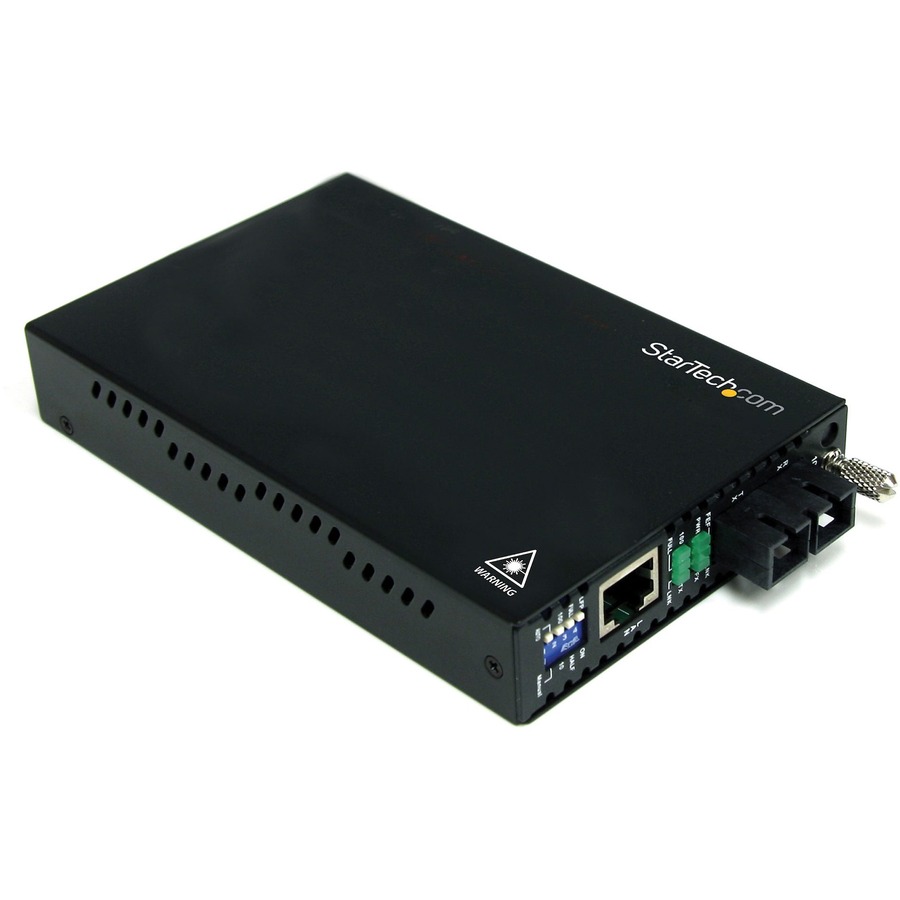

StarTech 10/100 Mbps Single Mode Fiber Media Converter SC 30 km, TAA
Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber - fiber converter - ethernet media converter - fibre converter - 10/100 media converter - utp to fiber
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ET90110SM302
Category
Transceivers/Media Converters
Overview

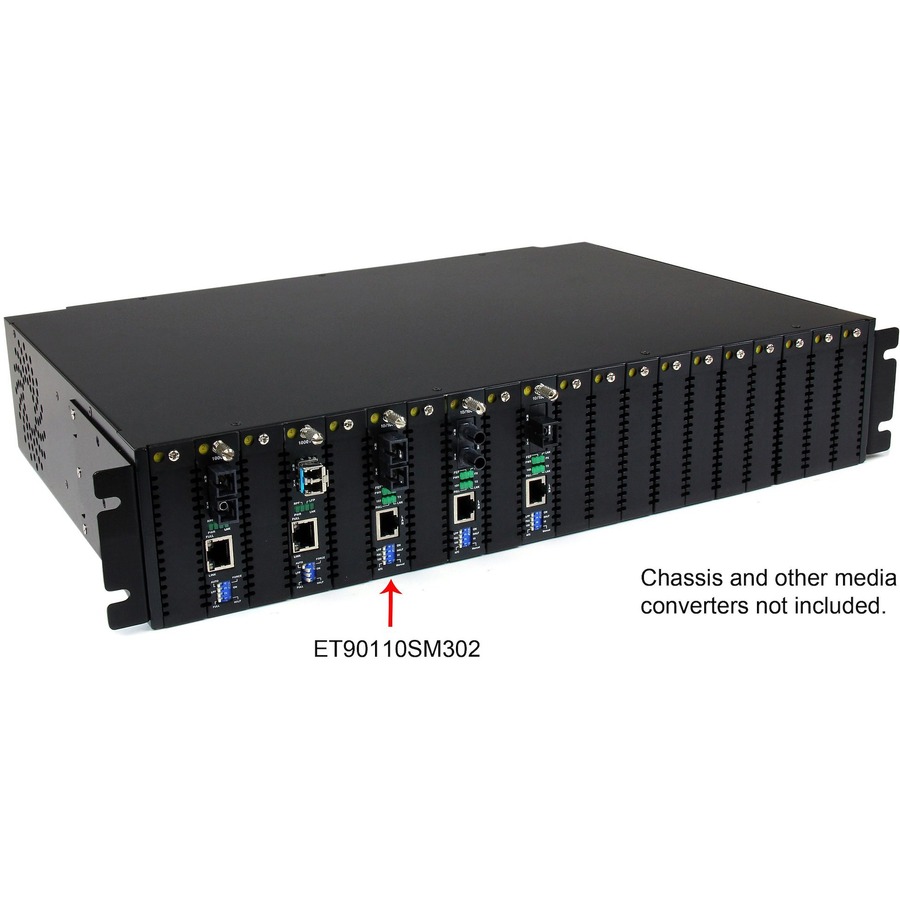

The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles). A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required. For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights
Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
Desktop installation makes it ideal for deployments outside the wiring closet
Specifications
Package Contents
10/100 Mbps Single Mode Fiber Media Converter SC 30 km
1 x Universal Power Adapter
1 x Grounding Screw
1 x Instruction Manual
Product Type
Transceiver/Media Converter
Manufacturer Part Number
ET90110SM302
Maximum Distance Supported
30 km
Packaged Quantity
1 Each
Power Source
AC Adapter
Limited Warranty
2 Year
Weight (Approximate)
13.80 oz
Form Factor
Desktop, Rack-mountable
Manufacturer
StarTech.com
Product Name
10/100 Mbps Single Mode Fiber Media Converter SC 30 km
Network Technology
10/100Base-TX, 100Base-FX
Power Consumption
19.20 W
Brand Name
StarTech.com
Plug/Connector Type
Type M
Country of Origin
Taiwan
Height
0.9"
Width
3.4"
Depth
6.1"
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Ethernet Technology
Fast Ethernet
USB
No
DVI
No
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Number of SC Ports
1
Media Type Supported
Optical Fiber, Twisted Pair
Fiber Mode Supported
Single-mode
Total Number of Ports
2
SC Port Type
Duplex
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
