Genuine Transition Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
M/E-ISW-FX-02(SFP)
Category
Transceivers/Media Converters
Overview

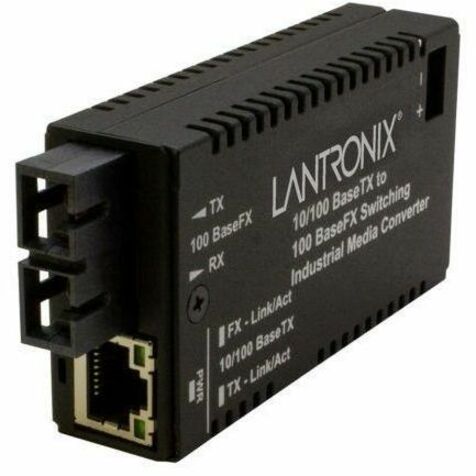

The ME-ISW Series is a hardened Fast Ethernet Mini media converter that provides a cost effective, plug-and-play media conversion between 10/100Base-TX ports and 100Base-FX ports for hardened or outdoor 10/100 environments. With its supported operating temperature range of -40°C to 75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments. NDAA Compliant, TAA Compliant
Warranty
Limited Warranty: Lifetime
Highlights
Unit and Port LEDs provide quick status
Fixed Full-Duplex on fiber
Auto-MDI/MDIX
Link Pass Through
Active Link Pass Through on SFP version
Automatic Link Restoration
Far-End-Fault FEF
DC and AC power inputs via terminal block
If the voltage of your power source doesn't match the device input power, external power supplies are available
Includes barrel connector pig-tail cable
Overload Current Protection
Reverse Polarity Protection
Easily integrate fiber into industrial, hardened, or outdoor locations to reach devices at the edge of the network
Small mechanical size allows use in enclosures with space constraints
No configuration required
Available with LC, ST or SC fiber interfaces and available for multimode or single mode fiber
Multiple mounting options:
DIN Rail clip and velcro included
Wall mount bracket sold separately
Specifications
General Information
Manufacturer
Lantronix, Inc
Manufacturer Part Number
M/E-ISW-FX-02(SFP)
Brand Name
Lantronix
Product Series
M/E-ISW
Product Name
Hardened Mini Fast Ethernet Media Converter
Product Type
Transceiver/Media Converter
I/O Expansions
Total Number of Expansion Slots
1
Expansion Slot Type
SFP
Number of SFP Slots
1
Interfaces/Ports
Total Number of Ports
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Media & Performance
Media Type Supported
Optical Fiber, Twisted Pair
Maximum Distance Supported
0.10 km
Network & Communication
Ethernet Technology
Fast Ethernet
Network Technology
10/100Base-TX, 100Base-FX
Physical Characteristics
Form Factor
Wall Mountable, Rail-mountable
Height
0.9"
Width
1.8"
Depth
3.3"
Weight (Approximate)
2 lb
Power Description
Power Source
Power Supply
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Hardened Mini Fast Ethernet Media Converter
Barrel Connector Pig-Tail Cable
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
