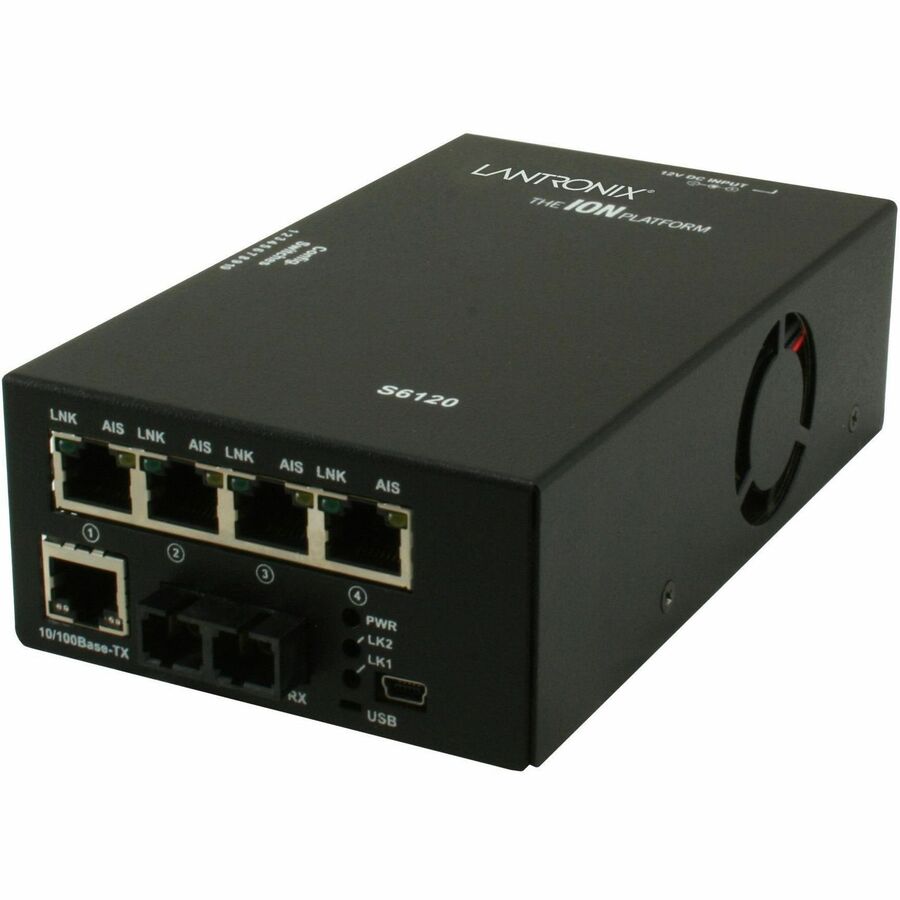

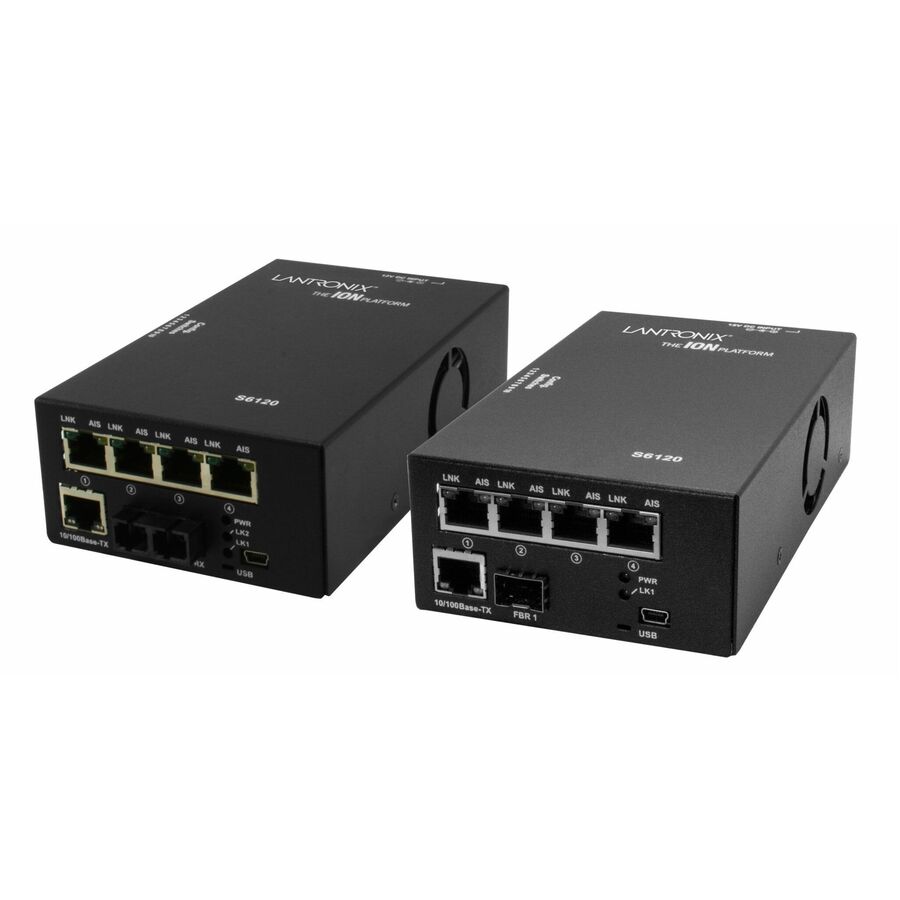

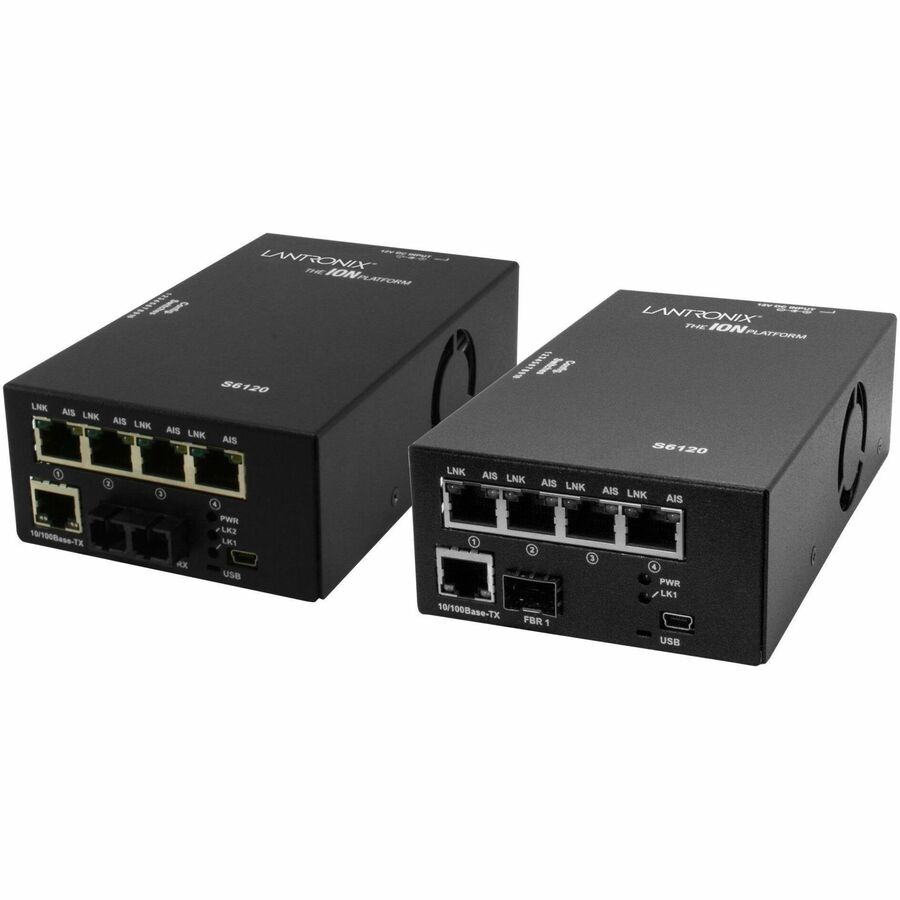

Stand-alone DS1 - T1/E1/J1 Network Interface Device 4 x DS1 - T1/E1/J1 + 10/100 Ethernet over Fiber
Transition Networks

Stand-alone DS1 - T1/E1/J1 Network Interface Device 4 x DS1 - T1/E1/J1 + 10/100 Ethernet over Fiber

4x T1/E1 ION WITH ETHERNET TO FIBER, SM SC, 20KM

SKU
S6120-1014-NA
Category
Transceivers/Media Converters

MSRP$1,473.00

$1,069.45

Save 27%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Transition Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
S6120-1014-NA
Category
Transceivers/Media Converters

Overview

A managed stand-alone DS1 - T1/E1/J1 mux that provides a solution for those users that need to extend multiple DS1 - T1/E1/J1 connections, along with a 10/100 Ethernet connection, all over fiber. NDAA Compliant, TAA Compliant

Highlights

  • 4 RJ-48 copper interfaces
  • 1 fiber interface fixed or SFP
  • 1 RJ-45 10/100Mbps Ethernet port
  • Auto-MDI/MDIX
  • Pause Flow Control on Ethernet port
  • Loopback via test set
  • Local and remote loopbacks
  • LEDs for device status and troubleshooting
  • Settings for line code, line build out, loopbacks and Alarm Indication Signal AIS
  • Access to complete status and configuration on local and remote device
  • Remote firmware upgrade
  • Remote management
  • Extended operating temperature
  • Must be used in pairs

Specifications

Package Contents
  • S6210-1014 Transceiver/Media Converter
  • Power Supply
Product TypeTransceiver/Media Converter
Manufacturer Part NumberS6120-1014-NA
Maximum Distance Supported20 km
Power SourcePower Supply
Limited WarrantyLifetime
Weight (Approximate)2 lb
Form FactorStandalone, Wall Mountable
ManufacturerLantronix, Inc
Product ModelS6120-1014
Product NameS6120-1014 Transceiver/Media Converter
Network TechnologyT1/E1/J1, 10/100Base-TX
Power Consumption6 W
Product SeriesS6210
Brand NameLantronix
Country of OriginUnited States
Height1.8"
Width3.7"
Depth6.5"
Ethernet TechnologyFast Ethernet
USBNo
DVINo
Network (RJ-45)Yes
Management PortNo
Number of SC Ports1
Media Type SupportedOptical Fiber, Twisted Pair
Fiber Mode SupportedMulti-mode
Total Number of Ports6
SC Port TypeDuplex
TAA CompliantYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Fiber Optic Cable Wavelength1310 nm
