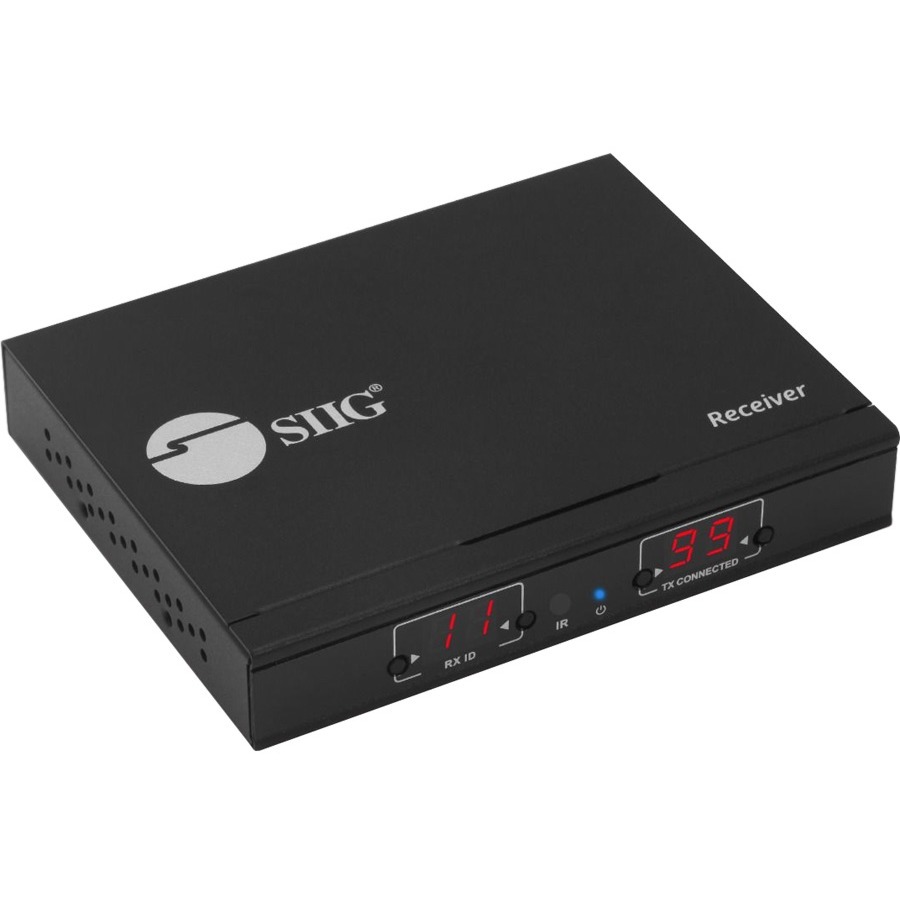

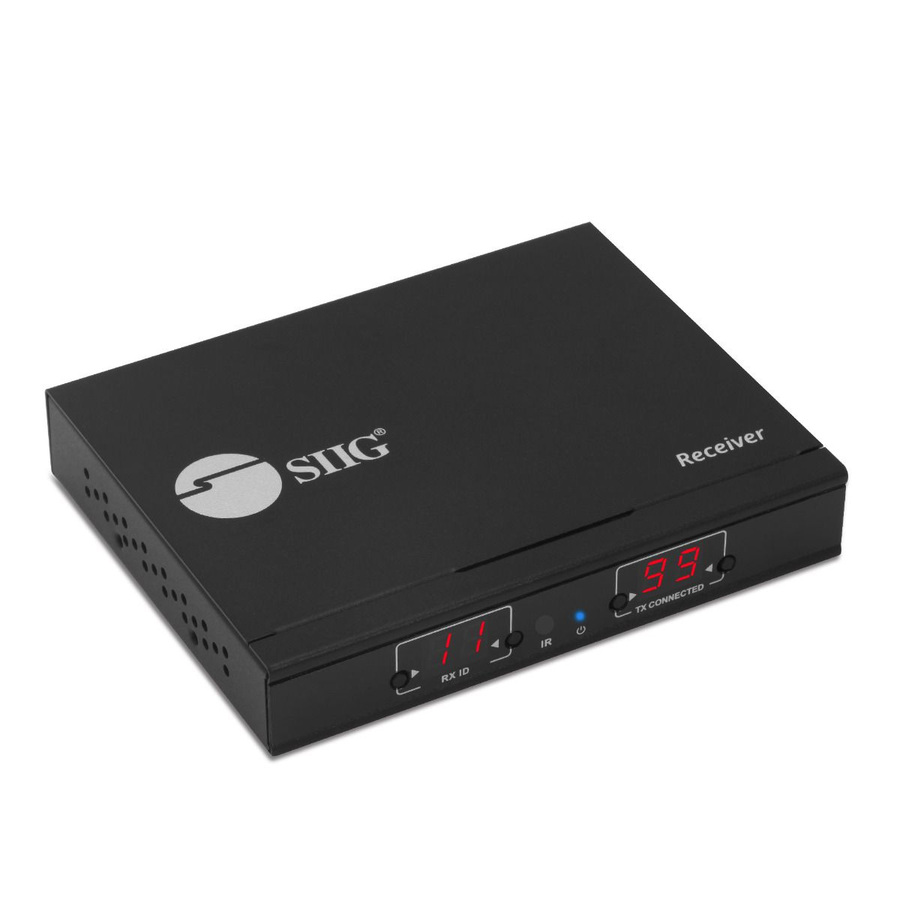

SIIG HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Decoder (RX)
120M - HDMI Over IP Networks for Cat5e/6 - One to Many/Many to Many - Multi-casting connection - HDMI over HDBitT - Support distance up to 394ft (120M) - Works with IGMP Network switch - Allows up to 256 total units - resolution up to 4K60Hz - HDCP 2.2 - IR pass-through feature - RS-232 Control - LED digital channel buttons or Remote control - Metal housing - 2 years warranty - work for Encoder (TX) (CE-H25B11-S1)
- SKU
- CE-H25C11-S1
- Category
- Audio & Video Consoles/Extenders
MSRP$319.99
$191.06
Save 40%Back ordered — ships when restocked.
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CE-H25C11-S1
- Category
- Audio & Video Consoles/Extenders
Overview

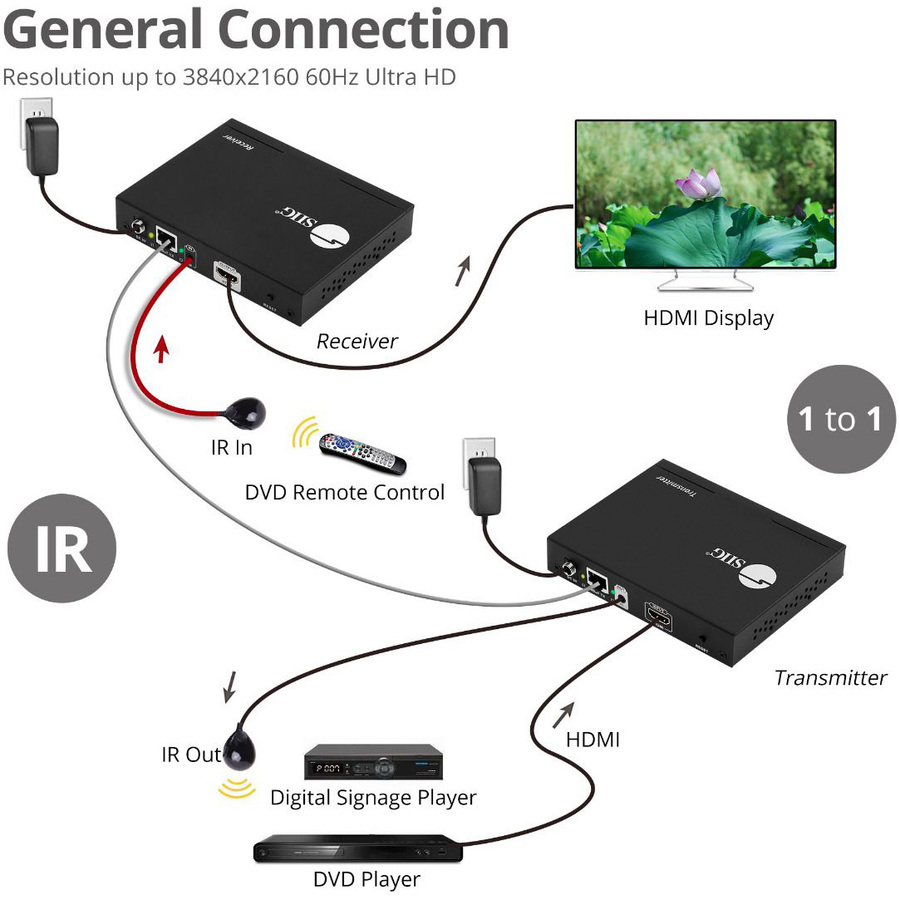

Receives 4K HDMI signals through economical Cat5e/6/7 cabling from transmiter unit up to 120 meters away, use with HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Encoder (TX)(part # CE-H25B11-S1) sold separately
• Receives HDMI signals with stereo audio and transmits it to a remote display over Cat5e/6/7 cabling up to 120 meters, requires HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Encoder (TX) (part # CE-H25B11-S1) sold separately
• Note : A good quality Cat5e/6/7 cable is essential in delivering quality content. Cat6/6a/7 is recommended over Cat5e

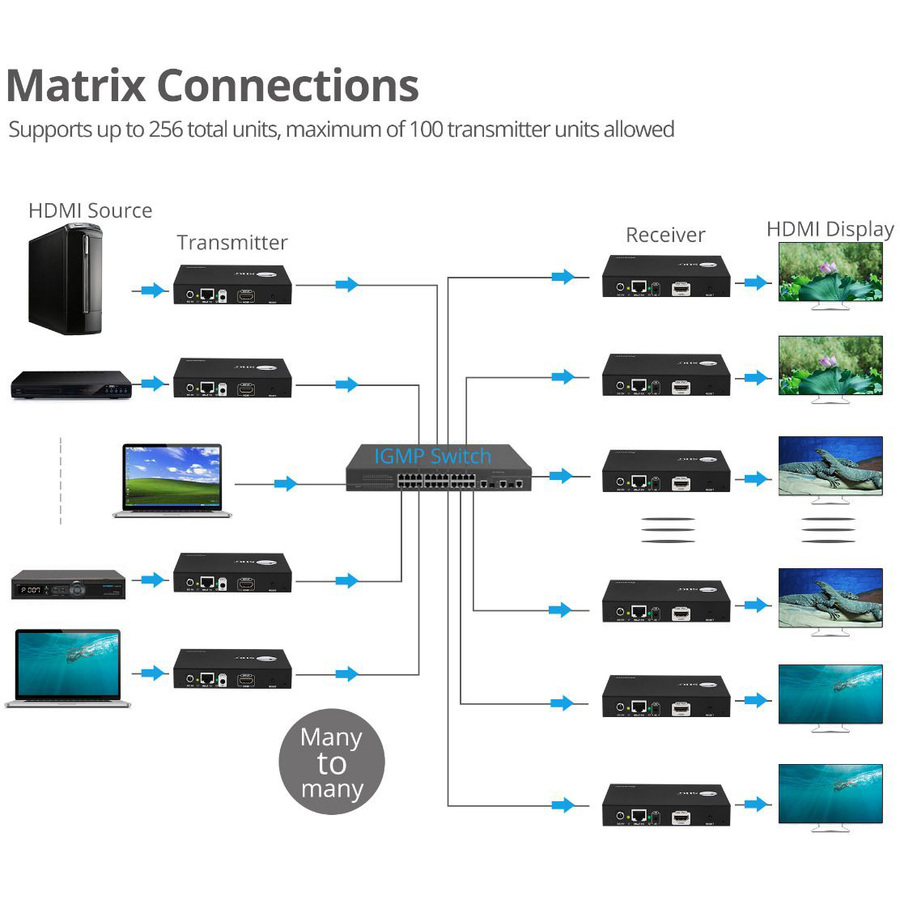

• Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional encoder (TX)units (part # CE-H25B11-S1) and Extender/Matrix Kits (part # CE-H25A11-S1) sold separately
• Note : Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability
• Delivers up to 4K@60Hz video resolution to deliver stunning and crystal clear images
• IR pass back function to control the source device from RX location
• Computer control software to select and switch between source devices (Matrix only)
• HDbitT protocol with H.264 compression over IP delivers superior performance and reliability
Highlights
- Video Extender Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
- Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
- 1 output devices supported for maximum feasibility and usage convenience
- 393.70 ft maximum operating distance for feasible operation and optimal coverage
- 4K graphics mode for an immersive and sharp viewing experience
Specifications

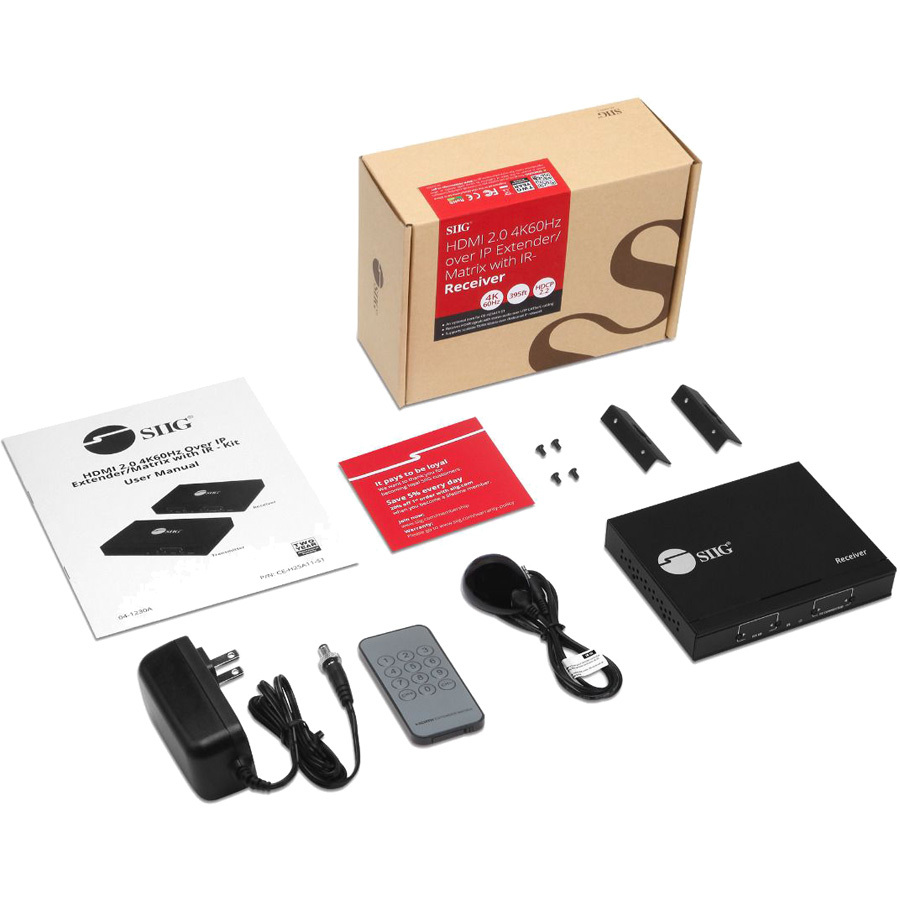

| Package Contents |
|
|---|---|
| Product Type | Video Extender Receiver |
| Manufacturer Part Number | CE-H25C11-S1 |
| Limited Warranty | 4 Year |
| Connectivity Technology | Wired |
| Manufacturer | SIIG, Inc |
| Product Name | HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Receiver |
| Brand Name | SIIG |
| Country of Origin | China |
| Graphics Modes | 4K |
| Environmentally Friendly | Yes |
| Twisted Pair Cable Standard | Category 7 |
| Maximum Operating Distance | 393.70 ft |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of HDMI Outputs | 1 |
| HDMI Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 1 |

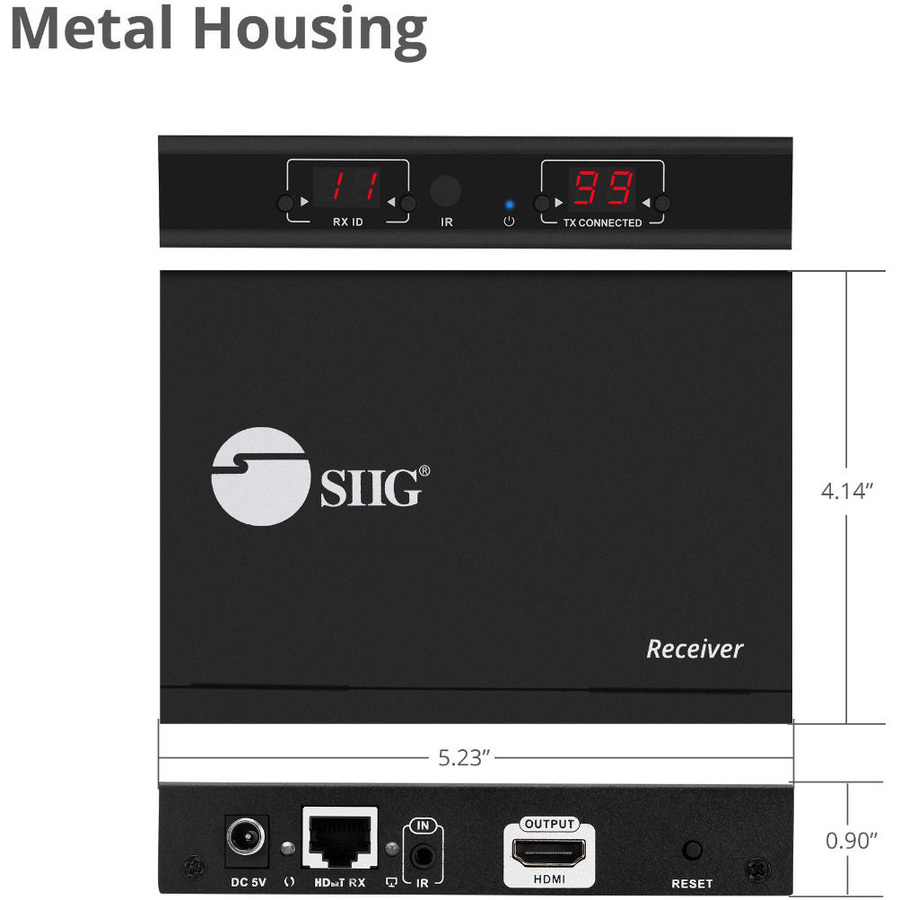

| Receiver Height | 1.18" |
| Receiver Width | 4.33" |
| Receiver Depth | 5.28" |
| Receiver Weight (Approximate) | 11.52 oz |
| Product Color | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
