SIIG HDMI 2.0 Over IP Matrix and Video Wall - Controller
SIIG

SIIG HDMI 2.0 Over IP Matrix and Video Wall - Controller

Supports Video Wall Function - TAA Compliant

SKU
CE-H25411-S1
Category
Audio & Video Consoles/Extenders

MSRP$349.99

$222.41

Save 36%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
CE-H25411-S1
Category
Audio & Video Consoles/Extenders

Overview

Smart Controller and central management system allows real time monitoring over IP for CE-H25211-S1 and CE-H25311-S1 transmitters and receivers

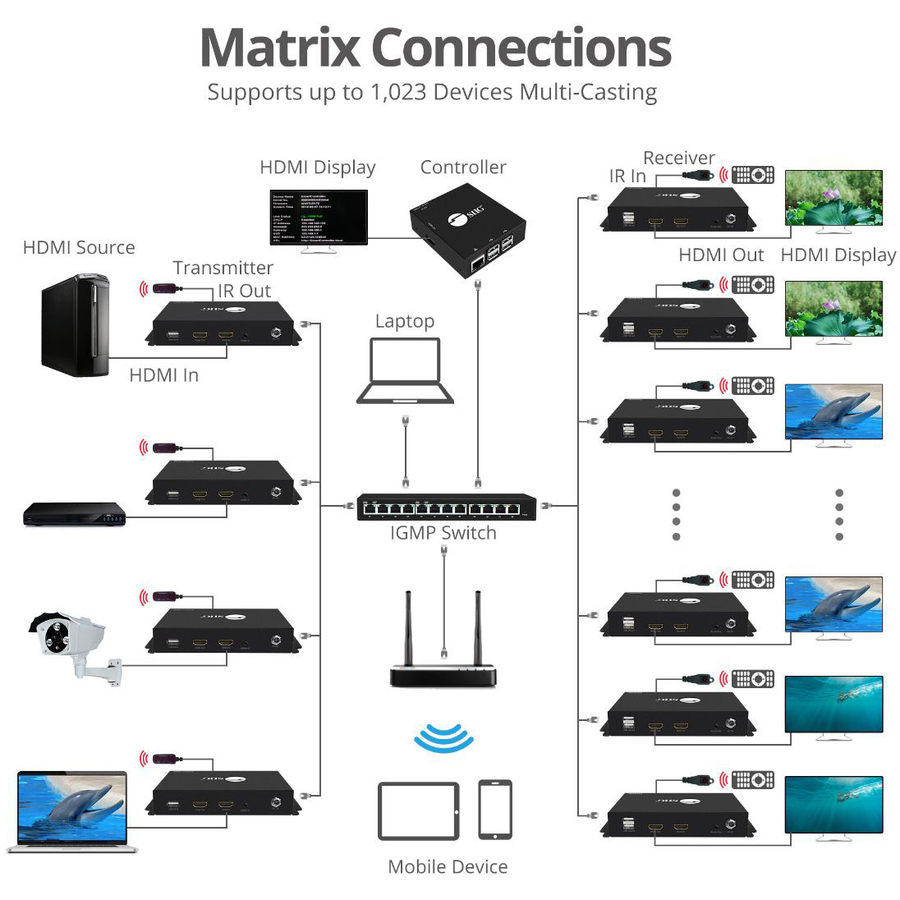

• Control center for the IP-based HDMI 2.0 Video Wall Over IP Multicast System - Transmitter, part # CE-H25211-S1 sold separately, and HDMI 2.0 Video Wall Over IP Multicast System - Receiver, part # CE-H25311-S1, sold separately

• Monitors all devices in one central system

• Cost effective IoT platform

• Intuitive and Powerful - User interface includes web interface and mobile support

• Easy Installation - auto-detects the transmitter and receiver units on the network

• Supports Video Wall Function - Easy to create multiple video walls. Configurable up to 5x5 display mode

• Drag-and-drop easy matrix switching

• Allows you to create custom OSD modes

Highlights

  • Video Extender Receiver is all you need for dependable and productive audio/video transmission
  • HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
  • Download media from your memory card with the built-in USB along with adequate power supply
  • Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
  • 1 output devices supported to better accommodate your specific requirements

Specifications

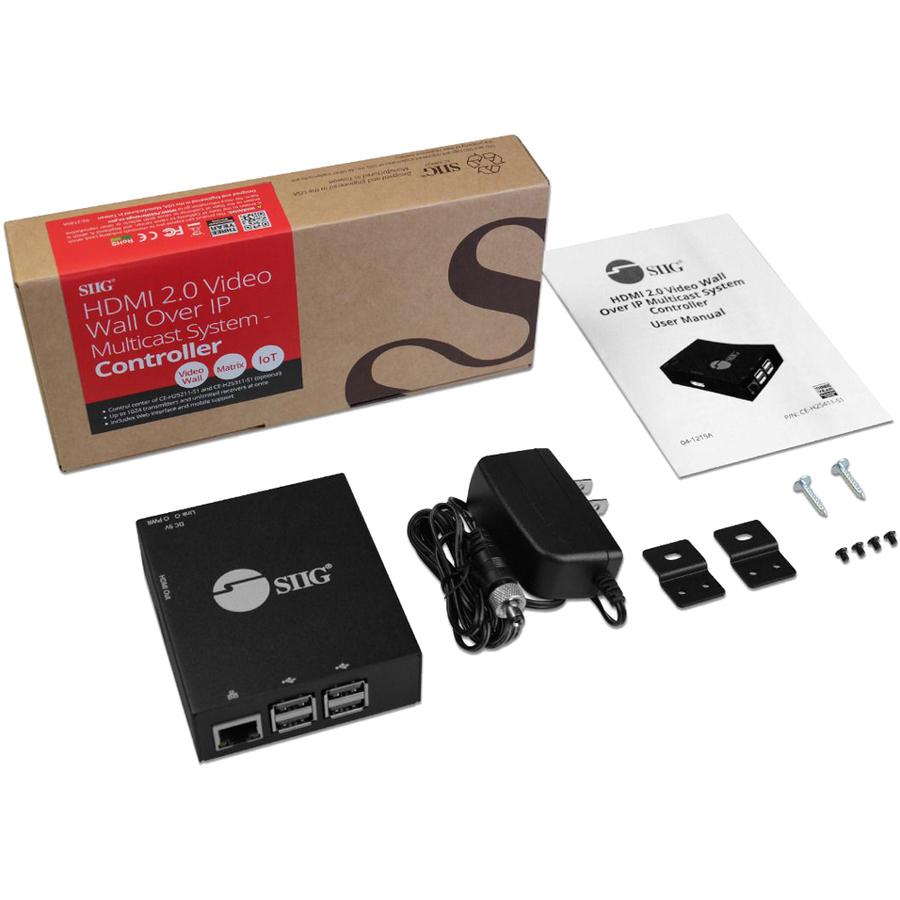

Package Contents
  • HDMI 2.0 Over IP Matrix and Video Wall - Controller
  • Power Adapter 5V/1A
  • 2 x Mounting Ears
  • 6 x Screw Kit
  • Insert Card
  • User Manual
Product TypeVideo Extender Receiver
Manufacturer Part NumberCE-H25411-S1
Limited Warranty3 Year
Connectivity TechnologyWired
ManufacturerSIIG, Inc
Product NameHDMI 2.0 Over IP Matrix and Video Wall - Controller
Brand NameSIIG
Country of OriginTaiwan
Environmentally FriendlyYes
USBYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of USB Ports4
Number of HDMI Outputs1
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Receiver Height1.14"
Receiver Width3.07"
Receiver Depth3.54"
Receiver Weight (Approximate)8 oz
TAA CompliantYes
Product ColorBlack
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
