TAA Compliant
MSRP$1,499.99
$1,079.77
Save 28%In stock: 3
Genuine SIIG through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

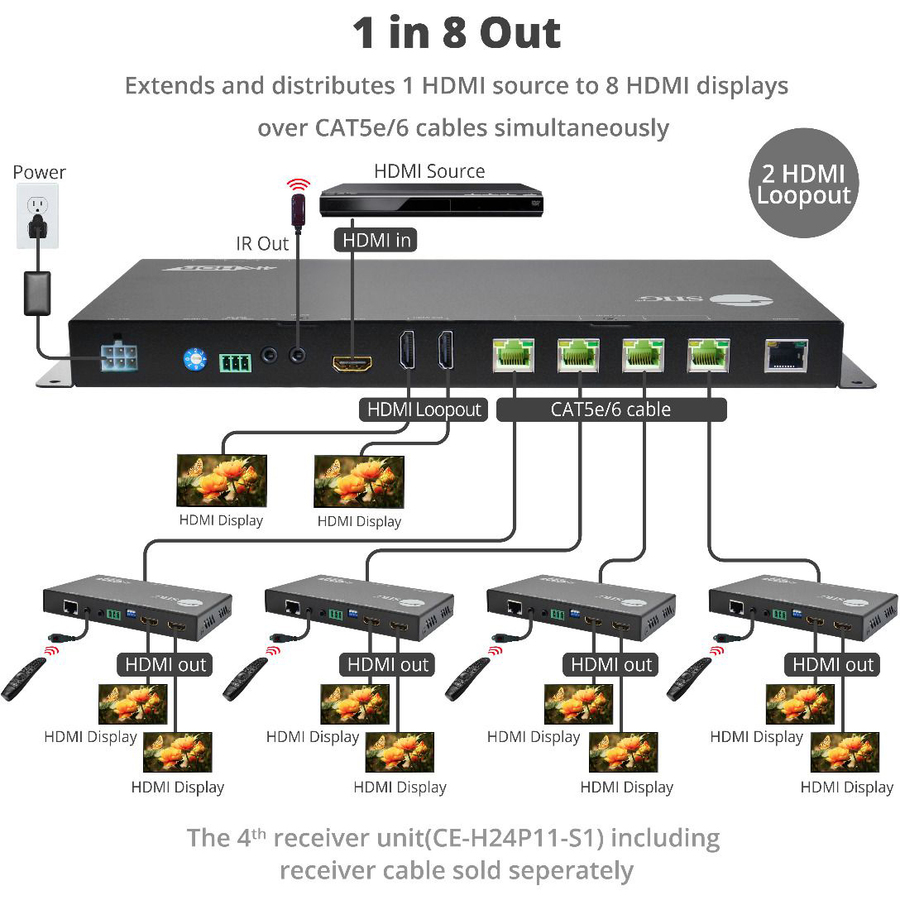

Extends HDMI signals to four HDMI Receivers over CAT5e/6 cable up to 198ft with resolution auto-scaling, IR control, and Power over Cable support
• Extends Full HD 1080p HDMI signals up to 198ft (60m) and 4K@60Hz signals up to 114ft (35m) over CAT5e/6 cable
• Supports 4K@60Hz YUV 4:4:4 8-bit, 4K@60Hz HDR YUV 4:2:0 10-bit
• Supports PoC (Power over Cable) technology which allows the transmitter and receiver unit(s) to be powered by only one power supply connected to the transmitter unit
• Transmitter unit supports two HDMI loop-outs for addition local display connections

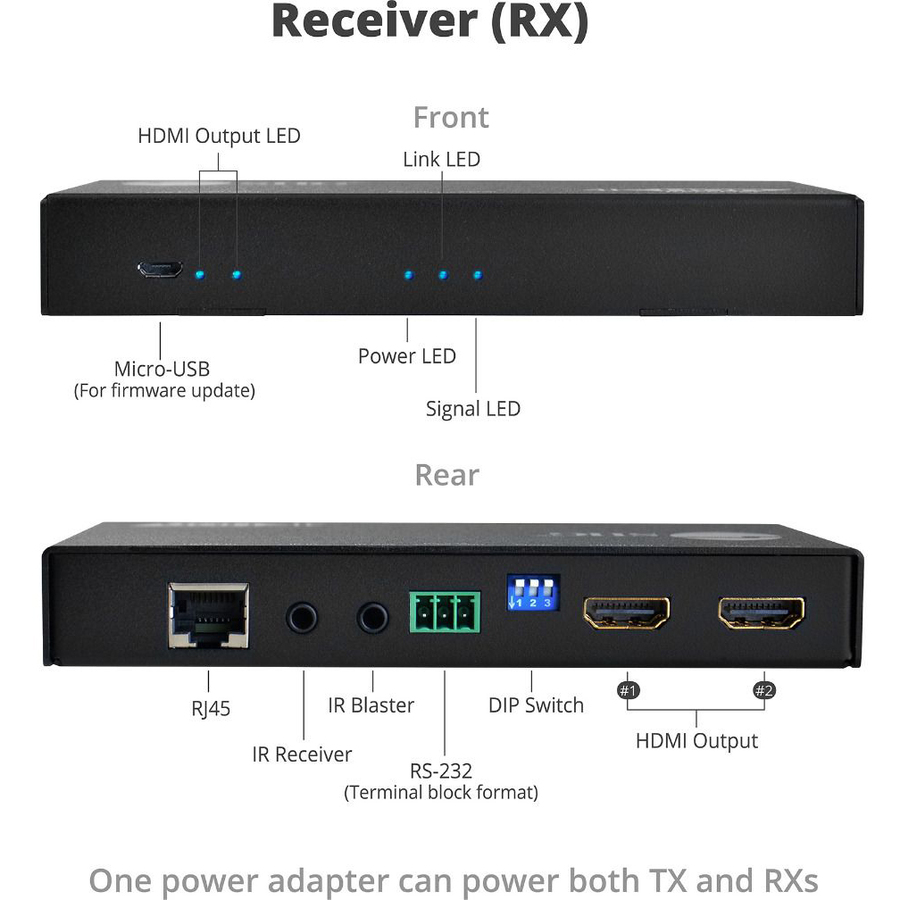

• Receiver unit supports 2 HDMI outputs for more display connections
• Note : Additional Receiver (part# CE-H24P11-S1) sold separately.

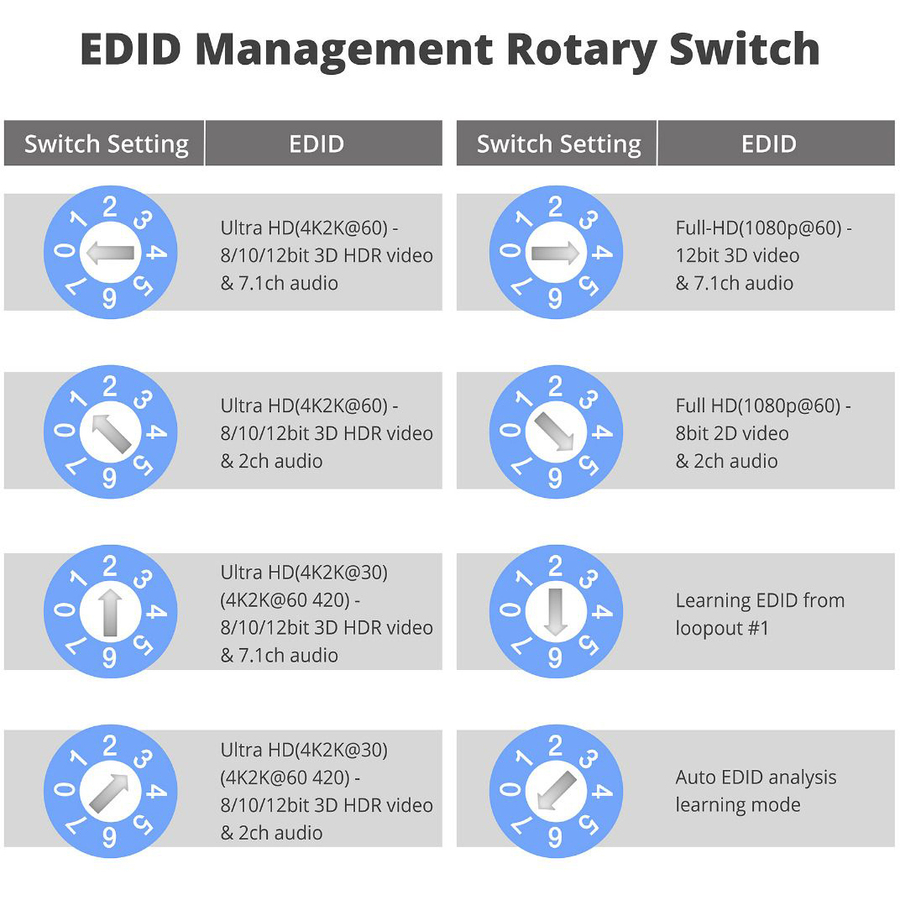

• Supports EDID management for increased device compatibility
• Supports resolution auto-down scaling from 4K to 1080p allowing displays of different capabilities to be connected simultaneously
• Pure unaltered uncompressed 7.1ch digital HDMI over CAT5e/6 cable transmission offers the best audio signal
• DTS-HD Master Audio and Dolby TrueHD high bit rate audio for true sound compatibility
• Supports full bi-directional IR pass-through signal from 30KHz to 56KHz frequency
More from the Manufacturer
HDMI 2.0 4K HDR 1x4 Splitter HDBaseT Extender with Auto-scaling
Extends Full HD 1080p HDMI signals up to 198ft (60m) and 4K@60Hz signals up to 114ft (35m) over CAT5e/6 cable
Supports 4K@60Hz YUV 4:4:4 8-bit, 4K@60Hz HDR YUV 4:2:0 10-bit
Supports PoC (Power over Cable) technology which allows the transmitter and receiver unit(s) to be powered by only one power supply connected to the transmitter unit
Transmitter unit supports two HDMI loop-outs for addition local display connections
Receiver unit supports 2 HDMI outputs for more display connections
Supports EDID management for increased device compatibility
Supports resolution auto-down scaling from 4K to 1080p allowing displays of different capabilities to be connected simultaneously
Pure unaltered uncompressed 7.1ch digital HDMI over CAT5e/6 cable transmission offers the best audio signal
DTS-HD Master Audio and Dolby TrueHD high bit rate audio for true sound compatibility
Supports full bi-directional IR pass-through signal from 30KHz to 56KHz frequency
Extends HDMI signals to four HDMI Receivers over CAT5e/6 cable up to 198ft with resolution auto-scaling, IR control, and Power over Cable support
Limited Warranty: 3 Year
About Us Since 1985, SIIG Inc. lead the way in connectivity solution you can trust for IT and AV. Built on core values of professional integrity with customer satisfaction as the focus point, we are committed to providing excellent service, support, and solutions. We want to enhance your audiovisual and information technology experience with innovative product solutions. © 2020 SIIG Inc., All rights reserved.
| General Information | |
|---|---|
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H24N11-S1 |
| Brand Name | SIIG |

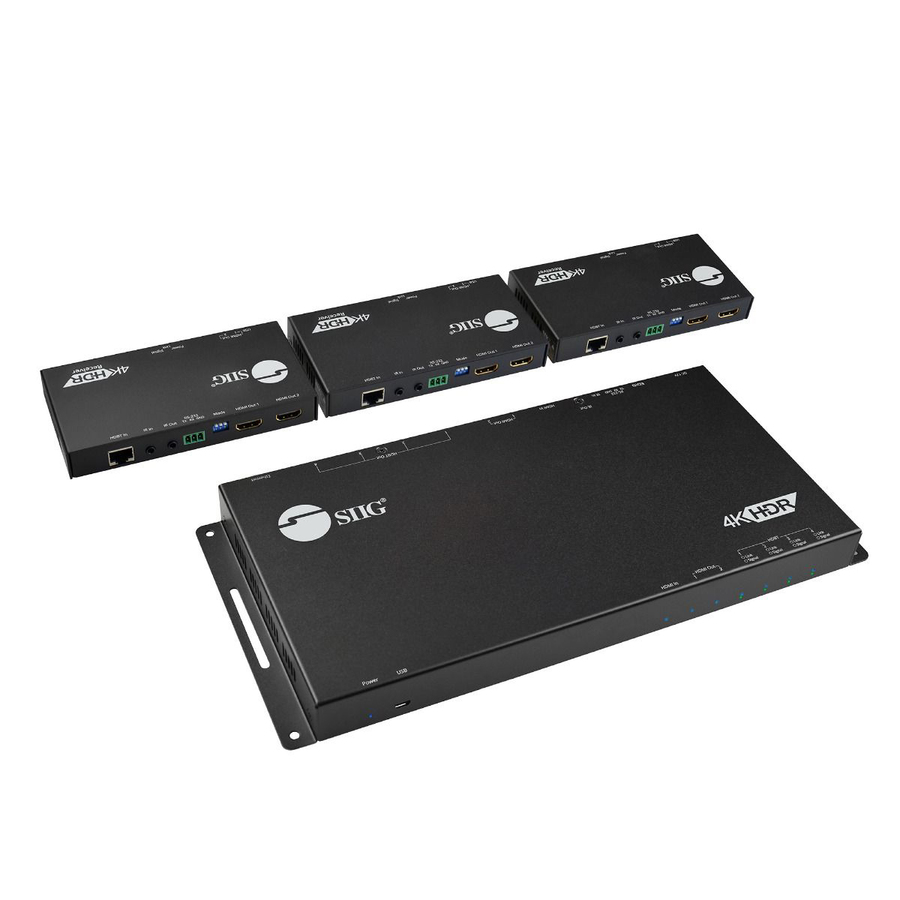

| Product Name | HDMI 2.0 4K HDR 1x4 Splitter HDBaseT Extender with Auto-scaling |
| Product Type | Video Extender Transmitter/Receiver |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 6 |
| Number of USB Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 4 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Physical Characteristics | |
| Transmitter Height | 0.98" |
| Transmitter Width | 5.83" |
| Transmitter Depth | 12.80" |
| Receiver Height | 0.75" |
| Receiver Width | 2.76" |
| Receiver Depth | 5.47" |
| Form Factor | Desktop |
| Transmitter Weight (Approximate) | 3.06 lb |
| Receiver Weight (Approximate) | 6.24 oz |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 2 |
| Maximum Operating Distance | 198 ft |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |

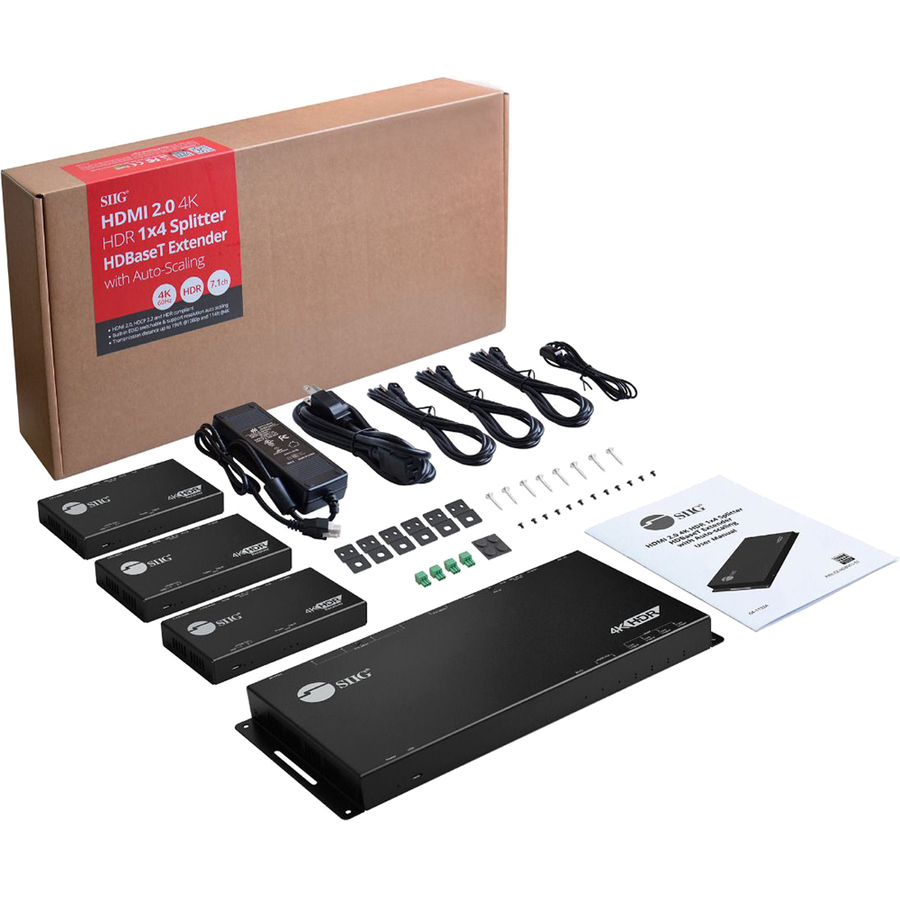

| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
Matched on 3840 x 2160 · Video Extender Transmitter/Receiver
