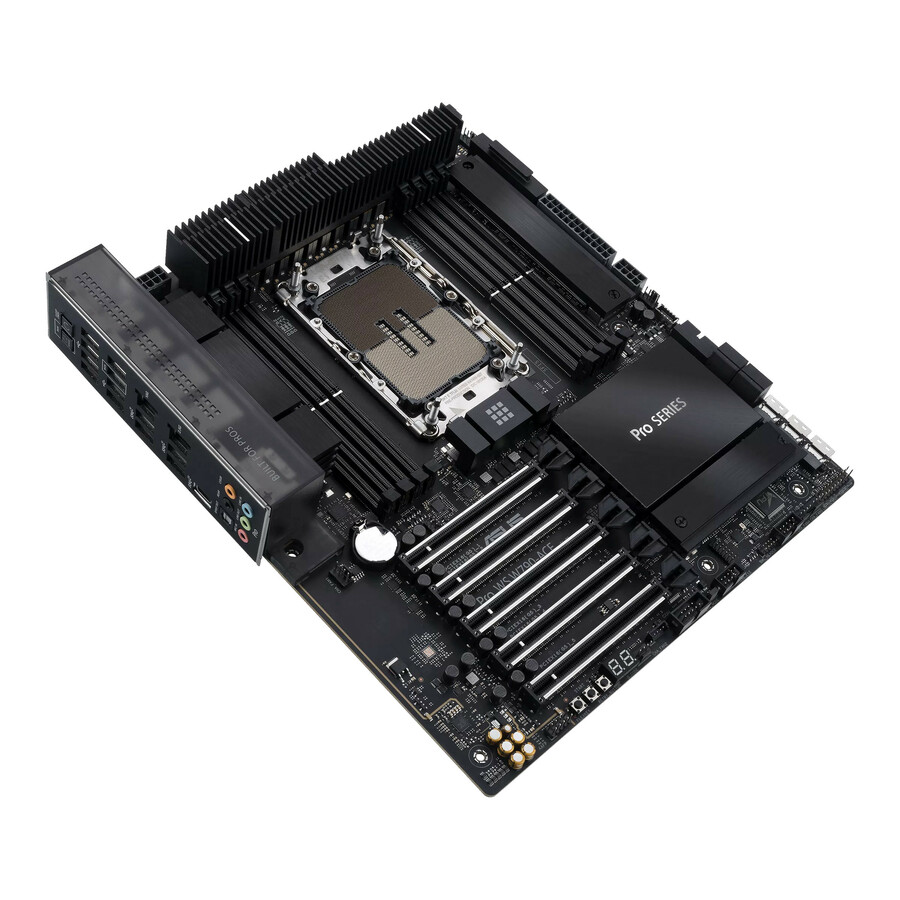

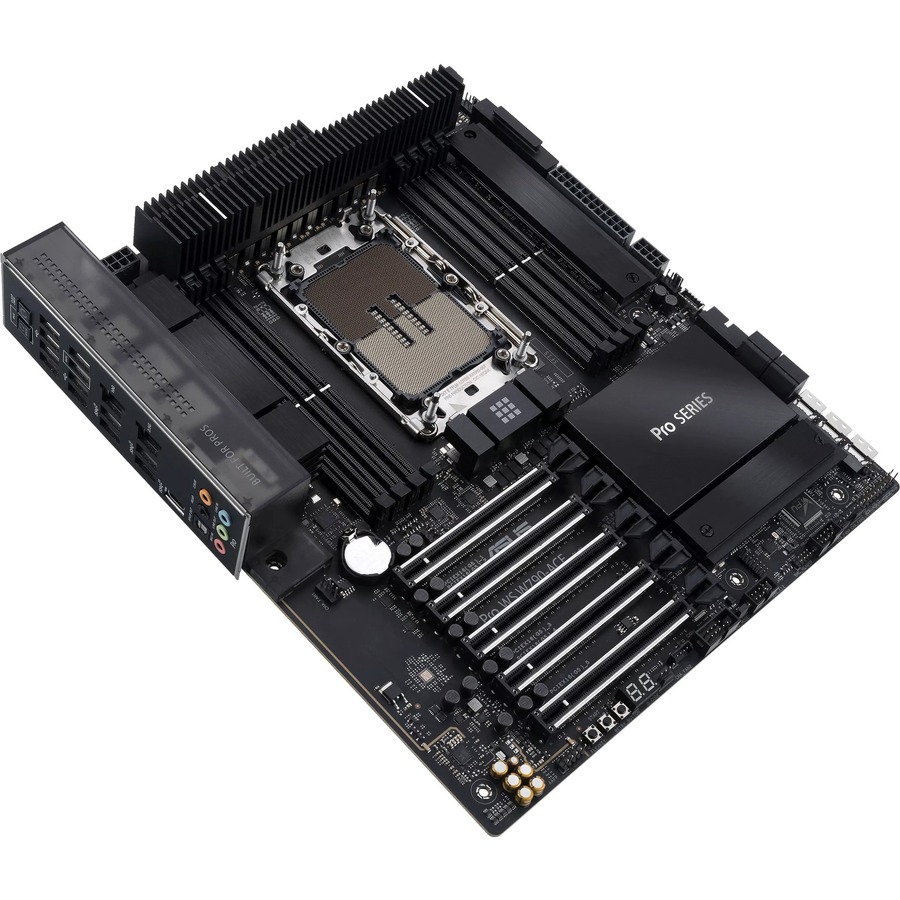

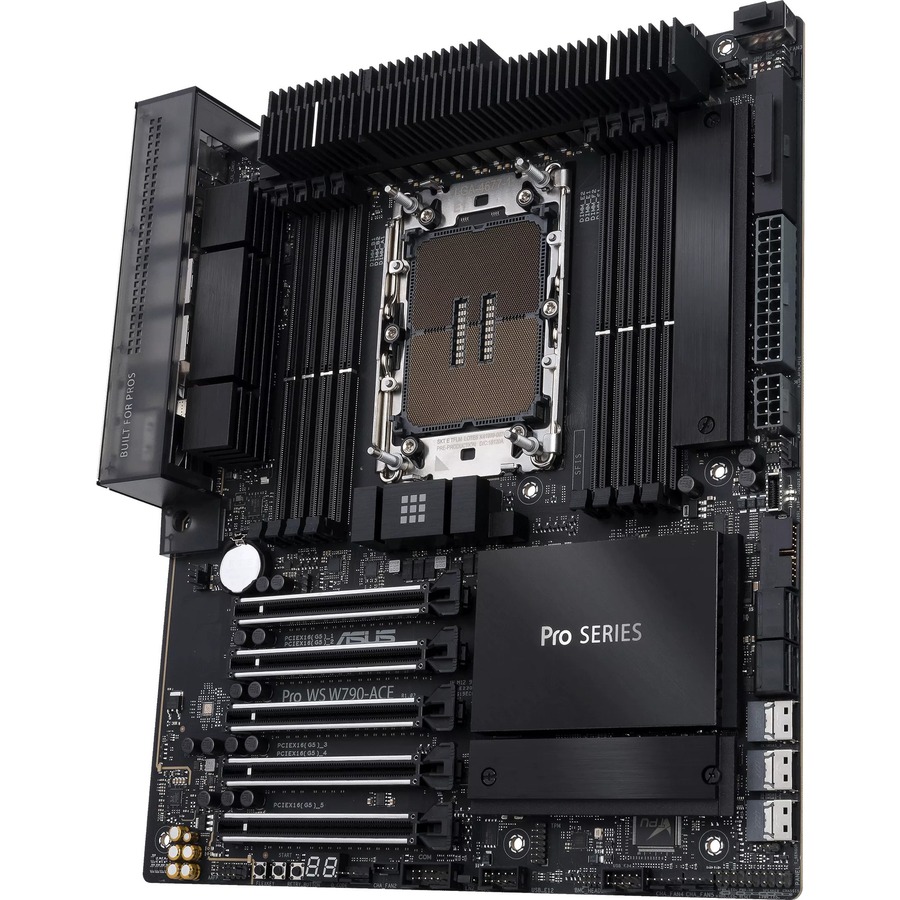

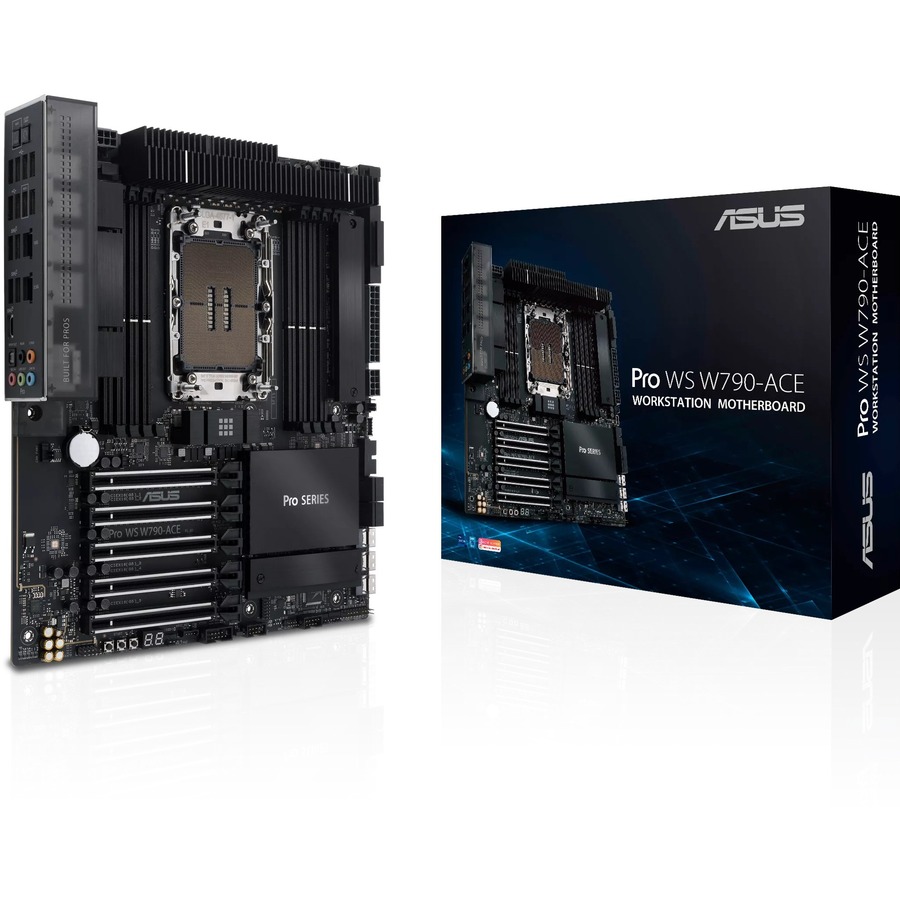

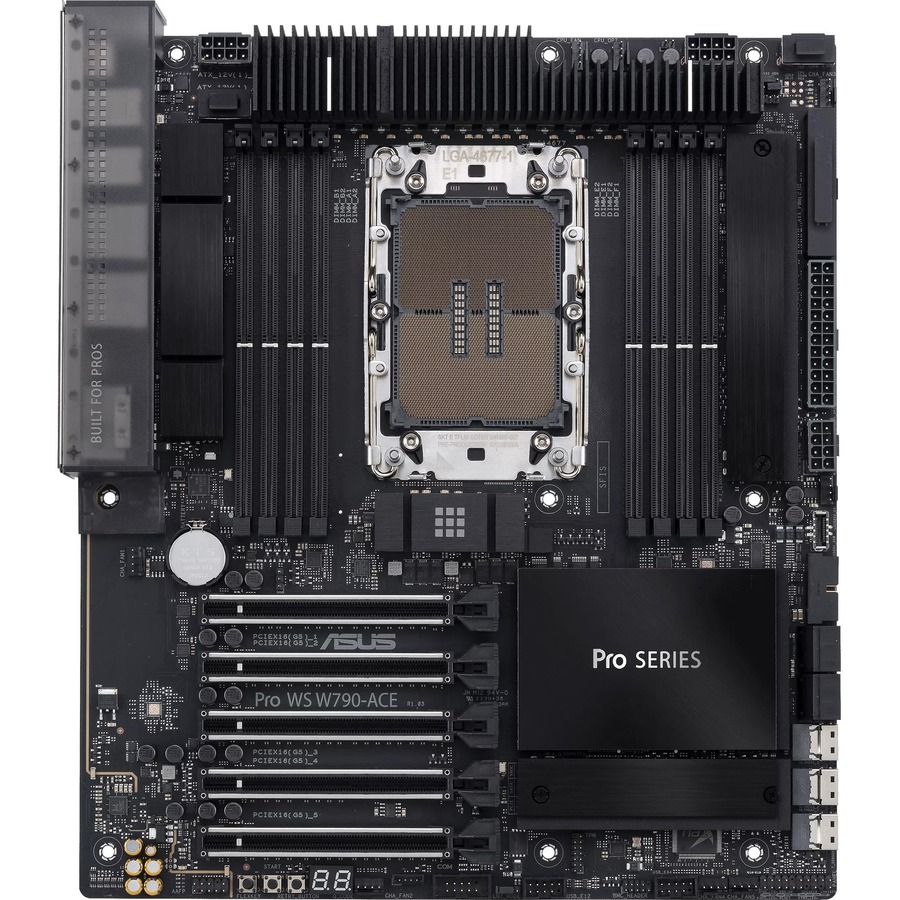

Asus PRO WS W790-ACE Desktop Motherboard - Intel W790 Chipset - Socket LGA-4677 - SSI CEB
Xeon Processor Supported - 2 TB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 8 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - 4 x SATA Interfaces
- SKU
- PRO WS W790-ACE
- Category
- Motherboards
$936.60
Back ordered — ships when restocked.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PRO WS W790-ACE
- Category
- Motherboards
Overview
Performance, Productivity, Proven
The Pro WS W790 series workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W790 series melds no-compromise engineering with incredible aesthetics.
ASUS W790 motherboards go above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices. Learn more about the Qualified Vendor List.
Low-profile professionalism
With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS W790-ACE presents a professional, low-profile look for content creators.
Multi-GPU support
The Pro WS W790-ACE features five PCIe 5.0 x16 slots for high-powered graphics cards, enabling enhanced performance for professional design, modeling, simulation and rendering applications.
Reliability with supreme memory overclocking
The Pro WS W790-ACE supports 4-channel 2DPC DDR5 RDIMM ECC memory, allowing automatically to detect and correct data corruption, reducing the chance of system crashes. Being infused with deliberate memory trace layout, this motherboard enables DDR5 memory overclocking with maxed-out speeds to provide better memory performance for a diverse range of workloads.
Highlights
- Intel® LGA 4677 socket: Ready for Intel Xeon® W-3400 & W-2400 processors
- CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (2DPC)
- Ultrafast connectivity: 5 PCIe 5.0 x16 slots, 10G & 2.5G LAN, 2 M.2, front and rear USB 3.2 Gen 2x2 Type-C® and 3 SlimSAS
- Server-grade IPMI remote management: Hardware and software-level with ASUS IPMI expansion card support, plus a real-time monitoring and management software - ASUS Control Center Express
- Robust power and thermal design: 12+1+1 power stages, 8-pin PCIe power connector, Massive VRM, chipset and M.2 heatsinks and M.2 backplate
- Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
Specifications

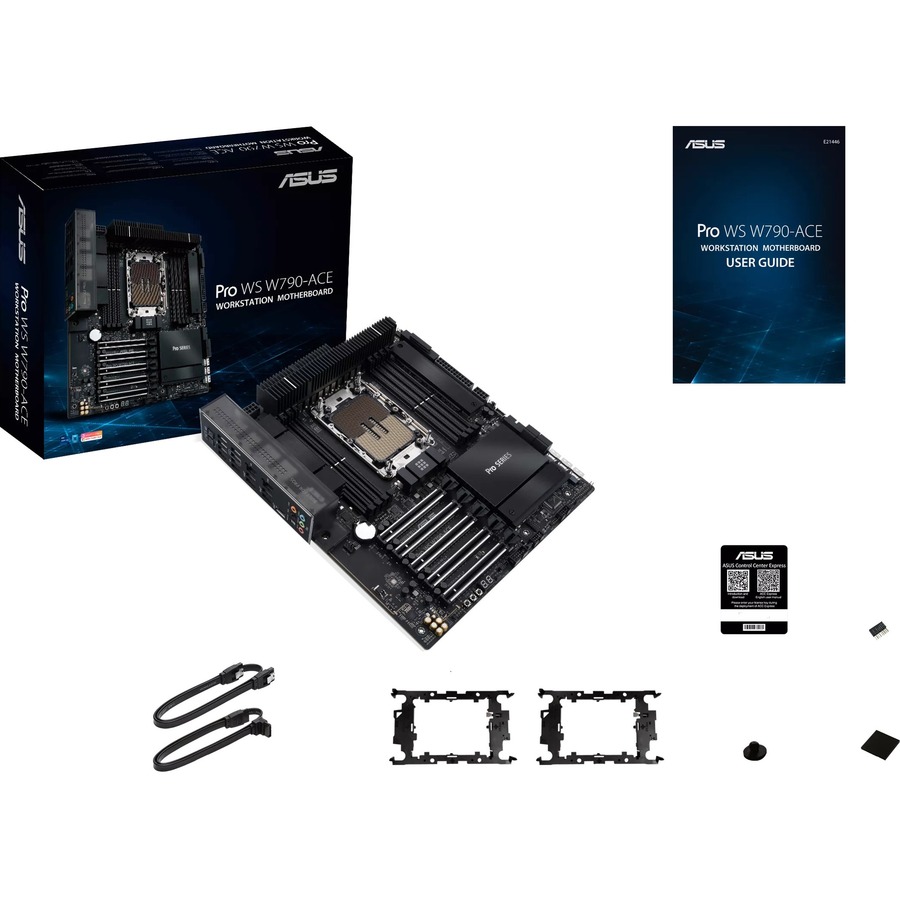

| Package Contents |
|
|---|---|
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | PRO WS W790-ACE |
| Maximum Memory Supported | 2 TB |
| S/PDIF | Yes |
| Form Factor | SSI CEB |
| Manufacturer | ASUS Computer International |
| Product Model | PRO WS W790-ACE |
| Product Name | PRO WS W790-ACE Desktop Motherboard |
| Processor Supported | Xeon |
| RAID Levels | 10, 1, 0, 5 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Product Series | PRO |
| Processor Socket | Socket LGA-4677 |
| Brand Name | Asus |
| Memory Technology | DDR5 SDRAM |
| Width | 12.5" |
| Depth | 10.5" |
| Environmentally Friendly | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Number of Memory Slots | 8 |
| Audio Channels | 7.1 |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 4 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 3 |
| Number of Network (RJ-45) Ports | 2 |
| Total Number of USB Ports | 13 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 5 |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 5 |
| 10Gigabit Ethernet | Yes |
| Number of M.2 Interfaces | 2 |
| Memory Speed Supported | 6800 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5800 MHz, 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| 2.5Gigabit Ethernet | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
