2 TB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 16 x Memory Slots - Gigabit Ethernet
$491.36
Special order — estimated available by September 10, 2026.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

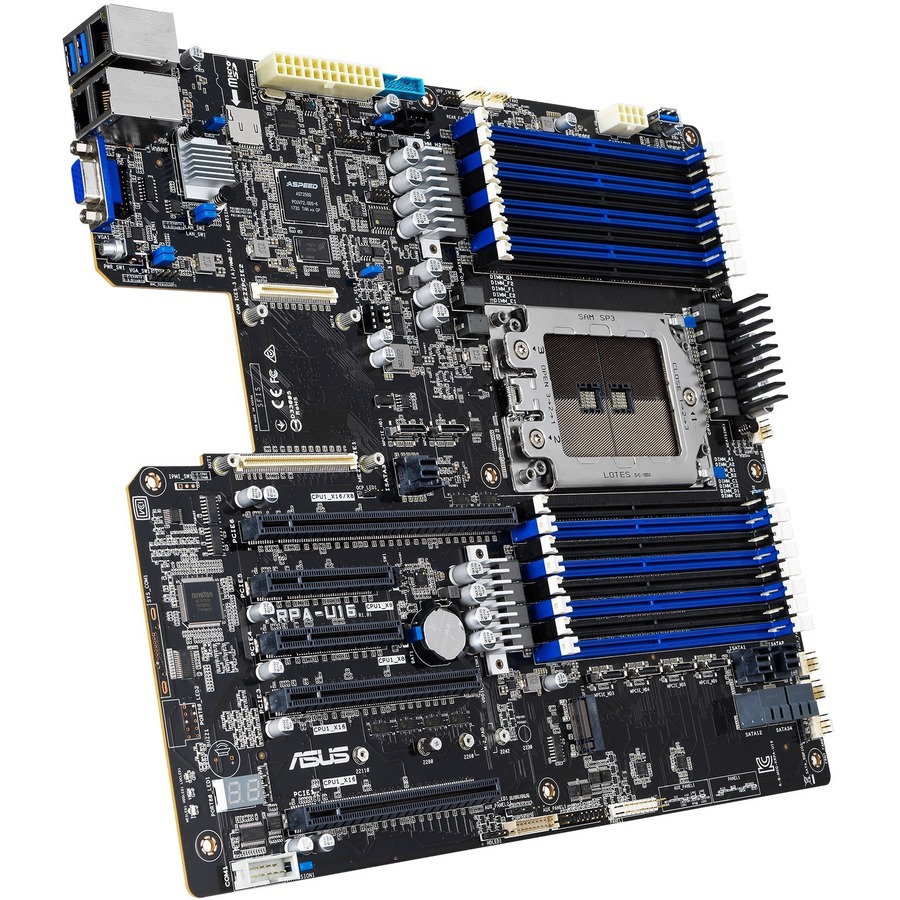

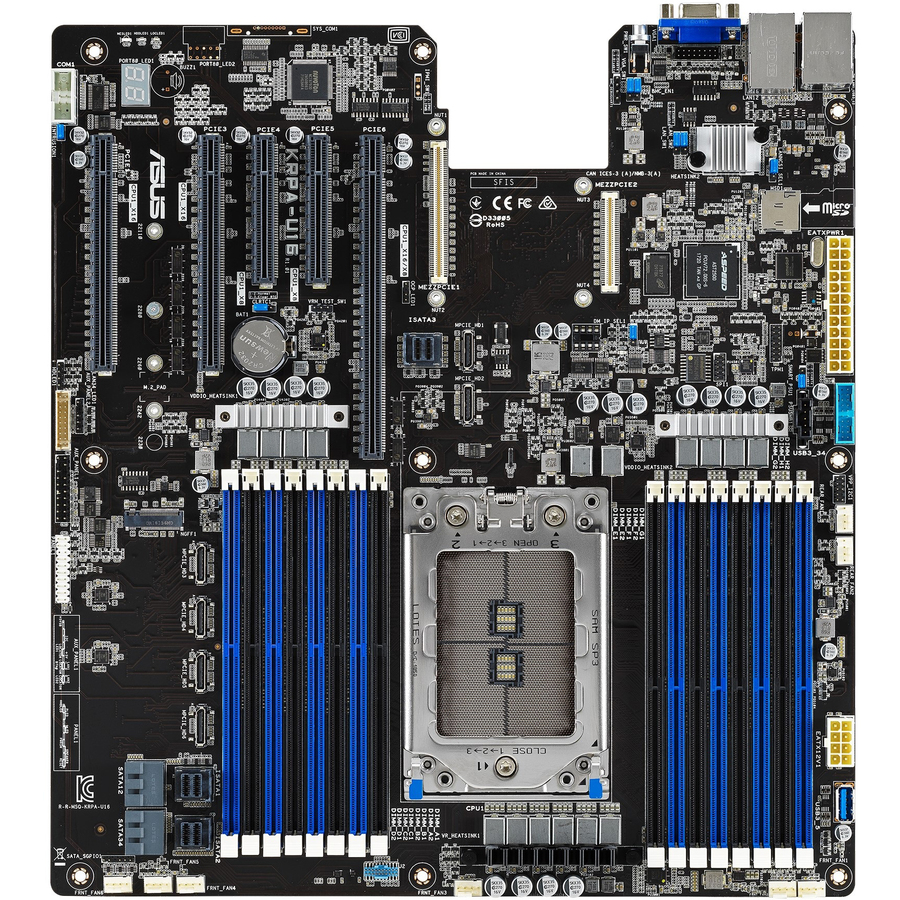

AMD EPYC 7002 LGA 4094 EEB server motherboard with DDR4 3200 MHz, PCIe 4.0, M.2, NVMe, SAS, SATA, OCP 2.0 Mezzanine card, dual LAN and ASUS Control Center
• Powered by AMD EPYC 7002 Series Processors with enhanced I/O, memory and security
• Features up to five PCI 4.0/3.0 lanes with 16 GT/s for next-gen connectivity
• Supports up to 16 DIMMs for up to 2 TB of memory
• Up to 12 NVMe drives via Oculink, plus ASUS riser cards to deliver low-latency performance
• Dual onboard LAN for improved data throughput and efficiency, plus one optional OCP 2.0 mezzanine card supporting up to 100G or higher ultrafast speed for HPC
• Complete IT infrastructure management with ASMB9-iKVM out-of-band remote management and ASUS Control Center for in-band management
• Features ASUS-exclusive Thermal Radar 2.0 technology that automatically adjusts fan curves across various zones
Powered by AMD EPYC 7002 Series Processors
The AMD EPYC 7002 processor features the world's first 7nm datacenter-design and a PCI Express® 4.0-capable x86 server processor with up to 2x the performance and 4x the floating point capability versus the previous 7001 generation. With support for up to 64 cores, 128 threads, 8-channels DDR4 3200, and 128 PCIe 4.0 lanes, this processor is also designed with encryption features in memory and virtualization for security assurance.
Rich I/O expansion with PCIe 4.0
PCIe 4.0 offers a 16 GT/s that doubles the bandwidth of PCIe 3.0 and delivers lower power consumption, better lane scalability and backwards compatibility. KRPA-U16 features up to 5 PCIe lanes, including two PCIe 4.0 lanes, and one PCIe 4.0 x24 that can be split to separate x16 and x8 link with an ASUS butterfly card for more storage and graphics power, or for network expansion.
Ultrafast connectivity for HPC applications
KRPA-U16 features two embedded Gigabit Ethernet ports and supports up to 100G or higher interconnect speeds with the addition of a PCIe 4.0 (Gen 4 x16 link) for its OCP 2.0 mezzanine card for HPC applications that require high-bandwidth, low-latency network support to connect multiple nodes and clusters. ASUS offers an authorized validation OCP mezzanine card for these models.
More storage, NVMe solutions
Designed for higher storage throughput performance and storage responsiveness for advanced computing, KRPA-U16 features 12 NVMe solutions with six onboard Oculink ports via a PCIe x4 link and six additional Oculink ports via an ASUS riser card for faster data transfers. Additionally, 16 SATA and SAS drives are available for budget-friendly applications.
Speed up with onboard M.2
With x4 PCI Express® 4.0 bandwidth, KRPA-U16 features up to 32Gbps M.2 for faster data-transfer speeds - ideal for an operating system or application drive.
Comprehensive IT infrastructure management
KRPA-U16 features an embedded iKVM module and ASUS Control Center software to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline.
About ASUS ASUS is a multinational company best known for their motherboards, PCs, monitors, graphics cards and routers. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise. About ROG Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world. © 2024 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
| General Information | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | KRPA-U16 |
| Brand Name | Asus |
| Product Model | KRPA-U16 |
| Product Name | KRPA-U16 Server Motherboard |
| Product Type | Server Motherboard |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| Total Number of PCI Express Slots | 5 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Number of PCI Express x24 Slots | 1 |

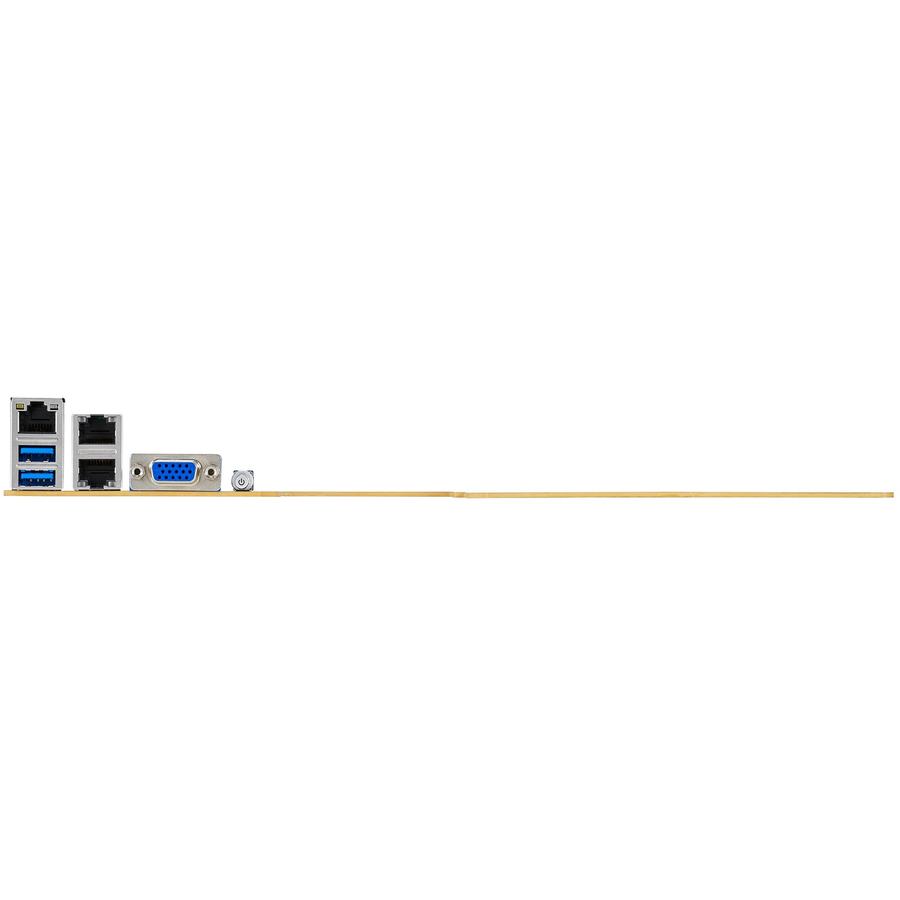

| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Memory | |
| Number of Memory Slots | 16 |
| Memory Form Factor | RDIMM, LRDIMM, DIMM |
| Maximum Memory Supported | 2 TB |
| Memory Speed Supported | 3200 MHz, 2933 MHz, 2666 MHz |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Onboard Interfaces | |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 2 |
| Number of Onboard USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | SSI EEB |
| Width | 13" |
| Depth | 12" |
| Weight (Approximate) | 3.09 lb |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Total Processor Supported | 1 |
| Processor Socket | Socket SP3 |
| Processor Supported | EPYC |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Model | AST2500 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
