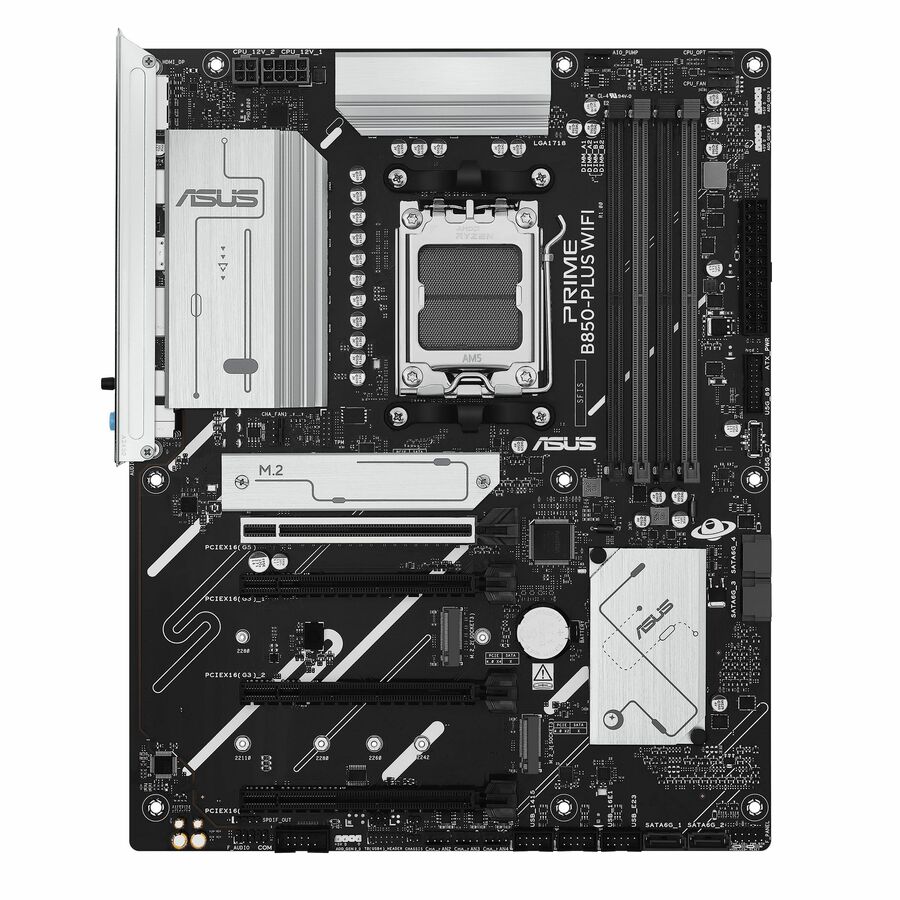

Asus Prime PRIME B850-PLUS WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - ATX
Ryzen 7, Ryzen 9 Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11ax - HDMI - DisplayPort - 4 x SATA Interfaces
- SKU
- PRIME B850-PLUS WIFI
- Category
- Motherboards
$200.66
Back ordered — ships when restocked.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PRIME B850-PLUS WIFI
- Category
- Motherboards
Overview
PRIME B850-PLUS WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen? 9000 series processors. The PRIME B850-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
AI Solutions
ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance.
AI Advisor
ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
Digital Power Design
PRIME B850-PLUS WIFI features an 8+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors plus steady performance for day-to-day use.
Enhanced DDR5 performance
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME B850-PLUS WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.2
For entry-level modules without EXPO? support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.
For those looking to surpass stock DDR5 speeds, the PRIME B850-PLUS WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO?) support and a wide array of UEFI settings for further performance tweaks.
Three M.2 slots (up to 128 Gbps)
PRIME B850-PLUS WIFI offers a total of three M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, and two that support PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.
Highlights
- Ryzen 7 processors supported for enhanced, dependable system performance with maximum usability
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- Supported 0 RAID levels provide data reliability and fault tolerance
- IEEE 802.11ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Specifications
| Package Contents |
|
|---|---|
| Product Type | Gaming Desktop Motherboard |
| Error Checking | ECC |
| Manufacturer Part Number | PRIME B850-PLUS WIFI |
| Maximum Memory Supported | 256 GB |
| Limited Warranty | 3 Year |
| Form Factor | ATX |
| Manufacturer | ASUS Computer International |
| Product Model | PRIME B850-PLUS WIFI |
| Product Name | PRIME B850-PLUS WIFI Gaming Desktop Motherboard |
| Processor Supported | Ryzen 7, Ryzen 9 |
| Product Line | Prime |
| RAID Levels | 0, 1, 5, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket AM5 |
| Brand Name | Asus |
| Memory Technology | DDR5 SDRAM |
| Width | 12" |
| Depth | 9.6" |
| Chipset Manufacturer | AMD |
| Chipset Model | B850 |
| Number of Memory Slots | 4 |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Number of SATA Interfaces | 4 |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth Standard | Bluetooth 5.3 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x4 Slots | -1 |
| Number of PCI Express x16 Slots | 5 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 6 |
| Onboard S/PDIF Header | Yes |
| PCI Express Standard | PCI Express 3.0, PCI Express 4.0, PCI Express 5.0 |
| Total Number of PCI Express Slots | 5 |
| Thunderbolt | Yes |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 5 |
| Number of M.2 Interfaces | 3 |
| Memory Speed Supported | 8000 MHz |
| 2.5Gigabit Ethernet | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| AI-powered | Yes |
