Core, Pentium Gold, Celeron Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
$175.68
Special order — estimated available by September 10, 2026.
Genuine GIGABYTE Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Express to PCIE5 Performance
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
1.7X
stronger shearing test
3.2X
stronger retention force test
Reduced Signal Degradation with SMD Technology
UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
Solid Pins
Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections
VRM Thermal
Durable VRM heatsinks keep your system cool and efficient.
2X
Massive cooling surface Exceptional heat dissipation
Smart Fan 6
Cool. Quiet. Customized.

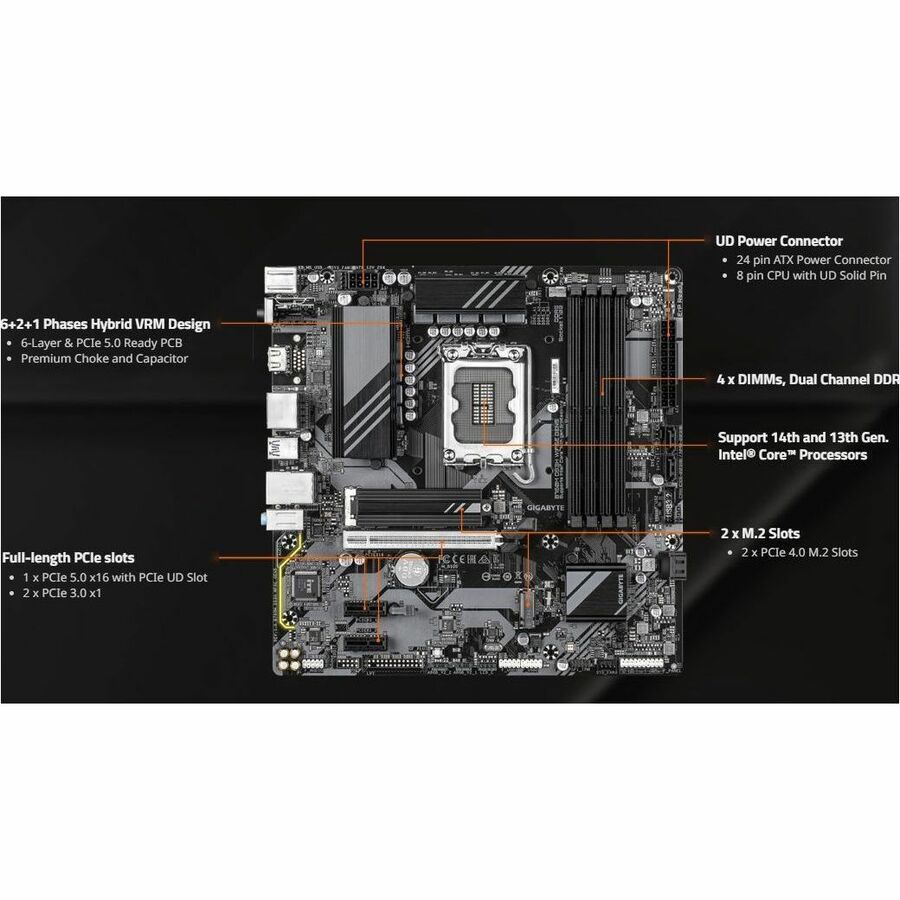

Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Unlock DDR5 Performance
GIGABYTE is offering a tested and proven platform with extreme memory performance boost.
Limited Warranty: 3 Year
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | B760M DS3H WF6E GEN5 |
| Brand Name | GIGABYTE |
| Product Line | Ultra Durable |
| Product Model | B760M DS3H WF6E GEN5 |

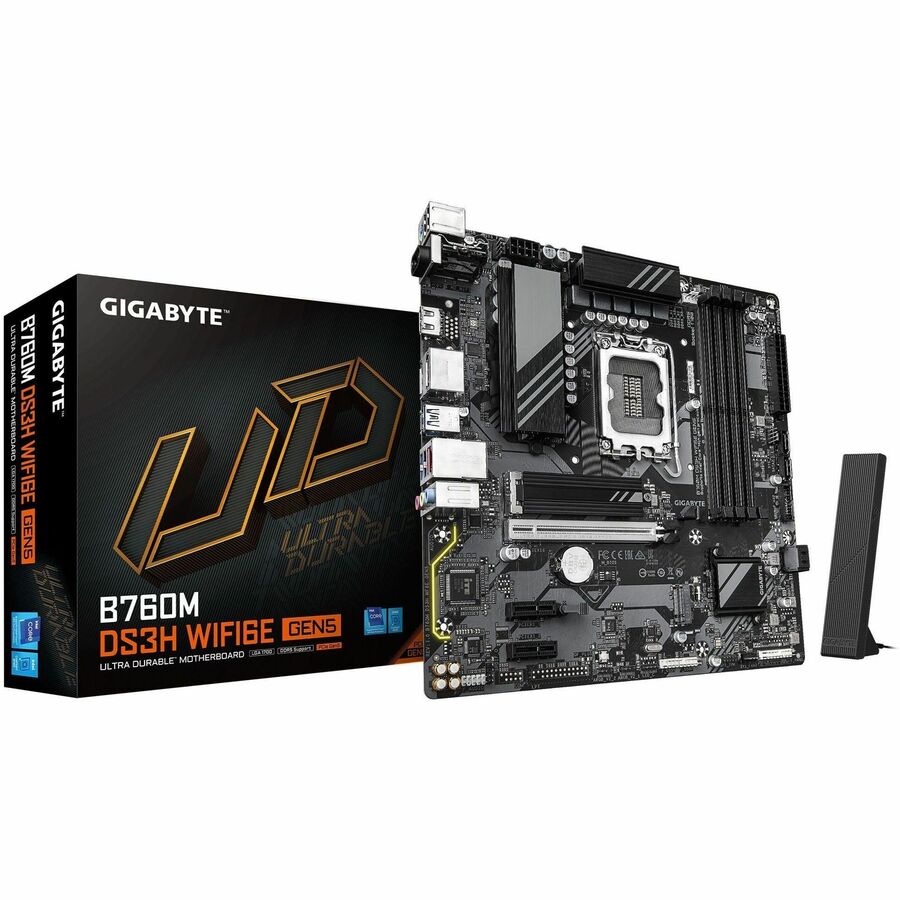

| Product Name | B760M DS3H WF6E GEN5 Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 2 |
| PCI Express Standard | PCI Express 5.0, PCI Express 3.0 |
| Number of PCI Express x16 Slots | 1 |

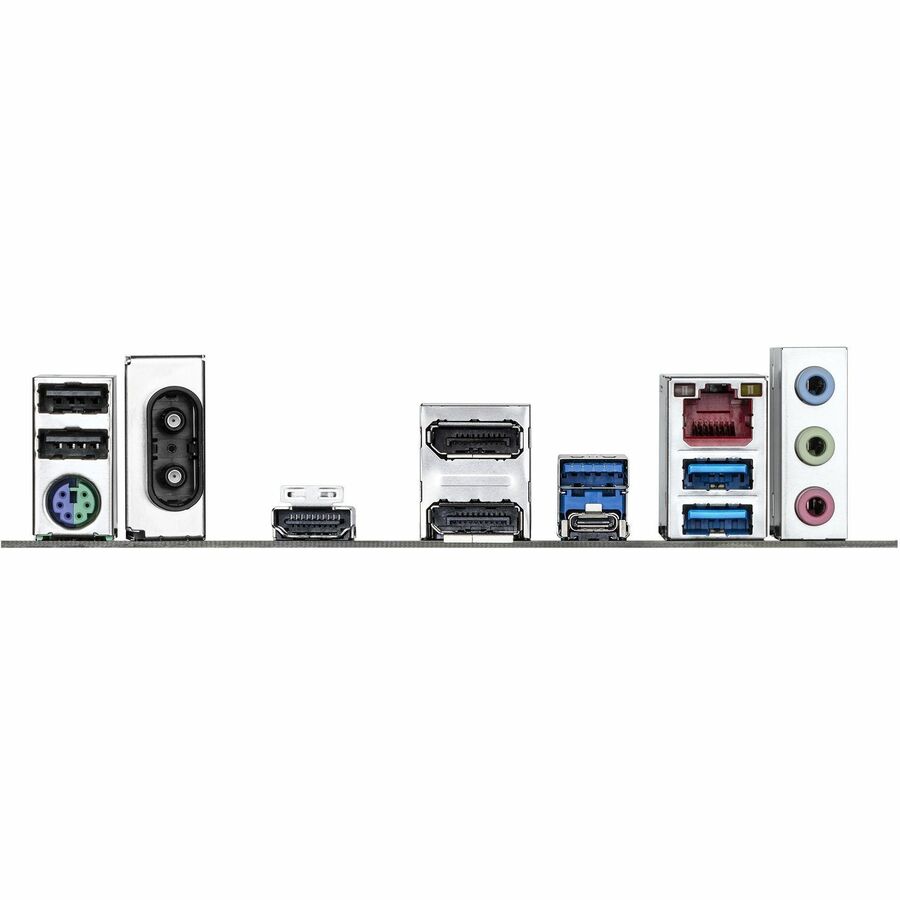

| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM, UDIMM |
| Maximum Memory Supported | 256 GB |
| Memory Speed Supported | 7600 MHz, 7400 MHz, 7200 MHz, 7000 MHz, 6800 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5800 MHz, 5600 MHz, 5200 MHz, 4800 MHz, 4400 MHz |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 2.0 Ports | 4 |
| Onboard S/PDIF Header | Yes |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 9.6" |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 14th Gen, 13th Gen, 12th Gen |
| Processor Supported | Core, Pentium Gold, Celeron |
| Technical Information | |
| AI-powered | Yes |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Taiwan Restriction of Hazardous Substances (Taiwan RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
