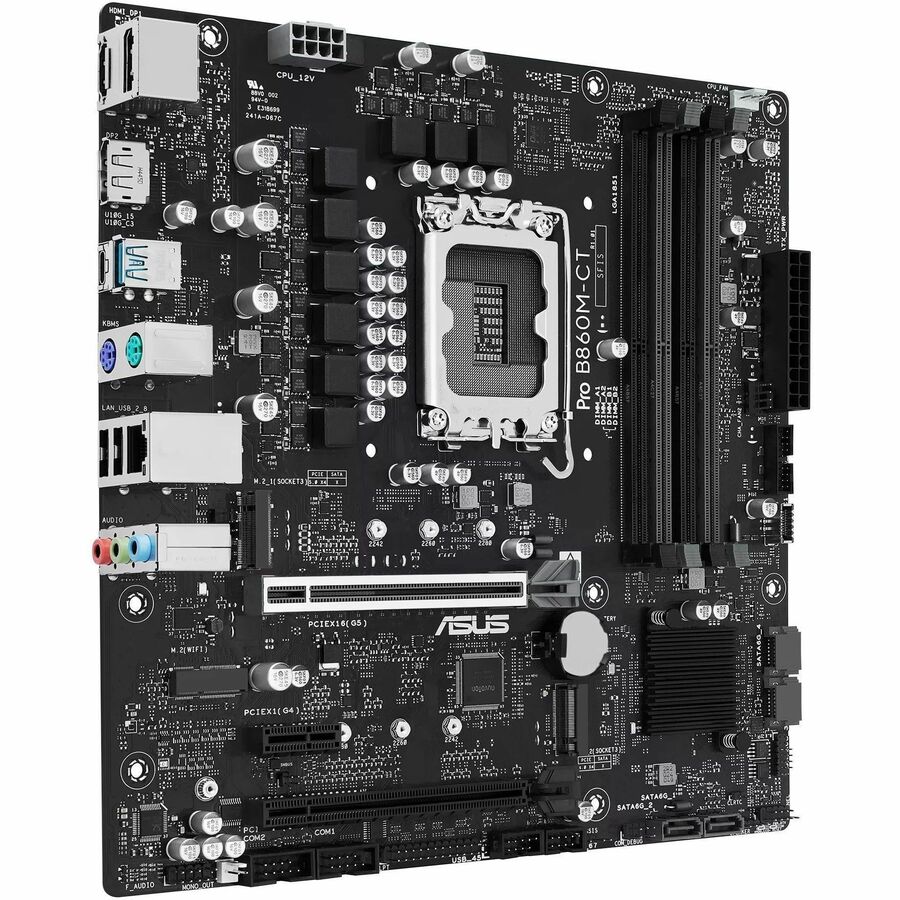

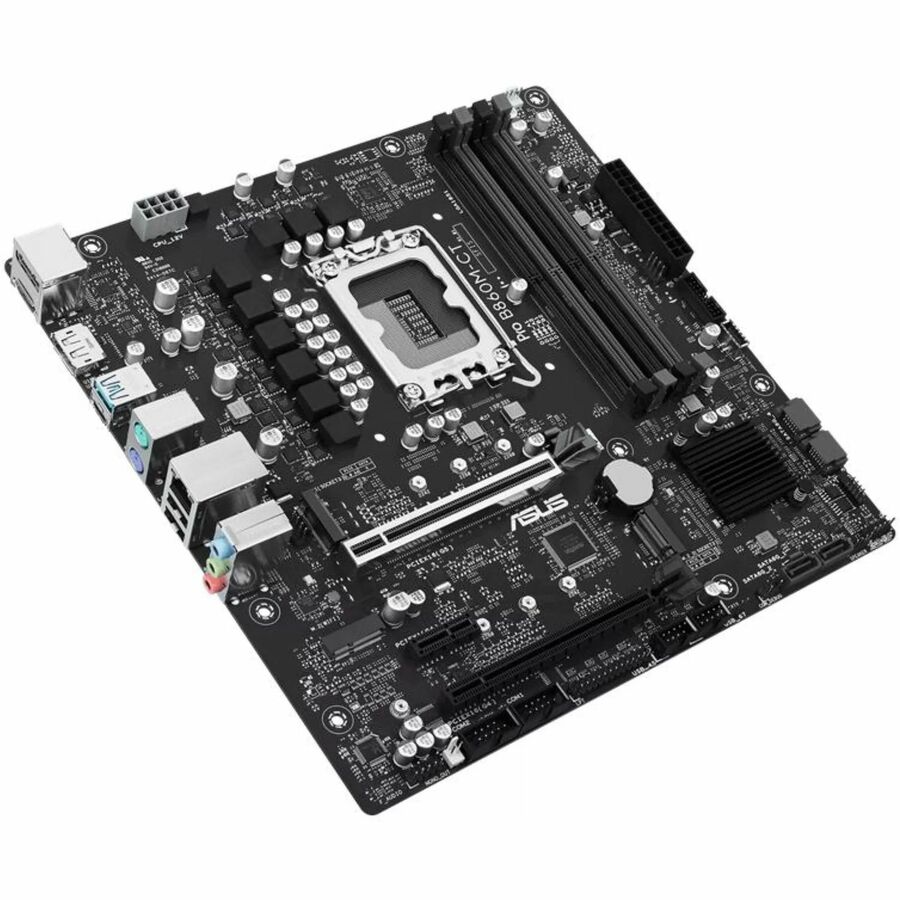

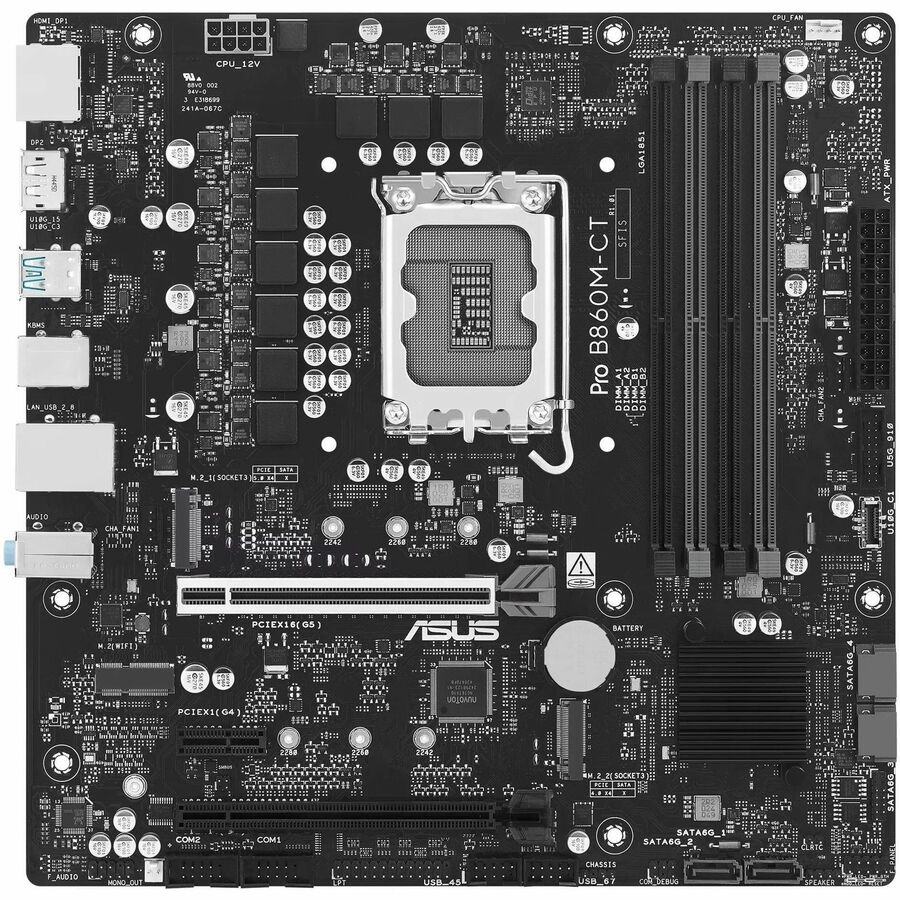

Asus B860M-CT-CSM Desktop Motherboard - Intel B860 Chipset - Socket LGA-1851 - Micro ATX
Core Ultra Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM, CUDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
- SKU
- PRO B860M-CT-CSM
- Category
- Motherboards
$171.06
Back ordered — ships when restocked.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PRO B860M-CT-CSM
- Category
- Motherboards
Overview
Micro-ATX B860 business motherboard with enhanced security, reliability, manageability and serviceability
• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel ® LGA 1851 Socket: Ready for Intel ® Core? Ultra Processors (Series 2)
• ASUS CSM Program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced System Security: A self-recovering BIOS, TXT, TPM to safeguard PCs and NIST SP 800-193 compliance
• Consistent and Reliable Performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient Management and Customization: BIOS EZ Deploy, an event log and commercial BIOS kit to enable easy maintenance
• Better Serviceability: Q-LED Core diagnostic display and COM debug header to facilitate building and support processes
• Ultrafast Connectivity: PCIe 5.0, DDR5, rear and front USB 10Gbps Type-C ®
• DIY Friendly Design: SafeSlot, Dual DIMM clips, Box headers
Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express - a US$60
Highlights
- Core Ultra processors supported for faster, dependable performance and better access to data and information
- DDR5 SDRAM slot for convenient installation of memory
- RAID supported levels provide data reliability and fault tolerance
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Micro ATX form factor for your accessibility convenience and simplicity of usage for Desktop Motherboard
Specifications
| Package Contents |
|
|---|---|
| Product Type | Desktop Motherboard |
| Error Checking | ECC |
| Manufacturer Part Number | PRO B860M-CT-CSM |
| Maximum Memory Supported | 256 GB |
| Limited Warranty | 3 Year |
| Form Factor | Micro ATX |
| Manufacturer | ASUS Computer International |
| Product Model | B860M-CT-CSM |
| Product Name | Pro B860M-CT-CSM Desktop Motherboard |
| Processor Supported | Core Ultra |
| RAID Levels | 0, 1, 5, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Product Series | PRO |
| Processor Socket | Socket LGA-1851 |
| Brand Name | Asus |
| Memory Technology | DDR5 SDRAM |
| Width | 9.6" |
| Depth | 9.6" |
| Chipset Manufacturer | Intel |
| Chipset Model | B860 |
| Number of Memory Slots | 4 |
| Audio Channels | 7.1 |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 4 |
| Number of PCI Express x1 Slots | 1 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 2 |
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| PCI Express Standard | PCI Express 5.0, PCI Express 4.0 |
| Total Number of PCI Express Slots | 3 |
| Memory Form Factor | DIMM, UDIMM, CUDIMM |
| Total Number of Expansion Slots | 3 |
| Number of M.2 Interfaces | 2 |
| Memory Speed Supported | 8666 MHz |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
| AI-powered | Yes |
