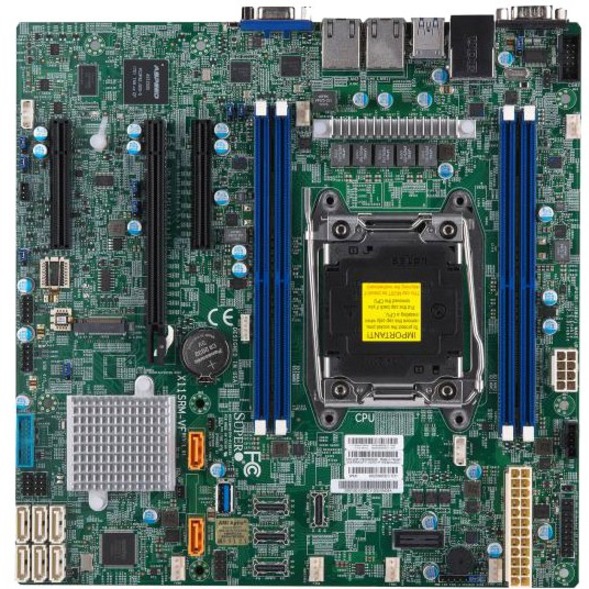

Supermicro X11SRM-VF Server Motherboard - Intel C422 Chipset - Socket R4 LGA-2066 - Micro ATX
Supermicro

Supermicro X11SRM-VF Server Motherboard - Intel C422 Chipset - Socket R4 LGA-2066 - Micro ATX

Xeon Processor Supported - 256 GB DDR4 SDRAM Maximum RAM - RDIMM, LRDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 8 x SATA Interfaces

SKU
MBD-X11SRM-VF-O
Category
Motherboards

MSRP$424.00

$394.16

Save 7%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Supermicro through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MBD-X11SRM-VF-O
Category
Motherboards

Overview

UP Xeon® Motherboards - Socket R4 (LGA 2066)

BOARDS supporting Intel® Xeon® W Processors / Socket R4 (LGA 2066)

Supermicro's single processor Socket R4 design features the Intel® C422 chipset and the Intel® Xeon® W processor. The outstanding features include DDR4 ECC RDIMM/LRDIMM memory, onboard OCuLink connectors for Intel Virtual RAID on Chip (VROC) support, PCI-E 3.0, M.2 and SATA 3.0 (6Gbps) HDD/SSD, 1GbE networking and IPMI 2.0 plus KVM with dedicated LAN. Designed with performance, reliability, and manageability, Supermicro's single processor motherboards are the perfect solution for a variety of server and workstation applications.

Highlights

  • Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
  • DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
  • RAID supported levels provide data reliability and fault tolerance
  • Micro ATX form factor for your accessibility convenience and simplicity of usage for Server Motherboard

Specifications

Product TypeServer Motherboard
CompatibilitySuperChassis : SC813MFTQC-R407CB SC514-R407C SC515-R407
Manufacturer Part NumberMBD-X11SRM-VF-O
Maximum Memory Supported256 GB
Packaged Quantity1
Form FactorMicro ATX
ManufacturerSupermicro Computer, Inc
Product ModelX11SRM-VF
Product NameX11SRM-VF Server Motherboard
Package TypeRetail
Processor SupportedXeon
RAID Levels10, 5, 1, 0
Total Processor Supported1
Controller TypeSerial ATA/600
Processor SocketSocket R4 LGA-2066
Brand NameSupermicro
Memory TechnologyDDR4 SDRAM
Width9.6"
Depth9.6"
Chipset ManufacturerIntel
Chipset ModelC422
Number of Memory Slots4
Graphics Controller ModelAST2500
Gigabit EthernetYes
Number of SATA Interfaces8
Onboard VideoOn-board Video Chipset
RAID SupportedYes
Number of PCI Express x8 Slots2
Number of PCI Express x16 Slots1
VGAYes
Total Number of USB Ports4
Number of USB 3.0 Ports2
Total Number of Onboard USB Ports7
Number of Onboard USB 3.0 Ports3
Total Number of PCI Express Slots3
Memory Form FactorRDIMM, LRDIMM, DIMM
Total Number of Expansion Slots3
Number of M.2 Interfaces1
Memory Speed Supported2666 MHz, 2400 MHz, 2133 MHz
