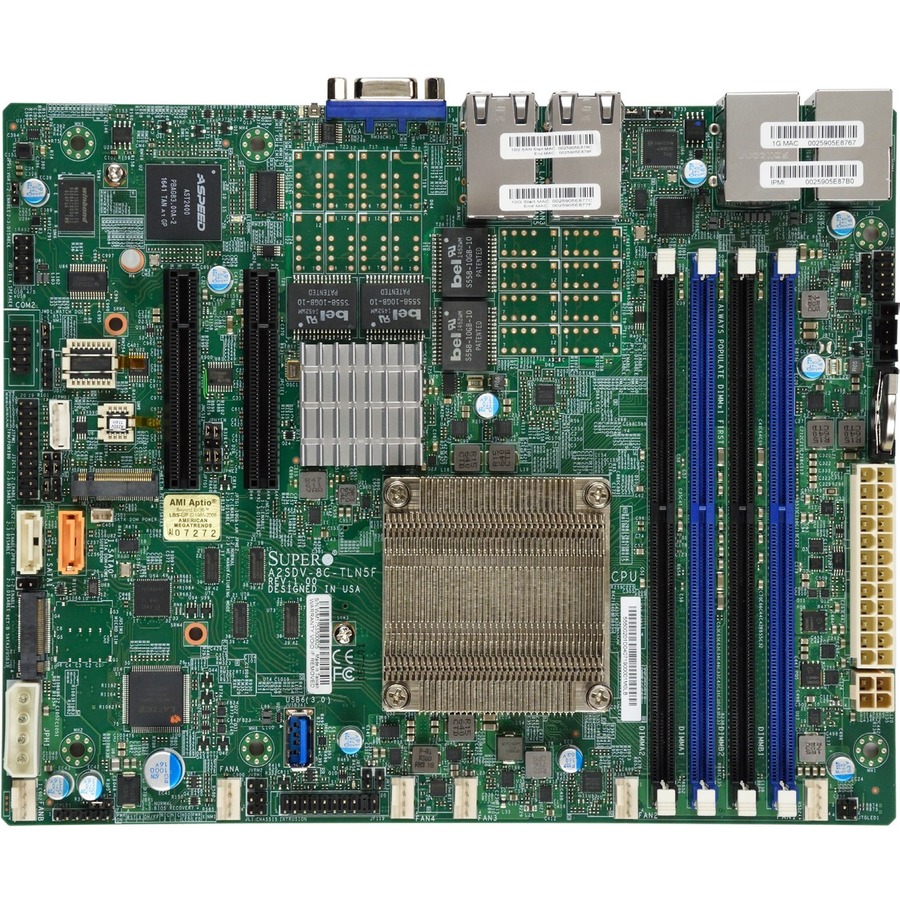

Supermicro A2SDV-8C-TLN5F Server Motherboard - Socket BGA-1310 - Flex ATX

Atom C3708 - 256 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x SATA Interfaces

SKU: MBD-A2SDV-8C-TLN5F-O
Category: Motherboards

MSRP$853.33

$790.64

Save 7%

Back ordered

Back ordered — ships when restocked.

Genuine Supermicro through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: MBD-A2SDV-8C-TLN5F-O
Category: Motherboards

Overview

C3000 Series BOARDS (System-on-Chip)

Supermicro's motherboards based on Intel® Atom® processor C3000 series System-on-Chip (formerly Denverton) are well-suited for entry-level server platforms and embedded IPC market.

Warranty

Limited Warranty: 1 Year

Highlights

DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Flex ATX server motherboard

Specifications

Package Contents	A2SDV-8C-TLN5F Server Motherboard 1 x Motherboard Quick Reference Guide 2 x SATA Cables 1 x I/O Shield
Product Type	Server Motherboard
Compatibility	Chassis: SCE300 SC504-203B SC505-203B
Manufacturer Part Number	MBD-A2SDV-8C-TLN5F-O
Maximum Memory Supported	256 GB
Packaged Quantity	1
Limited Warranty	1 Year
Form Factor	Flex ATX
Manufacturer	Supermicro Computer, Inc
Product Model	A2SDV-8C-TLN5F
Product Name	A2SDV-8C-TLN5F Server Motherboard
Package Type	Retail
Controller Type	Serial ATA/600
Processor Socket	Socket BGA-1310
Brand Name	Supermicro
Memory Technology	DDR4 SDRAM
Width	9"
Depth	7.3"
Environmentally Friendly	Yes
Number of Memory Slots	4
Graphics Controller Model	AST2400
Gigabit Ethernet	Yes
Number of SATA Interfaces	2
Onboard Video	On-board Video Chipset
Number of PCI Express x8 Slots	1
VGA	Yes
Number of Network (RJ-45) Ports	5
Total Number of USB Ports	4
Number of USB 3.0 Ports	4
Total Number of Onboard USB Ports	3
Number of Onboard USB 3.0 Ports	1
Total Number of PCI Express Slots	1
Integrated Processor Type	Atom
Integrated Processor Model	C3708
Integrated Processor Core	Octa-core (8 Core)
Memory Form Factor	DIMM, UDIMM
Total Number of Expansion Slots	1
10Gigabit Ethernet	Yes
Number of M.2 Interfaces	2
Memory Speed Supported	2400 MHz, 2133 MHz, 1866 MHz, 1600 MHz
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
