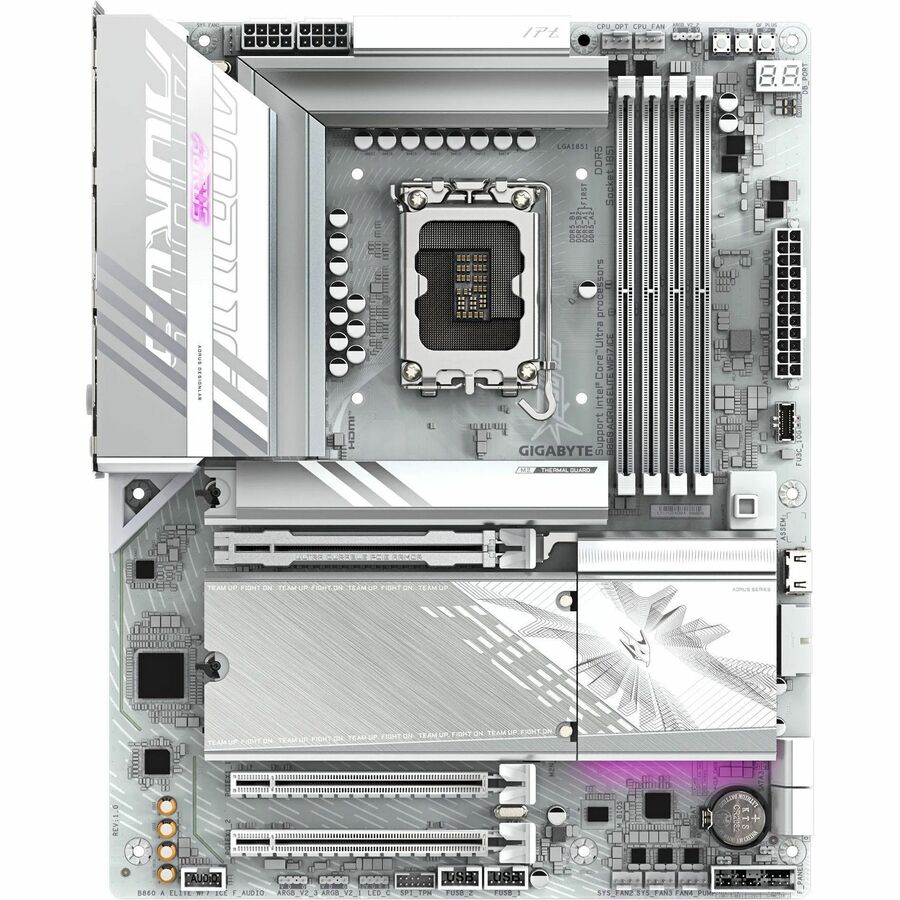

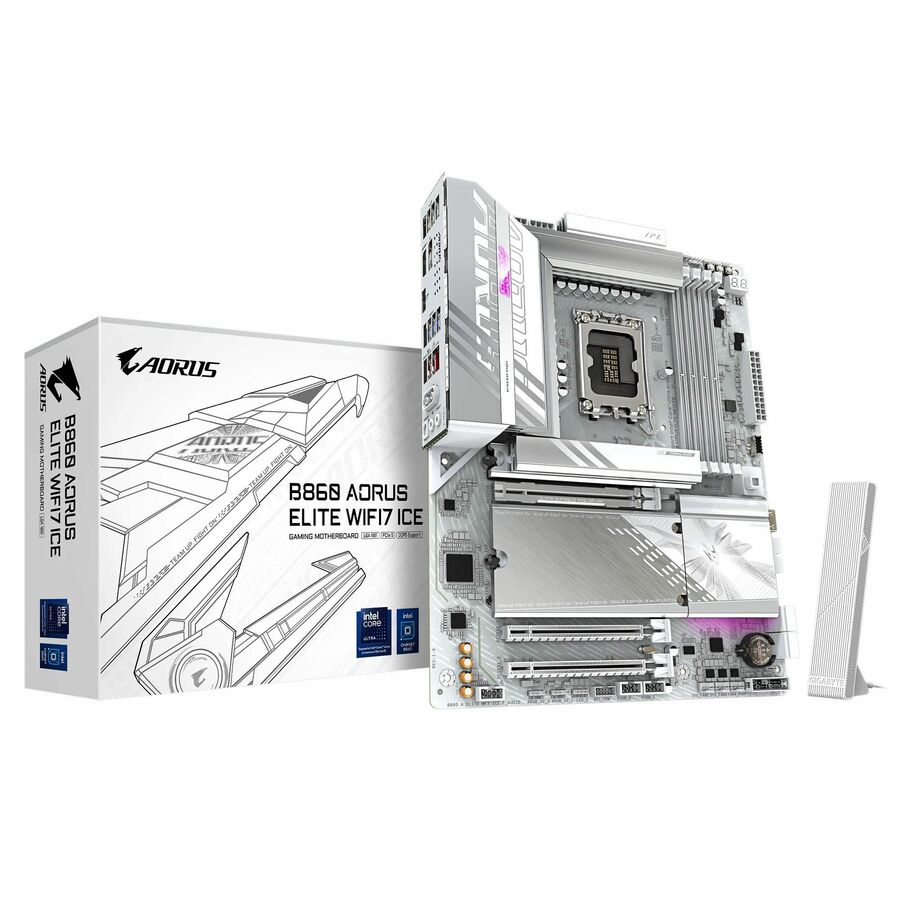

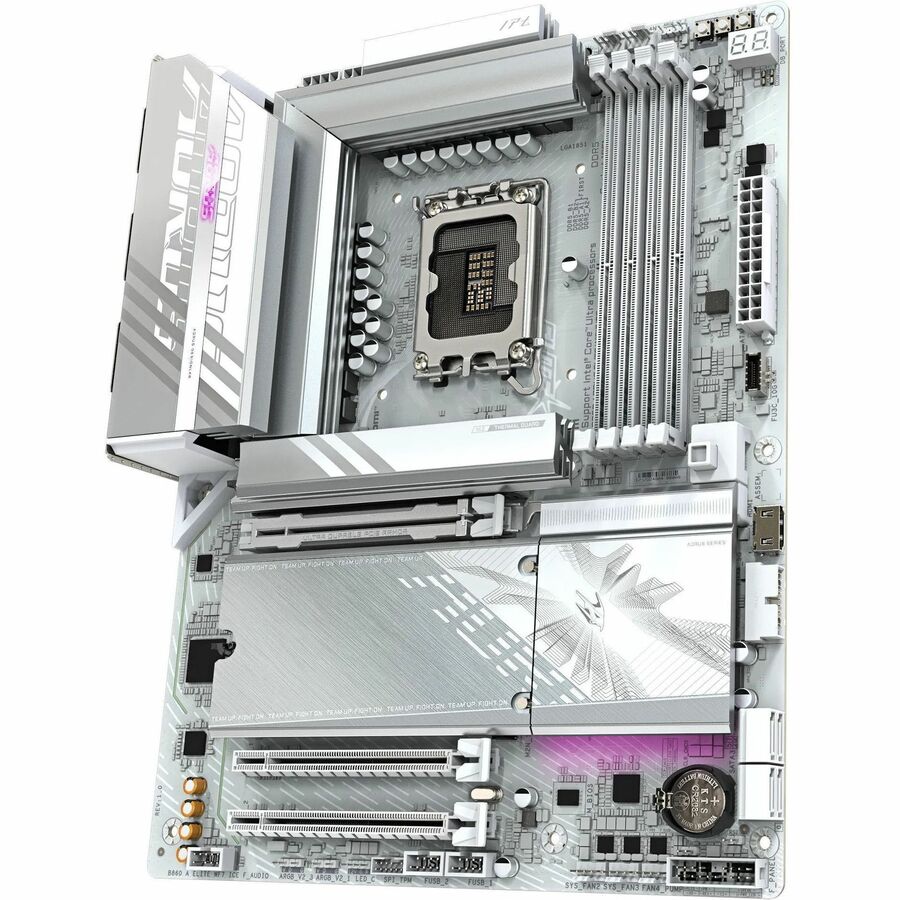

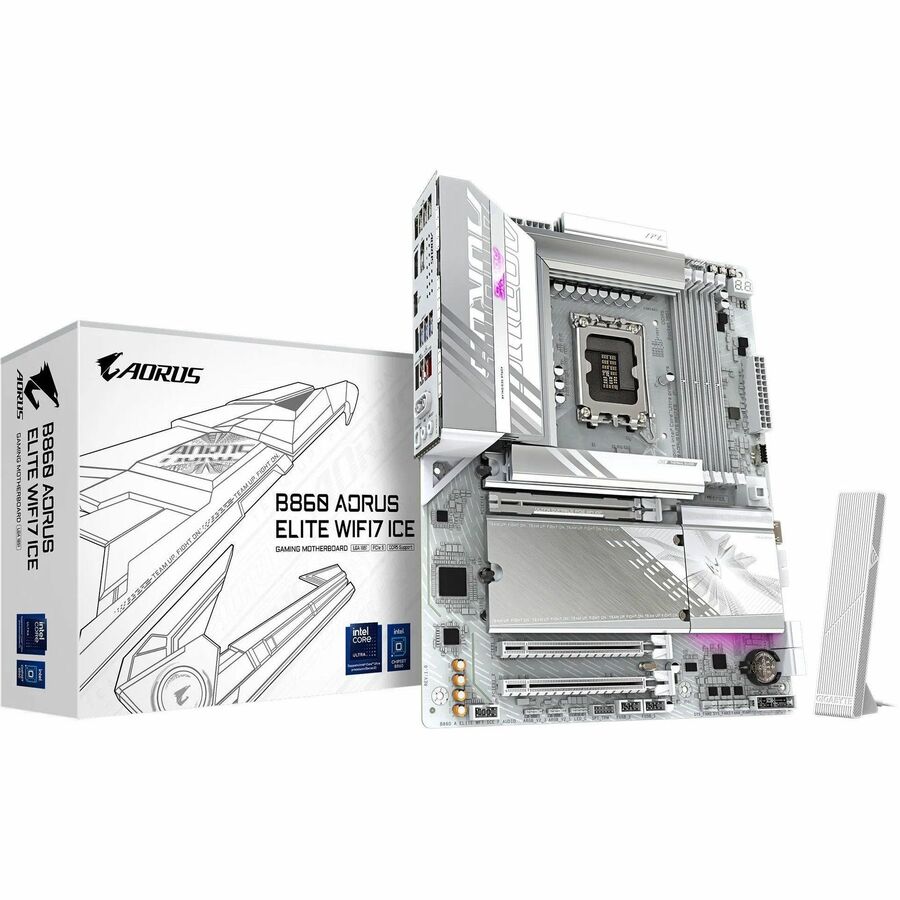

GIGABYTE Ultra Durable B860 A ELITE WF7 ICE Gaming Desktop Motherboard - Intel B860 Chipset - Socket LGA-1851 - ATX
Core Ultra Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax/be - HDMI - DisplayPort - 4 x SATA Interfaces
- SKU
- B860 AORUS ELITE WIFI7 ICE
- Category
- Motherboards
$234.15
Back ordered — ships when restocked.
Genuine GIGABYTE Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- B860 AORUS ELITE WIFI7 ICE
- Category
- Motherboards
Overview
Infinite Memory Performance
AORUS gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
D5 Bionic Corsa
AI Overclocking For peak performance
AORUS AI
Auto-Overclocking Software by AI model
AI Engine
Advanced AI Overclocking Model
AI Design For MB signal enhancement
AI-Driven PCB Design
Redefining PCB Design with AI
HyperTune BIOS
AI-Driven Advanced BIOS Optimization Technology
Sturdy VRM Design
Steady Power
Better Play Elite Series, steady power keeps your gaming smooth.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
14 VCORE Phases
Unlock the full power of your multi-core CPU for unmatched performance.
1 VCCGT Phase
Optimized for integrated GPU performance and memory management within the CPU.
2 VCCSA Phases
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Cooling
Comprehensive Thermal
Elite motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient
Easy & Friendly
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
Connectivity
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
Ultra Durable
Born from Ultra Durable
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.
Highlights
- Supports Intel Core Ultra processors (Series 2)
- Digital twin 14+1+2 phases VRM solution
- Dual Channel DDR5
- : 4*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive
- : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug
- : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus
- : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click
- : M.2 heatsinks with screwless design
- Sensor Panel Link
- : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI
- : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage
- : 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal
- : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking
- : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

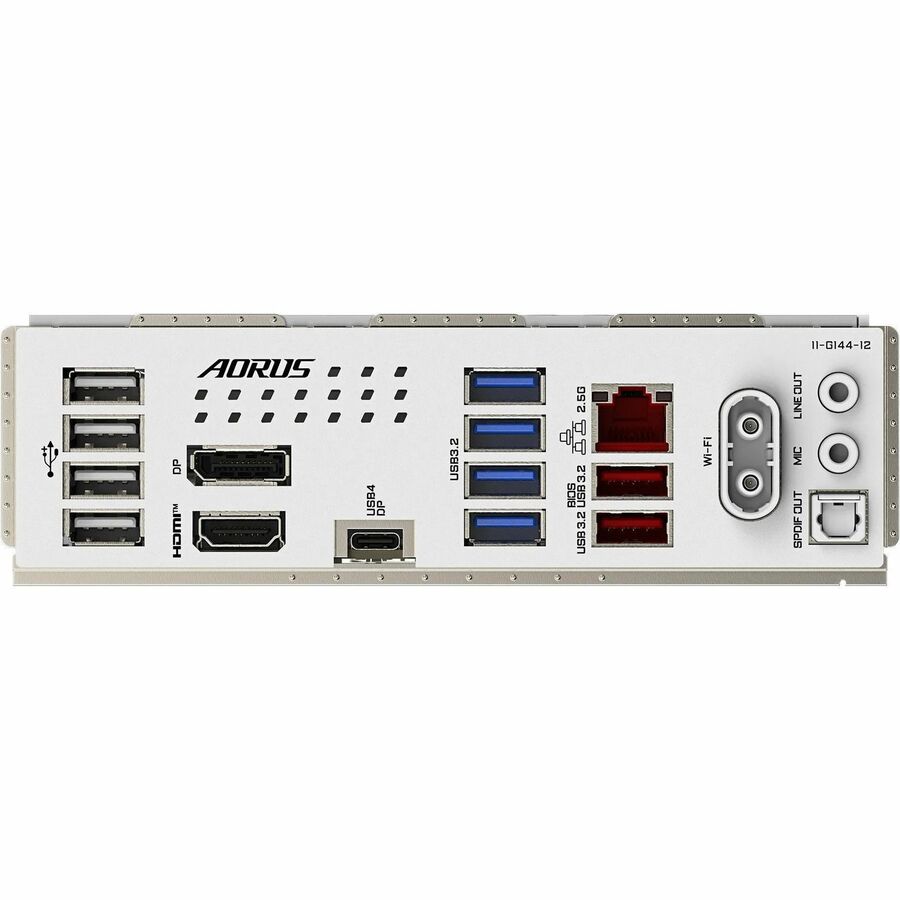

- Extended Connectivity
- : USB4 Type-C with DP-Alt, HDMI, DisplayPort
Specifications
| Product Type | Gaming Desktop Motherboard |
|---|---|
| Error Checking | ECC |
| Manufacturer Part Number | B860 AORUS ELITE WIFI7 ICE |
| Maximum Memory Supported | 256 GB |
| S/PDIF | Yes |
| Form Factor | ATX |
| Manufacturer | GIGABYTE Technology, Inc |
| Product Model | B860 A ELITE WF7 ICE |
| Product Name | Ultra Durable B860 A ELITE WF7 ICE Gaming Desktop Motherboard |
| Processor Supported | Core Ultra |
| Product Line | Ultra Durable |
| RAID Levels | 0, 1, 5, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1851 |
| Brand Name | GIGABYTE |
| Memory Technology | DDR5 SDRAM |
| Width | 12" |
| Depth | 9.6" |
| Chipset Manufacturer | Intel |
| Chipset Model | B860 |
| Number of Memory Slots | 4 |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Number of SATA Interfaces | 4 |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Bluetooth Standard | Bluetooth 5.4 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 3 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 11 |
| Number of USB 2.0 Ports | 4 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| PCI Express Standard | PCI Express 5.0, PCI Express 4.0 |
| Total Number of PCI Express Slots | 3 |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 3 |
| Number of M.2 Interfaces | 3 |
| Memory Speed Supported | 9200 MHz, 8800 MHz, 8600 MHz, 8400 MHz, 8266 MHz, 8200 MHz, 8000 MHz, 7950 MHz, 7900 MHz, 7800 MHz, 7600 MHz, 7400 MHz, 7200 MHz, 7000 MHz, 6800 MHz, 6600 MHz, 6400 MHz, 5600 MHz |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| 2.5Gigabit Ethernet | Yes |
| AI-powered | Yes |
