Ryzen 9, Ryzen 7 Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax/be - HDMI - DisplayPort - 4 x SATA Interfaces
MSRP$259.99
$246.31
Save 5%Special order — estimated available by September 10, 2026.
Genuine MSI through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

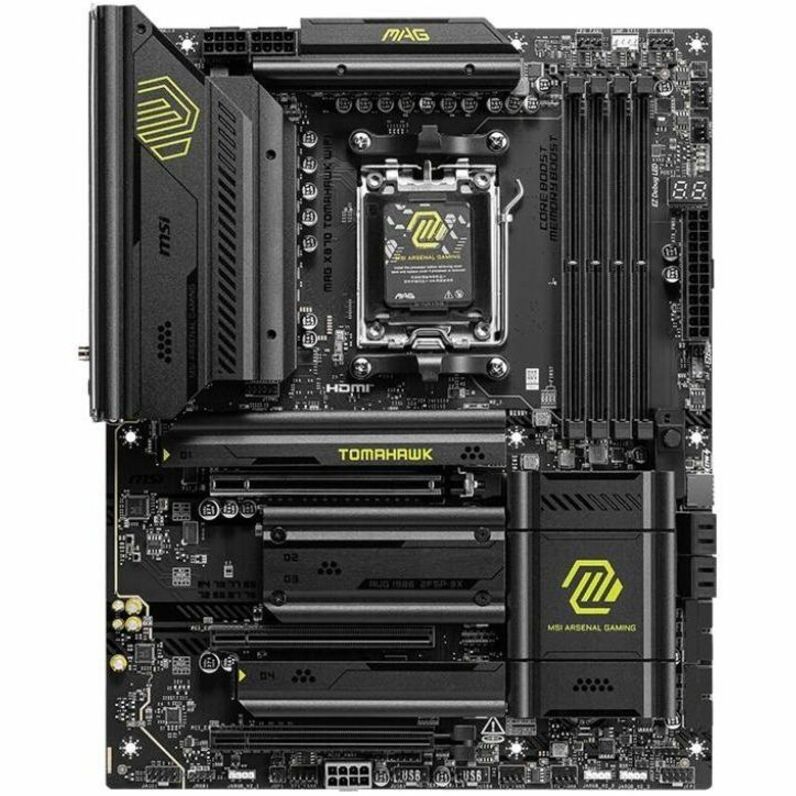

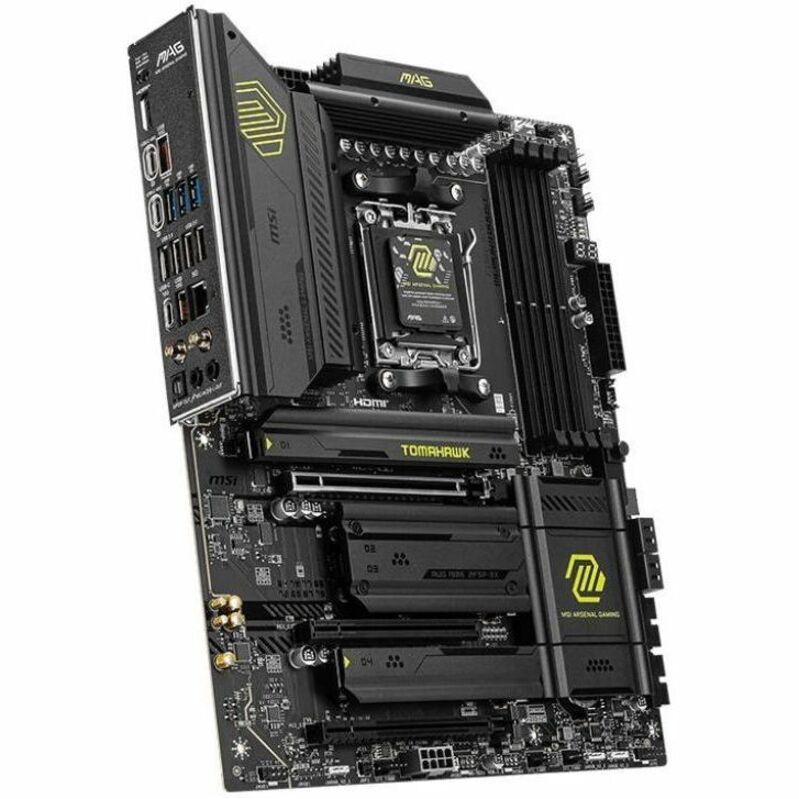

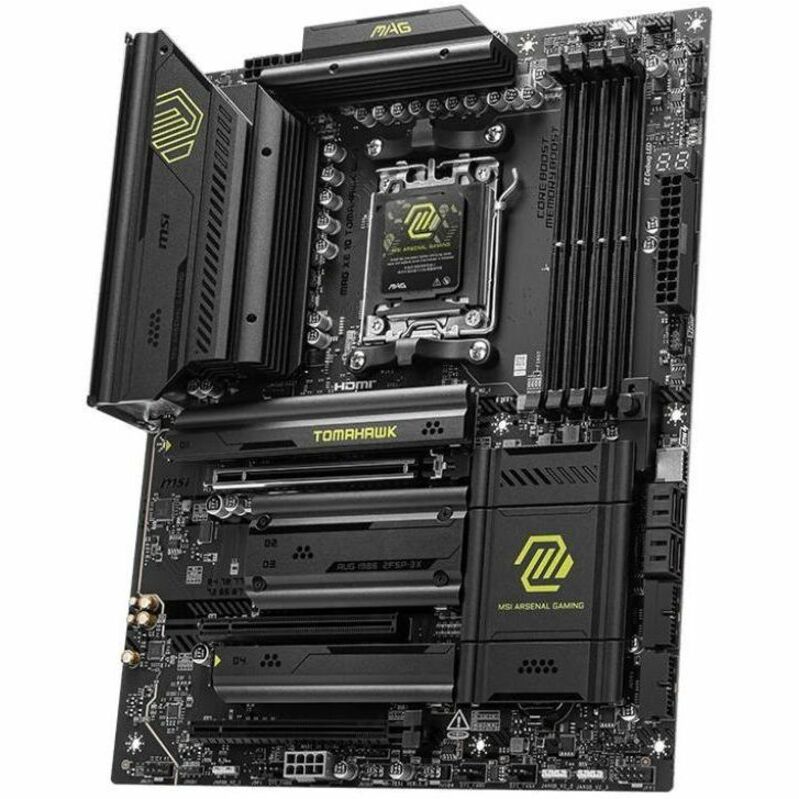

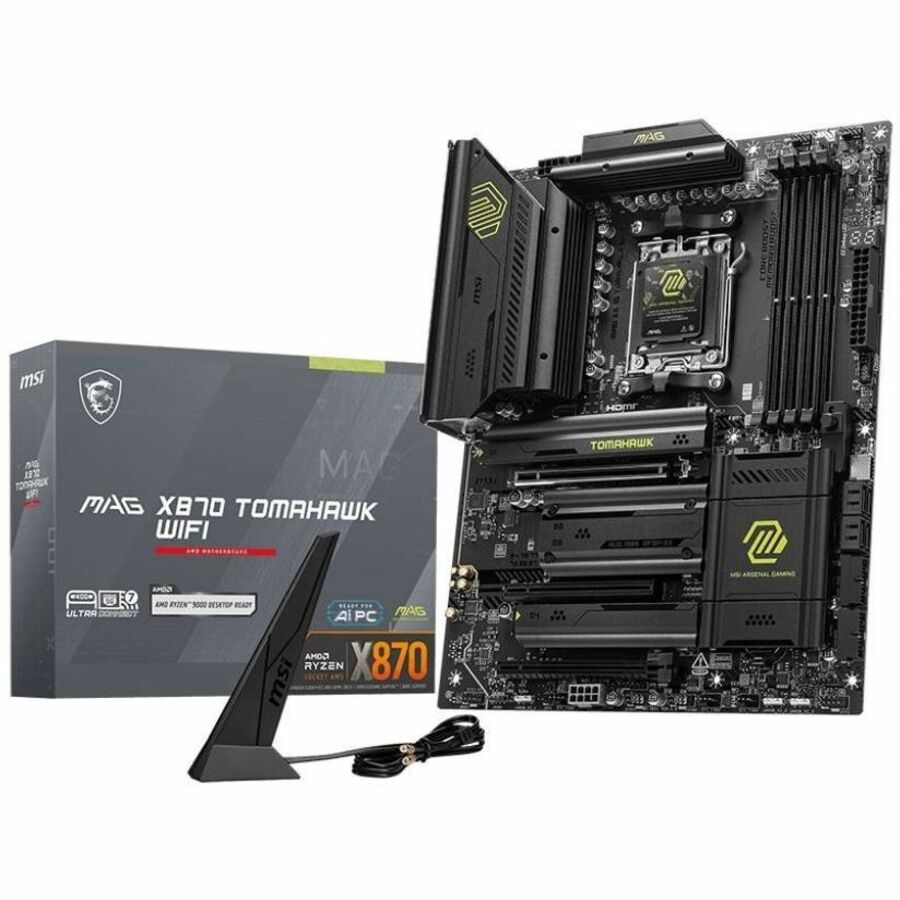

MAG X870 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefied of AMD Ryzen 9000 series processors.
The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario.
However, MAG isn't just about performance; it's a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defense.
EZ DIY
ULTRA PERFORMANCE
DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG X870 TOMAHAWK WIFI is ready to deliver the world-class memory performance.
FROZR DESIGN
TRILINK
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
Experience
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO technology and PCIe 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen 9000, 8000, and 7000 Series processors.
Dedicated to customer-driven innovation, MSI leverages its remarkable R&D strengths to craft top-notch, well-acclaimed motherboards, graphics cards, notebook PCs and All-in-One PCs. The Overclocking Series is designed for enthusiasts who pursue extreme performance and go after world records. Aimed at fulfilling the needs and expectations toward professional gaming, the MSI GAMING Series receives gamers’ unanimous acclaim. Incorporating Military Class components, the Classic Series has an excellent reputation for quality and durability. All these distinctive products have made MSI a forerunner in the middle-range and high-end market. Also adding to the lineup are cloud servers, tailor-made IPCs, intelligent panoramic camera (Panocam), robotic appliances and human-centric vehicle electronics that further demonstrate MSI's strengths and endeavors in consumer, commercial and IOT(Internet of Things) markets.
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| General Information | |
| Manufacturer | MSI |
| Manufacturer Part Number | X870TMAHAWKWIFI |
| Brand Name | MSI |
| Product Line | MAG |
| Product Model | X870 TOMAHAWK WIFI |
| Product Name | MAG X870 TOMAHAWK WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 10 |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| PCI Express Standard | PCI Express 3.0, PCI Express 4.0, PCI Express 5.0 |
| Number of PCI Express x16 Slots | 1 |

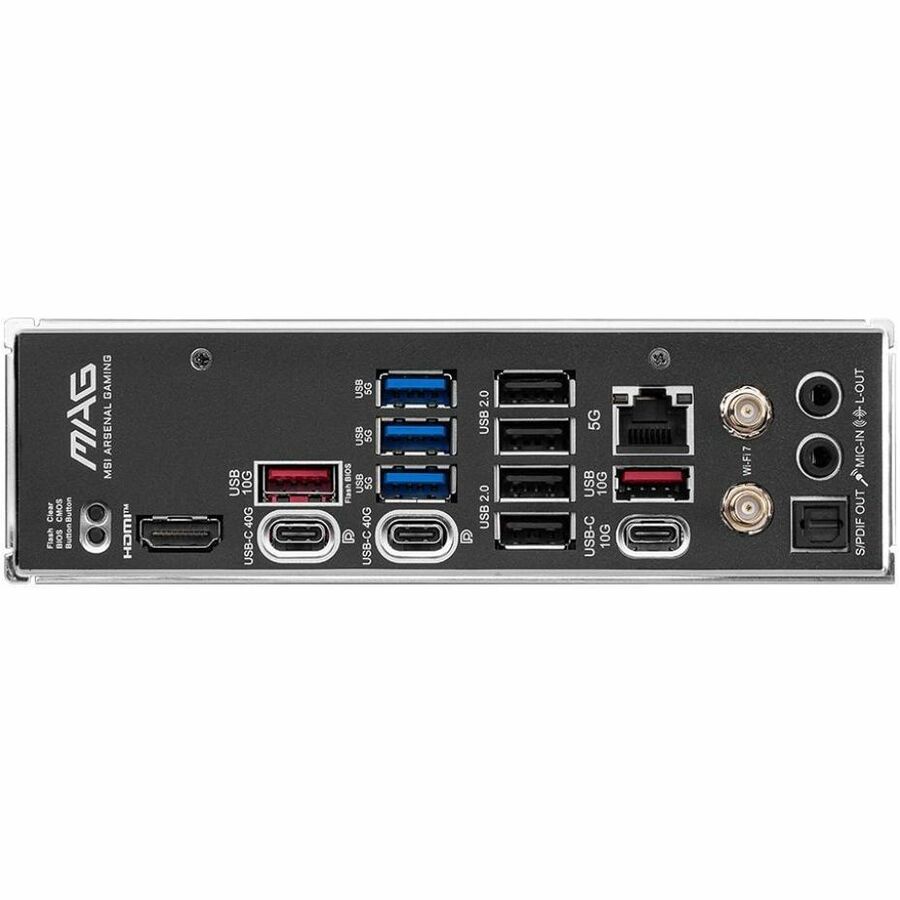

| Interfaces/Ports | |
| Total Number of USB Ports | 12 |
| Number of USB 2.0 Ports | 4 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM, UDIMM |
| Maximum Memory Supported | 256 GB |
| Memory Speed Supported | 8000 MHz, 7800 MHz, 7600 MHz, 7200 MHz, 7000 MHz, 6800 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5600 MHz, 5200 MHz, 4800 MHz, 5800 MHz, 5400 MHz, 5000 MHz, 8400 MHz, 8200 MHz |
| Memory Technology | DDR5 SDRAM |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 4 |
| Total Number of Onboard USB Ports | 9 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Weight (Approximate) | 5 lb |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | X870 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 9, Ryzen 7 |
| Multi GPU Supported | CrossFireX |
| Technical Information | |
| AI-powered | Yes |
| Video | |
| Onboard Video | CPU Dependent Video |
| Miscellaneous | |
| Package Contents |
|
