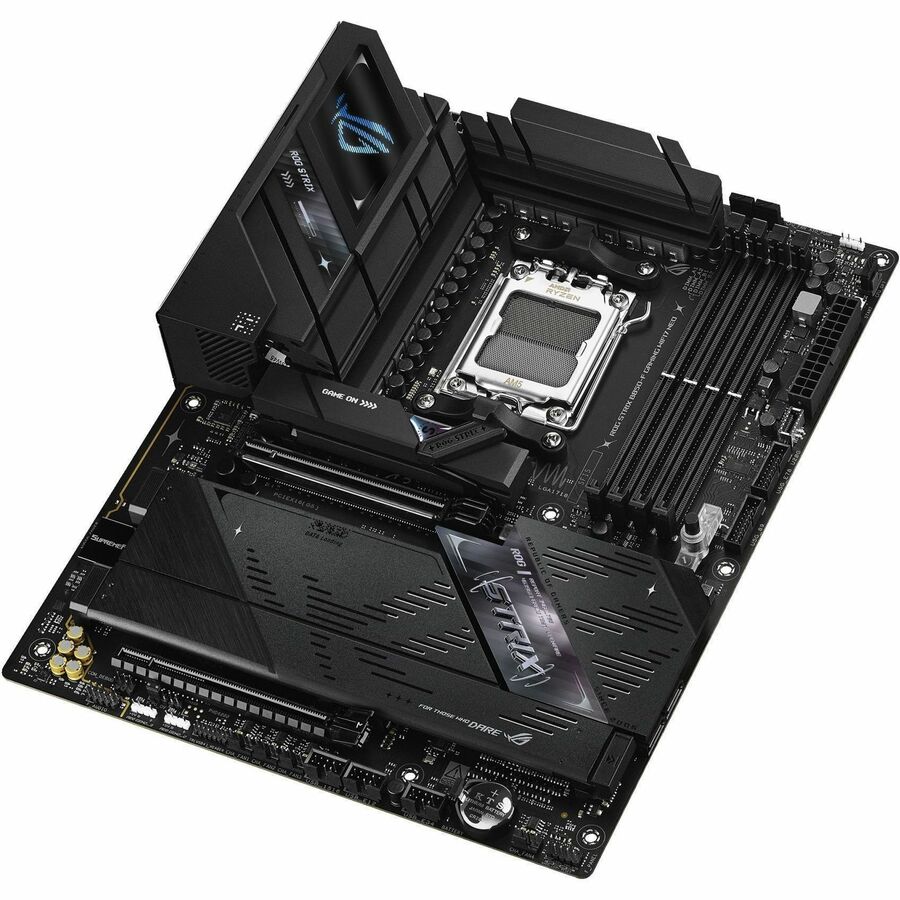

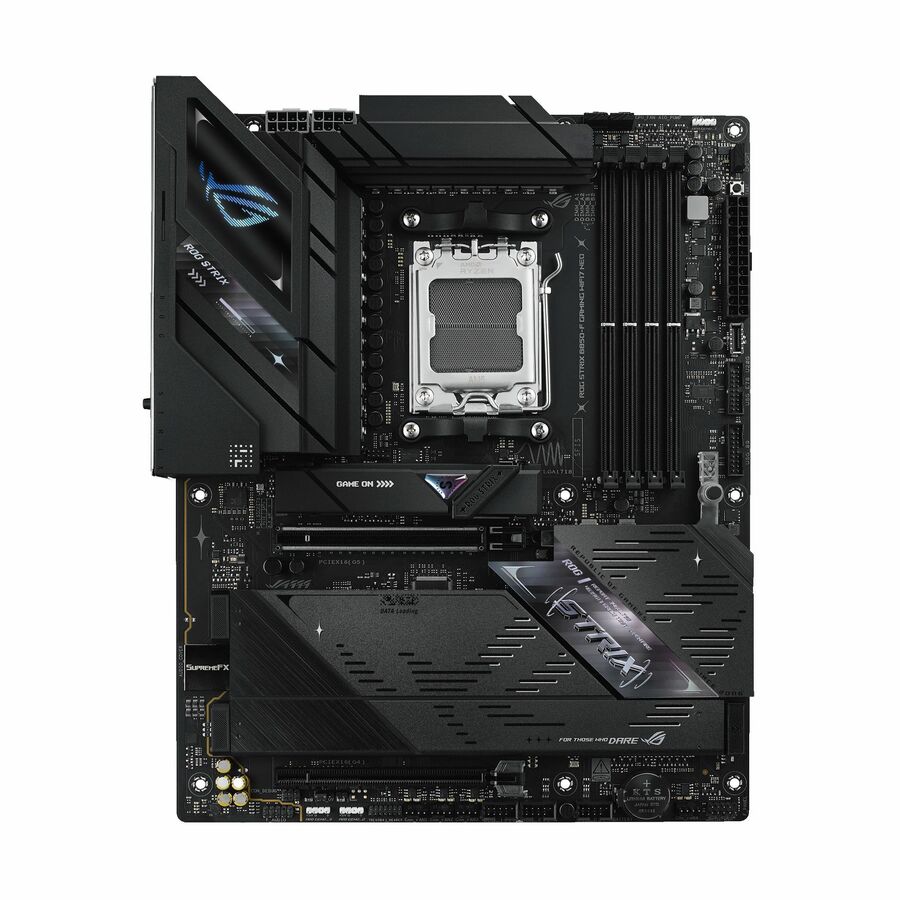

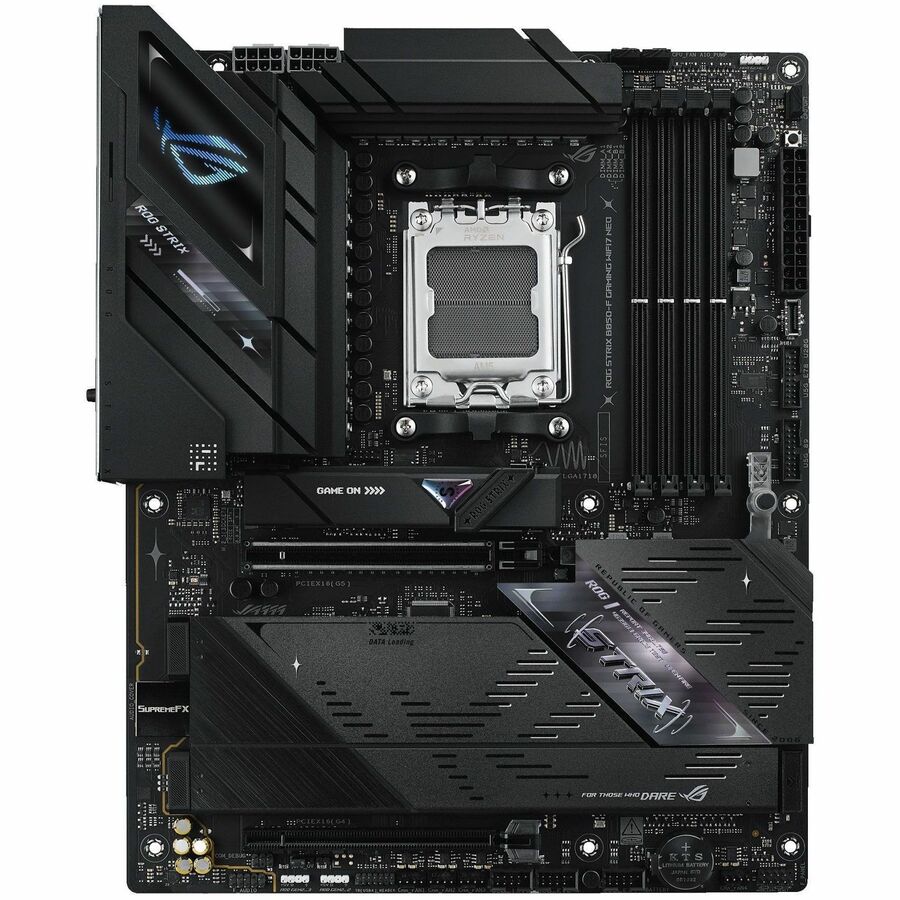

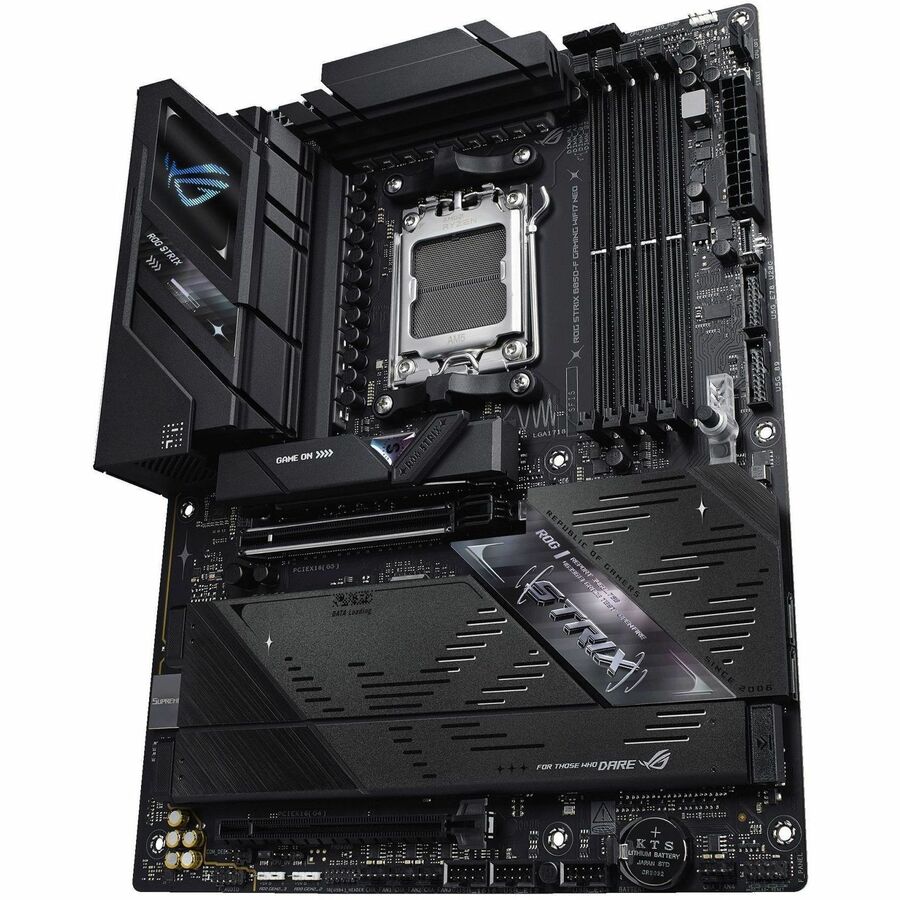

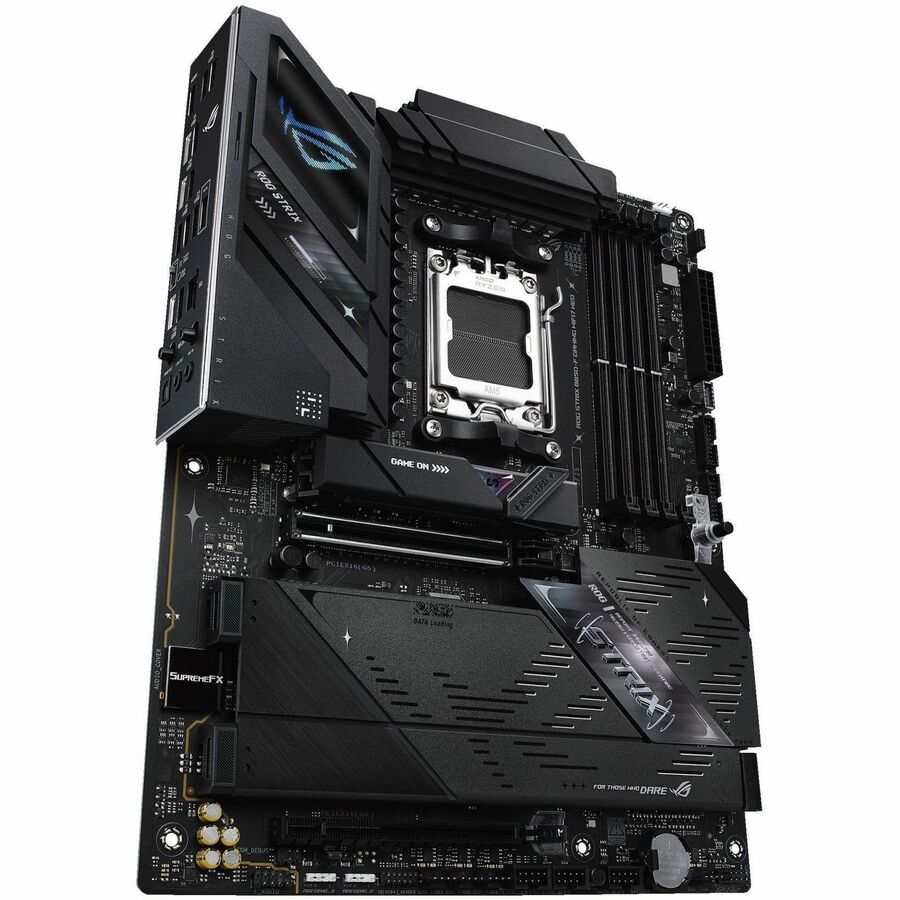

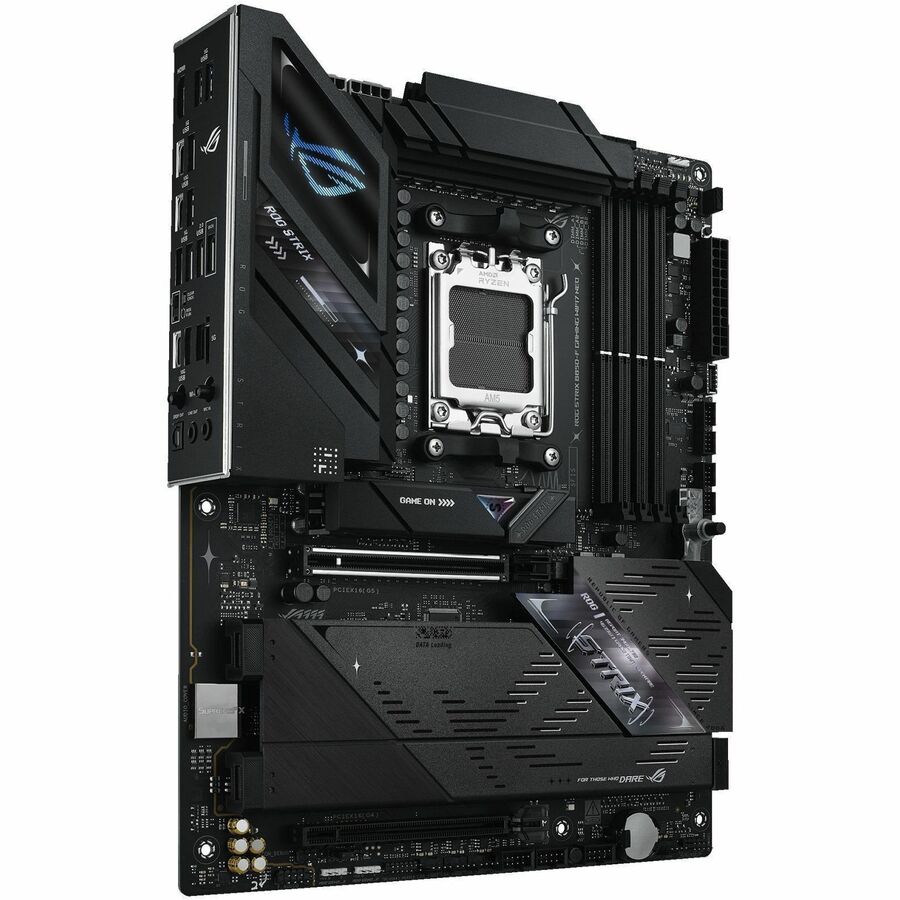

Asus ROG Strix B850-F GAMING WIFI7 NEO Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - ATX
Ryzen 7, Ryzen 9 Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11be - HDMI - 2 x SATA Interfaces
- SKU
- ROG STRIX B850-F GAMING WIFI7 NEO
- Category
- Motherboards
$321.17
Back ordered — ships when restocked.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- ROG STRIX B850-F GAMING WIFI7 NEO
- Category
- Motherboards
Overview
ROG STRIX B850-F GAMING WIFI7 NEO
The ROG STRIX B850-F GAMING WIFI7 Neo is engineered to dominate. Built to unleash the full potential of AMD Ryzen? 9000, 8000, and 7000 Series processors, this motherboard combines advanced power design with AI technologies to ensure peak performance. It delivers the uncompromised speed and stability essential for elite gaming and the demands of next-gen AI PC applications.
ASUS AI INTELLIGENCE | AI CACHE BOOST
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen? 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.
Performance | OVERCLOCKING
Asynchronous Clock
For next-level frequency flexibility, the ROG STRIX B850-F GAMING WIFI7 Neo features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed. Drive CPU performance to its absolute brink while maintaining the stability of related clock domains. Separate CPU BCLK from other domains for unfettered overclocking
PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
Performance | MEMORY
Server-Grade DRAM Enhancement
The ROG STRIX B850-F GAMING WIFI7 Neo is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.
AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.
Highlights
- Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
- RAID supported levels provide data reliability and fault tolerance
- Wireless support reduces the number of cables required to connect peripherals
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Specifications
| Product Type | Gaming Desktop Motherboard |
|---|---|
| Error Checking | ECC |
| Manufacturer Part Number | ROG STRIX B850-F GAMING WIFI7 NEO |
| Maximum Memory Supported | 256 GB |
| S/PDIF | Yes |
| Form Factor | ATX |
| Manufacturer | ASUS Computer International |
| Product Model | B850-F GAMING WIFI7 NEO |
| Product Name | STRIX B850-F GAMING WIFI7 NEO Gaming Desktop Motherboard |
| Processor Supported | Ryzen 7, Ryzen 9 |
| Product Line | Strix |
| RAID Levels | 0, 1, 5, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket AM5 |
| Brand Name | Asus ROG |
| Memory Technology | DDR5 SDRAM |
| Width | 12" |
| Depth | 9.6" |
| Chipset Manufacturer | AMD |
| Chipset Model | B850 |
| Number of Memory Slots | 4 |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Number of SATA Interfaces | 2 |
| Wireless LAN Standard | IEEE 802.11be |
| Bluetooth Standard | Bluetooth 5.4 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 4 |
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Total Number of USB Ports | 12 |
| Total Number of Onboard USB Ports | 11 |
| Number of Onboard USB 2.0 Ports | 6 |
| PCI Express Standard | PCI Express 4.0, PCI Express 5.0 |
| Total Number of PCI Express Slots | 4 |
| Thunderbolt | Yes |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 4 |
| Number of M.2 Interfaces | 4 |
| Memory Speed Supported | 9000 MHz, 8400 MHz, 8200 MHz, 8600 MHz, 8000 MHz |
| 2.5Gigabit Ethernet | Yes |
| AI-powered | Yes |
