8-port KVM USB/PS2 Rack Mount Switch
$170.12
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The 8-Port USB KVM Switch lets you manage multiple computers with just one set of keyboard, monitor and mouse. This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side. Popular hardware platforms such as PC, Linux and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 8-Port USB KVM Switch is the perfect choice for managing multiple PC's.
• PC & CONSOLE PORT INTERFACE: PC: 8 x VGA HDB 15-pin (female); Console: To KVM: 1 x VGA HDB 15-pin (male), To Computer: 1 x VGA HDB 15-pin (male), 1 x USB (Type A)
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant KVM Switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• MANUFACTURER PROTECTION: We stand by the quality of our products.The TK-803R 8-Port USB/PS2 Rack Mount KVM Switch is backed and supported with 2 years of TRENDnet Manufacturer Protection.
• MANAGE MULTIPLE PC'S: This 8-Port KVM Switch enables you to control and manage up to 8 computers or servers with just one set made up of a keyboard, monitor and mouse.
• SUPPORTED OS: The KVM switch supports Windows, Linux, Unix and Mac OS
• VIDEO QUALITY: The 8 Port Switch delivers high video quality, up to 2048 x 1536 VGA resolution
• CABLES SOLD SEPARATELY: Compatible cables for use TK-CU06 (6ft), TK-CU10 (10ft), TK-CU15 (15ft)
• USB & PS/2 INTERFACE: This rack mount device supports USB and PS/2 interface on the console side and USB only on the PC side.
• FLEXIBLE MANAGEMENT: Provides the ability to switch between PCs using hot-key or push button for flexible management; RACKMOUNT DESIGN: The rack mount KVM switch has a standard 19? (1U) rack mount design
More from the Manufacturer
TRENDnet's 8-Port Rackmount VGA KVM Switch, model TK-803R, lets you manage multiple computers with just one set of keyboard, monitor, and mouse. This rackmount USB KVM switch supports USB and PS/2 interface on the console side, and USB only on the PC side. Popular hardware platforms such as Windows, Linux, and Mac are supported. Users can switch between PCs using hot-key or push button for flexible management. Users can also hot-plug PCs on the fly to avoid downtime. The 8-Port Rackmount USB KVM Switch is the perfect choice for managing multiple PC's.
8-Port Rackmount KVM Switch
Controls up to 8 computers or servers
Console port supports both USB and PS/2 for keyboard and mouse interfaces
USB only for PC side mouse and keyboard connections
Supports Windows®, Linux®, Mac OS® and more
Supports up to 2048 x 1536 VGA resolution
Auto-scan for monitored PCs with adjustable scan interval from 10-99 seconds
Keyboard status restored when switching between computers
LEDs display for easy status monitoring
Audio notification for port switching confirmation (enable/disable)
Keyboard hot-key command or push button switching
Plug & Play and Hot-Pluggable
Required cabling sold separately (TK-CU06 / TK-CU10 / TK-CU15)
Standard 19” (1U) rackmount design
2 year warranty
NDAA / TAA compliant (U.S. and Canada only)

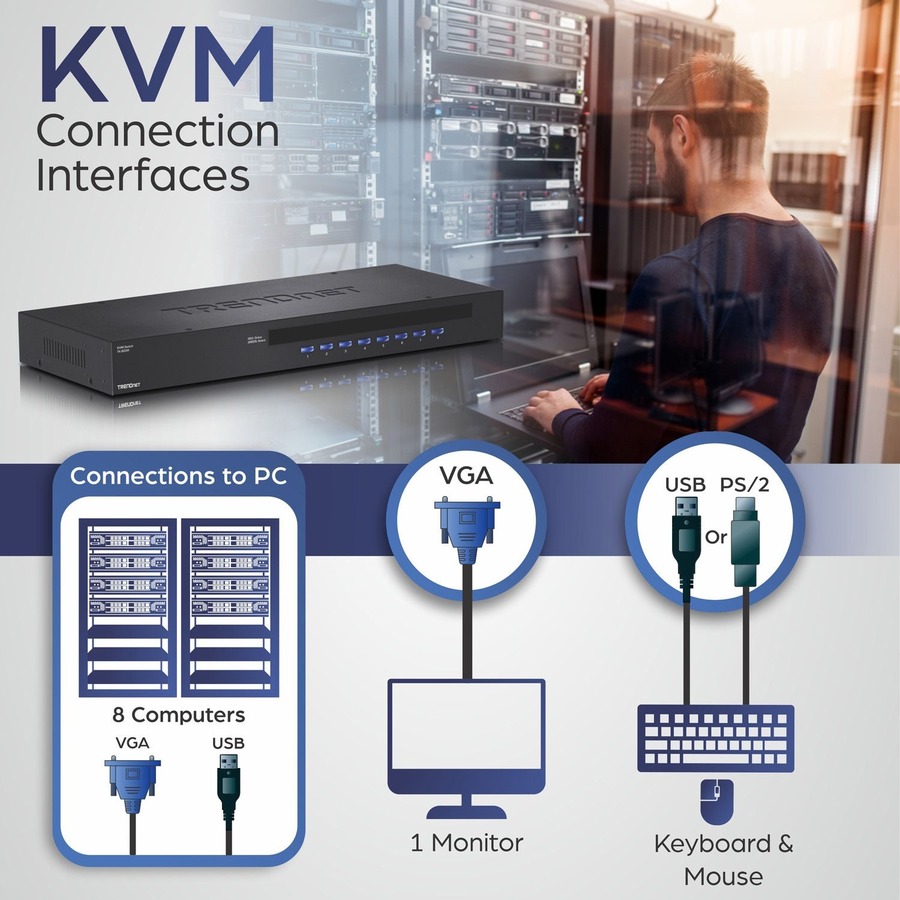

KVM Interface
USB and PS/2 interface on the console side and USB only on the PC side mouse and keyboard connections.
Video Resolution
Supports up to 2048 x 1536 VGA resolution.
8-Port KVM
Manage up to 8 computers with this rackmount USB KVM switch
SPECIFICATIONS

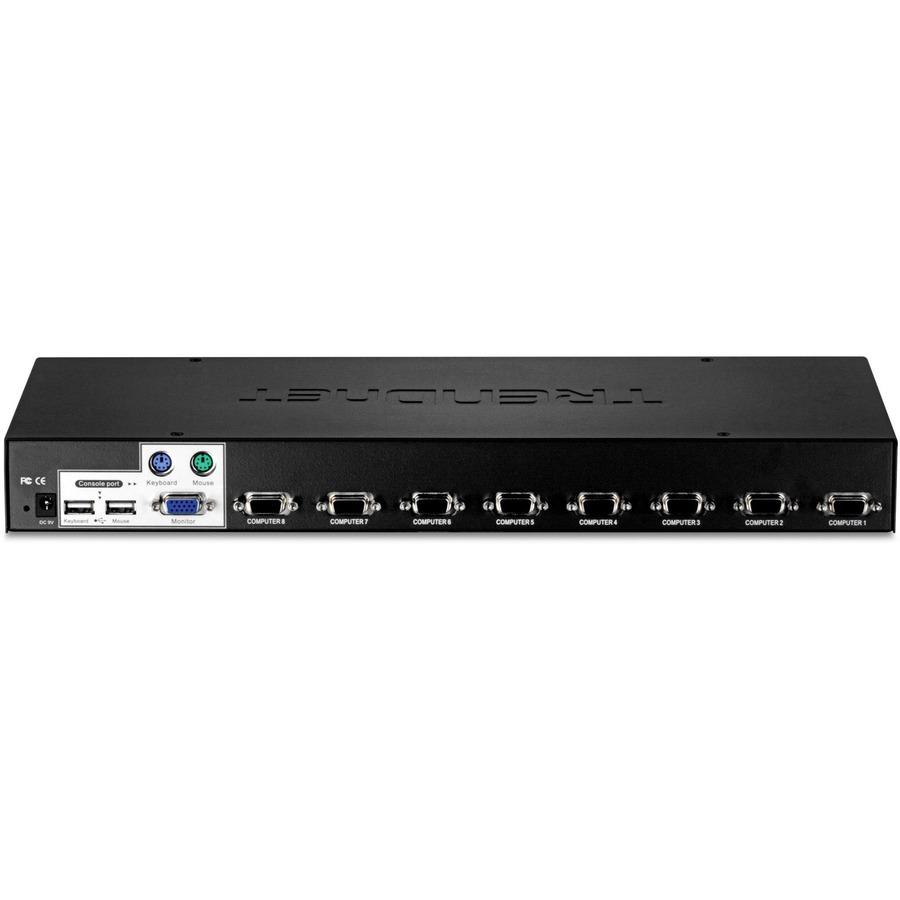

Console Port Connectors
Keyboard: USB Type A, PS/2
Mouse: USB Type A, PS/2
Monitor: VGA
Computer Interface (up to 8)
Keyboard/Mouse: USB Type A
Monitors: VGA
Monitor Resolution
2048 x 1536
Switching Control
Front panel push buttons
Keyboard hot key commands
Operating Temperature
0° – 40° C (32° – 104° F)
Operating Humidity
Max. 80% non-condensing
Power
Input: 100 – 240V AC, 50/60Hz, 0.8A
Output: 9V DC, 1.33A external power adapter
Max. consumption: 0.7W
Dimensions
407 x 165 x 45mm (16 x 6.5 x 1.8 in.)
Weight
1.8kg (4 lbs.)
Certifications
CE
FCC
Warranty
2 year
PACKAGE CONTENTS
TK-803R
Quick Installation Guide
Power adapter (9V DC, 1.33A)
Rackmount kit
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Limited Warranty: 2 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TK-803R |
| Brand Name | TRENDnet |
| Product Name | 8-Port Rackmount KVM Switch |
| Product Condition | New |
| Product Type | KVM Switchbox |
| Interfaces/Ports | |
| PS/2 Port | Yes |
| USB | Yes |
| VGA | Yes |
| Number of PS/2 Ports | 2 |
| Number of USB Ports | 2 |
| Number of VGA Ports | 9 |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.8" |
| Width | 16" |
| Depth | 6.5" |
| Weight (Approximate) | 3.97 lb |
| Power Description | |
| Input Voltage Range | 100 - 240V |
| Frequency | 50 Hz, 60 Hz |
| Technical Information | |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| Features | Plug and Play |
| Video | |
| Graphic Mode | VGA, QXGA |
| Maximum Video Resolution | 2048 x 1536 |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
Send a bill of materials or part numbers — we confirm stock, TAA country of origin and a below-market total. No payment up front.
