2 Computer(s) - 1 Local User(s) - 3840 x 2160 - 4 x USB - 3 x DisplayPort
$99.12
Special order — estimated available by September 10, 2026.
Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

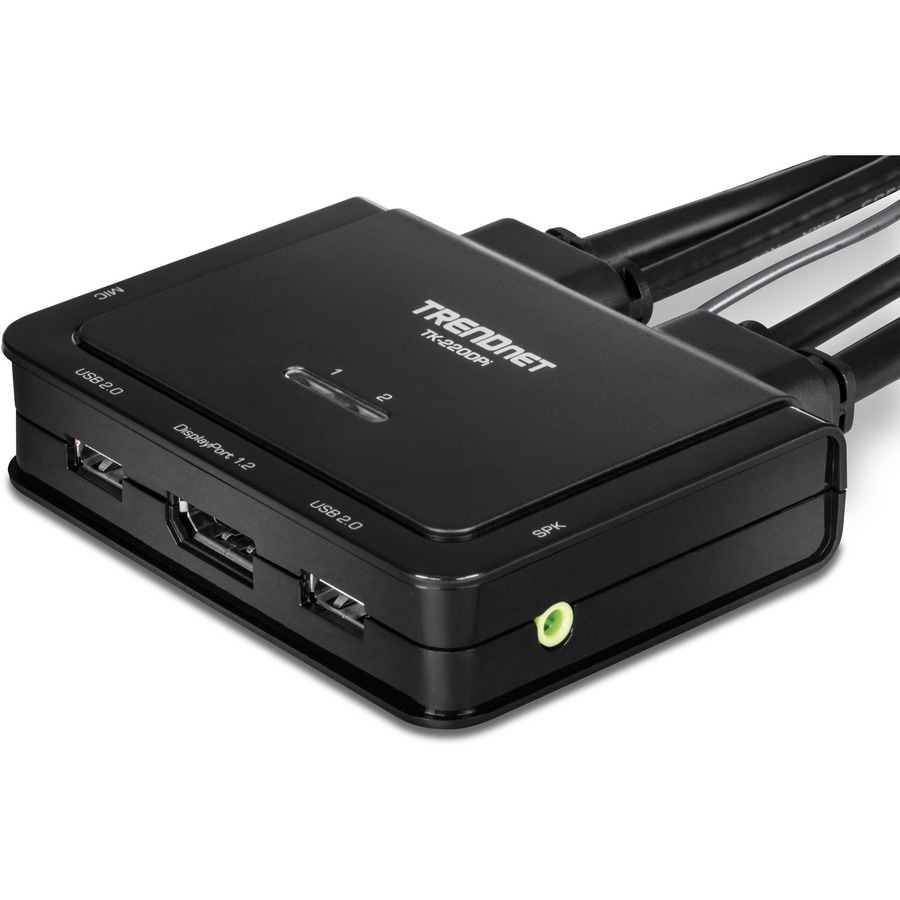

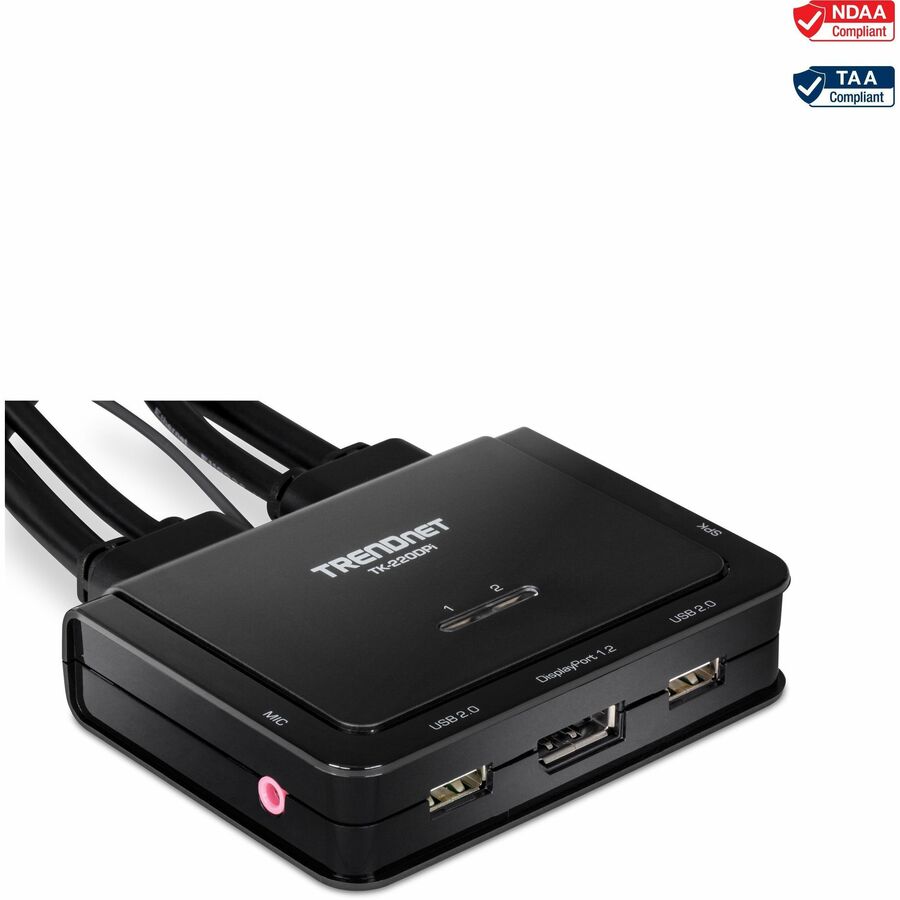

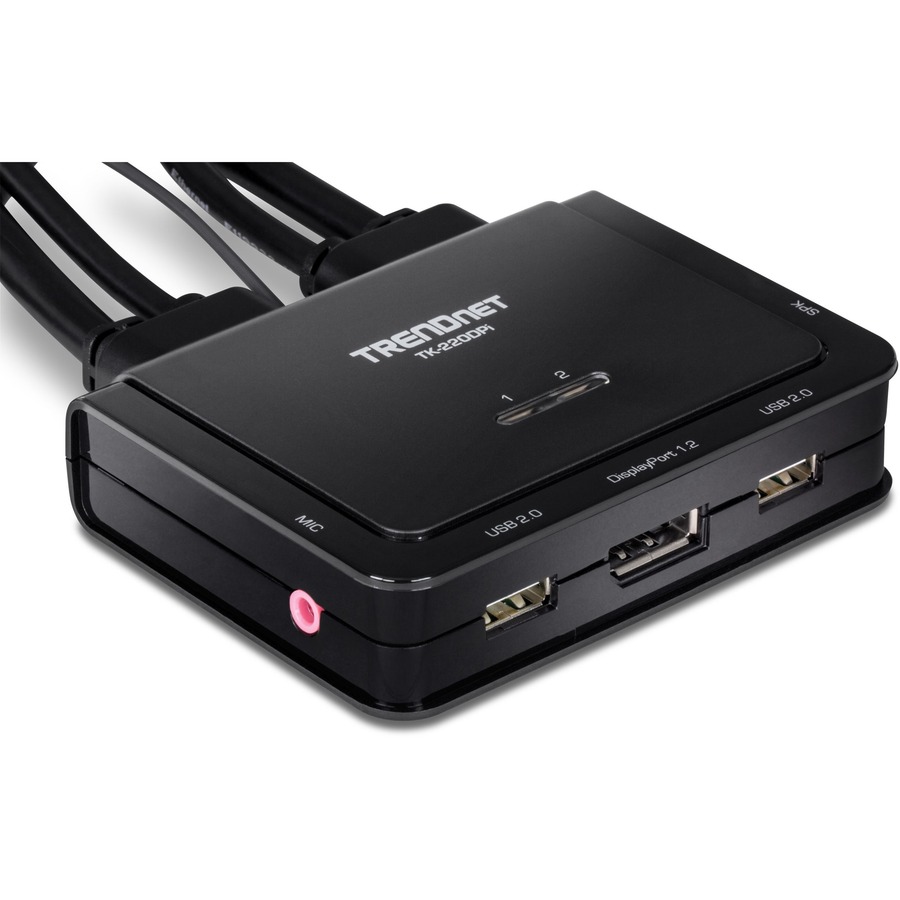

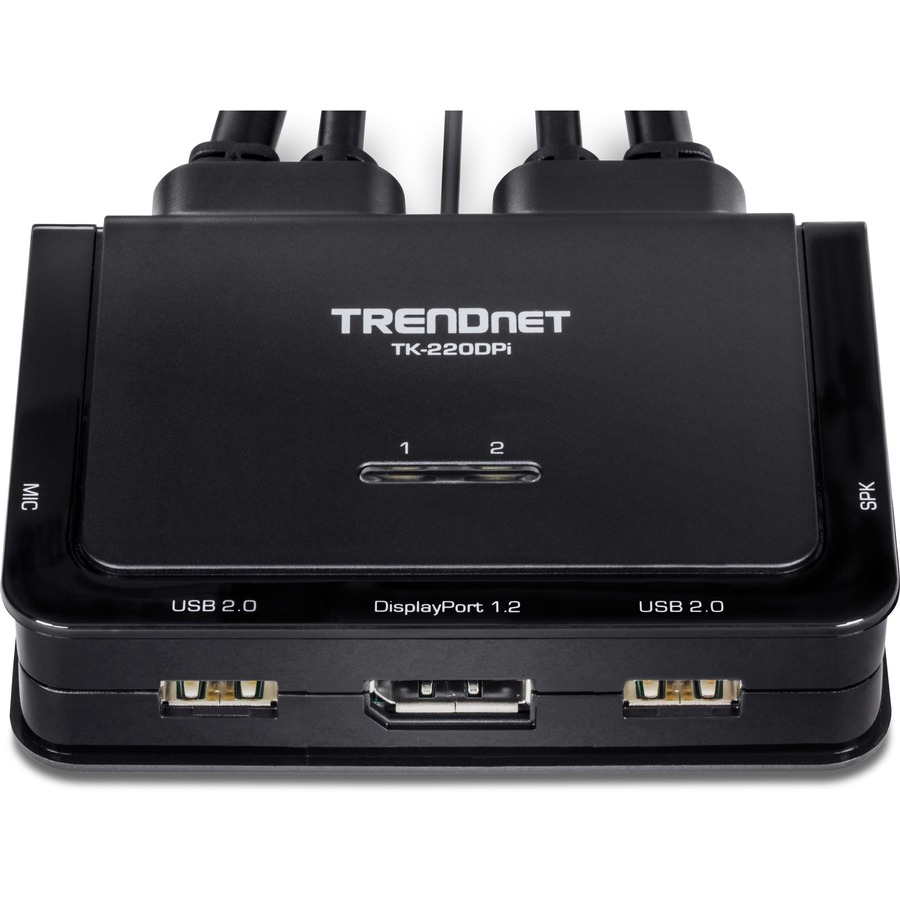

TRENDnet's 2-Port 4K DisplayPort KVM Switch, model TK-220DPi, allows you to control two computers with one set of console controls. Easily experience up to 4K UHD resolutions, no driver installation required. This compact DisplayPort switch is designed for 4K DisplayPort systems with USB mouse and keyboard connections. This UHD DisplayPort KVM switch also features 3.5mm speaker and microphone connections to switch between computers.
• COMPUTERS: Control two computers with one set of console controls
• MANUFACTURER PROTECTION: We stand by the quality of our products.The TK-220DPi 2-Port 4K DisplayPort KVM Switch is backed and supported with 2 years of TRENDnet Manufacturer Protection
• NDAA + TAA COMPLIANT: With our NDAA and TAA compliant KVM switches, you can plan and install networking solutions that Government customers demand today (U.S. and Canada Only)
• 4K UHD: 4K DisplayPort KVM switch supports resolutions up to 4K UHD (3840 x 2160) with a 60Hz refresh rate
• AUDIO SUPPORT:Full audio support maximizes work station productivity
• USB MOUSE & KEYBOARD: True Transparent USB (TTU) technology supports most keyboard and mouse designs
• DISPLAYPORT 1.2: DisplayPort 1.2 with HDCP support
• INTEGRATED CABLES: Fully integrated DisplayPort, USB, and audio cables
• USB powered - No external power adapter required
More from the Manufacturer
OVERVIEW
TRENDnet’s 2-Port 4K DisplayPort KVM Switch, model TK-220DPi, allows you to control two computers with one set of console controls. Easily experience up to 4K UHD resolutions, no driver installation required. This compact DisplayPort switch is designed for 4K DisplayPort systems with USB mouse and keyboard connections. This UHD DisplayPort KVM switch also features 3.5mm speaker and microphone connections to switch between computers.
4K DisplayPort 1.2
This DisplayPort switch is designed for DisplayPort systems with resolutions up to 3840 x 2160 @ 60Hz.
Audio Support
Full audio support through DisplayPort KVM cable connections with optional 3.5mm microphone and speaker jacks.
Quick Toggle Switch
Use the integrated 1.5m (4.9 ft.) cable to position the toggle switch in the most convenient location.
Computers
2-Port DisplayPort KVM controls up to 2 computers
4K UHD
4K DisplayPort KVM switch supports resolutions up to 4K UHD (3840 x 2160) with a 60Hz refresh rate
Audio Support
Full audio support maximizes work station productivity
USB Mouse & Keyboard
True Transparent USB (TTU) technology supports most keyboard and mouse designs
DisplayPort 1.2
DisplayPort 1.2 with HDCP support
Integrated Cables
Fully integrated DisplayPort, USB, and audio cables
Computer Ports
Requires free USB and DisplayPort ports from connected computers
Hot Keys
This DisplayPort switch features Hot Key command shortcuts
SPECIFICATIONS
Console Port Connectors
Keyboard: USB Type A
Mouse: USB Type A
Monitors: 1 x DisplayPort 1.2
Speaker jack: 3.5mm
Microphone jack: 3.5mm
Computer Interface (up to 2)
Keyboard/Mouse: USB 2.0 Type A
Monitors: DisplayPort 1.2
Speaker jack: 3.5mm
Microphone jack: 3.5mm
Cable length: 1.5m (4.92 ft.)
Monitor Resolution
Up to 1920 x 1080 @ 144Hz
Up to 1920 x 1200 @ 144Hz
Up to 1920 x 1440 @ 144Hz
Up to 2560 x 1440 @ 144Hz
Up to 3440 x 1440 @ 60Hz
Up to 3840 x 2160 @ 60Hz
Switching Control
One touch toggle switch
Keyboard hot key commands
Audio Support
5.1 Audio support over DisplayPort cables
Analog audio over speaker and microphone jacks
Operating Temperature
0° – 40° C (32° – 104° F)
Operating Humidity
Max. 90% non-condensing
Dimensions
164 x 87 x 45mm (6.4 x 3.4 x 1.77 in.)
Weight
578g (1.27 lbs.)
Certifications
CE
FCC
Warranty
2 year
PACKAGE CONTENTS
TK-220DPi
Quick Installation Guide
Limited Warranty: 2 Year
| General Information | |
|---|---|
| Manufacturer | TRENDnet |
| Manufacturer Part Number | TK-220DPI |
| Brand Name | TRENDnet |
| Product Model | TK-220DPI |
| Product Name | 2-Port 4K DisplayPort KVM Switch TK-220DPi (v1.0R) |
| Product Type | KVM Switchbox |
| Interfaces/Ports | |
| USB | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 4 |
| Number of DisplayPorts | 3 |
| Physical Characteristics | |
| Height | 1.8" |
| Width | 6.5" |
| Depth | 3.4" |
| Weight (Approximate) | 1.27 lb |
| Technical Information | |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
